Rear Doors, Hinges & Weatherstrips (Finisher And Seals) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Rear Doors, Hinges & Weatherstrips (Finisher And Seals) ((V) FROMAA000001)

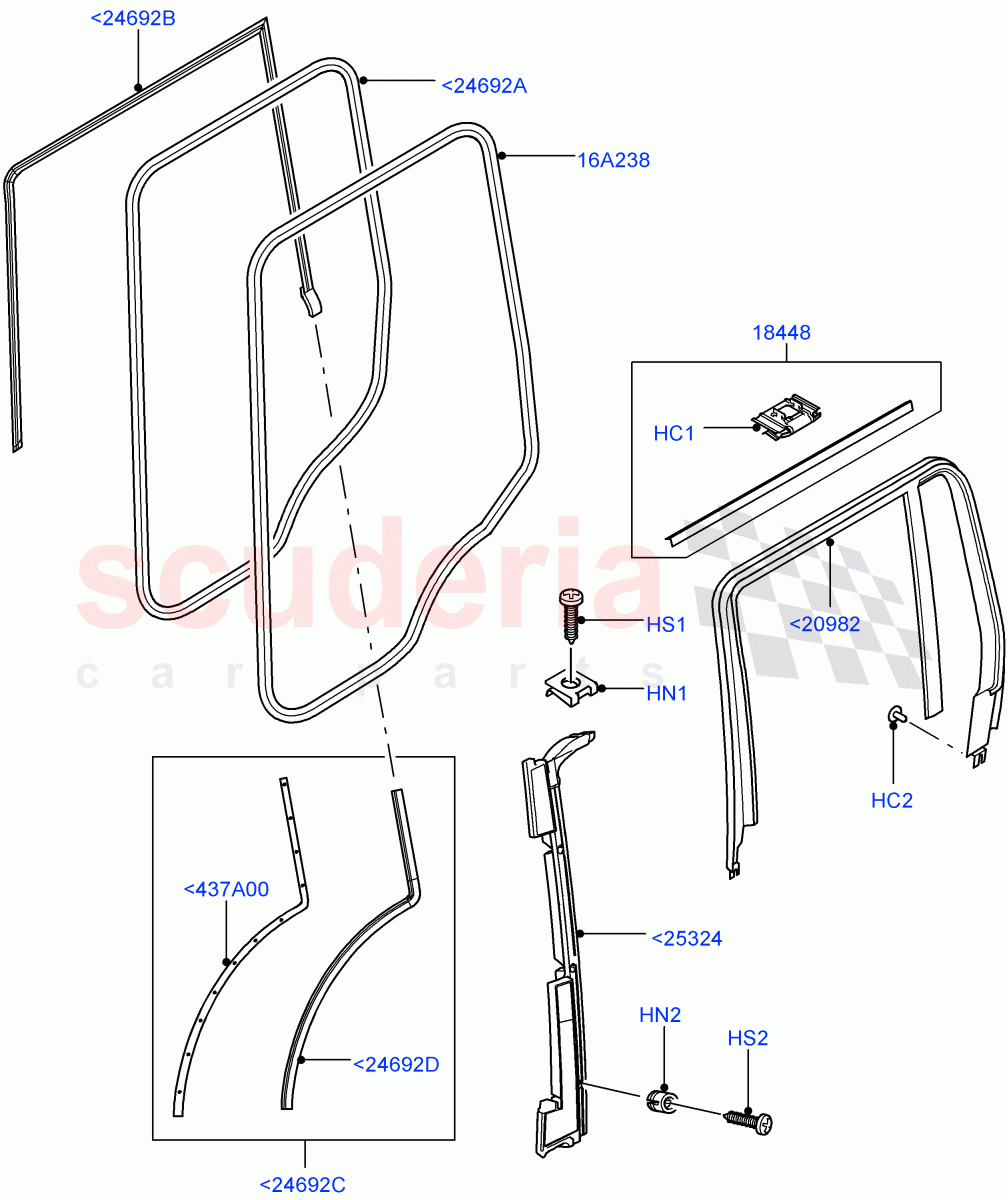

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DDQ000010	CLIP	$2.96	To Order

Photo	Part No	Description	Price (each)	Stock
	EZM000020	CLIP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	EYH500011	NUT	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	BYU000010	NUT	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP000120	SCREW	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500510	SCREW	$3.20	To Order

Photo	Part No	Description	Price (each)	Stock
	DDE500020PMD	FINISHER	$128.37	To Order
	DDE500030PMD	FINISHER	$140.49	To Order
	LR024148	FINISHER	$186.42	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012747	MOULDING - DOOR WINDOW FRAME	$751.30	To Order
	LR012749	MOULDING - DOOR WINDOW FRAME	$607.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016856	SEAL - DOOR FRONT AND REAR	$78.84	To Order
	LR016864	SEAL - DOOR FRONT AND REAR	$78.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013943	WEATHERSTRIP - DOOR OPENING	$110.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012459	SEAL	$123.63	To Order

Photo	Part No	Description	Price (each)	Stock
	CGE500780	SEAL	$191.52	To Order
	CGE500790	SEAL	$175.81	To Order
	LR021645	SEAL	$101.47	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR011846	SEAL - WHEELHOUSE	$64.38	To Order
	LR037762	SEAL - DOOR FRONT AND REAR	$161.22	To Order
	LR037760	SEAL - DOOR FRONT AND REAR	$161.22	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR031949	CLIP - WEATHERSTRIP	$102.40	To Order
	LR031403	CLIP - WEATHERSTRIP	$102.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031395	SEAL - DOOR FRONT AND REAR	$50.10	To Order
	LR031396	SEAL - DOOR FRONT AND REAR	$50.10	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<437A00	LR031395	SEAL - DOOR FRONT AND REAR	LR031395 SEAL - DOOR FRONT AND REAR RH, Clips Only / From: AA000001	$50.10	1
<437A00	LR031396	SEAL - DOOR FRONT AND REAR	LR031396 SEAL - DOOR FRONT AND REAR LH, Clips Only / From: AA000001	$50.10	1
<20982	LR012747	MOULDING - DOOR WINDOW FRAME	LR012747 MOULDING - DOOR WINDOW FRAME RH, Black / From: AA000001	$751.30	1
<20982	LR012749	MOULDING - DOOR WINDOW FRAME	LR012749 MOULDING - DOOR WINDOW FRAME LH, Black / From: AA000001	$607.50	1
<24692A	LR012459	SEAL	LR012459 SEAL On Body, Secondary / From: AA000001	$123.63	1
<24692B	CGE500780	SEAL	CGE500780 SEAL RH / From: AA000001 / To: AA310413	$191.52	1
<24692B	CGE500790	SEAL	CGE500790 SEAL LH / From: AA000001 / To: AA310413	$175.81	1
<24692B	LR021645	SEAL	LR021645 SEAL RH / From: AA310414 / To: CA384716	$101.47	1
<24692B	LR021646	SEAL	LR021646 SEAL LH / From: AA310414 / To: CA384716	$140.24	1
<24692B	LR041419	SEAL	LR041419 SEAL RH / From: CA384717	$87.47	1
<24692B	LR041418	SEAL	LR041418 SEAL LH / From: CA384717	$88.48	1
<24692C	LR011846	SEAL - WHEELHOUSE	LR011846 SEAL - WHEELHOUSE RH / From: AA000001 / To: CA389224	$64.38	1
<24692C	LR037762	SEAL - DOOR FRONT AND REAR	LR037762 SEAL - DOOR FRONT AND REAR LH / From: AA000001 / To: CA389224	$161.22	1
<24692C	LR037760	SEAL - DOOR FRONT AND REAR	LR037760 SEAL - DOOR FRONT AND REAR RH / From: CA389225	$161.22	1
<24692C	LR037762	SEAL - DOOR FRONT AND REAR	LR037762 SEAL - DOOR FRONT AND REAR LH / From: CA389225	$161.22	1
<24692D	LR031949	CLIP - WEATHERSTRIP	LR031949 CLIP - WEATHERSTRIP RH, Seal Only / From: AA000001	$102.40	1
<24692D	LR031403	CLIP - WEATHERSTRIP	LR031403 CLIP - WEATHERSTRIP LH, Seal Only / From: AA000001	$102.40	1
<25324	LR016856	SEAL - DOOR FRONT AND REAR	LR016856 SEAL - DOOR FRONT AND REAR RH / From: AA000001	$78.84	1
<25324	LR016864	SEAL - DOOR FRONT AND REAR	LR016864 SEAL - DOOR FRONT AND REAR LH / From: AA000001	$78.84	1
HC1	DDQ000010	CLIP	DDQ000010 CLIP Finishers / From: AA000001	$2.96	3
HC2	EZM000020	CLIP	EZM000020 CLIP Frame Assy / From: AA000001	$1.39	2
HN1	EYH500011	NUT	EYH500011 NUT "Spring", Finisher, For 3.5MM Screw / From: AA000001	$4.39	3
HN2	BYU000010	NUT	BYU000010 NUT "C" Pillar / From: AA000001	$1.21	3
HS1	CYP000120	SCREW	CYP000120 SCREW Finisher / From: AA000001	$1.21	3
HS2	FYP500510	SCREW	FYP500510 SCREW "C" Pillar, Screw 4X14.5MM / From: AA000001	$3.20	3
16A238	LR013943	WEATHERSTRIP - DOOR OPENING	LR013943 WEATHERSTRIP - DOOR OPENING On Door, Primary Seal, RH/LH / From: AA000001	$110.88	2
18448	DDE500020PMD	FINISHER	DDE500020PMD FINISHER RH / From: AA000001 / To: AA329819	$128.37	1
18448	DDE500030PMD	FINISHER	DDE500030PMD FINISHER LH / From: AA000001 / To: AA329819	$140.49	1
18448	LR024148	FINISHER	LR024148 FINISHER LH / From: AA329820	$186.42	1
18448	LR024147	FINISHER	LR024147 FINISHER RH / From: AA329820	$122.84	1

Rear Doors, Hinges & Weatherstrips (Finisher And Seals) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Rear Doors, Hinges & Weatherstrips (Finisher And Seals) ((V) FROMAA000001)
