Rear Springs And Shock Absorbers (Less Adaptive Damping) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Rear Springs And Shock Absorbers (Less Adaptive Damping) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP000121 BOLT $4.64 To Order
Photo Part No Description Price (each) Stock
RYP000111 SCREW $15.62 To Order
Photo Part No Description Price (each) Stock
RYC500220 CLIP $16.69 IN STOCK
Photo Part No Description Price (each) Stock
RYH501100 NUT - FLANGED $3.53 To Order
Photo Part No Description Price (each) Stock
RYH000021 NUT - FLANGED $1.17 To Order
Photo Part No Description Price (each) Stock
QYH100271 NUT - FLANGED $3.01 IN STOCK
Photo Part No Description Price (each) Stock
RPK000010 WASHER $27.98 To Order
Photo Part No Description Price (each) Stock
RYF000040 WASHER - SEALING $5.16 To Order
Photo Part No Description Price (each) Stock
RPY000050 WASHER $13.06 To Order
Photo Part No Description Price (each) Stock
RPC000030 STOP $65.97 To Order
Photo Part No Description Price (each) Stock
RPD500940 DAMPER $612.94 To Order
RPD500760 DAMPER $615.89 To Order
Photo Part No Description Price (each) Stock
RKB500082 SPRING $674.17 To Order
Photo Part No Description Price (each) Stock
LR015096 BRACKET - SUSPENSION MOUNTING $115.85 To Order
LR019406 BRACKET - SUSPENSION MOUNTING $167.75 To Order
Photo Part No Description Price (each) Stock
RPG000020 INSULATOR $30.52 To Order
View All

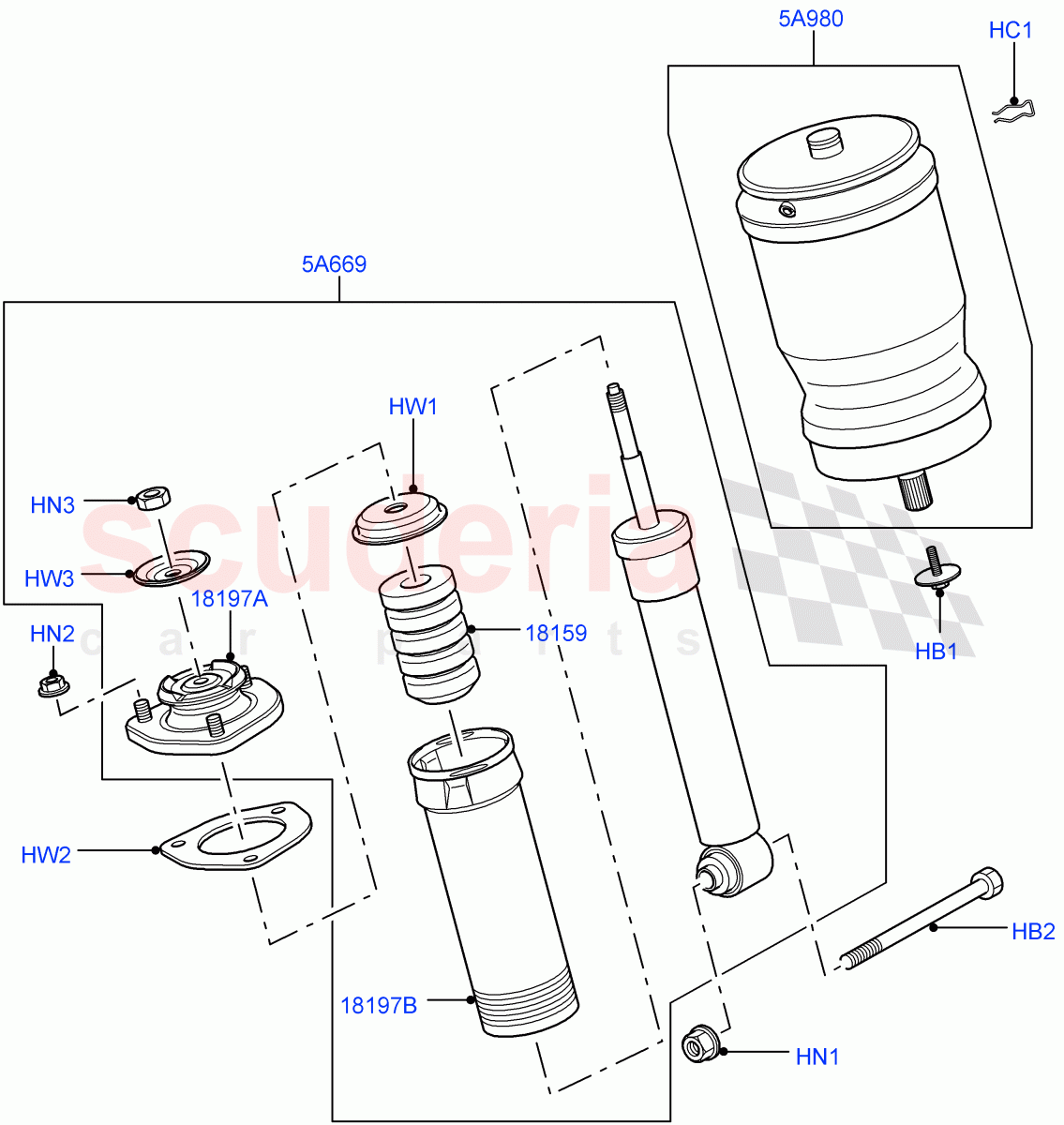

Rear Springs And Shock Absorbers (Less Adaptive Damping) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP000121
BOLT
M7 X 25MM, Screw And Washer / From: AA000001 		$4.64 2
HB2 RYP000111
SCREW
M14 X 215MM / From: AA000001 		$15.62 2
HC1 RYC500220
CLIP
Air Spring / From: AA000001
IN STOCK 		$16.69 2
HN1 RYH501100
NUT - FLANGED
HEX Flange, M14 X 1.5 / From: AA000001 		$3.53 2
HN2 RYH000021
NUT - FLANGED
HEX, M10 / From: AA000001 		$1.17 6
HN3 QYH100271
NUT - FLANGED
HEX, M12 / From: AA000001
IN STOCK 		$3.01 2
HW1 RPK000010
WASHER
Damper / From: AA000001 		$27.98 2
HW2 RYF000040
WASHER - SEALING
Rear Suspension / From: AA000001 		$5.16 2
HW3 RPY000050
WASHER
Rear Suspension / From: AA000001 		$13.06 2
5A669 RPD500940
DAMPER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Complete Assembly / From: AA000001 		$612.94 2
5A669 RPD500760
DAMPER
3.6L V8 32V DOHC EFi Diesel Lion / Complete Assembly / From: AA000001 		$615.89 2
5A980 RKB500082
SPRING
From: AA000001 		$674.17 2
18159 RPC000030
STOP
From: AA000001 		$65.97 2
18197A LR015096
BRACKET - SUSPENSION MOUNTING
Mounting Bracket / From: AA000001 / To: AA316543 		$115.85 2
18197A LR019406
BRACKET - SUSPENSION MOUNTING
Mounting Bracket / From: AA316544 		$167.75 2
18197B RPG000020
INSULATOR
Dust Protection / From: AA000001 		$30.52 2
