Air Suspension Compressor And Lines (Service Only, Compressor Assy) ((V) Fromaa000001, (V)...

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Air Suspension Compressor And Lines (Service Only, Compressor Assy) ((V) FROMAA000001, (V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106167 Screw $0.17 To Order
Photo Part No Description Price (each) Stock
RQU500701 PLATE - BASE $25.69 To Order
Photo Part No Description Price (each) Stock
LR041777 KIT - COMPRESSOR $1,170.65 To Order
Photo Part No Description Price (each) Stock
RQU500302 COVER - AIR SUSPENSION COMPRESSOR $1,187.90 To Order
Photo Part No Description Price (each) Stock
YWB500220 RELAY $22.54 To Order
Photo Part No Description Price (each) Stock
LR075760 VALVE - SOLENOID $33.87 To Order
View All

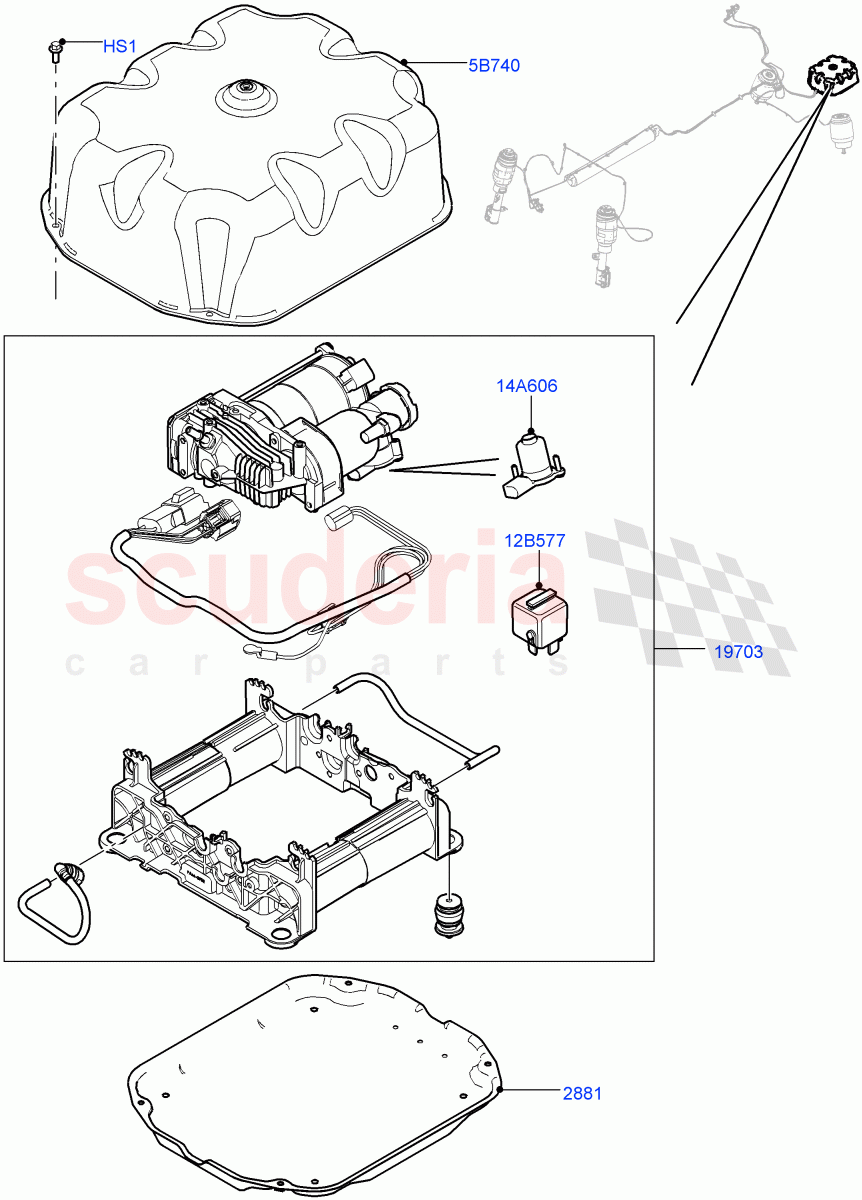

Air Suspension Compressor And Lines (Service Only, Compressor Assy) ((V) FROMAA000001, (V) TOCA393639) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106167
Screw
M6 X 16MM / From: AA000001 		$0.17 4
5B740 RQU500302
COVER - AIR SUSPENSION COMPRESSOR
From: AA000001 		$1,187.90 1
12B577 YWB500220
RELAY
4 Blade Terminal, 70 AMP, Grey, Mini, Power, Tyco / From: AA000001 		$22.54 1
14A606 LR075760
VALVE - SOLENOID
Solenoid - Air Suspension / From: 6A198058 		$33.87 1
2881 RQU500701
PLATE - BASE
From: AA000001 		$25.69 1
19703 LR041777
KIT - COMPRESSOR
AMK Compressor Requires New Software Installed, Please Refer To Technical Service Bulletin LTB00491, With Harness, With Pipes / From: AA000001 		$1,170.65 1
