Turbocharger (Lh) (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1419376 BOLT $2.58 To Order
Photo Part No Description Price (each) Stock
LR000631 BOLT - HEX.HEAD $2.63 To Order
Photo Part No Description Price (each) Stock
LYG500280 BOLT - HEX.HEAD $2.08 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.18 IN STOCK
Photo Part No Description Price (each) Stock
4408651 SCREW $1.27 To Order
Photo Part No Description Price (each) Stock
1255708 SCREW $9.36 To Order
LR006028 SCREW $2.71 To Order
Photo Part No Description Price (each) Stock
LR113358 STUD $4.45 To Order
Photo Part No Description Price (each) Stock
LR003623 GASKET - EXHAUST MANIFOLD $11.34 To Order
Photo Part No Description Price (each) Stock
1372726 GASKET - OIL TUBE $13.41 To Order
Photo Part No Description Price (each) Stock
LR003786 HOSE - CONNECTING $179.48 To Order
Photo Part No Description Price (each) Stock
LR006644 PIPE - OIL FEED $167.89 To Order
Photo Part No Description Price (each) Stock
LR004527 TURBOCHARGER $2,741.79 To Order
LR008830 TURBOCHARGER $2,516.09 To Order
LR021046 TURBOCHARGER $3,074.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR003787 GASKET $8.19 To Order
Photo Part No Description Price (each) Stock
LR004044 BRACKET $6.05 To Order
Photo Part No Description Price (each) Stock
PMY500020 SHIELD $9.24 To Order
Photo Part No Description Price (each) Stock
LR023090 ACTUATOR $74.04 To Order
View All

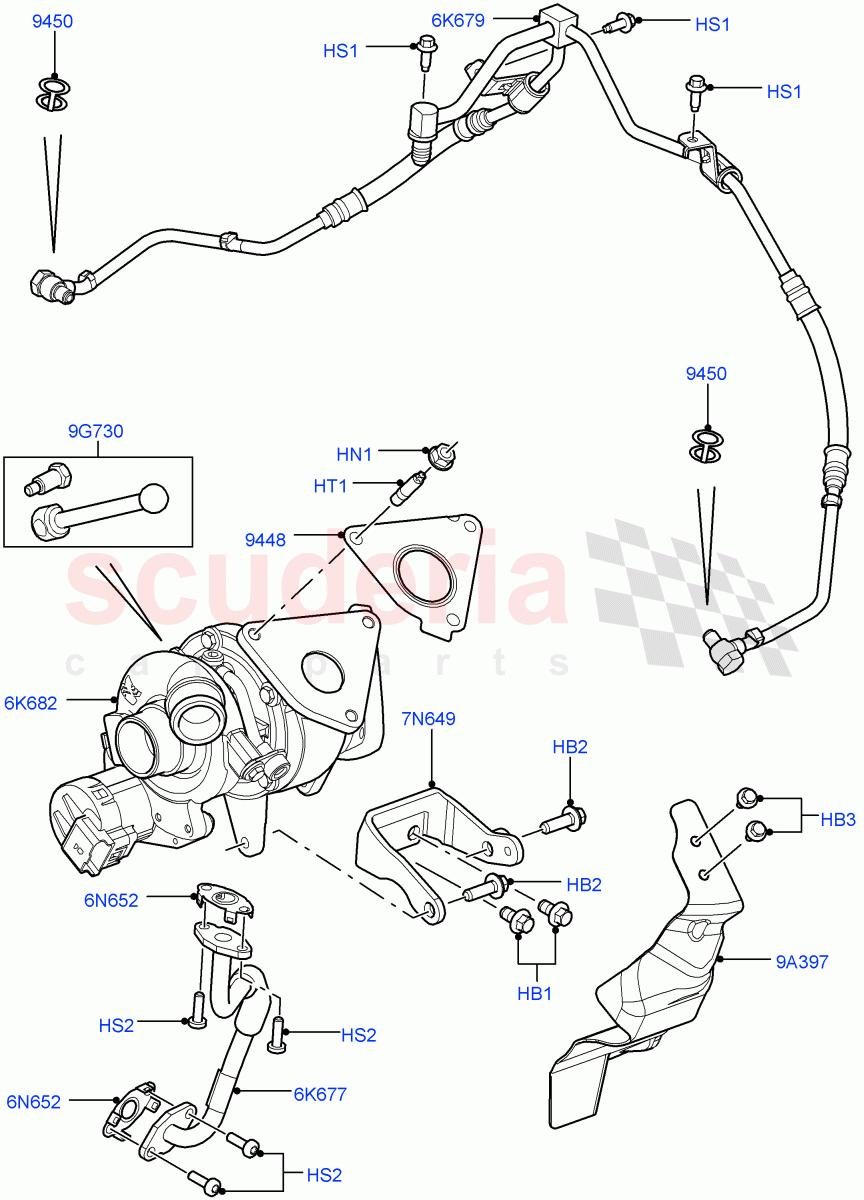

Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1419376
BOLT
Hexagonal Head, M8 X 16MM / From: AA000001 		$2.58 2
HB2 LR000631
BOLT - HEX.HEAD
M8 1.25 X 25 / From: AA000001 		$2.63 2
HB3 LYG500280
BOLT - HEX.HEAD
M6 X 14MM / From: AA000001 		$2.08 2
HN1 LR106277
NUT - HEX. - FLANGED
M8 / From: AA000001
IN STOCK 		$2.18 3
HS1 4408651
SCREW
M6 X 14MM / From: AA000001 		$1.27 3
HS2 1255708
SCREW
M6 X 20MM / From: AA000001 / To: AA312723 		$9.36 2
HS2 LR006028
SCREW
M6 X 16MM, Torx / From: AA312724 		$2.71 4
HT1 LR113358
STUD
M8 X 16MM, M8 x 8MM / From: AA000001 		$4.45 3
6K677 LR003786
HOSE - CONNECTING
From: AA000001 		$179.48 1
6K679 LR006644
PIPE - OIL FEED
From: AA000001 		$167.89 1
6K682 LR004527
TURBOCHARGER
LH, New Part-Please Check For Reman Version / From: AA000001 / To: AA321548 		$2,741.79 1
6K682 LR008830
TURBOCHARGER
LH, Remanufactured Part / From: AA000001 / To: AA321548 		$2,516.09 1
6K682 LR021046
TURBOCHARGER
LH, New Part-Please Check For Reman Version / From: AA321549 		$3,074.16 1
6K682 LR021656
TURBOCHARGER
LH, Remanufactured Part / From: AA321549 		$1,888.04 1
6N652 LR003787
GASKET
Tube - Oil Return / From: AA000001 		$8.19 2
7N649 LR004044
BRACKET
Turbocharger Assembly / From: AA000001 		$6.05 1
9A397 PMY500020
SHIELD
Turbocharger Assembly / From: AA000001 		$9.24 1
9G730 LR023090
ACTUATOR
LH, Incl. pin, Includes Rod, Service Kit / From: AA000001 / To: AA316114 		$74.04 1
9448 LR003623
GASKET - EXHAUST MANIFOLD
Turbocharger Assembly / From: AA000001 		$11.34 1
9450 1372726
GASKET - OIL TUBE
Banjo Washer / From: AA000001 		$13.41 2
