Fuel Injectors And Pipes (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Fuel Injectors And Pipes (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1372612 SCREW $3.55 To Order
Photo Part No Description Price (each) Stock
1387730 BOLT $1.47 To Order
Photo Part No Description Price (each) Stock
YYH500020 NUT $1.16 To Order
Photo Part No Description Price (each) Stock
LR000046 NUT - HEX. $0.52 To Order
Photo Part No Description Price (each) Stock
LR004301 STUD $1.77 To Order
Photo Part No Description Price (each) Stock
LR019118 O-RING $2.28 To Order
Photo Part No Description Price (each) Stock
1418959 TUBE $49.18 To Order
LR020515 TUBE $158.56 To Order
Photo Part No Description Price (each) Stock
LR006234 SHIELD $164.63 To Order
LR006233 SHIELD $210.83 To Order
Photo Part No Description Price (each) Stock
LR006094 WIRE $120.30 To Order
LR006095 WIRE $111.14 To Order
Photo Part No Description Price (each) Stock
1418960 BRACKET $11.10 To Order
Photo Part No Description Price (each) Stock
1423955 PIPE - FUEL $241.73 To Order
LR020513 PIPE - FUEL $306.89 To Order
Photo Part No Description Price (each) Stock
1354289 GLOW PLUG $27.96 To Order
Photo Part No Description Price (each) Stock
LR010347 KIT - PROTECTION CAPS $48.16 To Order
Photo Part No Description Price (each) Stock
LR002751 CLIP $1.81 To Order
Photo Part No Description Price (each) Stock
LR002456 CLIP $10.43 To Order
Photo Part No Description Price (each) Stock
LR002472 TUBE - FUEL FEED $64.53 To Order
Photo Part No Description Price (each) Stock
LR000636 PIPE - FUEL $64.06 To Order
Photo Part No Description Price (each) Stock
LR005056 MANIFOLD - FUEL SUPPLY $487.19 To Order
LR020019 MANIFOLD - FUEL SUPPLY $463.01 To Order
Photo Part No Description Price (each) Stock
LR005055 MANIFOLD - FUEL SUPPLY $487.19 To Order
LR020018 MANIFOLD - FUEL SUPPLY $467.88 To Order
Photo Part No Description Price (each) Stock
LR002473 KIT - FUEL INJECTION $1,020.66 To Order
LR002474 KIT - FUEL INJECTION $1,020.75 To Order
LR002475 KIT - FUEL INJECTION $1,020.79 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR002491 KIT - INJECTOR REPAIR $128.27 To Order
LR002492 KIT - INJECTOR REPAIR $128.89 To Order
LR002493 KIT - INJECTOR REPAIR $127.54 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR002471 PIPE - FUEL $61.49 To Order
LR020512 PIPE - FUEL $315.50 To Order
Photo Part No Description Price (each) Stock
LR002477 PIPE - FUEL $61.17 To Order
View All

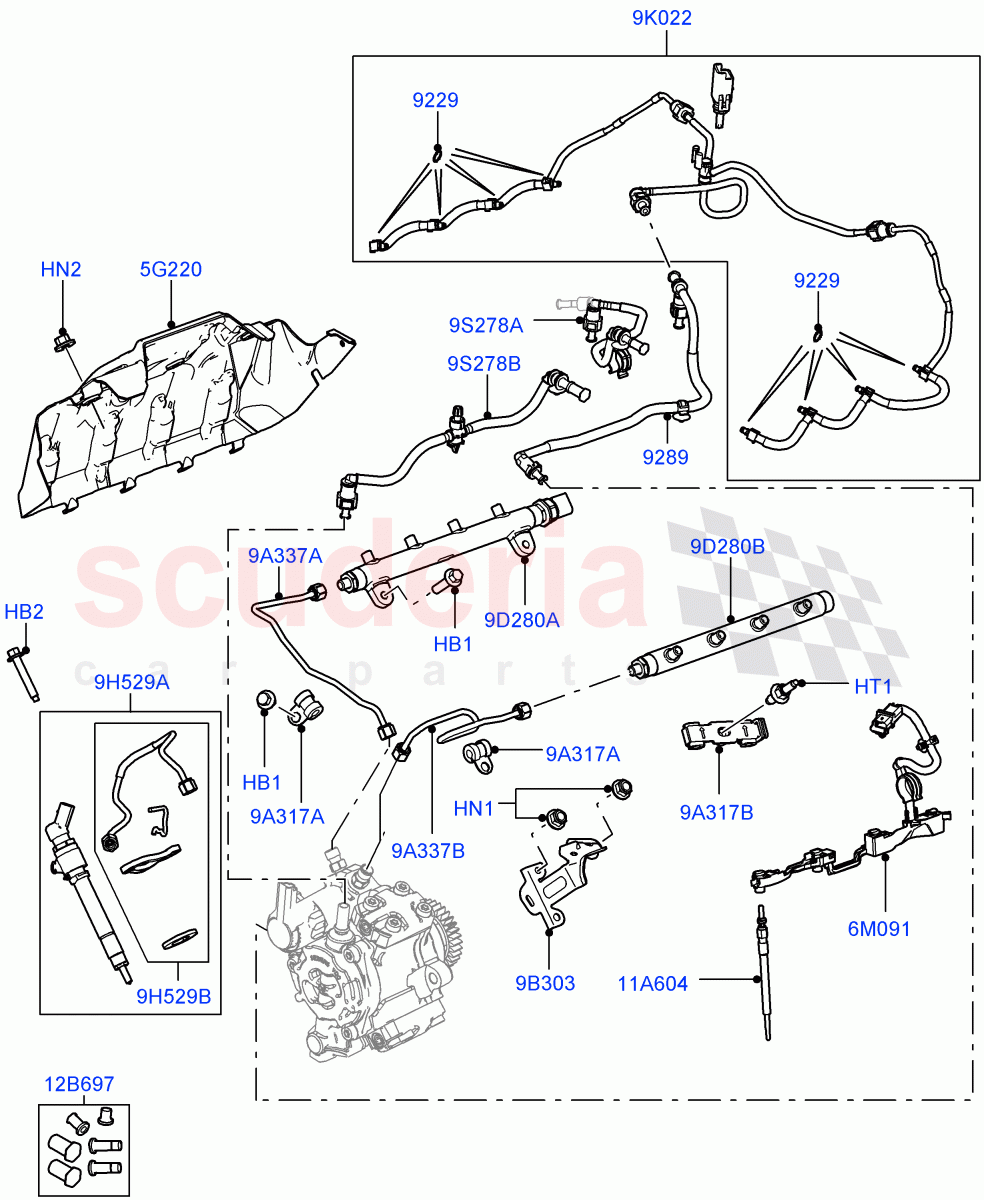

Fuel Injectors And Pipes (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1372612
SCREW
M8 x 30MM / From: AA000001 		$3.55 4
HB2 1387730
BOLT
M6 x 35MM / From: AA000001 		$1.47 16
HN1 YYH500020
NUT
M6 / From: AA000001 		$1.16 2
HN2 LR000046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001 		$0.52 7
HT1 LR004301
STUD
M5 X 10MM, M6 x 12MM / From: AA000001 		$1.77 4
5G220 LR006234
SHIELD
LH / From: AA000001 		$164.63 1
5G220 LR006233
SHIELD
RH / From: AA000001 		$210.83 1
6M091 LR006094
WIRE
LH / From: AA000001 		$120.30 1
6M091 LR006095
WIRE
RH / From: AA000001 		$111.14 1
9A317A LR002751
CLIP
Fuel Lines To Fuel Rail / From: AA000001 		$1.81 2
9A317B LR002456
CLIP
Clip-Fuel Tube(Dual Latch) / From: AA000001 		$10.43 4
9A337A LR002472
TUBE - FUEL FEED
RH, Fuel Lines To Fuel Rail / From: AA000001 		$64.53 1
9A337B LR000636
PIPE - FUEL
LH, Fuel Lines To Fuel Rail / From: AA000001 		$64.06 1
9B303 1418960
BRACKET
Fuel Lines To Fuel Rail / From: AA000001 		$11.10 1
9D280A LR005056
MANIFOLD - FUEL SUPPLY
RH, Sensor - Fuel Rail Pressure / From: AA000001 / To: AA314546 		$487.19 1
9D280A LR020019
MANIFOLD - FUEL SUPPLY
RH, Sensor - Fuel Rail Pressure / From: AA314547 		$463.01 1
9D280B LR005055
MANIFOLD - FUEL SUPPLY
LH / From: AA000001 / To: AA314546 		$487.19 1
9D280B LR020018
MANIFOLD - FUEL SUPPLY
LH / From: AA314547 		$467.88 1
9H529A LR002473
KIT - FUEL INJECTION
Cylinder 1 And 8, New Part-Please Check For Reman Version / From: AA000001 		$1,020.66 2
9H529A LR002474
KIT - FUEL INJECTION
Cylinder 2 And 7, New Part-Please Check For Reman Version / From: AA000001 		$1,020.75 2
9H529A LR002475
KIT - FUEL INJECTION
Cylinder 3 And 6, New Part-Please Check For Reman Version / From: AA000001 		$1,020.79 2
9H529A LR002476
KIT - FUEL INJECTION
Cylinder 4 And 5, New Part-Please Check For Reman Version / From: AA000001 		$1,020.87 2
9H529A LR008835
KIT - FUEL INJECTION
Cylinder 4 And 5, Remanufactured Part / From: AA000001 		$746.83 2
9H529A LR093334
FUEL INJECTION
Fuel Injector Only, Remanufactured Part / From: AA000001 		$478.31 8
9H529B LR002491
KIT - INJECTOR REPAIR
Cylinder 1 And 8 / From: AA000001 		$128.27 2
9H529B LR002492
KIT - INJECTOR REPAIR
Cylinder 2 And 7 / From: AA000001 		$128.89 2
9H529B LR002493
KIT - INJECTOR REPAIR
Cylinder 3 And 6 / From: AA000001 		$127.54 2
9H529B LR002494
KIT - INJECTOR REPAIR
Cylinder 4 And 5 / From: AA000001 		$127.54 2
9K022 1423955
PIPE - FUEL
(-)"IND" / Includes Fuel Temperature Sensor, Leak Off, To Fuel Injectors / From: AA000001 		$241.73 1
9K022 LR020513
PIPE - FUEL
(+)"IND" / Includes Fuel Temperature Sensor, Leak Off, To Fuel Injectors / From: AA319597 		$306.89 1
9S278A LR002471
PIPE - FUEL
(-)"IND" / From Fuel Cooler, Leak Off / From: AA000001 		$61.49 1
9S278A LR020512
PIPE - FUEL
(+)"IND" / Leak Off / From: AA319597 		$315.50 1
9S278B LR002477
PIPE - FUEL
For Fuel Pump, Supply / From: AA000001 		$61.17 1
11A604 1354289
GLOW PLUG
From: AA000001 		$27.96 8
12B697 LR010347
KIT - PROTECTION CAPS
Protection Cap Kit For Disassembled Fuel Injection Elements / From: AA000001 		$48.16 1
9229 LR019118
O-RING
For Fuel Tube, Leak Off / From: AA000001 		$2.28 8
9289 1418959
TUBE
(-)"IND" / Fuel Pump, Leak Off / From: AA000001 		$49.18 1
9289 LR020515
TUBE
(+)"IND" / Fuel Pump, Leak Off / From: AA319597 		$158.56 1
