Inlet Manifold (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Inlet Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4364422 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR004031 SCREW $0.08 To Order
Photo Part No Description Price (each) Stock
LR004030 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR012682 INSULATOR - ENGINE COMPARTMENT $167.23 To Order
Photo Part No Description Price (each) Stock
LR053016 PIPE - OIL FEED $40.82 IN STOCK
LR053016 PIPE - OIL FEED $40.82 IN STOCK
LR053016 PIPE - OIL FEED $40.82 IN STOCK
Photo Part No Description Price (each) Stock

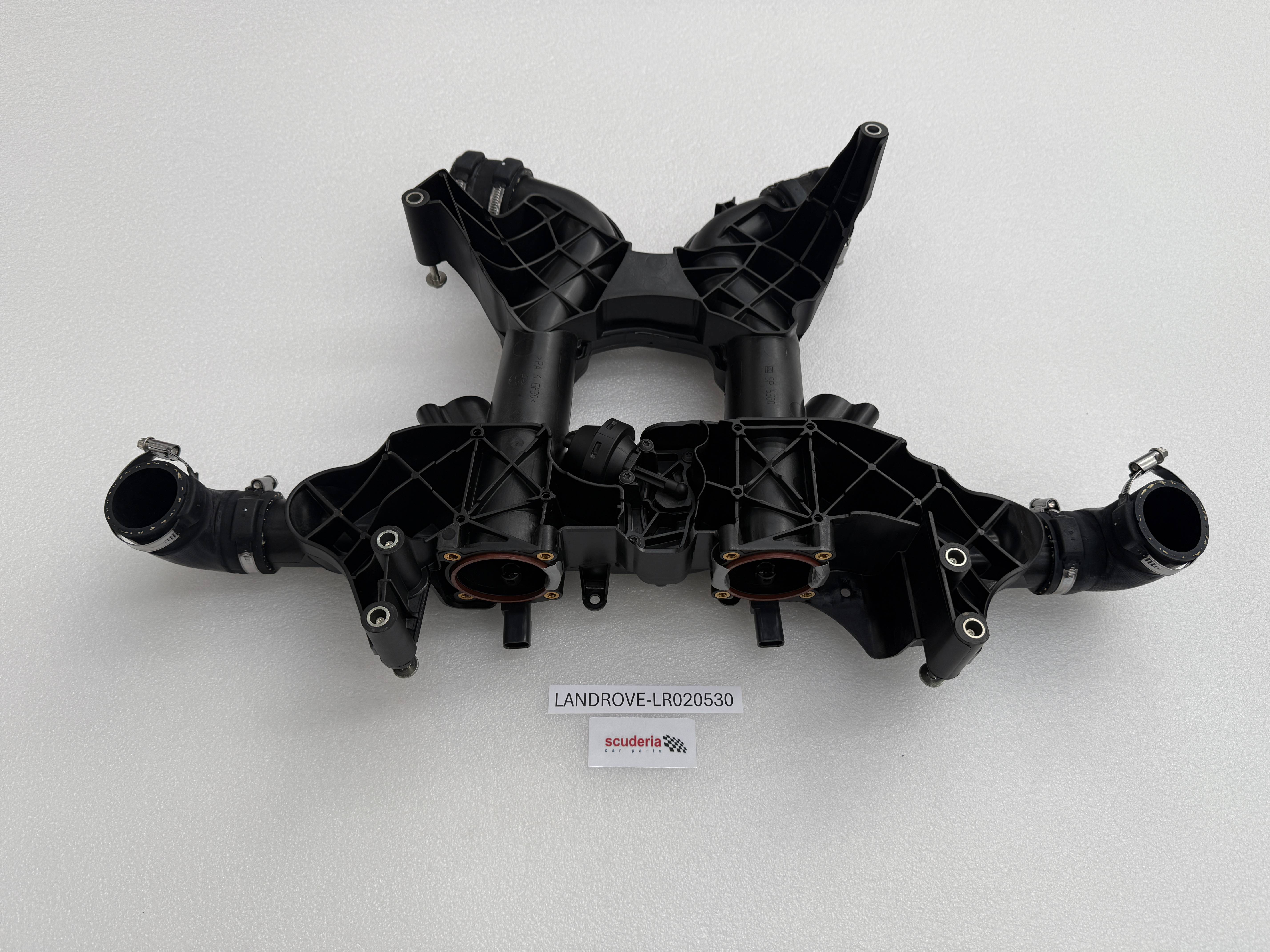

LR020530 DUCT - AIR $648.59 IN STOCK
LR020530 DUCT - AIR $648.59 IN STOCK
Photo Part No Description Price (each) Stock
LR005274 MANIFOLD - INLET $1,213.35 To Order
Photo Part No Description Price (each) Stock
LR005659 MANIFOLD - INLET $1,213.35 To Order
Photo Part No Description Price (each) Stock
LR005898 GASKET - INTAKE MANIFOLD $106.12 To Order
Photo Part No Description Price (each) Stock
LR005897 GASKET - INTAKE MANIFOLD $106.12 To Order
Photo Part No Description Price (each) Stock
LR007596 SENSOR $69.80 To Order
Photo Part No Description Price (each) Stock
LR014468 DUCT - AIR $53.67 To Order
Photo Part No Description Price (each) Stock
LR004076 DUCT - AIR $46.31 To Order
Photo Part No Description Price (each) Stock
LR002479 BRACKET $11.20 To Order
Photo Part No Description Price (each) Stock
LR005823 BRACKET $55.58 To Order
Photo Part No Description Price (each) Stock
LR002478 BRACKET $12.06 To Order
View All

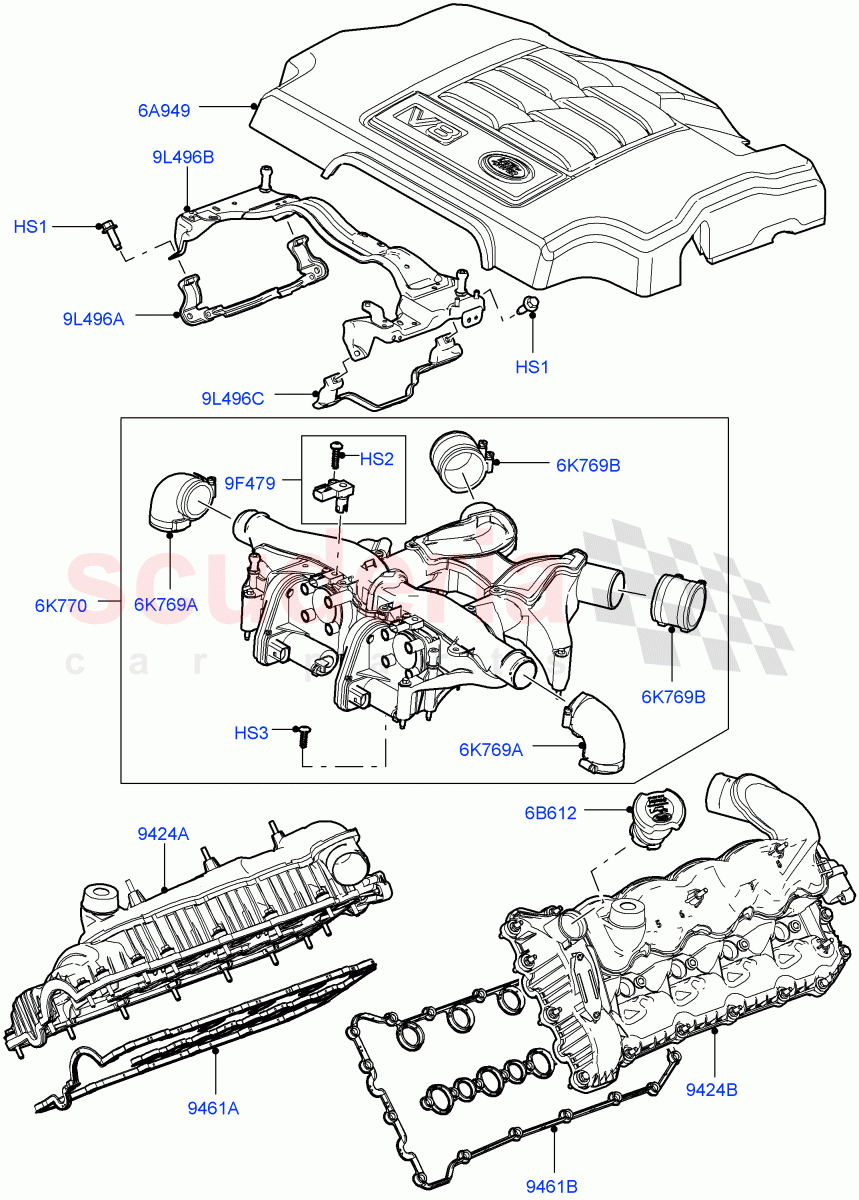

Inlet Manifold (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 4364422
SCREW
M6 X 16MM / From: AA000001 		$1.36 4
HS2 LR004031
SCREW
5 x 20MM, MAP Sensor / From: AA000001 		$0.08 2
HS3 LR004030
SCREW
M5 x 14MM / From: AA000001 		$0.59 4
6A949 LR012682
INSULATOR - ENGINE COMPARTMENT
Engine / From: AA000001 		$167.23 1
6B612 LR053016
PIPE - OIL FEED
Land Rover Print / From: AA000001 / To: CA393564
IN STOCK 		$40.82 1
6B612 LR053016
PIPE - OIL FEED
Jaguar And Land Rover Print, Service Only / From: CA393565
IN STOCK 		$40.82 1
6B612 LR053016
PIPE - OIL FEED
Jaguar And Land Rover Print, Service Only / From: AA000001 / To: CA393564
IN STOCK 		$40.82 1
6K769A LR014468
DUCT - AIR
Elbow / From: AA000001 		$53.67 2
6K769B LR004076
DUCT - AIR
From: AA000001 		$46.31 2
6K770 LR020530
DUCT - AIR
From: AA000001 / To: AA314569
IN STOCK 		$648.59 1
6K770 LR020530
DUCT - AIR
From: AA314570
IN STOCK 		$648.59 1
9F479 LR007596
SENSOR
Sensor - Air Charge Temperature, Sensor - Manifold Absolute Pressure (MAP) / From: AA000001 		$69.80 2
9L496A LR002479
BRACKET
RH / From: AA000001 		$11.20 1
9L496B LR005823
BRACKET
Center Support / From: AA000001 		$55.58 1
9L496C LR002478
BRACKET
LH / From: AA000001 		$12.06 1
9424A LR005274
MANIFOLD - INLET
RH, Includes Sealing Gasket, With Cylinder Head Cover / From: AA000001 		$1,213.35 1
9424B LR005659
MANIFOLD - INLET
LH, Includes Sealing Gasket, With Cylinder Head Cover / From: AA000001 		$1,213.35 1
9461A LR005898
GASKET - INTAKE MANIFOLD
RH, Manifold To Cylinder Head / From: AA000001 		$106.12 1
9461B LR005897
GASKET - INTAKE MANIFOLD
LH, Manifold To Cylinder Head / From: AA000001 		$106.12 1
