Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] - Cylinder Head (RH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1419374 BOLT $4.15 To Order
Photo Part No Description Price (each) Stock
LR003600 RIVET - BLIND $1.24 To Order
Photo Part No Description Price (each) Stock
1102774 PLUG - ENGINE $6.56 To Order
Photo Part No Description Price (each) Stock
LR000780 PLUG - ENGINE $1.13 To Order
Photo Part No Description Price (each) Stock
4556038 BOLT $3.32 To Order
Photo Part No Description Price (each) Stock
1418984 GASKET - CYLINDER HEAD $112.69 To Order
1418985 GASKET - CYLINDER HEAD $112.69 To Order
LR000635 GASKET - CYLINDER HEAD $129.63 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1331316 BOLT - CYLINDER HEAD $4.48 To Order
Photo Part No Description Price (each) Stock
LR008130 VALVE - EXHAUST $32.52 To Order
Photo Part No Description Price (each) Stock
1311281 VALVE - INLET $21.66 To Order
Photo Part No Description Price (each) Stock
LR006720 SPRING - VALVE $7.46 To Order
Photo Part No Description Price (each) Stock
1311283 RETAINER - VALVE SPRING $3.89 To Order
Photo Part No Description Price (each) Stock
1041831 COLLET - VALVE SPRING RETAINER $7.26 To Order
Photo Part No Description Price (each) Stock
1336545 ARM - FOLLOWER $33.72 To Order
Photo Part No Description Price (each) Stock
1311285 SEAL - VALVE STEM $14.01 To Order
Photo Part No Description Price (each) Stock
LR000633 SWITCH - OIL PRESSURE $15.27 IN STOCK
Photo Part No Description Price (each) Stock
LR002435 CYLINDER HEAD $3,333.31 To Order
Photo Part No Description Price (each) Stock
LR002445 CYLINDER HEAD $2,966.40 To Order
View All

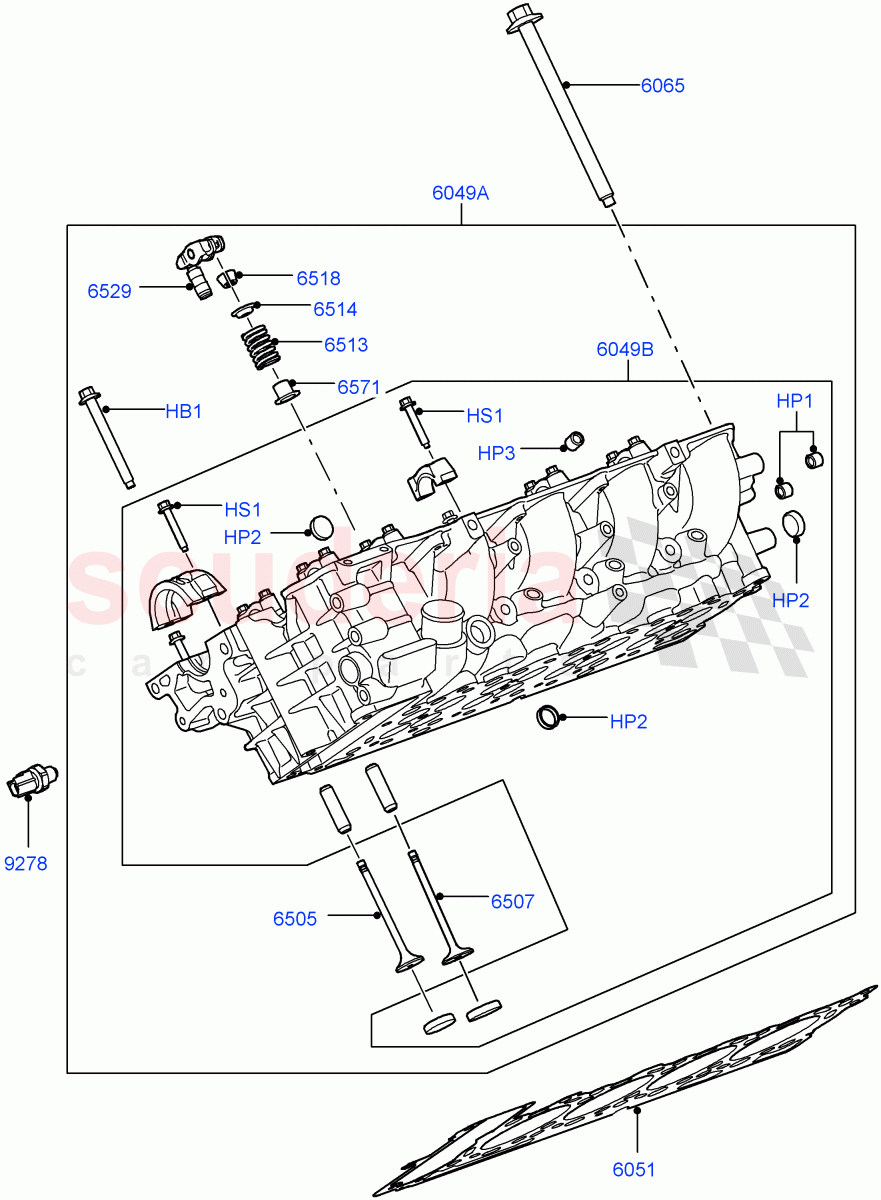

Cylinder Head (RH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1419374
BOLT
M8 X 75MM / From: AA000001 		$4.15 3
HP1 LR003600
RIVET - BLIND 		$1.24 3
HP2 1102774
PLUG - ENGINE
22MM / From: AA000001 		$6.56 3
HP3 LR000780
PLUG - ENGINE
10 MM / From: AA000001 		$1.13 2
HS1 4556038
BOLT
M6 x 35MM / From: AA000001 		$3.32 22
6049A LR002435
CYLINDER HEAD
RH, With Valves / From: AA000001 		$3,333.31 1
6049B LR002445
CYLINDER HEAD
RH, Less Valves / From: AA000001 		$2,966.40 1
6051 1418984
GASKET - CYLINDER HEAD
RH, Grade 1 / From: AA000001 		$112.69 -
6051 1418985
GASKET - CYLINDER HEAD
RH, Grade 2 / From: AA000001 		$112.69 -
6051 LR000635
GASKET - CYLINDER HEAD
RH, Grade 3 / From: AA000001 		$129.63 -
6051 1418987
GASKET - CYLINDER HEAD
RH, Grade 4 / From: AA000001 		$112.69 -
6051 1418989
GASKET - CYLINDER HEAD
RH, Grade 5 / From: AA000001 		$112.69 -
6065 1331316
BOLT - CYLINDER HEAD
M13 X 155 / From: AA000001 		$4.48 10
6505 LR008130
VALVE - EXHAUST
From: AA000001 		$32.52 8
6507 1311281
VALVE - INLET
From: AA000001 		$21.66 8
6513 LR006720
SPRING - VALVE
From: AA000001 		$7.46 16
6514 1311283
RETAINER - VALVE SPRING
From: AA000001 		$3.89 16
6518 1041831
COLLET - VALVE SPRING RETAINER
From: AA000001 		$7.26 32
6529 1336545
ARM - FOLLOWER
From: AA000001 		$33.72 16
6571 1311285
SEAL - VALVE STEM
From: AA000001 		$14.01 16
9278 LR000633
SWITCH - OIL PRESSURE
From: AA000001
IN STOCK 		$15.27 1
