Rear Seat Base (2S AL Leather Diamond, 40/20/40 Super Slouch Rear Seat) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Rear Seat Base (2S AL Leather Diamond, 40/20/40 Super Slouch Rear Seat) ((V) FROMJA000001)

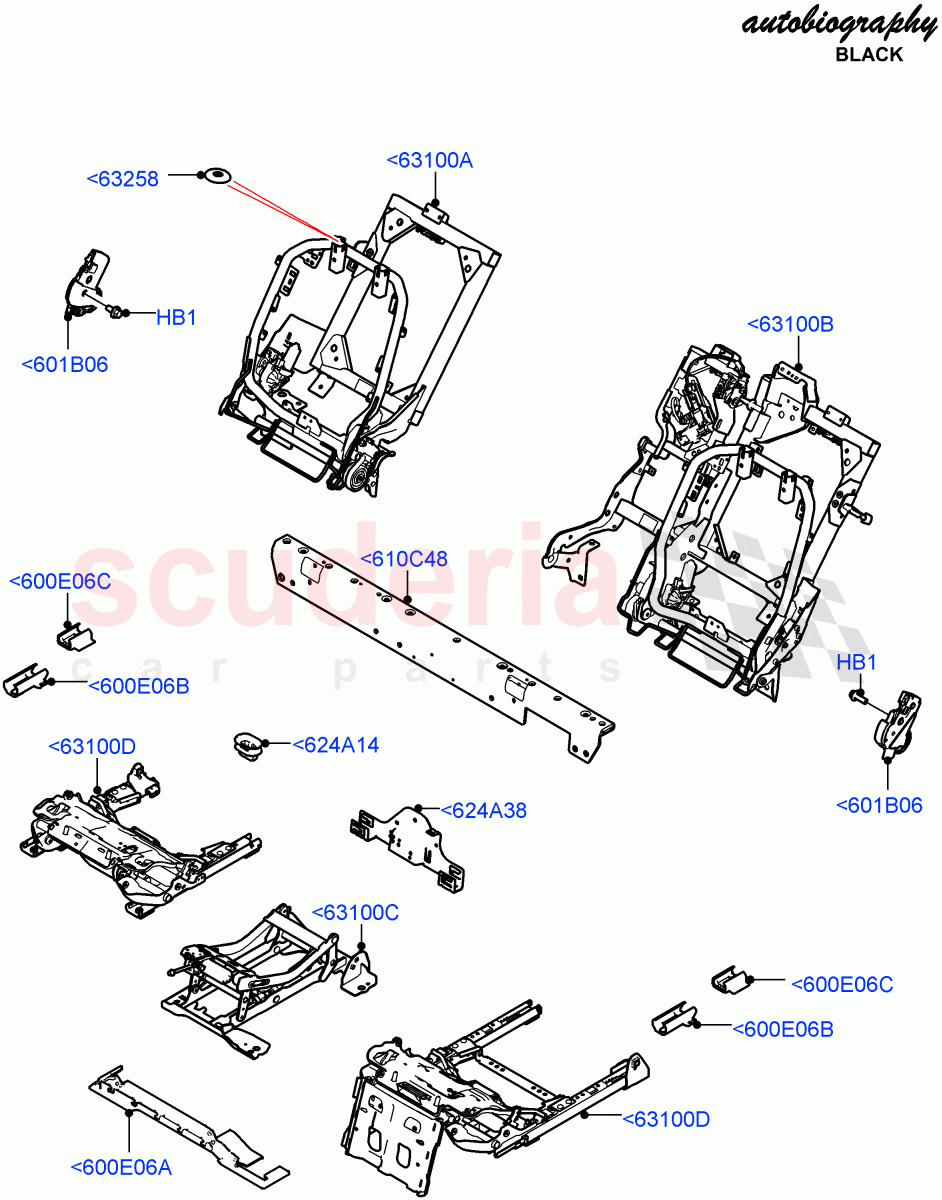

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BYG500120	BOLT	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113087	BEZEL - HEADREST	$43.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099534	LATCH - REAR SEAT BACK	$288.01	To Order
	LR099535	LATCH - REAR SEAT BACK	$306.16	To Order
	LR140667	LATCH - REAR SEAT BACK	$314.99	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR099585	SUPPORT - SEAT BACK	$965.81	To Order
	LR099584	SUPPORT - SEAT BACK	$492.09	To Order
	LR121903	SUPPORT - SEAT BACK	$965.81	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR120628	RETAINER - SEAT	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109378	BRACKET - SEAT MOUNTING	$40.61	To Order
	LR123413	BRACKET - SEAT MOUNTING	$39.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099532	FRAME AND SPRING - REAR SEAT BACK	$1,319.48	To Order
	LR119555	FRAME AND SPRING - REAR SEAT BACK	$1,319.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099533	FRAME AND SPRING - REAR SEAT BACK	$1,533.91	To Order
	LR119556	FRAME AND SPRING - REAR SEAT BACK	$1,111.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099514	FRAME AND SPRING - RR SEAT CUSHION	$1,150.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099516	FRAME AND SPRING - RR SEAT CUSHION	$1,128.10	To Order
	LR099519	FRAME AND SPRING - RR SEAT CUSHION	$1,051.69	To Order
	LR099517	FRAME AND SPRING - RR SEAT CUSHION	$1,234.98	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR116594	CARRIER - SEAT TRACK	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110943	CARRIER - SEAT TRACK	$42.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110950	CARRIER - SEAT TRACK	$42.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<600E06A	LR116594	CARRIER - SEAT TRACK	LR116594 CARRIER - SEAT TRACK Seat - Premium / Centre / From: JA000001	$25.79	1
<600E06B	LR110943	CARRIER - SEAT TRACK	LR110943 CARRIER - SEAT TRACK 40/20/40 Super Slouch Rear Seat, Seat - Premium / Centre, Outer / From: JA000001	$42.58	1
<600E06C	LR110950	CARRIER - SEAT TRACK	LR110950 CARRIER - SEAT TRACK 40/20/40 Super Slouch Rear Seat, Seat - Premium / Outer, Rear / From: JA000001	$42.54	1
<601B06	LR099534	LATCH - REAR SEAT BACK	LR099534 LATCH - REAR SEAT BACK LH / From: JA000001 / To: LA407891	$288.01	1
<601B06	LR099535	LATCH - REAR SEAT BACK	LR099535 LATCH - REAR SEAT BACK RH / From: JA000001 / To: LA407891	$306.16	1
<601B06	LR140667	LATCH - REAR SEAT BACK	LR140667 LATCH - REAR SEAT BACK LH / From: LA407892	$314.99	1
<601B06	LR140668	LATCH - REAR SEAT BACK	LR140668 LATCH - REAR SEAT BACK RH / From: LA407892	$332.31	1
<610C48	LR099585	SUPPORT - SEAT BACK	LR099585 SUPPORT - SEAT BACK 40/20/40 Super Slouch Rear Seat, For Unleaded Fuel / From: JA000001 / To: KA518601	$965.81	1
<610C48	LR099584	SUPPORT - SEAT BACK	LR099584 SUPPORT - SEAT BACK 40/20/40 Super Slouch Rear Seat, Petrol/Electric Hybrid / From: JA000001 / To: KA518601	$492.09	1
<610C48	LR121903	SUPPORT - SEAT BACK	LR121903 SUPPORT - SEAT BACK Diesel/Electric - Hybrid / From: KA518602	$965.81	1
<610C48	LR121905	SUPPORT - SEAT BACK	LR121905 SUPPORT - SEAT BACK Petrol/Electric Hybrid / From: KA518602	$492.09	1
<624A14	LR120628	RETAINER - SEAT	LR120628 RETAINER - SEAT RH/LH / From: JA000001	$8.33	4
<624A38	LR109378	BRACKET - SEAT MOUNTING	LR109378 BRACKET - SEAT MOUNTING 40/20/40 Super Slouch Rear Seat / From: JA000001 / To: KA524024	$40.61	1
<624A38	LR123413	BRACKET - SEAT MOUNTING	LR123413 BRACKET - SEAT MOUNTING Centre / From: KA524025	$39.86	1
<63100A	LR099532	FRAME AND SPRING - REAR SEAT BACK	LR099532 FRAME AND SPRING - REAR SEAT BACK RH / From: JA000001 / To: JA509314	$1,319.48	1
<63100A	LR119555	FRAME AND SPRING - REAR SEAT BACK	LR119555 FRAME AND SPRING - REAR SEAT BACK RH / From: JA509315	$1,319.48	1
<63100B	LR099533	FRAME AND SPRING - REAR SEAT BACK	LR099533 FRAME AND SPRING - REAR SEAT BACK LH / From: JA000001 / To: JA509314	$1,533.91	1
<63100B	LR119556	FRAME AND SPRING - REAR SEAT BACK	LR119556 FRAME AND SPRING - REAR SEAT BACK LH / From: JA509315	$1,111.39	1
<63100C	LR099514	FRAME AND SPRING - RR SEAT CUSHION	LR099514 FRAME AND SPRING - RR SEAT CUSHION 40/20/40 Super Slouch Rear Seat / Centre / From: JA000001	$1,150.14	1
<63100D	LR099516	FRAME AND SPRING - RR SEAT CUSHION	LR099516 FRAME AND SPRING - RR SEAT CUSHION Less Rear Seat Calf Rests / RH / From: JA000001	$1,128.10	1
<63100D	LR099519	FRAME AND SPRING - RR SEAT CUSHION	LR099519 FRAME AND SPRING - RR SEAT CUSHION Less Rear Seat Calf Rests / LH / From: JA000001	$1,051.69	1
<63100D	LR099517	FRAME AND SPRING - RR SEAT CUSHION	LR099517 FRAME AND SPRING - RR SEAT CUSHION LHD, Rear Seat Calf Rests, Standard Wheelbase / RH / From: JA000001	$1,234.98	1
<63100D	LR099521	FRAME AND SPRING - RR SEAT CUSHION	LR099521 FRAME AND SPRING - RR SEAT CUSHION RHD, Rear Seat Calf Rests, Standard Wheelbase / LH / From: JA000001	$1,098.83	1
<63258	LR113087	BEZEL - HEADREST	LR113087 BEZEL - HEADREST 40/20/40 Super Slouch Rear Seat, Int Feature Color - Painted Plastic / From: JA000001	$43.08	4
HB1	BYG500120	BOLT	BYG500120 BOLT Bolt To Attach Seat Latch To Back Frame, M8 x 50MM, Torx / From: JA000001	$2.30	4

Rear Seat Base (2S Al Leather Diamond, 40/20/40 Super Slouch Rear Seat) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Rear Seat Base (2S AL Leather Diamond, 40/20/40 Super Slouch Rear Seat) ((V) FROMJA000001)
