Rear Seat Base (Semi Aniline Leather Perf, 40/20/40 Super Slouch Rear Seat) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Rear Seat Base (Semi Aniline Leather Perf, 40/20/40 Super Slouch Rear Seat) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR039088 BOLT $2.34 IN STOCK
Photo Part No Description Price (each) Stock
BYG500120 BOLT $2.29 To Order
Photo Part No Description Price (each) Stock
LR087365 BOLT $0.91 To Order
Photo Part No Description Price (each) Stock
LR099577 BOLT $4.27 To Order
Photo Part No Description Price (each) Stock
LR106367 BOLT $3.72 To Order
Photo Part No Description Price (each) Stock
LR107009 BOLT AND WASHER - HEX.HEAD $1.79 To Order
Photo Part No Description Price (each) Stock
LR124959 PAD - ANTI-RATTLE $20.47 To Order
Photo Part No Description Price (each) Stock
LR118368 RETAINER - WIRING HARNESS $29.70 To Order
LR118367 RETAINER - WIRING HARNESS $29.70 To Order
Photo Part No Description Price (each) Stock
LR099534 LATCH - REAR SEAT BACK $286.80 To Order
LR099535 LATCH - REAR SEAT BACK $304.88 To Order
LR140667 LATCH - REAR SEAT BACK $313.67 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR099585 SUPPORT - SEAT BACK $961.75 To Order
LR099584 SUPPORT - SEAT BACK $490.03 To Order
LR121903 SUPPORT - SEAT BACK $961.75 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR107767 SUPPORT - REAR SEAT CUSHION $87.87 To Order
LR107771 SUPPORT - REAR SEAT CUSHION $91.41 To Order
Photo Part No Description Price (each) Stock
LR107766 SUPPORT - REAR SEAT CUSHION $282.90 To Order
LR107772 SUPPORT - REAR SEAT CUSHION $282.90 To Order
Photo Part No Description Price (each) Stock
LR107793 SUPPORT - REAR SEAT CUSHION $82.93 To Order
Photo Part No Description Price (each) Stock
LR120628 RETAINER - SEAT $8.29 To Order
Photo Part No Description Price (each) Stock
LR109378 BRACKET - SEAT MOUNTING $40.44 To Order
LR123413 BRACKET - SEAT MOUNTING $39.69 To Order
Photo Part No Description Price (each) Stock
LR099516 FRAME AND SPRING - RR SEAT CUSHION $1,123.36 To Order
LR099519 FRAME AND SPRING - RR SEAT CUSHION $1,047.27 To Order
Photo Part No Description Price (each) Stock
LR099517 FRAME AND SPRING - RR SEAT CUSHION $1,229.79 To Order
LR099521 FRAME AND SPRING - RR SEAT CUSHION $1,094.21 To Order
Photo Part No Description Price (each) Stock
LR099514 FRAME AND SPRING - RR SEAT CUSHION $1,145.31 To Order
Photo Part No Description Price (each) Stock
LR099532 FRAME AND SPRING - REAR SEAT BACK $1,313.93 To Order
LR109895 FRAME - SEAT $648.28 To Order
LR119555 FRAME AND SPRING - REAR SEAT BACK $1,313.93 To Order
Photo Part No Description Price (each) Stock
LR099533 FRAME AND SPRING - REAR SEAT BACK $1,527.46 To Order
LR109896 FRAME - SEAT $1,631.49 To Order
LR119556 FRAME AND SPRING - REAR SEAT BACK $1,106.72 To Order
Photo Part No Description Price (each) Stock
LR101393 CARRIER - SEAT TRACK $22.48 To Order
LR101394 CARRIER - SEAT TRACK $19.73 To Order
LR101395 CARRIER - SEAT TRACK $22.48 To Order
Photo Part No Description Price (each) Stock
LR110643 CARRIER - SEAT TRACK $21.40 To Order
LR110644 CARRIER - SEAT TRACK $21.40 To Order
LR110645 CARRIER - SEAT TRACK $21.40 To Order
Photo Part No Description Price (each) Stock
LR101402 CARRIER - SEAT TRACK $39.75 To Order
LR101403 CARRIER - SEAT TRACK $34.86 To Order
LR101404 CARRIER - SEAT TRACK $33.82 To Order
Photo Part No Description Price (each) Stock
LR101399 CARRIER - SEAT TRACK $33.82 To Order
LR101400 CARRIER - SEAT TRACK $33.82 To Order
LR101401 CARRIER - SEAT TRACK $37.23 To Order
Photo Part No Description Price (each) Stock
LR110647 CARRIER - SEAT TRACK $21.40 To Order
LR110648 CARRIER - SEAT TRACK $21.40 To Order
LR110649 CARRIER - SEAT TRACK $17.23 To Order
View All

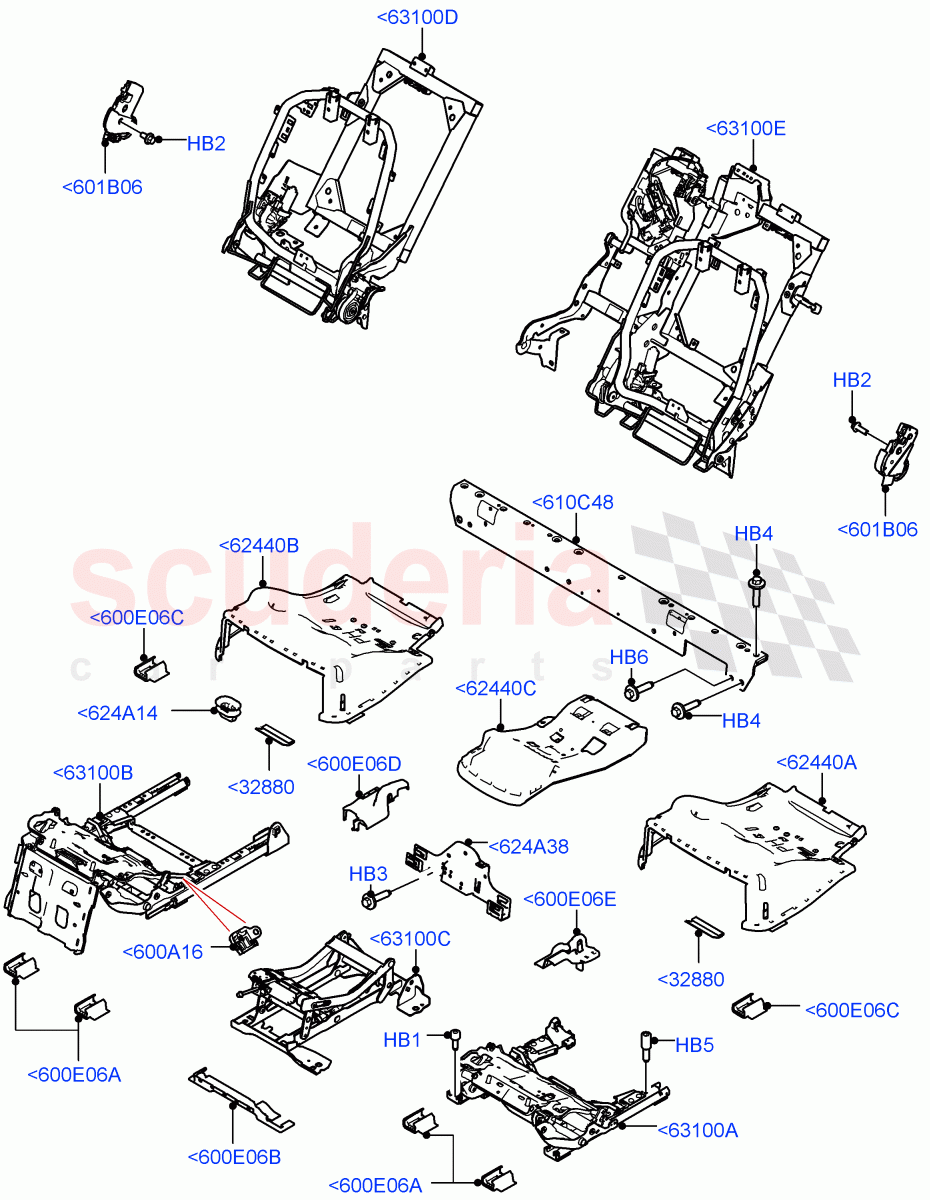

Rear Seat Base (Semi Aniline Leather Perf, 40/20/40 Super Slouch Rear Seat) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<600A16 LR118368
RETAINER - WIRING HARNESS
Left Side Of Both Seats / From: KA525142 		$29.70 2
<600A16 LR118367
RETAINER - WIRING HARNESS
Right Side Of Both Seats / From: KA525142 		$29.70 2
<600E06A LR101393
CARRIER - SEAT TRACK
I/P Facia Contrast-Espresso/Almond / Front / From: JA000001 		$22.48 4
<600E06A LR101394
CARRIER - SEAT TRACK
I/P Facia Contrast - Navy/Ivory / Front / From: JA000001 		$19.73 4
<600E06A LR101395
CARRIER - SEAT TRACK
I/P Facia Contrast - Ebony Black / Front / From: JA000001 		$22.48 4
<600E06B LR110643
CARRIER - SEAT TRACK
I/P Facia Contrast-Espresso/Ivory, Seat - Standard / Centre Front / From: JA000001 		$21.40 1
<600E06B LR110644
CARRIER - SEAT TRACK
I/P Facia Contrast - Navy/Ivory, Seat - Standard / Centre Front / From: JA000001 		$21.40 1
<600E06B LR110645
CARRIER - SEAT TRACK
I/P Facia Contrast - Ebony/Cirrus, Seat - Standard / Centre Front / From: JA000001 		$21.40 1
<600E06C LR101402
CARRIER - SEAT TRACK
I/P Facia Contrast-Espresso/Almond / Outer, Rear / From: JA000001 		$39.75 2
<600E06C LR101403
CARRIER - SEAT TRACK
I/P Facia Contrast - Navy/Ivory / Outer, Rear / From: JA000001 		$34.86 2
<600E06C LR101404
CARRIER - SEAT TRACK
I/P Facia Contrast - Ebony Black / Outer, Rear / From: JA000001 		$33.82 2
<600E06D LR101399
CARRIER - SEAT TRACK
I/P Facia Contrast-Espresso/Almond / RH, Inner - Rear / From: JA000001 		$33.82 1
<600E06D LR101400
CARRIER - SEAT TRACK
I/P Facia Contrast - Navy/Ivory / RH, Inner - Rear / From: JA000001 		$33.82 1
<600E06D LR101401
CARRIER - SEAT TRACK
I/P Facia Contrast - Ebony Black / RH, Inner - Rear / From: JA000001 		$37.23 1
<600E06E LR110647
CARRIER - SEAT TRACK
I/P Facia Contrast-Espresso/Almond / LH, Inner - Rear / From: JA000001 		$21.40 1
<600E06E LR110648
CARRIER - SEAT TRACK
I/P Facia Contrast - Navy/Ivory / LH, Inner - Rear / From: JA000001 		$21.40 1
<600E06E LR110649
CARRIER - SEAT TRACK
I/P Facia Contrast - Ebony Black / LH, Inner - Rear / From: JA000001 		$17.23 1
<601B06 LR099534
LATCH - REAR SEAT BACK
LH / From: JA000001 / To: LA407891 		$286.80 1
<601B06 LR099535
LATCH - REAR SEAT BACK
RH / From: JA000001 / To: LA407891 		$304.88 1
<601B06 LR140667
LATCH - REAR SEAT BACK
LH / From: LA407892 		$313.67 1
<601B06 LR140668
LATCH - REAR SEAT BACK
RH / From: LA407892 		$330.92 1
<610C48 LR099585
SUPPORT - SEAT BACK
Flex Fuel - E100 / From: JA000001 / To: KA518601 		$961.75 1
<610C48 LR099584
SUPPORT - SEAT BACK
Petrol/Electric Hybrid / From: JA000001 / To: KA518601 		$490.03 1
<610C48 LR121903
SUPPORT - SEAT BACK
Diesel/Electric - Hybrid / From: KA518602 		$961.75 1
<610C48 LR121905
SUPPORT - SEAT BACK
Petrol/Electric Hybrid / From: KA518602 		$490.03 1
<624A14 LR120628
RETAINER - SEAT
RH/LH / From: JA000001 		$8.29 4
<624A38 LR109378
BRACKET - SEAT MOUNTING
Centre / From: JA000001 / To: KA524024 		$40.44 1
<624A38 LR123413
BRACKET - SEAT MOUNTING
Centre / From: KA524025 		$39.69 1
<32880 LR124959
PAD - ANTI-RATTLE
Anti-Rattle, Pad, RH/LH / From: KA536791 		$20.47 2
<62440A LR107767
SUPPORT - REAR SEAT CUSHION
Less Rear Seat Calf Rests / RH / From: JA000001 		$87.87 1
<62440A LR107771
SUPPORT - REAR SEAT CUSHION
Less Rear Seat Calf Rests / LH / From: JA000001 		$91.41 1
<62440B LR107766
SUPPORT - REAR SEAT CUSHION
LHD, Rear Seat Calf Rests, Standard Wheelbase / RH / From: JA000001 		$282.90 1
<62440B LR107772
SUPPORT - REAR SEAT CUSHION
Long Wheelbase, Rear Seat Calf Rests / LH / From: JA000001 		$282.90 1
<62440C LR107793
SUPPORT - REAR SEAT CUSHION
Centre / From: JA000001 		$82.93 1
<63100A LR099516
FRAME AND SPRING - RR SEAT CUSHION
Less Rear Seat Calf Rests / RH / From: JA000001 		$1,123.36 1
<63100A LR099519
FRAME AND SPRING - RR SEAT CUSHION
Less Rear Seat Calf Rests / LH / From: JA000001 		$1,047.27 1
<63100B LR099517
FRAME AND SPRING - RR SEAT CUSHION
Long Wheelbase, Rear Seat Calf Rests / RH / From: JA000001 		$1,229.79 1
<63100B LR099521
FRAME AND SPRING - RR SEAT CUSHION
Long Wheelbase, Rear Seat Calf Rests / LH / From: JA000001 		$1,094.21 1
<63100C LR099514
FRAME AND SPRING - RR SEAT CUSHION
Centre / From: JA000001 		$1,145.31 1
<63100D LR099532
FRAME AND SPRING - REAR SEAT BACK
Less Version Package / RH, 40% Seat / From: JA000001 / To: JA509314 		$1,313.93 1
<63100D LR109895
FRAME - SEAT
Armoured / RH / From: JA000001 		$648.28 1
<63100D LR119555
FRAME AND SPRING - REAR SEAT BACK
Less Version Package / RH, 40% Seat / From: JA509315 		$1,313.93 1
<63100E LR099533
FRAME AND SPRING - REAR SEAT BACK
Less Version Package / LH, 60% Seat / From: JA000001 / To: JA509314 		$1,527.46 1
<63100E LR109896
FRAME - SEAT
Armoured / LH / From: JA000001 		$1,631.49 1
<63100E LR119556
FRAME AND SPRING - REAR SEAT BACK
Less Version Package / LH, 60% Seat / From: JA509315 		$1,106.72 1
HB1 LR039088
BOLT
Front, M10 X 25MM, Seat Frame To Floor / From: JA000001
IN STOCK 		$2.34 5
HB2 BYG500120
BOLT
Bolt To Attach Seat Latch To Back Frame, M8 x 50MM, Torx / From: JA000001 		$2.29 4
HB3 LR087365
BOLT
Bracket, M6 x 18MM / From: JA000001 		$0.91 3
HB4 LR099577
BOLT
Fixes Reinforcement, M12 x 50MM / From: JA000001 		$4.27 4
HB5 LR106367
BOLT
M12 X 30MM, Rear, Seat Frame To Floor / From: JA000001 		$3.72 5
HB6 LR107009
BOLT AND WASHER - HEX.HEAD
M8 X 22MM, Reinforcement To Frame / From: JA000001 		$1.79 5
