Windscreen Wiper

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Windscreen Wiper

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500910 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR033021 NUT AND WASHER - HEX. $1.80 To Order
Photo Part No Description Price (each) Stock
LR033035 WIPER MOTOR AND MECHANISM $480.71 To Order
LR033034 WIPER MOTOR AND MECHANISM $315.84 To Order
LR069005 WIPER MOTOR AND MECHANISM $633.98 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033022 BLADE - WIPER $45.44 To Order
LR033023 BLADE - WIPER $37.41 To Order
LR180491 BLADE - WIPER $39.46 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033024 ARM - WIPER $88.12 To Order
LR033025 ARM - WIPER $88.12 To Order
LR033030 ARM - WIPER $88.12 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033027 CAP - WIPER ARM $4.91 To Order
View All

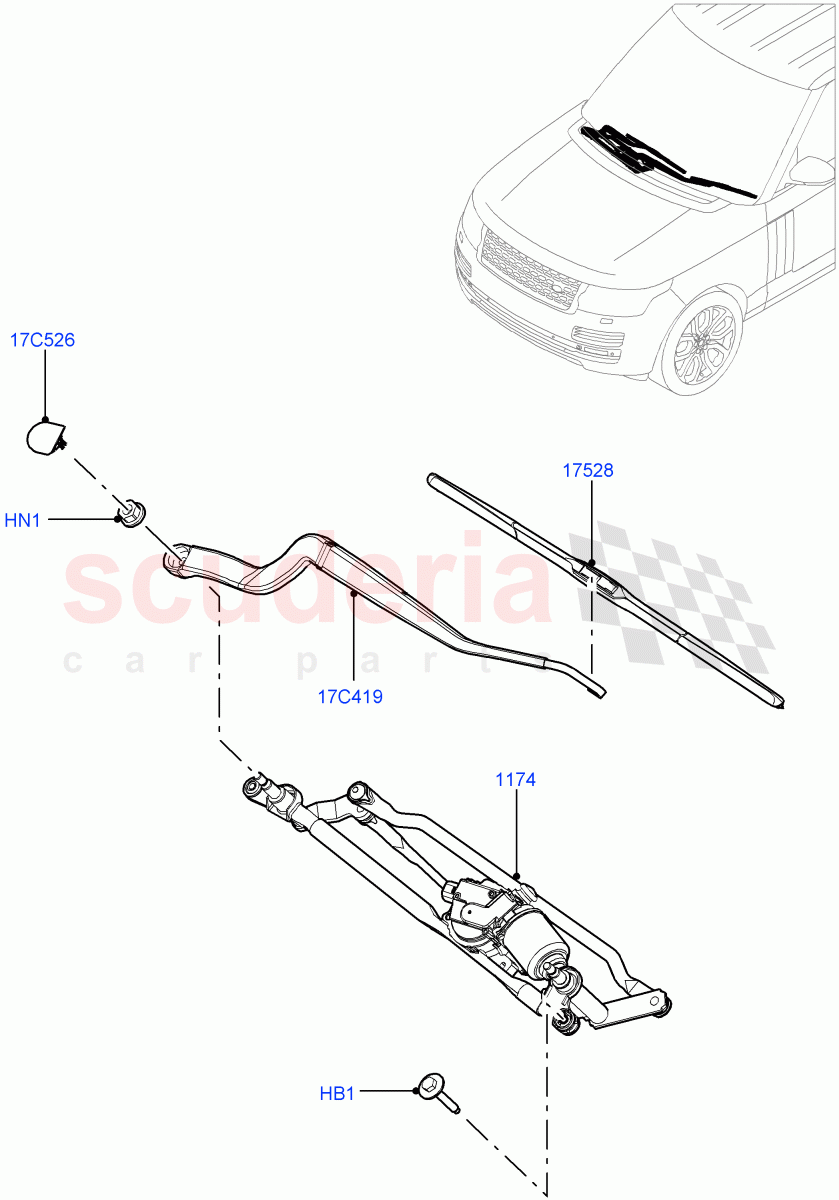

Windscreen Wiper of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500910
BOLT
Bolt And Washer, Hexagonal Head, M6 x 35MM 		$0.52 2
HN1 LR033021
NUT AND WASHER - HEX.
M10, Wiper Arm 		$1.80 2
17C419 LR033024
ARM - WIPER
RHD / RH / To: FA212940 		$88.12 1
17C419 LR033025
ARM - WIPER
RHD / LH / To: FA212940 		$88.12 1
17C419 LR033030
ARM - WIPER
LHD / LH / To: FA212940 		$88.12 1
17C419 LR033031
ARM - WIPER
LHD / RH / To: FA212940 		$88.12 1
17C419 LR066985
ARM - WIPER
RHD / RH / From: FA212941 / To: GA246452 		$84.87 1
17C419 LR066986
ARM - WIPER
RHD / LH / From: FA212941 / To: GA999999 		$86.77 1
17C419 LR066987
ARM - WIPER
LHD / LH / From: FA212941 / To: GA246452 		$79.25 1
17C419 LR066988
ARM - WIPER
LHD / RH / From: FA212941 / To: GA999999 		$87.04 1
17C419 LR076834
ARM - WIPER
RHD / RH / From: GA246453 / To: GA999999 		$83.72 1
17C419 LR076843
ARM - WIPER
LHD / LH / From: GA246453 / To: GA999999 		$83.71 1
17C419 LR083265
ARM - WIPER
RHD / LH / From: HA000001 		$76.23 1
17C419 LR083268
ARM - WIPER
LHD / RH / From: HA000001 		$79.72 1
17C419 LR098272
ARM - WIPER
RHD / RH / From: JA000001 / To: JA504760 		$74.00 1
17C419 LR098273
ARM - WIPER
LHD / LH / From: JA000001 / To: JA504760 		$74.00 1
17C419 LR083263
ARM - WIPER
RHD / RH / From: HA000001 / To: HA999999 		$77.73 1
17C419 LR083264
ARM - WIPER
LHD / LH / From: HA000001 / To: HA999999 		$77.73 1
17C419 LR113390
ARM - WIPER
RHD / RH / From: JA504761 		$72.92 1
17C419 LR113391
ARM - WIPER
LHD / LH / From: JA504761 		$74.00 1
17C526 LR033027
CAP - WIPER ARM
Wiper Arm 		$4.91 2
1174 LR033035
WIPER MOTOR AND MECHANISM
LHD / Windshield Wiper, Includes Motor And Linkage / To: FA212940 		$480.71 1
1174 LR033034
WIPER MOTOR AND MECHANISM
RHD / Windshield Wiper, Includes Motor And Linkage / To: FA212940 		$315.84 1
1174 LR069005
WIPER MOTOR AND MECHANISM
RHD / Windshield Wiper, Includes Motor And Linkage / From: FA212941 / To: HA999999 		$633.98 1
1174 LR069004
WIPER MOTOR AND MECHANISM
LHD / Windshield Wiper, Includes Motor And Linkage / From: FA212941 / To: HA999999 		$558.05 1
1174 LR098363
WIPER MOTOR AND MECHANISM
LHD / Windshield Wiper, Includes Motor And Linkage / From: JA000001 / To: JA507240 		$443.96 1
1174 LR098364
WIPER MOTOR AND MECHANISM
RHD / Windshield Wiper, Includes Motor And Linkage / From: JA000001 / To: JA507240 		$424.66 1
1174 LR113392
WIPER MOTOR AND MECHANISM
LHD / Windshield Wiper, Includes Motor And Linkage / From: JA507241 / To: MA454741 		$450.56 1
1174 LR113393
WIPER MOTOR AND MECHANISM
RHD / Windshield Wiper, Includes Motor And Linkage / From: JA507241 / To: MA454289 		$429.11 1
1174 LR161376
WIPER MOTOR AND MECHANISM
LHD / Windshield Wiper, Includes Motor And Linkage / From: MA454742 		$473.32 1
1174 LR161380
WIPER MOTOR AND MECHANISM
RHD / Windshield Wiper, Includes Motor And Linkage / From: MA454290 		$473.32 1
17528 LR033022
BLADE - WIPER
RHD / RH / To: FA212940 		$45.44 1
17528 LR033023
BLADE - WIPER
RHD / LH / To: GA999999 		$37.41 1
17528 LR180491
BLADE - WIPER
LHD / LH / To: FA212940 		$39.46 1
17528 LR033029
BLADE - WIPER
LHD / RH / To: GA999999 		$41.16 1
17528 LR067002
BLADE - WIPER
LHD / LH / From: FA212941 / To: GA246452 		$41.16 1
17528 LR069006
BLADE - WIPER
RHD / RH / From: FA212941 / To: GA246452 		$45.44 1
17528 LR076848
BLADE - WIPER
RHD / RH / From: GA246453 / To: GA999999 		$36.89 1
17528 LR076850
BLADE - WIPER
LHD / LH / From: GA246453 / To: GA999999 		$41.16 1
17528 LR083266
BLADE - WIPER
RHD / RH / From: HA000001 / To: HA999999 		$43.24 1
17528 LR083267
BLADE - WIPER
RHD / LH / From: HA000001
IN STOCK 		$43.24 1
17528 LR083271
BLADE - WIPER
LHD / LH / From: HA000001 / To: HA999999 		$45.44 1
17528 LR083272
BLADE - WIPER
LHD / RH / From: HA000001 		$45.44 1
17528 LR106594
BLADE - WIPER
RHD / RH / From: JA000001
IN STOCK 		$45.44 1
17528 LR106593
BLADE - WIPER
LHD / LH / From: JA000001
IN STOCK 		$45.44 1
