Name: Transmission Mounting (5.0L OHC SGDI NA V8 Petrol - AJ133, 3.0L DOHC GDI SC V6 PETROL)
Rating: 4.7 (1 reviews)

Transmission Mounting (5.0L OHC SGDI NA V8 Petrol - AJ133, 3.0L DOHC GDI SC V6 PETROL) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Transmission Mounting (5.0L OHC SGDI NA V8 Petrol - AJ133, 3.0L DOHC GDI SC V6 PETROL)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR043577	BOLT - HEX. HEAD - FLANGED	$10.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033203	SCREW	$5.91	To Order
	LR072612	SCREW	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	FT110356	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501170	SCREW AND WASHER	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038131	STIFFENER	$57.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043761	DAMPER - DAMPING MASS	$166.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033177	SUPPORT - TRANSMISSION CENTRE	$584.14	To Order
	LR052331	SUPPORT - TRANSMISSION CENTRE	$619.63	To Order
	LR061587	SUPPORT - TRANSMISSION CENTRE	$619.63	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091364	INSULATOR - ENGINE SUPPORT	$161.11	To Order
	LR091364	INSULATOR - ENGINE SUPPORT	$161.11	To Order

View All

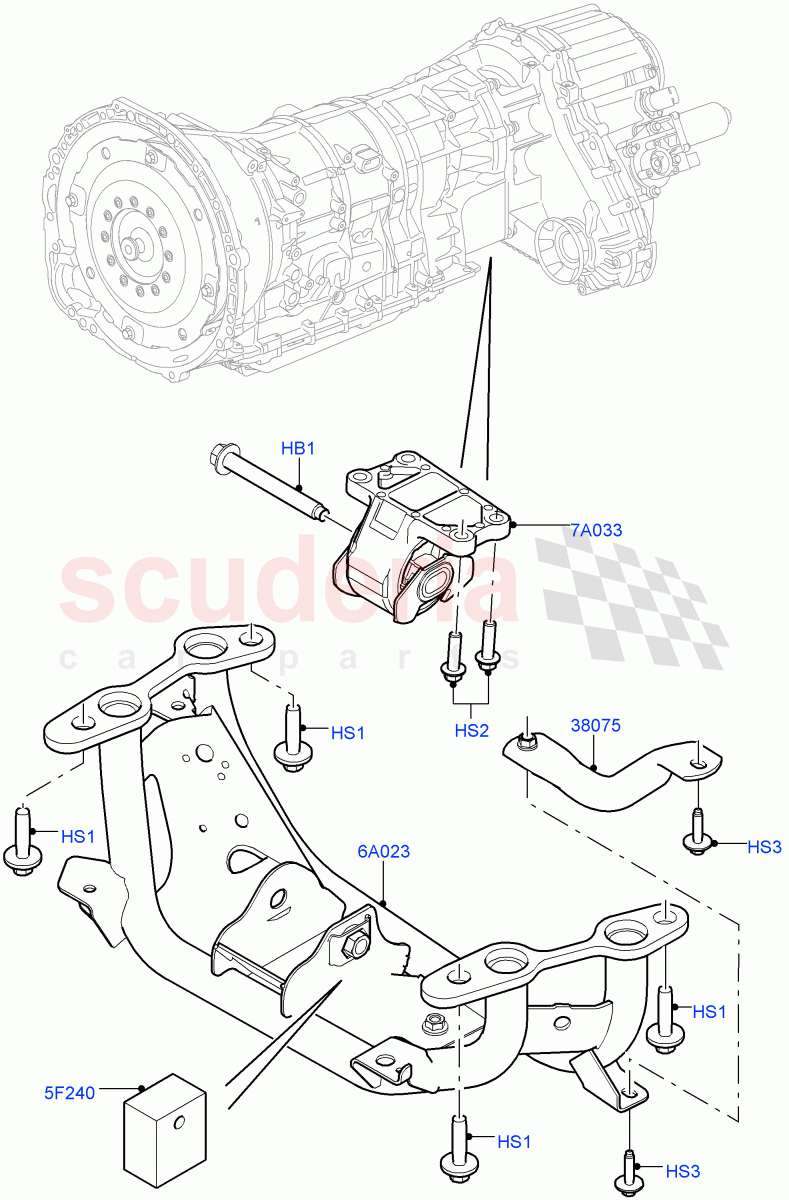

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR043577	BOLT - HEX. HEAD - FLANGED	LR043577 BOLT - HEX. HEAD - FLANGED Hexagonal Head, M14 X 128.5MM	$10.17	1
HS1	LR033203	SCREW	LR033203 SCREW Hexagonal Head, M12 x 50MM / To: FA227609	$5.91	4
HS1	LR072612	SCREW	LR072612 SCREW Hexagonal Head, M12 X 45MM / From: FA227610	$2.74	4
HS2	FT110356	SCREW	FT110356 SCREW Hexagonal Head, M10 x 35MM	$2.39	4
HS3	RYG501170	SCREW AND WASHER	RYG501170 SCREW AND WASHER Hexagonal Head, M8 X 30MM	$0.61	2
5F240	LR043761	DAMPER - DAMPING MASS	LR043761 DAMPER - DAMPING MASS Transmission Mounting	$166.13	1
6A023	LR033177	SUPPORT - TRANSMISSION CENTRE	LR033177 SUPPORT - TRANSMISSION CENTRE Transmission / To: DA999999	$584.14	1
6A023	LR052331	SUPPORT - TRANSMISSION CENTRE	LR052331 SUPPORT - TRANSMISSION CENTRE Transmission / From: EA000001 / To: EA171435	$619.63	1
6A023	LR061587	SUPPORT - TRANSMISSION CENTRE	LR061587 SUPPORT - TRANSMISSION CENTRE Transmission / From: EA171436 / To: EA999999	$619.63	1
6A023	LR062114	SUPPORT - TRANSMISSION CENTRE	LR062114 SUPPORT - TRANSMISSION CENTRE Transmission / From: FA000001 / To: GA999999	$1,147.94	1
6A023	LR084110	SUPPORT - TRANSMISSION CENTRE	LR084110 SUPPORT - TRANSMISSION CENTRE Transmission / From: HA000001 / To: HA361360	$637.85	1
6A023	LR105302	SUPPORT - TRANSMISSION CENTRE	LR105302 SUPPORT - TRANSMISSION CENTRE Transmission / From: HA361361 / To: JA999999	$637.85	1
6A023	LR113253	SUPPORT - TRANSMISSION CENTRE	LR113253 SUPPORT - TRANSMISSION CENTRE Transmission / From: KA000001	$668.99	1
7A033	LR091364	INSULATOR - ENGINE SUPPORT	LR091364 INSULATOR - ENGINE SUPPORT Transfer Box / To: GA999999	$161.11	1
7A033	LR091364	INSULATOR - ENGINE SUPPORT	LR091364 INSULATOR - ENGINE SUPPORT Transfer Box / From: HA000001	$161.11	1
38075	LR038131	STIFFENER	LR038131 STIFFENER	$57.15	1

Transmission Mounting (5.0L Ohc Sgdi Na V8 Petrol - Aj133, 3.0L Dohc Gdi Sc V6 Petrol)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Transmission Mounting (5.0L OHC SGDI NA V8 Petrol - AJ133, 3.0L DOHC GDI SC V6 PETROL)
