Supercharger (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, 5.0 Petrol Aj133 Dohc Cda, 5.0L P Aj133 Dohc Cda...

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Supercharger (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4567977 BOLT $3.92 IN STOCK
Photo Part No Description Price (each) Stock
LR010917 SCREW $1.16 IN STOCK
Photo Part No Description Price (each) Stock
LR160736 ISOLATOR $180.53 To Order
LR160735 ISOLATOR $180.53 To Order
Photo Part No Description Price (each) Stock
LR036194 SUPERCHARGER $3,640.36 To Order
LR065512 SUPERCHARGER $3,307.90 To Order
LR082688 SUPERCHARGER $3,641.40 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035539 ACTUATOR - SUPERCHARGER BYPASS $289.84 To Order
LR087235 ACTUATOR - SUPERCHARGER BYPASS $355.44 To Order
Photo Part No Description Price (each) Stock
LR058083 KIT - SUPERCHARGER $449.71 To Order
LR088513 KIT - SUPERCHARGER $867.39 To Order
LR088514 KIT - SUPERCHARGER $659.44 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR008881 SENSOR - MANIFOLD ABSOLUTE PRESSURE $143.05 To Order
LR087236 SENSOR - MANIFOLD ABSOLUTE PRESSURE $139.92 To Order
Photo Part No Description Price (each) Stock
LR066147 COUPLING - BYPASS ACTUATOR $24.47 To Order
View All

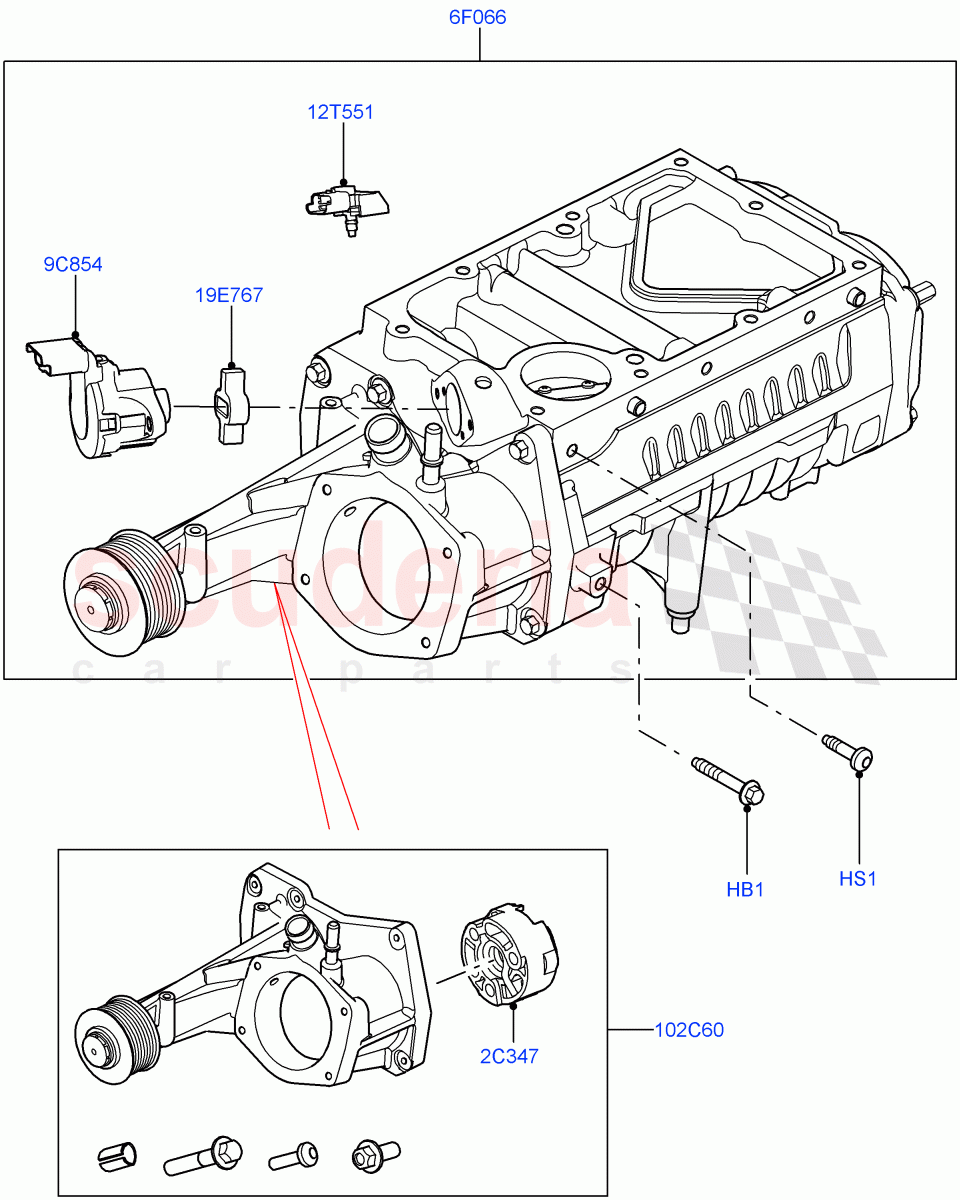

Supercharger (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4567977
BOLT
M8 X 50, Manifold To Supercharger
IN STOCK 		$3.92 2
HS1 LR010917
SCREW
M8 x 30MM, Manifold To Supercharger
IN STOCK 		$1.16 6
2C347 LR160736
ISOLATOR
49.38 mm Isolator Diameter. Please Check Before Ordering. 		$180.53 1
2C347 LR160735
ISOLATOR
45.0 mm Isolator Diameter. Please Check Before Ordering. 		$180.53 1
6F066 LR036194
SUPERCHARGER
To: EA194020 		$3,640.36 1
6F066 LR065512
SUPERCHARGER
From: EA194021 / To: GA282418 		$3,307.90 1
6F066 LR082688
SUPERCHARGER
From: GA282419 / To: GA294128 		$3,641.40 1
6F066 LR088998
SUPERCHARGER
From: GA294129 / To: HA999999 		$3,961.21 1
6F066 LR100572
SUPERCHARGER
5.0L P AJ133 DOHC CDA S/C Enhanced / From: JA000001 		$2,624.43 1
6F066 LR088998
SUPERCHARGER
5.0 Petrol AJ133 DOHC CDA / From: JA000001 		$3,961.21 1
9C854 LR035539
ACTUATOR - SUPERCHARGER BYPASS
Electric / To: GA293199 		$289.84 1
9C854 LR087235
ACTUATOR - SUPERCHARGER BYPASS
Electric / From: GA293200 		$355.44 1
12T551 LR008881
SENSOR - MANIFOLD ABSOLUTE PRESSURE
Sensor - Manifold Absolute Pressure (MAP) / To: EA196785 		$143.05 1
12T551 LR087236
SENSOR - MANIFOLD ABSOLUTE PRESSURE
Sensor - Manifold Absolute Pressure (MAP) / From: EA196786 		$139.92 1
19E767 LR066147
COUPLING - BYPASS ACTUATOR
Supercharger Bypass Solenoid 		$24.47 1
102C60 LR058083
KIT - SUPERCHARGER
45.0 mm Isolator Diameter. Please Check Before Ordering., Front End, Please Consider Repair Using LR160735 Before Ordering LR058083, With Fixing Parts / To: GA296633 		$449.71 1
102C60 LR088513
KIT - SUPERCHARGER
45.0 mm Isolator Diameter. Please Check Before Ordering., Front End, Please Consider Repair Using LR160735 Before Ordering LR088513, With Fixing Parts / From: GA296634 / To: HA999999 		$867.39 1
102C60 LR088514
KIT - SUPERCHARGER
49.38 mm Isolator Diameter. Please Check Before Ordering., Front End, Please Consider Repair Using LR160736 Before Ordering LR088514, With Fixing Parts / From: DA000001 / To: HA999999 		$659.44 1
102C60 LR088514
KIT - SUPERCHARGER
5.0 Petrol AJ133 DOHC CDA / Front End, Please Consider Repair Using LR160736 Before Ordering LR088514, With Fixing Parts / From: JA000001 		$659.44 1
