Fuel Pump And Sender Unit (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Toga999999)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Fuel Pump And Sender Unit (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOGA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.46 IN STOCK
Photo Part No Description Price (each) Stock
LR038710 SCREW - SELF-TAPPING $2.67 To Order
Photo Part No Description Price (each) Stock
LR038159 SENSOR - FUEL LEVEL $371.98 To Order
LR049991 SENSOR - FUEL LEVEL $358.25 To Order
LR079271 SENSOR - FUEL LEVEL $486.00 To Order
Photo Part No Description Price (each) Stock
LR039218 CONTROL - FUEL PUMP DRIVE $337.09 To Order
Photo Part No Description Price (each) Stock
LR040878 PUMP - FUEL $541.67 To Order
LR077703 PUMP - FUEL $580.41 To Order
Photo Part No Description Price (each) Stock
LR036701 SENDER - FUEL TANK $195.27 To Order
LR095885 SENDER - FUEL TANK $189.31 To Order
LR124691 SENDER - FUEL TANK $146.37 To Order
Photo Part No Description Price (each) Stock
LR050479 SENDER - FUEL TANK $170.81 To Order
View All

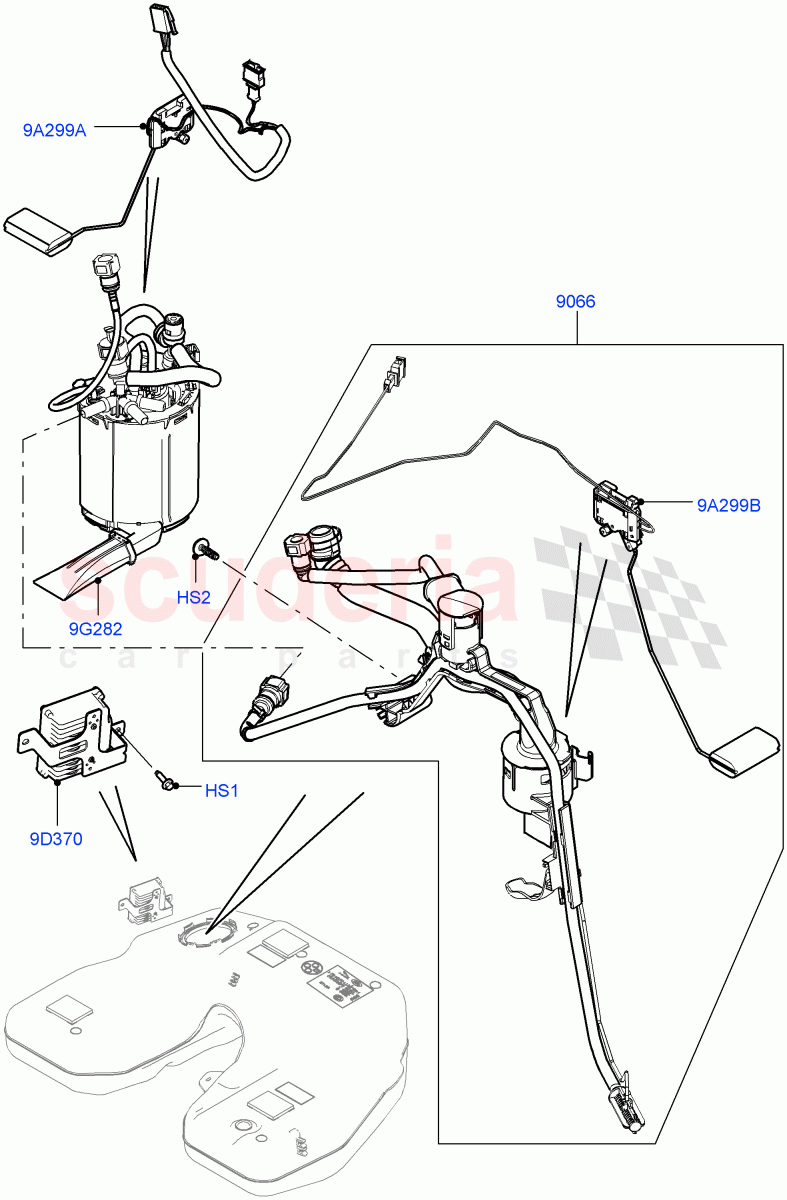

Fuel Pump And Sender Unit (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOGA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM / To: GA999999
IN STOCK 		$3.46 2
HS2 LR038710
SCREW - SELF-TAPPING
M6 x 12MM 		$2.67 1
9A299A LR036701
SENDER - FUEL TANK
RH / To: GA273759 		$195.27 1
9A299A LR095885
SENDER - FUEL TANK
RH / From: GA273760 / To: KA516416 		$189.31 1
9A299A LR124691
SENDER - FUEL TANK
RH / From: KA516417 		$146.37 1
9A299B LR050479
SENDER - FUEL TANK
LH / To: GA999999 		$170.81 1
9D370 LR039218
CONTROL - FUEL PUMP DRIVE
To: GA999999 		$337.09 1
9G282 LR040878
PUMP - FUEL
To: DA999999 		$541.67 1
9G282 LR077703
PUMP - FUEL
From: EA000001 		$580.41 1
9066 LR038159
SENSOR - FUEL LEVEL
To: DA999999 		$371.98 1
9066 LR049991
SENSOR - FUEL LEVEL
From: EA000001 / To: GA298486 		$358.25 1
9066 LR079271
SENSOR - FUEL LEVEL
From: GA298487 / To: GA999999 		$486.00 1
