Rear Exhaust System (5.0 Petrol Aj133 Dohc Cda, Armoured) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Rear Exhaust System (5.0 Petrol AJ133 DOHC CDA, Armoured) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.03 To Order
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $24.15 To Order
Photo Part No Description Price (each) Stock
LR038532 RESONATOR - EXHAUST SYSTEM $1,298.55 To Order
LR120466 RESONATOR - EXHAUST SYSTEM $1,189.92 To Order
Photo Part No Description Price (each) Stock
LR036438 EXHAUST $36.71 To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST $80.06 To Order
Photo Part No Description Price (each) Stock
LR109026 MUFFLER - FRONT $953.22 To Order
Photo Part No Description Price (each) Stock
LR109027 MUFFLER - FRONT $953.22 To Order
Photo Part No Description Price (each) Stock
LR035765 BRACKET - EXHAUST PIPE MOUNTING $31.29 To Order
Photo Part No Description Price (each) Stock
LR110251 BRACKET - REAR MUFFLER $31.29 To Order
Photo Part No Description Price (each) Stock
LR110252 BRACKET - REAR MUFFLER $31.29 To Order
Photo Part No Description Price (each) Stock
LR044964 BRACKET - REAR MUFFLER $46.98 To Order
LR136419 BRACKET - REAR MUFFLER $46.03 To Order
Photo Part No Description Price (each) Stock
LR044965 BRACKET - REAR MUFFLER $46.98 To Order
LR136420 BRACKET - REAR MUFFLER $46.03 To Order
Photo Part No Description Price (each) Stock
LR109028 BRACKET - EXHAUST $562.76 To Order
View All

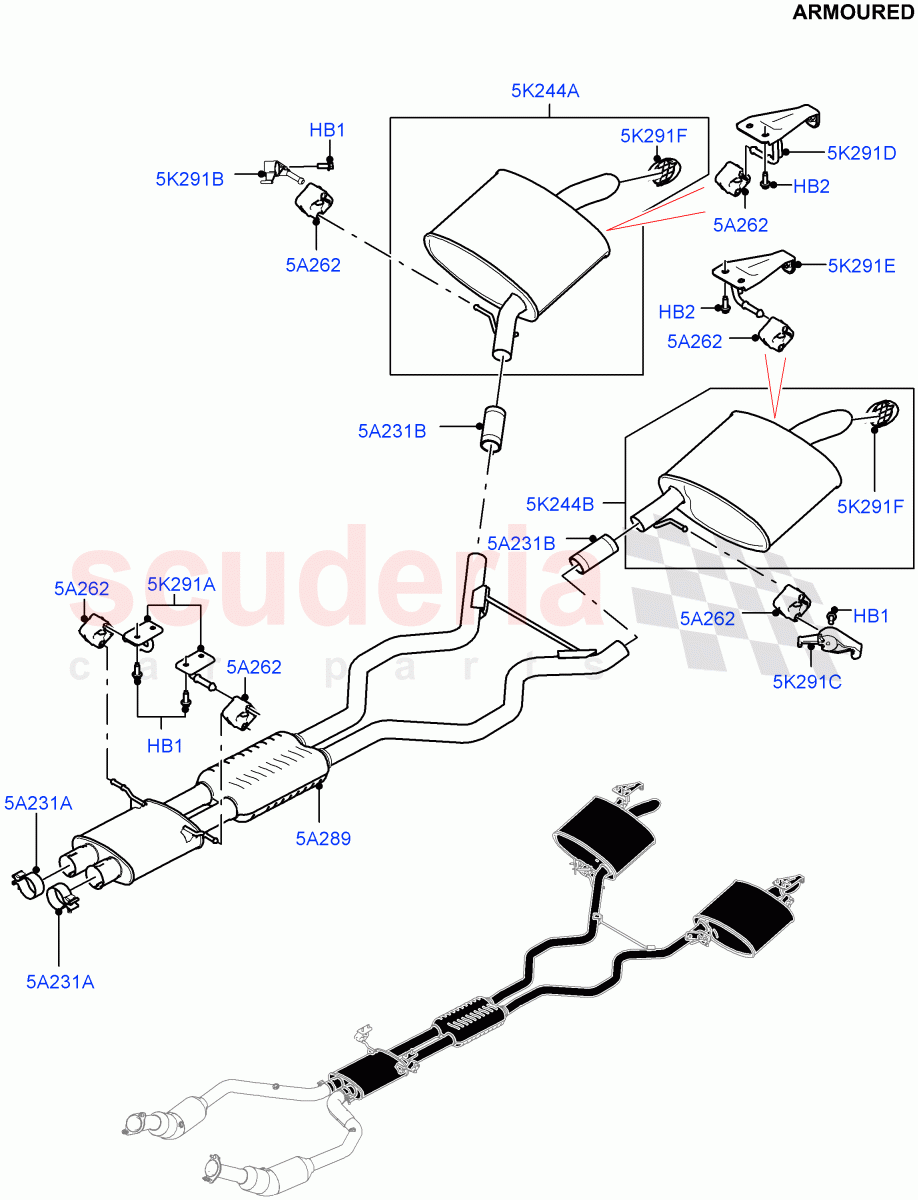

Rear Exhaust System (5.0 Petrol AJ133 DOHC CDA, Armoured) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
For Rear Muffler, Hexagonal Head, M8 X 20MM, RESONATOR / From: JA000001
IN STOCK 		$2.29 4
HB2 RYG500440
BOLT
Hexagonal Head, M8 X 20MM / From: JA000001 		$1.03 4
5A231A LR036438
EXHAUST
60MM, Front, RESONATOR / From: JA000001 		$36.71 2
5A231B WCL500020
CLAMP - EXHAUST
50MM, For Rear Muffler / From: JA000001 		$80.06 2
5A262 LR090360
INSULATOR - RUBBER
From: JA000001 		$24.15 6
5A289 LR038532
RESONATOR - EXHAUST SYSTEM
From: JA000001 / To: KA521511 		$1,298.55 1
5A289 LR120466
RESONATOR - EXHAUST SYSTEM
From: KA521512 		$1,189.92 1
5K244A LR109026
MUFFLER - FRONT
Armoured / RH / From: JA000001 		$953.22 1
5K244B LR109027
MUFFLER - FRONT
Armoured / LH / From: JA000001 		$953.22 1
5K291A LR035765
BRACKET - EXHAUST PIPE MOUNTING
RESONATOR, RH And LH / From: JA000001 		$31.29 1
5K291B LR110251
BRACKET - REAR MUFFLER
For Rear Muffler, RH Front / From: JA000001 		$31.29 1
5K291C LR110252
BRACKET - REAR MUFFLER
For Rear Muffler, LH Front / From: JA000001 		$31.29 1
5K291D LR044964
BRACKET - REAR MUFFLER
For Rear Muffler, RH Rear / From: JA000001 / To: KA567510 		$46.98 1
5K291D LR136419
BRACKET - REAR MUFFLER
For Rear Muffler, RH Rear / From: KA567511 		$46.03 1
5K291E LR044965
BRACKET - REAR MUFFLER
For Rear Muffler, LH Rear / From: JA000001 / To: KA567510 		$46.98 1
5K291E LR136420
BRACKET - REAR MUFFLER
For Rear Muffler, LH Rear / From: KA567511 		$46.03 1
5K291F LR109028
BRACKET - EXHAUST
From: JA000001 		$562.76 2
