Exhaust System (Autobiography Black / Sv Autobiography) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, 5.0L P...

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Exhaust System (Autobiography Black / SV Autobiography) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L P...

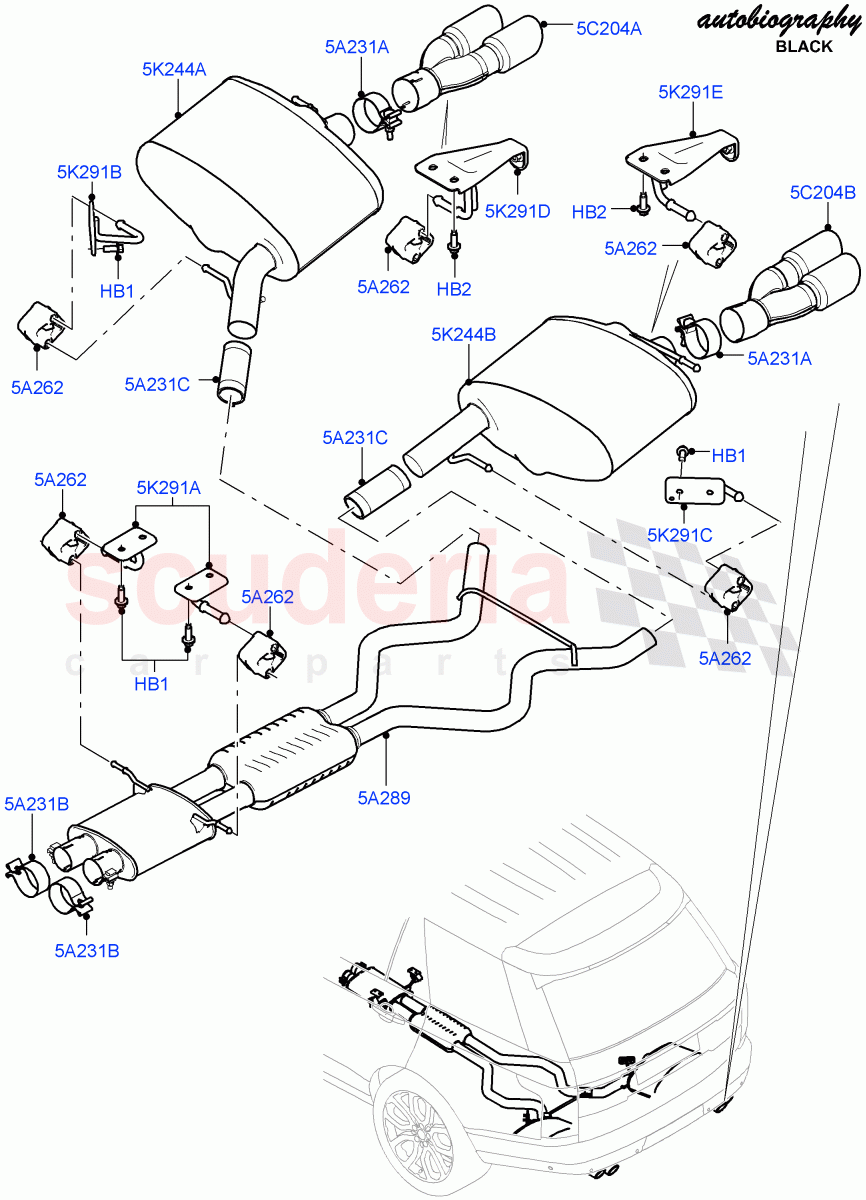

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
LR077701 INSULATOR - RUBBER $29.29 To Order
Photo Part No Description Price (each) Stock
LR047849 RESONATOR - EXHAUST SYSTEM $1,022.17 To Order
LR077699 RESONATOR - EXHAUST SYSTEM $989.09 To Order
LR106790 RESONATOR - EXHAUST SYSTEM $817.97 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR077700 CLAMP - EXHAUST $45.26 To Order
Photo Part No Description Price (each) Stock
LR036438 EXHAUST $36.62 To Order
Photo Part No Description Price (each) Stock
WCL500030 CLAMP - EXHAUST $83.74 To Order
Photo Part No Description Price (each) Stock
LR073396 FINISHER - EXHAUST $439.48 To Order
LR073397 FINISHER - EXHAUST $439.48 To Order
Photo Part No Description Price (each) Stock
LR073399 FINISHER - EXHAUST $439.48 To Order
LR073398 FINISHER - EXHAUST $439.48 To Order
Photo Part No Description Price (each) Stock
LR077695 MUFFLER - REAR $941.35 To Order
LR077698 MUFFLER - REAR $921.12 To Order
LR106816 MUFFLER - REAR $744.46 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR077696 MUFFLER - REAR $941.35 To Order
LR077697 MUFFLER - REAR $921.12 To Order
LR106817 MUFFLER - REAR $1,048.38 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR035765 BRACKET - EXHAUST PIPE MOUNTING $31.22 To Order
Photo Part No Description Price (each) Stock
LR035769 BRACKET - EXHAUST PIPE MOUNTING $32.82 To Order
Photo Part No Description Price (each) Stock
LR035772 BRACKET - EXHAUST PIPE MOUNTING $32.82 To Order
Photo Part No Description Price (each) Stock
LR044964 BRACKET - REAR MUFFLER $46.87 To Order
Photo Part No Description Price (each) Stock
LR044965 BRACKET - REAR MUFFLER $46.87 To Order
View All
Exhaust System (Autobiography Black / SV Autobiography) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMGA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: GA000001
IN STOCK 		$2.29 8
HB2 RYG500440
BOLT
Hexagonal Head, M8 X 20MM / From: GA000001 		$1.02 8
5A231A LR077700
CLAMP - EXHAUST
65MM / From: GA000001 		$45.26 2
5A231B LR036438
EXHAUST
60MM / From: GA000001 		$36.62 2
5A231C WCL500030
CLAMP - EXHAUST
55MM / From: GA000001 		$83.74 1
5A262 LR077701
INSULATOR - RUBBER
From: GA000001 		$29.29 6
5A289 LR047849
RESONATOR - EXHAUST SYSTEM
Standard Wheelbase / From: GA000001 / To: HA999999 		$1,022.17 1
5A289 LR077699
RESONATOR - EXHAUST SYSTEM
Long Wheelbase / From: GA000001 / To: HA999999 		$989.09 1
5A289 LR106790
RESONATOR - EXHAUST SYSTEM
Standard Wheelbase / From: JA000001 / To: KA520386 		$817.97 1
5A289 LR053255
RESONATOR - EXHAUST SYSTEM
Long Wheelbase / From: JA000001 		$797.39 1
5A289 LR120471
RESONATOR - EXHAUST SYSTEM
Standard Wheelbase / From: KA520387 		$940.69 1
5C204A LR073396
FINISHER - EXHAUST
Long Wheelbase / RH / From: GA000001 / To: HA999999 		$439.48 1
5C204A LR073397
FINISHER - EXHAUST
Standard Wheelbase / RH / From: GA000001 / To: HA999999 		$439.48 1
5C204B LR073399
FINISHER - EXHAUST
Long Wheelbase / LH / From: GA000001 / To: HA999999 		$439.48 1
5C204B LR073398
FINISHER - EXHAUST
Standard Wheelbase / LH / From: GA000001 / To: HA999999 		$439.48 1
5K244A LR077695
MUFFLER - REAR
Standard Wheelbase / RH / From: GA000001 / To: HA999999 		$941.35 1
5K244A LR077698
MUFFLER - REAR
Long Wheelbase / RH / From: GA000001 / To: HA999999 		$921.12 1
5K244A LR106816
MUFFLER - REAR
Standard Wheelbase / RH / From: JA000001 / To: LA999999
IN STOCK 		$744.46 1
5K244A LR106797
MUFFLER - REAR
Long Wheelbase / RH / From: JA000001 / To: LA999999 		$1,048.38 1
5K244A LR106797
MUFFLER - REAR
RH / From: MA000001 		$1,048.38 1
5K244B LR077696
MUFFLER - REAR
Standard Wheelbase / LH / From: GA000001 / To: HA999999 		$941.35 1
5K244B LR077697
MUFFLER - REAR
Long Wheelbase / LH / From: GA000001 / To: HA999999 		$921.12 1
5K244B LR106817
MUFFLER - REAR
Standard Wheelbase / LH / From: JA000001 / To: LA999999 		$1,048.38 1
5K244B LR106798
MUFFLER - REAR
Long Wheelbase / LH / From: JA000001 / To: LA999999 		$1,048.38 1
5K244B LR106798
MUFFLER - REAR
LH / From: MA000001 		$1,048.38 1
5K291A LR035765
BRACKET - EXHAUST PIPE MOUNTING
Front, RH/LH / From: GA000001 		$31.22 2
5K291B LR035769
BRACKET - EXHAUST PIPE MOUNTING
RH, Middle / From: GA000001 		$32.82 1
5K291C LR035772
BRACKET - EXHAUST PIPE MOUNTING
LH, Middle / From: GA000001 		$32.82 1
5K291D LR044964
BRACKET - REAR MUFFLER
Rear RH / From: GA000001 		$46.87 1
5K291E LR044965
BRACKET - REAR MUFFLER
Rear LH / From: GA000001 		$46.87 1
