Engine Mounting (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Engine Mounting (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011068 BOLT $2.84 To Order
Photo Part No Description Price (each) Stock
LR057599 BOLT AND WASHER - HEX.HEAD $40.36 To Order
Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.53 To Order
Photo Part No Description Price (each) Stock
LR118800 BOLT AND WASHER - HEX.HEAD $3.03 IN STOCK
Photo Part No Description Price (each) Stock
LR146237 BOLT $2.82 To Order
Photo Part No Description Price (each) Stock
LR095134 NUT $0.96 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.49 IN STOCK
Photo Part No Description Price (each) Stock
LR033201 SCREW $3.84 To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW $0.46 IN STOCK
Photo Part No Description Price (each) Stock
LR073635 SCREW $2.28 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.27 To Order
Photo Part No Description Price (each) Stock
QYP500110 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR145210 BRACKET - ENGINE MOUNTING $248.47 To Order
Photo Part No Description Price (each) Stock
LR123907 BRACKET - ENGINE MOUNTING $153.19 To Order
Photo Part No Description Price (each) Stock
LR119715 BRACKET - ENGINE FRONT SUPPORT $318.85 To Order
LR149521 BRACKET - ENGINE FRONT SUPPORT $334.79 To Order
LR147913 BRACKET - ENGINE FRONT SUPPORT $93.12 To Order
Photo Part No Description Price (each) Stock
LR123098 BRACKET - ENGINE FRONT SUPPORT $411.48 To Order
LR149524 BRACKET - ENGINE FRONT SUPPORT $432.07 To Order
LR147912 BRACKET - ENGINE FRONT SUPPORT $87.27 To Order
Photo Part No Description Price (each) Stock
LR121137 HEAT SHIELD - UNDERFLOOR $24.85 To Order
Photo Part No Description Price (each) Stock
LR146024 DAMPER - VIBRATION $142.10 To Order
Photo Part No Description Price (each) Stock
LR124852 SOLENOID - VACUUM CONTROL $323.85 To Order
Photo Part No Description Price (each) Stock
LR124848 HOSE - VACUUM $248.23 To Order
View All

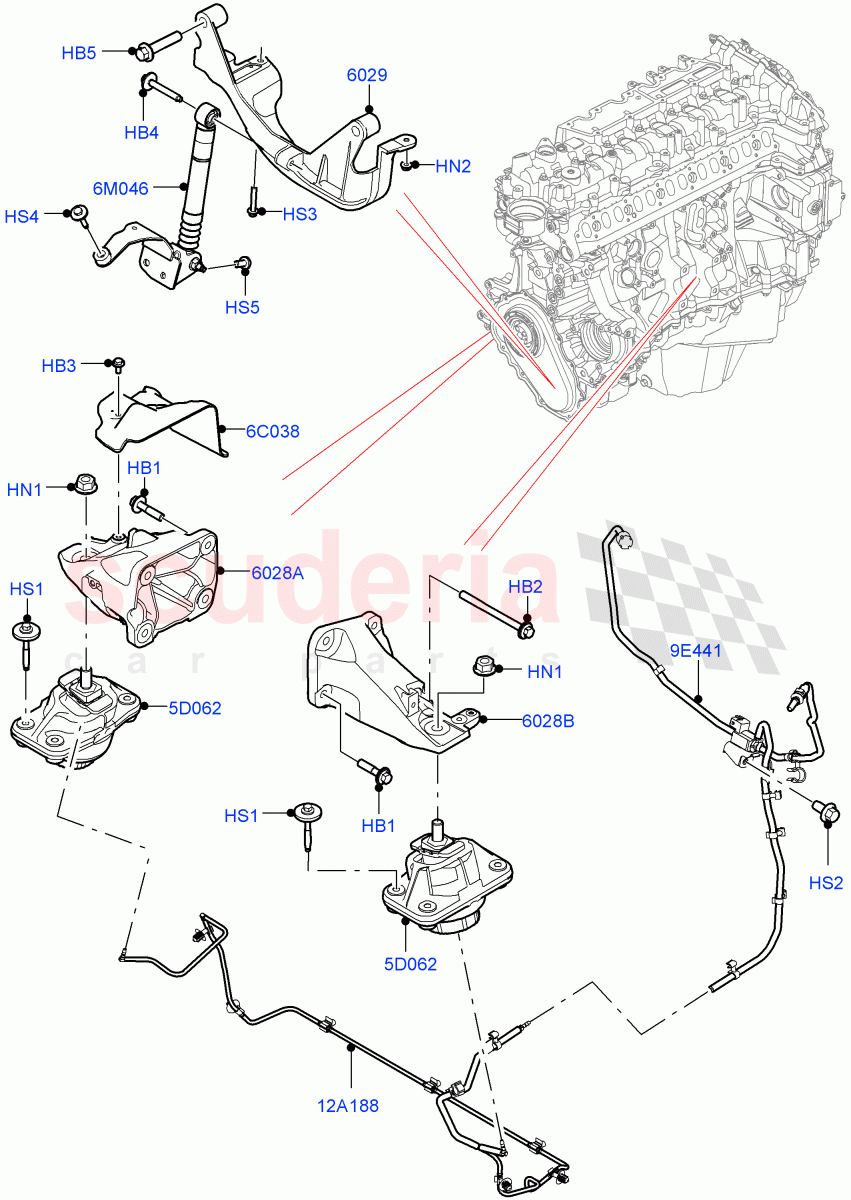

Engine Mounting (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR011068
BOLT
Bolt And Washer, M10 X 45 / From: LA000001 		$2.84 7
HB2 LR057599
BOLT AND WASHER - HEX.HEAD
M10 X 122 / From: LA000001 		$40.36 1
HB3 RYG500800
BOLT
Heatshield, Hexagonal Head, M6 X 16MM / From: LA000001 		$0.53 2
HB4 LR118800
BOLT AND WASHER - HEX.HEAD
M8 x 55MM, Washer - 24 mm / From: LA000001
IN STOCK 		$3.03 1
HB5 LR146237
BOLT
M12 X 60MM / From: LA000001 		$2.82 2
HN1 LR095134
NUT
M14 / From: LA000001 		$0.96 2
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: LA000001
IN STOCK 		$1.49 1
HS1 LR033201
SCREW
Hexagonal Head, M8 x 60MM / From: LA000001 		$3.84 8
HS2 FA106126
SCREW
Hexagonal Head, M6 x 12MM / From: LA000001
IN STOCK 		$0.46 1
HS3 LR073635
SCREW
M6 x 35MM / From: LA000001 		$2.28 1
HS4 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: LA000001 		$4.27 1
HS5 QYP500110
SCREW
M8 X 16MM, Torx / From: LA000001 		$0.63 2
5D062 LR123907
BRACKET - ENGINE MOUNTING
RH/LH / From: LA000001 		$153.19 2
6C038 LR121137
HEAT SHIELD - UNDERFLOOR
From: LA000001 		$24.85 1
6M046 LR146024
DAMPER - VIBRATION
Engine Mounting, Front / From: LA000001 		$142.10 1
9E441 LR124852
SOLENOID - VACUUM CONTROL
From: LA000001 		$323.85 1
12A188 LR124848
HOSE - VACUUM
From: LA000001 		$248.23 1
6028A LR119715
BRACKET - ENGINE FRONT SUPPORT
RH / From: LA000001 / To: MA420852 		$318.85 1
6028A LR149521
BRACKET - ENGINE FRONT SUPPORT
RH / From: MA420853 / To: MA452446 		$334.79 1
6028A LR147913
BRACKET - ENGINE FRONT SUPPORT
RH / From: MA452447 		$93.12 1
6028B LR123098
BRACKET - ENGINE FRONT SUPPORT
LH / From: LA000001 / To: LA414990 		$411.48 1
6028B LR149524
BRACKET - ENGINE FRONT SUPPORT
LH / From: LA414991 / To: MA452446 		$432.07 1
6028B LR147912
BRACKET - ENGINE FRONT SUPPORT
LH / From: MA452447 		$87.27 1
6029 LR145210
BRACKET - ENGINE MOUNTING
Engine Mounting, Front / From: LA000001 		$248.47 1
