Radiator Grille And Front Bumper ((V) Toha999999)

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Radiator Grille And Front Bumper ((V) TOHA999999)

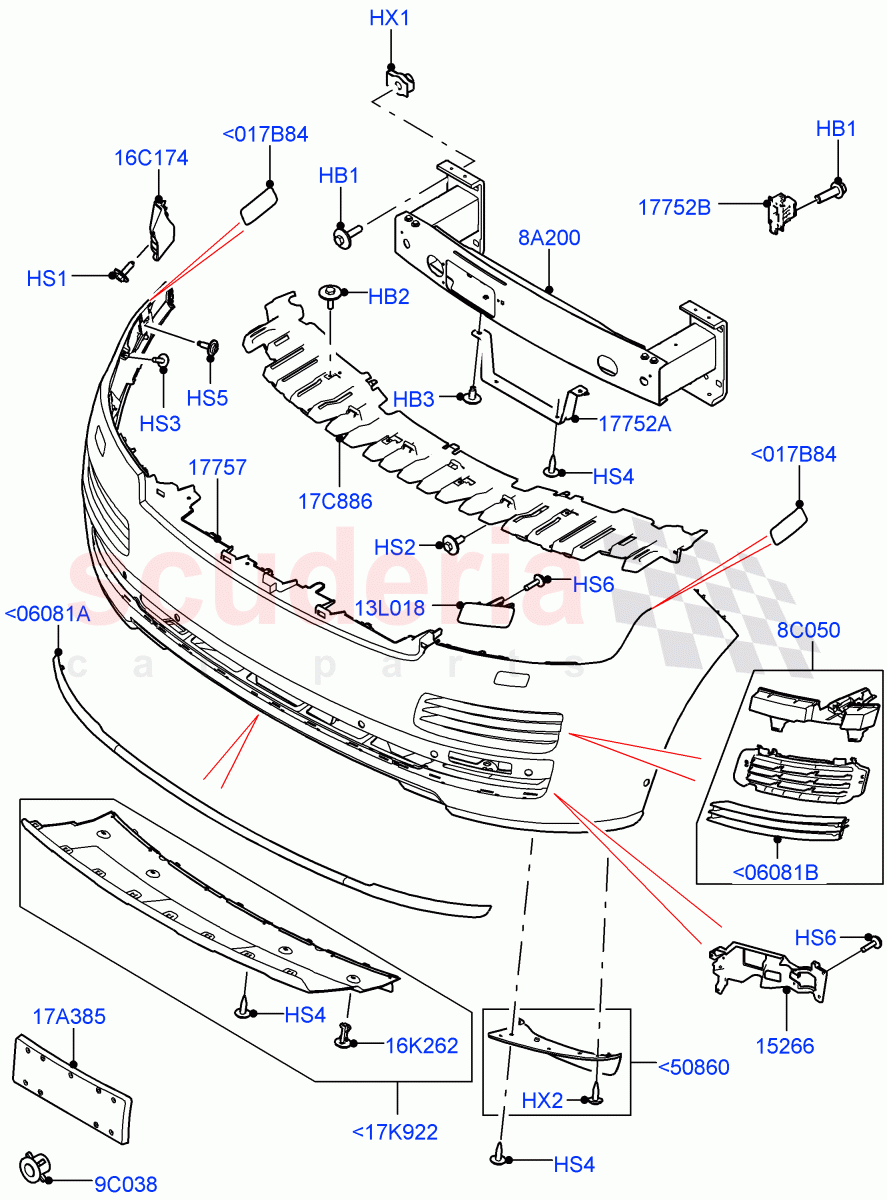

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.88 IN STOCK
Photo Part No Description Price (each) Stock
DYP500080 BOLT $2.45 To Order
Photo Part No Description Price (each) Stock
LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD $1.33 IN STOCK
Photo Part No Description Price (each) Stock
KYP500320 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
LR033401 SCREW AND WASHER $2.15 IN STOCK
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.23 IN STOCK
LR106494 SCREW $2.23 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.01 To Order
RYG501590 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.36 IN STOCK
Photo Part No Description Price (each) Stock
LR038663 SCREW - FLAT ROUND HEAD $2.17 IN STOCK
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.66 To Order
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.53 IN STOCK
Photo Part No Description Price (each) Stock
LR050519 BRACKET - FOG LAMP $34.43 To Order
LR050518 BRACKET - FOG LAMP $32.63 To Order
Photo Part No Description Price (each) Stock
LR044303 BUMPER - FRONT $1,088.03 To Order
LR045369 BUMPER - FRONT $1,084.48 To Order
LR045370 BUMPER - FRONT $1,084.48 To Order
...and 37 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034394 REINFORCEMENT - FRONT BUMPER $452.07 To Order
LR070713 REINFORCEMENT - FRONT BUMPER $422.81 To Order
LR087108 REINFORCEMENT - FRONT BUMPER $422.81 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR046707 KIT - BUMPER VENTS $390.99 To Order
LR046709 BUMPER VENTS $390.99 To Order
LR046708 KIT - BUMPER VENTS $390.99 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ZKC2228 NUT - SPECIAL $2.95 To Order
Photo Part No Description Price (each) Stock
LR046704 KIT - AIR DEFLECTOR $67.60 To Order
LR057302 KIT - AIR DEFLECTOR $56.90 To Order
LR046703 KIT - AIR DEFLECTOR $67.60 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038767 CAP - POWERWASH JET $17.46 To Order
LR038768 CAP - POWERWASH JET $17.46 To Order
Photo Part No Description Price (each) Stock
LR038724 BRACKET - BUMPER MOUNTING $20.86 To Order
LR038725 BRACKET - BUMPER MOUNTING $25.06 To Order
Photo Part No Description Price (each) Stock
LR012844 CLIP - RETAINING $3.51 IN STOCK
Photo Part No Description Price (each) Stock
LR045215 BRACKET - BUMPER MOUNTING $36.98 To Order
Photo Part No Description Price (each) Stock
LR137523 BRACKET - BUMPER MOUNTING $69.71 To Order
LR137524 BRACKET - BUMPER MOUNTING $69.71 To Order
Photo Part No Description Price (each) Stock
LR038726 BRACKET - LICENSE PLATE $44.23 To Order
LR038727 BRACKET - LICENSE PLATE $46.89 To Order
LR038728 BRACKET - LICENSE PLATE $70.98 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038730 BRACKET - BUMPER MOUNTING $90.57 To Order
Photo Part No Description Price (each) Stock
LR056055 PAD - FOAM $13.34 To Order
Photo Part No Description Price (each) Stock
LR038736 INSERT - BUMPER $125.27 To Order
LR038735 INSERT - BUMPER $116.62 To Order
Photo Part No Description Price (each) Stock
LR044736 INSERT - BUMPER $85.43 To Order
LR044737 INSERT - BUMPER $85.43 To Order
LR044734 INSERT - BUMPER $85.43 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038741 COVER - TOW HOOK $234.36 To Order
LR077157 COVER - TOW HOOK $234.36 To Order
View All
Radiator Grille And Front Bumper ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922 LR038741
COVER - TOW HOOK
Tow Hook / To: GA245425 		$234.36 1
<17K922 LR077157
COVER - TOW HOOK
Tow Eye Cover - Base / Tow Hook / From: GA245426 / To: HA999999 		$234.36 1
<017B84 LR056055
PAD - FOAM
From: EA132492 / To: EA155715 		$13.34 2
<06081A LR038736
INSERT - BUMPER
Fr Bumper Body Clr/Atlas/Body Clr / Kit/Set 		$125.27 1
<06081A LR038735
INSERT - BUMPER
Fr Bumper Body Clr/Dark Atlas/Atlas / Kit/Set 		$116.62 1
<06081B LR044736
INSERT - BUMPER
Fr Bumper Body Clr/Dark Atlas/Atlas / RH 		$85.43 1
<06081B LR044737
INSERT - BUMPER
Fr Bumper Body Clr/Dark Atlas/Atlas / LH 		$85.43 1
<06081B LR044734
INSERT - BUMPER
Front Bumper Body Clr/Atlas/Atlas / RH 		$85.43 1
<06081B LR044735
INSERT - BUMPER
Front Bumper Body Clr/Atlas/Atlas / LH 		$85.43 1
<06081B LR044732
INSERT - BUMPER
Fr Bumper Body Clr/Atlas/Body Clr / RH, Primed 		$62.89 1
<06081B LR044732
INSERT - BUMPER
Front Bumper Black / RH, Primed / From: EA000001 		$62.89 1
<06081B LR044733
INSERT - BUMPER
Fr Bumper Body Clr/Atlas/Body Clr / LH, Primed 		$62.89 1
<06081B LR044733
INSERT - BUMPER
Front Bumper Black / LH, Primed / From: EA000001 		$62.89 1
<50860 LR046704
KIT - AIR DEFLECTOR
5.0L OHC SGDI SC V8 Petrol - AJ133 / To: DA999999 		$67.60 1
<50860 LR057302
KIT - AIR DEFLECTOR
5.0L OHC SGDI SC V8 Petrol - AJ133 / From: EA162742 		$56.90 1
<50860 LR046703
KIT - AIR DEFLECTOR
3.0L DOHC GDI SC V6 PETROL / To: DA999999 		$67.60 1
<50860 LR046703
KIT - AIR DEFLECTOR
3.0L DOHC GDI SC V6 PETROL / From: EA000001 		$67.60 1
<50860 LR046703
KIT - AIR DEFLECTOR
5.0L OHC SGDI SC V8 Petrol - AJ133 / From: EA000001 / To: EA162741 		$67.60 1
HB1 LR034249
BOLT AND WASHER - HEX.HEAD
Armature, Hexagonal Head, M10 x 37MM
IN STOCK 		$2.88 8
HB2 DYP500080
BOLT
M5 x 20MM 		$2.45 4
HB3 LR033409
BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD
Armature, M6 X 13.5MM
IN STOCK 		$1.33 2
HS1 KYP500320
SCREW
Bolt And Washer, M6 x 30MM 		$0.62 4
HS2 LR033401
SCREW AND WASHER
M6 x 19MM
IN STOCK 		$2.15 6
HS3 LR106494
SCREW
Bracket, M5 x 20MM, Self Tapping / To: HA515750
IN STOCK 		$2.23 2
HS3 LR106494
SCREW
Bracket, M5 x 19MM, Self Tapping / From: HA515751
IN STOCK 		$2.23 2
HS4 RYG501590
SCREW
Bumper to Carrier, M6 x 22MM, Torx 		$1.01 2
HS4 RYG501590
SCREW
M6 x 22MM, Torx, With Air Deflector 		$1.01 3
HS5 LR083229
SCREW
Bracket, M6 x 18MM
IN STOCK 		$4.36 1
HS6 LR038663
SCREW - FLAT ROUND HEAD
With Front Fog Lamps / 4 X 16MM, Front Fog Lamp, Pan Head - Torx
IN STOCK 		$2.17 4
HX1 KYH500100
NUT - SPRING
M10, Nut "U" Spring 		$1.66 8
HX2 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin
IN STOCK 		$1.53 3
8A200 LR034394
REINFORCEMENT - FRONT BUMPER
Superseded To New 18MY Two Bolt Hole Design / To: FA999999 		$452.07 1
8A200 LR070713
REINFORCEMENT - FRONT BUMPER
Superseded To New 18MY Two Bolt Hole Design / From: GA000001 / To: GA297310 		$422.81 1
8A200 LR087108
REINFORCEMENT - FRONT BUMPER
Superseded To New 18MY Two Bolt Hole Design / From: GA297311 / To: GA305680 		$422.81 1
8A200 LR097849
REINFORCEMENT - FRONT BUMPER
Superseded To New 18MY Two Bolt Hole Design / From: GA305681 		$406.41 1
8C050 LR046707
KIT - BUMPER VENTS
Fr Bumper Body Clr/Dark Atlas/Atlas / Contains Headlamp Washer Brackets 		$390.99 1
8C050 LR046709
BUMPER VENTS
Fr Bumper Body Clr/Atlas/Body Clr / Contains Headlamp Washer Brackets, Primed 		$390.99 1
8C050 LR046708
KIT - BUMPER VENTS
Front Bumper Body Clr/Atlas/Atlas / Contains Headlamp Washer Brackets 		$390.99 1
8C050 LR046709
BUMPER VENTS
Front Bumper Black / Contains Headlamp Washer Brackets, Primed / From: EA000001 		$390.99 1
9C038 ZKC2228
NUT - SPECIAL
For Licence Plate 		$2.95 1
13L018 LR038767
CAP - POWERWASH JET
RH, For Washer Jet 		$17.46 1
13L018 LR038768
CAP - POWERWASH JET
LH, For Washer Jet 		$17.46 1
16C174 LR038724
BRACKET - BUMPER MOUNTING
RH 		$20.86 1
16C174 LR038725
BRACKET - BUMPER MOUNTING
LH 		$25.06 1
16K262 LR012844
CLIP - RETAINING
1/4 Turn Click Type
IN STOCK 		$3.51 4
17A385 LR038726
BRACKET - LICENSE PLATE
Front Number Plate Plinth ROW / To: GA258595 		$44.23 1
17A385 LR038727
BRACKET - LICENSE PLATE
Front Number Plate Plinth NAS / To: FA216822 		$46.89 1
17A385 LR038728
BRACKET - LICENSE PLATE
Front Number Plate Plinth - Japan / To: FA216822 		$70.98 1
17A385 LR038729
BRACKET - LICENSE PLATE
Front Number Plate Plinth-China 		$48.86 1
17A385 LR077393
BRACKET - LICENSE PLATE
Front Number Plate Plinth - Japan / From: FA216823 / To: HA999999 		$45.53 1
17A385 LR079934
BRACKET - LICENSE PLATE
Front Number Plate Plinth ROW / From: GA258596 		$46.18 1
17A385 LR135863
BRACKET - LICENSE PLATE
Front Number Plate Plinth - Japan / From: JA000001 		$47.81 1
17C886 LR038730
BRACKET - BUMPER MOUNTING 		$90.57 1
15266 LR050519
BRACKET - FOG LAMP
With Front Fog Lamps / RH 		$34.43 1
15266 LR050518
BRACKET - FOG LAMP
With Front Fog Lamps / LH 		$32.63 1
17752A LR045215
BRACKET - BUMPER MOUNTING 		$36.98 1
17752B LR137523
BRACKET - BUMPER MOUNTING
RH 		$69.71 1
17752B LR137524
BRACKET - BUMPER MOUNTING
LH 		$69.71 1
17757 LR044303
BUMPER - FRONT
Less Automated Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Primed / To: DA107811 		$1,088.03 1
17757 LR045369
BUMPER - FRONT
Less Automated Parking System, Less Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / To: DA107811 		$1,084.48 1
17757 LR045370
BUMPER - FRONT
Less Automated Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / To: DA107811 		$1,084.48 1
17757 LR045371
BUMPER - FRONT
Less Camera System, Less Front Fog Lamps, With Automated Parking System, With Front Parking Aid / Primed / To: DA107811 		$1,106.17 1
17757 LR045372
BUMPER - FRONT
Less Front Fog Lamps, Surround Camera System, With Automated Parking System, With Front Parking Aid / Primed / To: DA107811 		$1,084.48 1
17757 LR045373
BUMPER - FRONT
Less Camera System, With Automated Parking System, With Front Fog Lamps, With Front Parking Aid / Primed / To: DA107811 		$1,068.47 1
17757 LR045374
BUMPER - FRONT
Autom Perpendicular Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / To: DA107811 		$1,084.48 1
17757 LR052099
BUMPER - FRONT
Less Automated Parking System, Less Camera System, Less Front Fog Lamps, With Front Parking Aid / Primed / From: DA107812 / To: EA145027 		$1,088.03 1
17757 LR052100
BUMPER - FRONT
Less Automated Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Primed / From: DA107812 / To: EA145027 		$1,088.03 1
17757 LR052101
BUMPER - FRONT
Less Automated Parking System, Less Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / From: DA107812 / To: EA145027 		$1,088.03 1
17757 LR052102
BUMPER - FRONT
Less Automated Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / From: DA107812 / To: EA145027 		$1,088.03 1
17757 LR052103
BUMPER - FRONT
Autom Perpendicular Parking System, Less Camera System, Less Front Fog Lamps, With Front Parking Aid / Primed / From: DA107812 / To: EA145027 		$1,017.32 1
17757 LR052104
BUMPER - FRONT
Autom Perpendicular Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Primed / From: DA107812 / To: EA145027 		$1,088.03 1
17757 LR052105
BUMPER - FRONT
Less Camera System, With Automated Parking System, With Front Fog Lamps, With Front Parking Aid / Primed / From: DA107812 / To: EA145027 		$1,088.03 1
17757 LR052106
BUMPER - FRONT
Surround Camera System, With Automated Parking System, With Front Fog Lamps, With Front Parking Aid / Primed / From: DA107812 / To: EA145027 		$1,088.03 1
17757 LR044304
BUMPER - FRONT
Less Automated Parking System, Less Camera System, Less Front Fog Lamps, With Front Parking Aid / Primed / To: DA107811 		$1,088.03 1
17757 LR064631
BUMPER - FRONT
Less Automated Parking System, Less Front Fog Lamps, Rear View Camera-Fixed, With Front Parking Aid / Primed / From: EA145028 / To: FA999999 		$1,135.83 1
17757 LR064630
BUMPER - FRONT
Less Automated Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid / Primed / From: EA145028 / To: FA999999 		$1,135.83 1
17757 LR064629
BUMPER - FRONT
Less Automated Parking System, Less Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / From: EA145028 / To: FA999999 		$1,209.06 1
17757 LR064628
BUMPER - FRONT
Less Automated Parking System, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / From: EA145028 / To: FA999999 		$1,263.23 1
17757 LR064627
BUMPER - FRONT
Autom Perpendicular Parking System, Less Camera System, Less Front Fog Lamps, With Front Parking Aid / Primed / From: EA145028 / To: FA999999 		$1,135.83 1
17757 LR064626
BUMPER - FRONT
Less Front Fog Lamps, Surround Camera System, With Automated Parking System, With Front Parking Aid / Primed / From: EA145028 / To: FA999999 		$1,135.83 1
17757 LR064625
BUMPER - FRONT
Autom Perpendicular Parking System, Less Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / From: EA145028 / To: FA999999 		$1,135.83 1
17757 LR064624
BUMPER - FRONT
Surround Camera System, With Automated Parking System, With Front Fog Lamps, With Front Parking Aid / Primed / From: EA145028 / To: FA999999 		$1,263.23 1
17757 LR071941
BUMPER - FRONT
Less Automated Parking System, Less Camera System, Less Front Fog Lamps, Less Park Side Guard, With Front Parking Aid / Primed / From: GA000001 / To: GA999999 		$1,135.83 1
17757 LR071946
BUMPER - FRONT
Less Automated Parking System, Less Front Fog Lamps, Less Park Side Guard, Surround Camera System, With Front Parking Aid / Primed / From: GA000001 / To: GA999999 		$1,135.83 1
17757 LR071948
BUMPER - FRONT
Less Automated Parking System, Less Camera System, Less Park Side Guard, With Front Fog Lamps, With Front Parking Aid / Primed / From: GA000001 / To: GA999999 		$1,135.83 1
17757 LR071951
BUMPER - FRONT
Less Automated Parking System, Less Park Side Guard, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / From: GA000001 / To: GA999999 		$1,135.83 1
17757 LR071952
BUMPER - FRONT
Less Camera System, Less Front Fog Lamps, With Automated Parking System, With Front Parking Aid, With Park Side Flank Guard / Primed / From: GA000001 / To: GA999999 		$1,135.83 1
17757 LR071953
BUMPER - FRONT
Autom Perpendicular Parking System, Less Front Fog Lamps, Surround Camera System, With Front Parking Aid, With Park Side Flank Guard / Primed / From: GA000001 / To: GA999999 		$1,135.83 1
17757 LR071954
BUMPER - FRONT
Autom Perpendicular Parking System, Less Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Primed / From: GA000001 / To: GA999999 		$1,135.83 1
17757 LR071955
BUMPER - FRONT
Surround Camera System, With Automated Parking System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Primed / From: GA000001 / To: GA999999 		$1,135.83 1
17757 LR071955
BUMPER - FRONT
Surround Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Primed / From: HA000001 		$1,135.83 1
17757 LR071951
BUMPER - FRONT
Less Park Side Guard, Surround Camera System, With Front Fog Lamps, With Front Parking Aid / Primed / From: HA000001 		$1,135.83 1
17757 LR071954
BUMPER - FRONT
Less Camera System, With Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Primed / From: HA000001 		$1,135.83 1
17757 LR071953
BUMPER - FRONT
Less Front Fog Lamps, Surround Camera System, With Front Parking Aid, With Park Side Flank Guard / Primed / From: HA000001 		$1,135.83 1
17757 LR071952
BUMPER - FRONT
Less Camera System, Less Front Fog Lamps, With Front Parking Aid, With Park Side Flank Guard / Primed / From: HA000001 		$1,135.83 1
17757 LR071948
BUMPER - FRONT
Less Camera System, Less Park Side Guard, With Front Fog Lamps, With Front Parking Aid / Primed / From: HA000001 		$1,135.83 1
17757 LR071946
BUMPER - FRONT
Less Front Fog Lamps, Less Park Side Guard, Surround Camera System, With Front Parking Aid / Primed / From: HA000001 		$1,135.83 1
17757 LR071941
BUMPER - FRONT
Less Camera System, Less Front Fog Lamps, Less Park Side Guard, With Front Parking Aid / Primed / From: HA000001 		$1,135.83 1

Haven't found what you're looking for?

More: Land Rover Radiators Tuning Parts Need help? Call us

View Cart / Checkout
