Fuel Lines (Middle East And North Africa (Mena) Markets, Rear) (3.0L Dohc Gdi Sc V6 Petrol, Narrow...

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Middle East And North Africa (MENA) Markets, Rear) (3.0L DOHC GDI SC V6 PETROL, Narrow...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PEK500120 CLIP - HOSE $2.74 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.45 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.13 IN STOCK
Photo Part No Description Price (each) Stock
RYP501050 SCREW - PAN - TORX $1.45 To Order
Photo Part No Description Price (each) Stock
LR080111 RESERVOIR - FUEL VAPOUR SYSTEM $583.10 To Order
LR082334 RESERVOIR - FUEL VAPOUR SYSTEM $583.10 To Order
Photo Part No Description Price (each) Stock
LR072670 TUBE - VENTILATION $61.55 To Order
LR086515 TUBE - VENTILATION $63.61 To Order
Photo Part No Description Price (each) Stock
LR061015 TUBE - FUEL VAPOUR $35.00 To Order
Photo Part No Description Price (each) Stock
LR079267 HOSE - FUEL $69.05 To Order
LR082335 HOSE - FUEL $47.73 To Order
Photo Part No Description Price (each) Stock
LR079268 HOSE - FUEL $67.14 To Order
View All

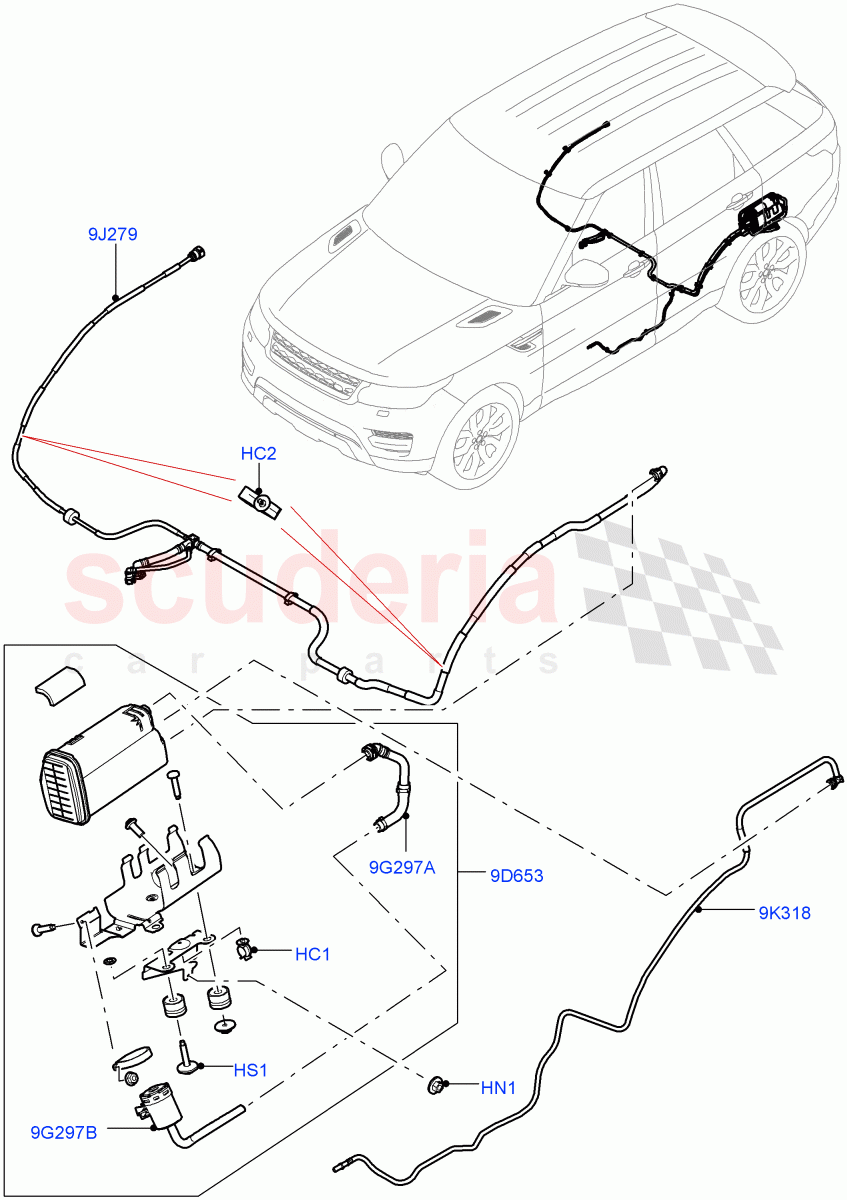

Fuel Lines (Middle East And North Africa (MENA) Markets, Rear) (3.0L DOHC GDI SC V6 PETROL, Narrow Filler Neck - Unleaded) ((V) FROMGA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 PEK500120
CLIP - HOSE
From: GA000001 		$2.74 2
HC2 LR094032
CLIP - HOSE
Plastic / From: GA000001 		$4.45 4
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: GA000001
IN STOCK 		$3.13 2
HS1 RYP501050
SCREW - PAN - TORX
M6 X 25MM, Torx / From: GA000001 		$1.45 2
9D653 LR080111
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: GA000001 / To: GA275716 		$583.10 1
9D653 LR082334
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: GA275717 		$583.10 1
9G297A LR079267
HOSE - FUEL
Canister vent / From: GA000001 / To: GA275716 		$69.05 1
9G297A LR082335
HOSE - FUEL
Canister vent / From: GA275717 		$47.73 1
9G297B LR079268
HOSE - FUEL
Canister vent / From: GA000001 		$67.14 1
9J279 LR072670
TUBE - VENTILATION
Fuel Tank Ventilation Pipe, Purge Line From Fuel Tank To Charcoal Canister / From: FA000001 / To: GA999999 		$61.55 1
9J279 LR086515
TUBE - VENTILATION
Fuel Tank Ventilation Pipe, Purge Line From Fuel Tank To Charcoal Canister / From: HA000001 		$63.61 1
9K318 LR061015
TUBE - FUEL VAPOUR
Fuel Vapor Cannister Purge - Outlet / From: GA000001 		$35.00 1
