Fuel Lines (Rear) (3.0L Dohc Gdi Sc V6 Petrol, (-) "Cdn/Mex/Usa") ((V) Toja999999)

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Rear) (3.0L DOHC GDI SC V6 PETROL, (-) "CDN/MEX/USA") ((V) TOJA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004596 CLIP $1.69 To Order
Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE $2.49 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.11 IN STOCK
Photo Part No Description Price (each) Stock
LR045376 RESERVOIR - FUEL VAPOUR SYSTEM $337.45 To Order
LR072683 RESERVOIR - FUEL VAPOUR SYSTEM $621.10 To Order
Photo Part No Description Price (each) Stock
LR037478 TUBE - VENTILATION $77.48 To Order
LR061014 TUBE - VENTILATION $67.40 To Order
LR086516 TUBE - VENTILATION $64.24 To Order
Photo Part No Description Price (each) Stock
LR037480 TUBE - FUEL VAPOUR $27.68 To Order
LR054015 TUBE - FUEL VAPOUR $48.57 To Order
View All

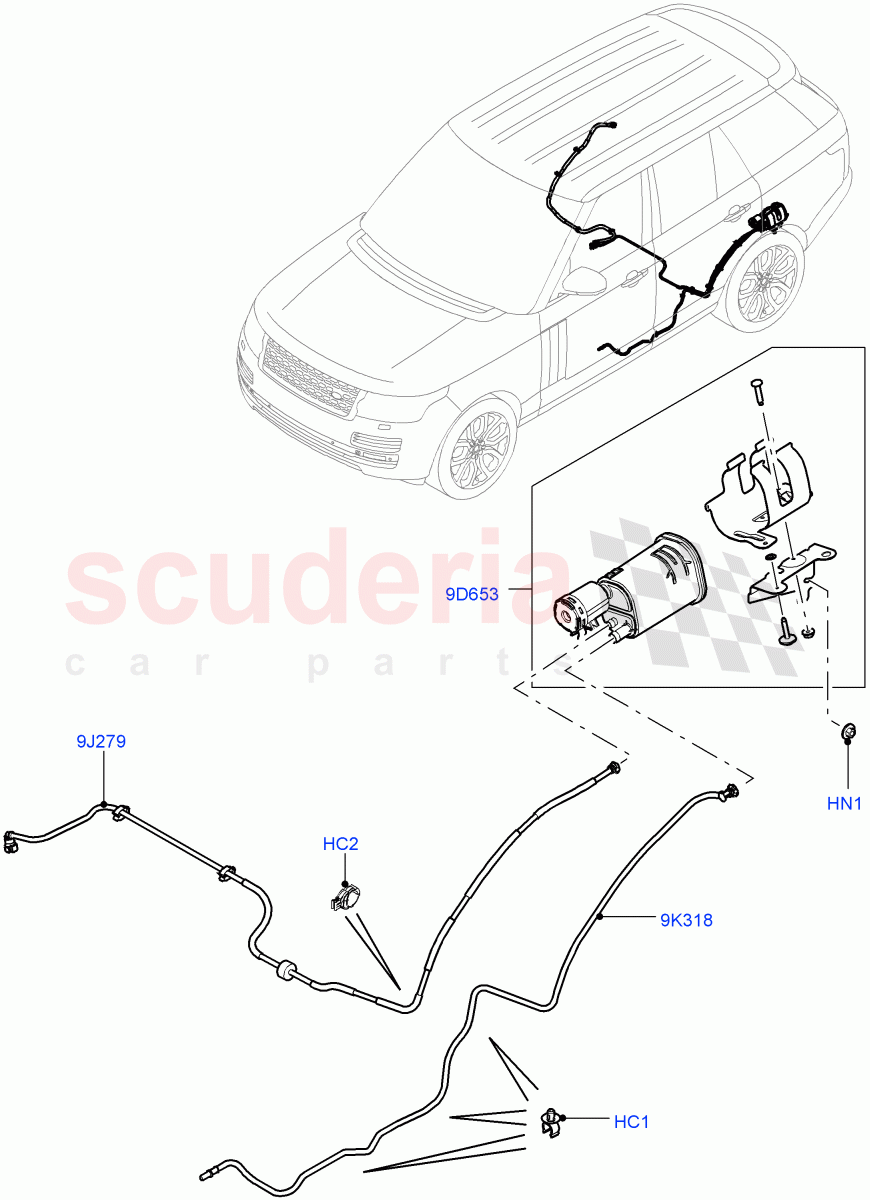

Fuel Lines (Rear) (3.0L DOHC GDI SC V6 PETROL, (-) "CDN/MEX/USA") ((V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR004596
CLIP
12 x 7.8X.8/4, Plastic / From: EA000001 		$1.69 3
HC2 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic / From: EA000001 		$2.49 1
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: EA000001
IN STOCK 		$3.11 2
9D653 LR045376
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: EA000001 / To: FA204474 		$337.45 1
9D653 LR072683
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: FA204475 		$621.10 1
9J279 LR037478
TUBE - VENTILATION
Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / To: EA184841 		$77.48 1
9J279 LR061014
TUBE - VENTILATION
Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: EA184842 / To: GA999999 		$67.40 1
9J279 LR086516
TUBE - VENTILATION
Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: HA000001 		$64.24 1
9K318 LR037480
TUBE - FUEL VAPOUR
Fuel Vapor Cannister Purge - Outlet / From: EA000001 / To: EA138880 		$27.68 1
9K318 LR054015
TUBE - FUEL VAPOUR
Fuel Vapor Cannister Purge - Outlet / From: EA138881 		$48.57 1
