Air Conditioning Condensr/Compressr (Centre And Front) (Air Conditioning Hybrid-Front/Rear, Premium...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Air Conditioning Condensr/Compressr (Centre And Front) (Air Conditioning Hybrid-Front/Rear, Premium...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR011519 CLIP $2.07 IN STOCK
Photo Part No Description Price (each) Stock
LR051520 CLIP - SINGLE $3.52 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR038544 NUT $2.11 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.34 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.93 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
LR038548 BRACKET - A/C PIPE $21.23 To Order
Photo Part No Description Price (each) Stock
LR036404 SEAL - RUBBER $22.44 To Order
Photo Part No Description Price (each) Stock
LR048888 TUBE- A/C EVAPORATOR INLET & OUTLET $748.91 To Order
LR048887 TUBE - A/C EVAPORATOR INLET & OUTLET $687.65 To Order
Photo Part No Description Price (each) Stock
LR036409 TUBE - AUXILIARY EVAPORATOR $628.82 To Order
LR061557 TUBE - AUXILIARY EVAPORATOR $181.48 To Order
LR072187 TUBE - AUXILIARY EVAPORATOR $380.87 To Order
...and 1 more part variants. See table on right for more details.
View All

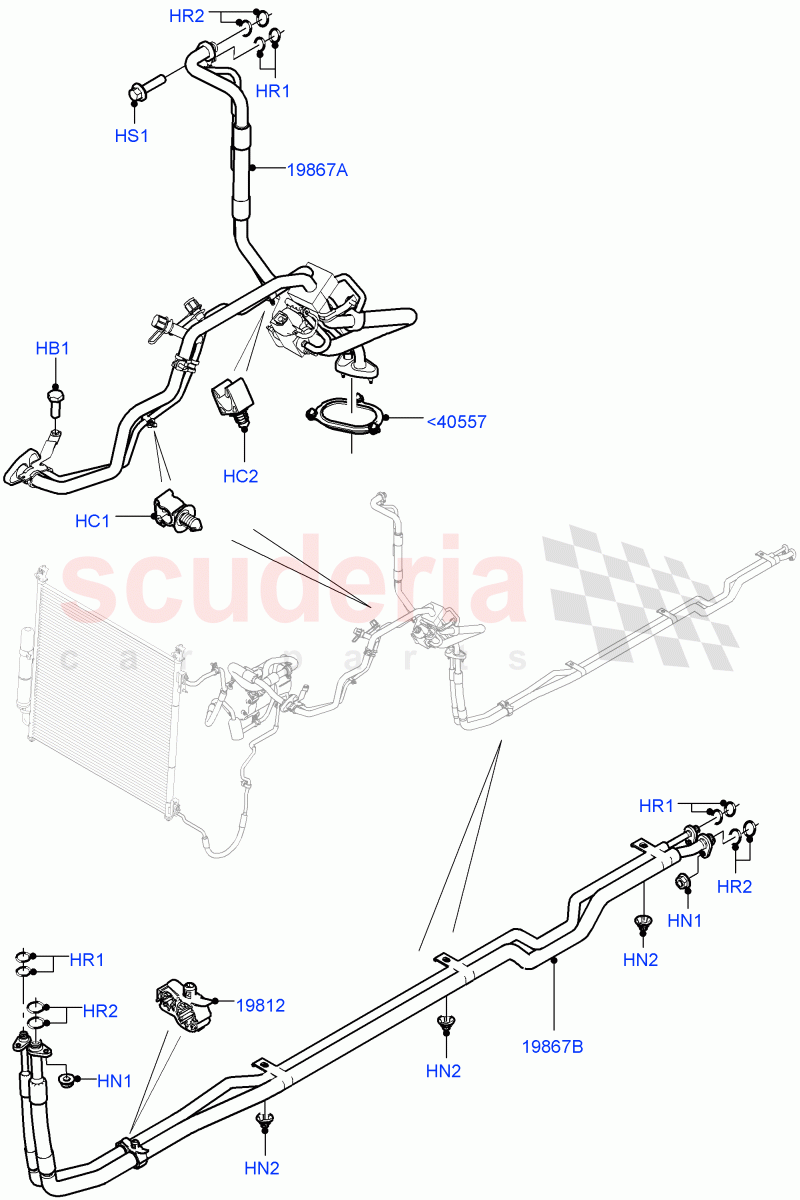

Air Conditioning Condensr/Compressr (Centre And Front) (Air Conditioning Hybrid-Front/Rear, Premium Air Con Hybrid Front/Rear) ((V) FROMEA000001, (V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<40557 LR036404
SEAL - RUBBER
Air Conditioning Pipe / From: EA000001 		$22.44 1
HB1 RYG500800
BOLT
Hexagonal Head, M6 X 16MM / From: EA000001 		$0.52 4
HC1 LR011519
CLIP
9.5 X 6 X 2, Single / From: EA000001
IN STOCK 		$2.07 1
HC2 LR051520
CLIP - SINGLE
Single / From: EA000001 		$3.52 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001
IN STOCK 		$1.47 4
HN2 LR038544
NUT
6 X 1.6MM / From: EA000001 		$2.11 3
HR1 LR044466
O-RING
7.65 X 1.78 / From: EA000001 		$4.34 6
HR2 LR044465
O-RING
14 X 1.78 / From: EA000001 		$2.93 6
HS1 FS106256
SCREW
Hex Head, M6 x 25MM / From: EA000001 		$0.43 1
19812 LR038548
BRACKET - A/C PIPE
Air Conditioning Pipe / From: EA000001 		$21.23 1
19867A LR048888
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / Evaporator Inlet/Outlet, Includes Shut-Off Valve / From: EA000001 		$748.91 1
19867A LR048887
TUBE - A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / Evaporator Inlet/Outlet, Includes Shut-Off Valve / From: EA000001 		$687.65 1
19867B LR036409
TUBE - AUXILIARY EVAPORATOR
Air Conditioning, Set Of 2 Pieces / From: EA000001 / To: EA163933 		$628.82 1
19867B LR061557
TUBE - AUXILIARY EVAPORATOR
Air Conditioning, Set Of 2 Pieces / From: EA163934 / To: EA194020 		$181.48 1
19867B LR072187
TUBE - AUXILIARY EVAPORATOR
Air Conditioning, Set Of 2 Pieces / From: EA194021 / To: GA999999 		$380.87 1
19867B LR085576
TUBE - AUXILIARY EVAPORATOR
Air Conditioning, Set Of 2 Pieces / From: HA000001 		$184.95 1
