Name: Air Conditioning Condensr/Compressr (Front) (2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMFA000001)
Rating: 4.6 (1 reviews)

Air Conditioning Condensr/Compressr (Front) (2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Air Conditioning Condensr/Compressr (Front) (2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMFA000001)

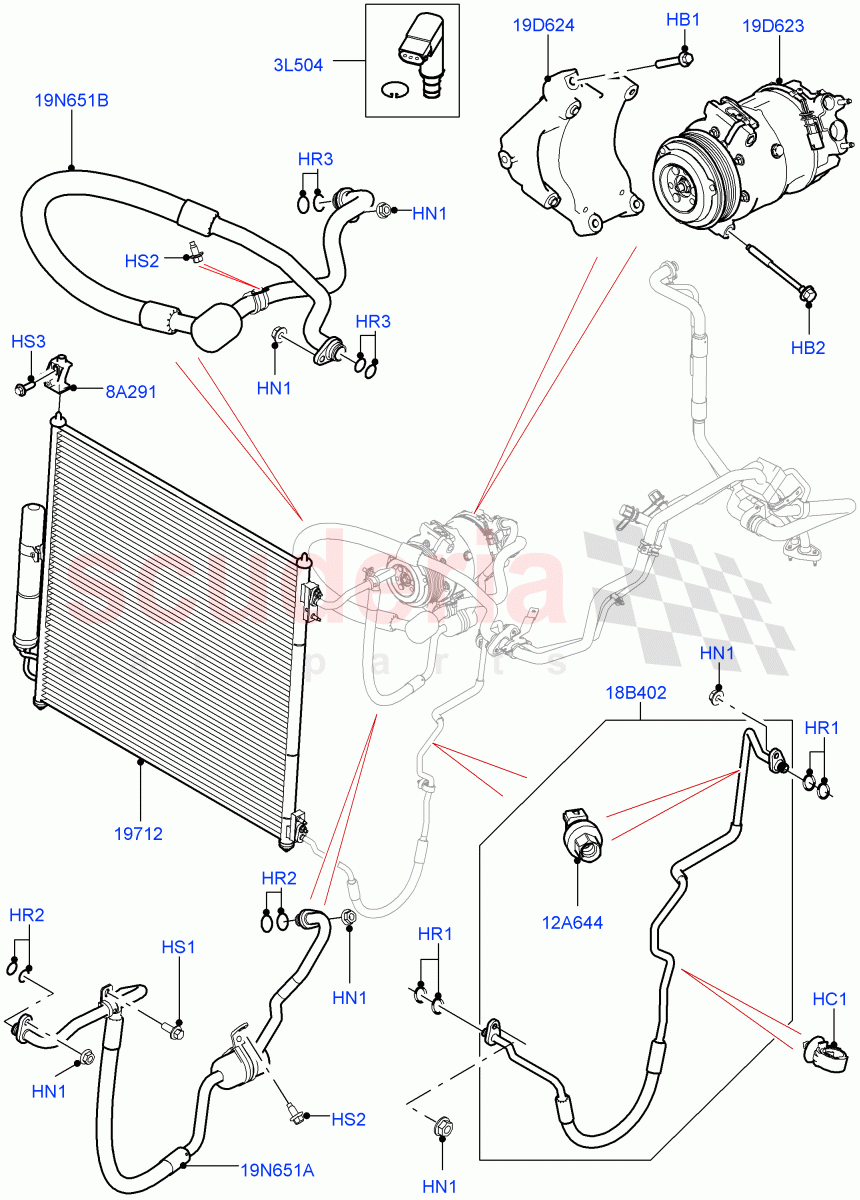

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	$10.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005074	BOLT	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035462	CLIP - HOSE	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044466	O-RING	$4.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054871	O-RING	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054870	O-RING	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BYP500220	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018707	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035791	CONDENSER	$434.40	To Order
	LR110621	CONDENSER	$662.97	To Order
	LR133116	CONDENSER	$702.52	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR086045	KIT - VALVE REPAIR	$175.20	To Order
	LR086045	KIT - VALVE REPAIR	$175.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062331	BRACKET - RADIATOR	$17.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086926	SENSOR - REFRIGERANT PRESSURE	$238.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068878	HOSE - AIR CONDITIONING	$220.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068128	COMPRESSOR - AIR CONDITIONING	$1,184.85	To Order
	LR112585	COMPRESSOR - AIR CONDITIONING	$1,466.88	To Order
	LR086043	COMPRESSOR - AIR CONDITIONING	$1,472.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057456	Bracket	$126.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058302	Tube	$152.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058303	Tube	$152.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB108106	BOLT	FB108106 BOLT Hexagonal Head, M8 x 50MM / From: FA000001	$10.88	3
HB2	LR005074	BOLT	LR005074 BOLT Hexagonal Head, M8 X 96.5 / From: FA000001	$1.15	3
HC1	LR035462	CLIP - HOSE	LR035462 CLIP - HOSE For Air Conditioning Hose / From: FA000001	$3.32	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 / From: FA000001 IN STOCK	$1.02	6
HR1	LR044466	O-RING	LR044466 O-RING 7.65 X 1.78 / From: FA000001	$4.32	4
HR2	LR054871	O-RING	LR054871 O-RING 10.82MM X 1.78MM / From: FA000001	$3.30	4
HR3	LR054870	O-RING	LR054870 O-RING 16.5 X 1.78MM / From: FA000001	$3.52	4
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: FA000001 IN STOCK	$1.23	1
HS2	BYP500220	SCREW	BYP500220 SCREW Hexagonal Head, M6 X 10MM / From: FA000001	$0.52	2
HS3	LR018707	SCREW	LR018707 SCREW 6X20, Hexagonal Head / From: FA000001	$1.05	2
3L504	LR086045	KIT - VALVE REPAIR	LR086045 KIT - VALVE REPAIR Includes A/C Compressor Control Valve And Snap Ring / From: FA000001 / To: GA272331	$175.20	1
3L504	LR086045	KIT - VALVE REPAIR	LR086045 KIT - VALVE REPAIR Includes A/C Compressor Control Valve And Snap Ring / From: GA272332 / To: GA274942	$175.20	1
8A291	LR062331	BRACKET - RADIATOR	LR062331 BRACKET - RADIATOR Air Conditioning Condenser / From: FA000001	$17.93	2
12A644	LR086926	SENSOR - REFRIGERANT PRESSURE	LR086926 SENSOR - REFRIGERANT PRESSURE Refrigerant Pressure Sensor / From: FA000001	$238.67	1
18B402	LR068878	HOSE - AIR CONDITIONING	LR068878 HOSE - AIR CONDITIONING Condenser Outlet, With Pressure Sensor / From: FA000001 / To: HA999999	$220.62	1
19D623	LR068128	COMPRESSOR - AIR CONDITIONING	LR068128 COMPRESSOR - AIR CONDITIONING From: FA000001 / To: GA273528	$1,184.85	1
19D623	LR112585	COMPRESSOR - AIR CONDITIONING	LR112585 COMPRESSOR - AIR CONDITIONING From: GA274943	$1,466.88	1
19D623	LR086043	COMPRESSOR - AIR CONDITIONING	LR086043 COMPRESSOR - AIR CONDITIONING From: GA273529 / To: GA274942	$1,472.19	1
19D624	LR057456	Bracket	LR057456 Bracket Air Conditioning Compressor Bracket / From: FA000001	$126.25	1
19N651A	LR058302	Tube	LR058302 Tube Compressor Inlet / From: FA000001	$152.17	1
19N651B	LR058303	Tube	LR058303 Tube Condenser Inlet Tube / From: FA000001	$152.17	1
19712	LR035791	CONDENSER	LR035791 CONDENSER From: FA000001 / To: KA547796	$434.40	1
19712	LR110621	CONDENSER	LR110621 CONDENSER From: KA547797 / To: KA564990	$662.97	1
19712	LR133116	CONDENSER	LR133116 CONDENSER From: KA564991 / To: LA589181	$702.52	1
19712	LR137975	CONDENSER	LR137975 CONDENSER From: LA589182	$430.86	1

Air Conditioning Condensr/Compressr (Front) (2.0L 16V Tivct T/C 240Ps Petrol) ((V) Fromfa000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Air Conditioning Condensr/Compressr (Front) (2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMFA000001)
