Carbon Canister (3.0L Aj20P6 Petrol High, Pet Tank With Leak Det - Lrg Filter) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Carbon Canister (3.0L AJ20P6 Petrol High, Pet Tank With Leak Det - Lrg Filter) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PEK500120 CLIP - HOSE $2.76 To Order
Photo Part No Description Price (each) Stock
LR004596 CLIP $1.69 To Order
Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE $2.49 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.11 IN STOCK
Photo Part No Description Price (each) Stock
LR174757 VALVE - CONTROL $192.35 To Order
Photo Part No Description Price (each) Stock
LR068424 RESERVOIR - FUEL VAPOUR SYSTEM $382.26 To Order
LR155135 RESERVOIR - FUEL VAPOUR SYSTEM $373.26 To Order
Photo Part No Description Price (each) Stock
LR155089 BRACKET $11.02 To Order
Photo Part No Description Price (each) Stock
LR086515 TUBE - VENTILATION $65.15 To Order
Photo Part No Description Price (each) Stock
LR126104 TUBE - FUEL VAPOUR $48.23 To Order
LR173149 Tube - Fuel Vapour $46.11 To Order
Photo Part No Description Price (each) Stock
LR060302 HOSE - FUEL $87.35 To Order
Photo Part No Description Price (each) Stock
LR037482 HOSE - FUEL VAPOUR $64.75 To Order
View All

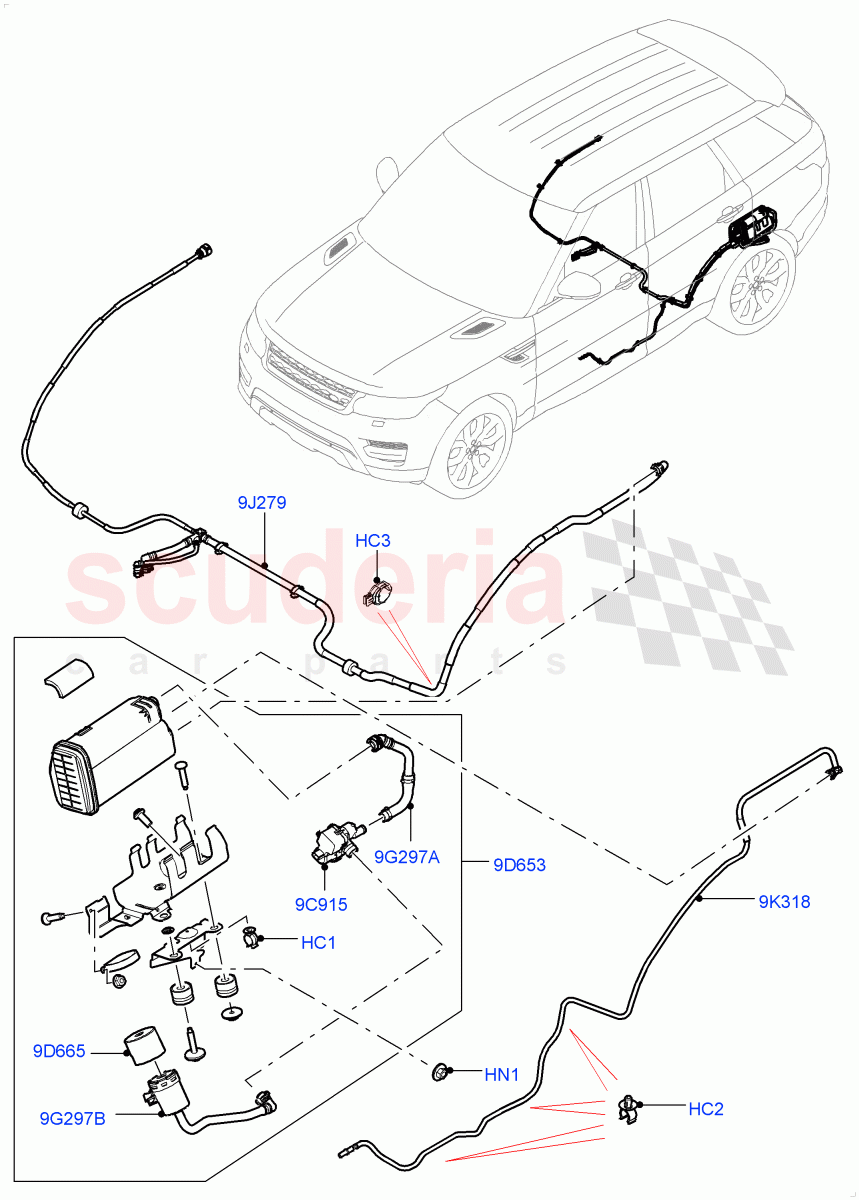

Carbon Canister (3.0L AJ20P6 Petrol High, Pet Tank With Leak Det - Lrg Filter) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 PEK500120
CLIP - HOSE
Tube Support / From: KA000001 		$2.76 1
HC2 LR004596
CLIP
12 x 7.8X.8/4, Plastic / From: KA000001 		$1.69 3
HC3 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic / From: KA000001 		$2.49 1
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: KA000001
IN STOCK 		$3.11 2
9C915 LR174757
VALVE - CONTROL
Pump - Diagnostic Monitoring Tank Leakage / From: KA000001 		$192.35 1
9D653 LR068424
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: KA000001 / To: MA444815 		$382.26 1
9D653 LR155135
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: MA444816 		$373.26 1
9D665 LR155089
BRACKET
From: MA444816 		$11.02 1
9G297A LR060302
HOSE - FUEL
Canister vent / From: KA000001 		$87.35 1
9G297B LR037482
HOSE - FUEL VAPOUR
Canister vent / From: KA000001 		$64.75 1
9J279 LR086515
TUBE - VENTILATION
From: KA000001 / To: NA472637 		$65.15 1
9K318 LR126104
TUBE - FUEL VAPOUR
Fuel Vapor Cannister Purge - Outlet / From: KA000001 / To: NA472637 		$48.23 1
9K318 LR173149
Tube - Fuel Vapour
Fuel Vapor Cannister Purge - Outlet / From: NA472638 		$46.11 1
