Carbon Canister (3.0L Aj20P6 Petrol High, Pet Tank W/O Leak Det - Std Filter) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Carbon Canister (3.0L AJ20P6 Petrol High, Pet Tank W/O Leak Det - Std Filter) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004596 CLIP $1.69 To Order
Photo Part No Description Price (each) Stock
PEK500120 CLIP - HOSE $2.76 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.10 IN STOCK
Photo Part No Description Price (each) Stock
RYP501050 SCREW - PAN - TORX $1.46 To Order
Photo Part No Description Price (each) Stock
LR082334 RESERVOIR - FUEL VAPOUR SYSTEM $596.43 To Order
LR161594 RESERVOIR - FUEL VAPOUR SYSTEM $557.03 To Order
Photo Part No Description Price (each) Stock
LR126104 TUBE - FUEL VAPOUR $48.17 To Order
LR173149 Tube - Fuel Vapour $46.05 To Order
Photo Part No Description Price (each) Stock
LR082335 HOSE - FUEL $50.01 To Order
Photo Part No Description Price (each) Stock
LR079268 HOSE - FUEL $68.99 To Order
Photo Part No Description Price (each) Stock
LR120590 TUBE - VENTILATION $40.02 To Order
Photo Part No Description Price (each) Stock
LR086516 TUBE - VENTILATION $64.16 To Order
View All

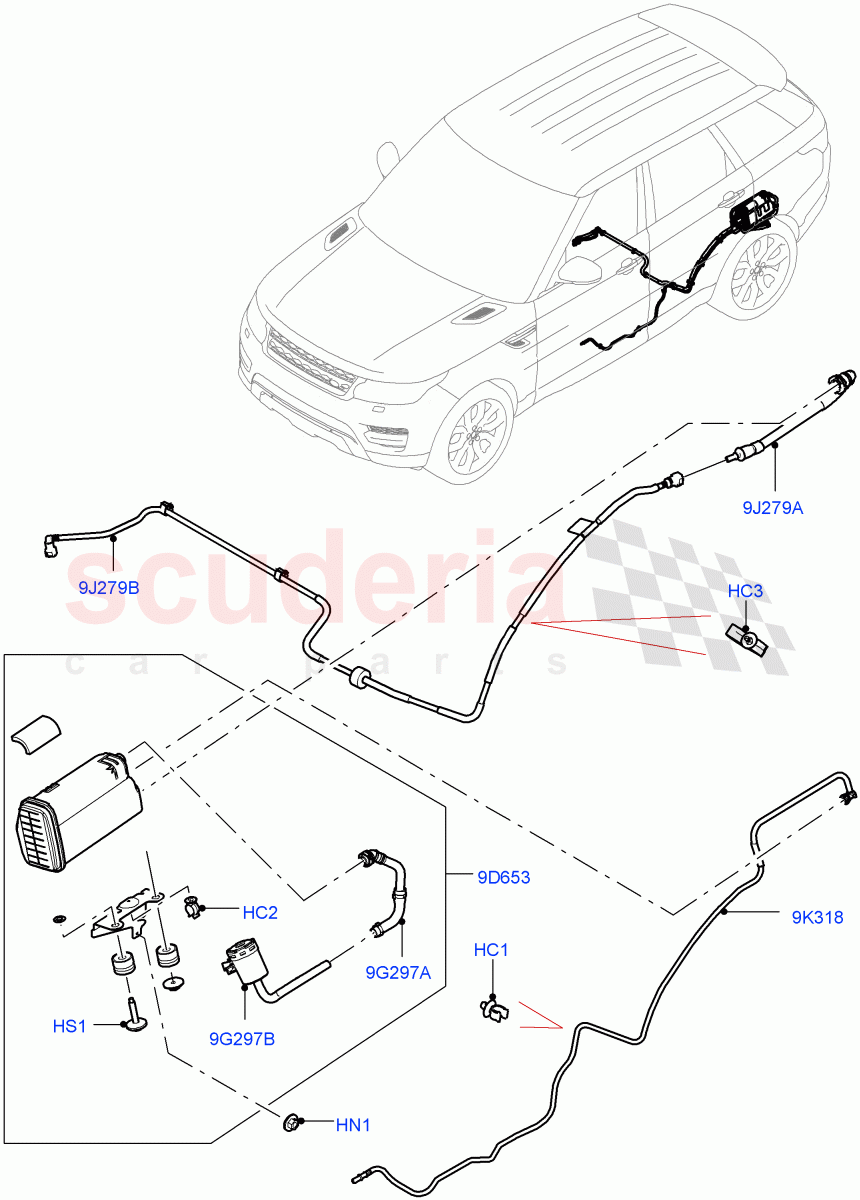

Carbon Canister (3.0L AJ20P6 Petrol High, Pet Tank W/O Leak Det - Std Filter) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR004596
CLIP
12 x 7.8X.8/4, Plastic / From: KA000001 		$1.69 3
HC2 PEK500120
CLIP - HOSE
Tube Support / From: KA000001 		$2.76 1
HC3 LR094032
CLIP - HOSE
Plastic / From: KA000001 		$4.41 2
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: KA000001
IN STOCK 		$3.10 2
HS1 RYP501050
SCREW - PAN - TORX
M6 X 25MM, Torx / From: KA000001 		$1.46 2
9D653 LR082334
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: KA000001 / To: MA448722 		$596.43 1
9D653 LR161594
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: MA448723 		$557.03 1
9G297A LR082335
HOSE - FUEL
Canister vent / From: KA000001 		$50.01 1
9G297B LR079268
HOSE - FUEL
Canister vent / From: KA000001 		$68.99 1
9J279A LR120590
TUBE - VENTILATION
From: KA000001 		$40.02 1
9J279B LR086516
TUBE - VENTILATION
Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: KA000001 		$64.16 1
9K318 LR126104
TUBE - FUEL VAPOUR
Fuel Vapor Cannister Purge - Outlet / From: KA000001 / To: NA472637 		$48.17 1
9K318 LR173149
Tube - Fuel Vapour
Fuel Vapor Cannister Purge - Outlet / From: NA472638 		$46.05 1
