Rear Exhaust System (3.0L Aj20P6 Petrol High, Standard Wheelbase) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Rear Exhaust System (3.0L AJ20P6 Petrol High, Standard Wheelbase) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
LR049187 BOLT $1.05 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR125186 MUFFLER - CENTRE $1,429.53 To Order
Photo Part No Description Price (each) Stock
LR088315 CLAMP - EXHAUST $66.14 To Order
Photo Part No Description Price (each) Stock
LR125187 CLAMP $32.70 To Order
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $24.09 To Order
Photo Part No Description Price (each) Stock
LR133405 INSULATOR - RUBBER $69.42 To Order
Photo Part No Description Price (each) Stock
LR133402 MUFFLER - REAR $799.44 To Order
Photo Part No Description Price (each) Stock
LR133403 MUFFLER - REAR $799.44 To Order
Photo Part No Description Price (each) Stock
LR125300 BRACKET - EXHAUST PIPE MOUNTING $34.46 To Order
Photo Part No Description Price (each) Stock
LR110248 BRACKET - REAR MUFFLER $47.30 To Order
Photo Part No Description Price (each) Stock
LR125205 BRACKET - REAR MUFFLER $30.61 To Order
Photo Part No Description Price (each) Stock
LR125204 BRACKET - REAR MUFFLER $31.22 To Order
Photo Part No Description Price (each) Stock
LR127513 BRACKET - EXHAUST PIPE MOUNTING $39.24 To Order
View All

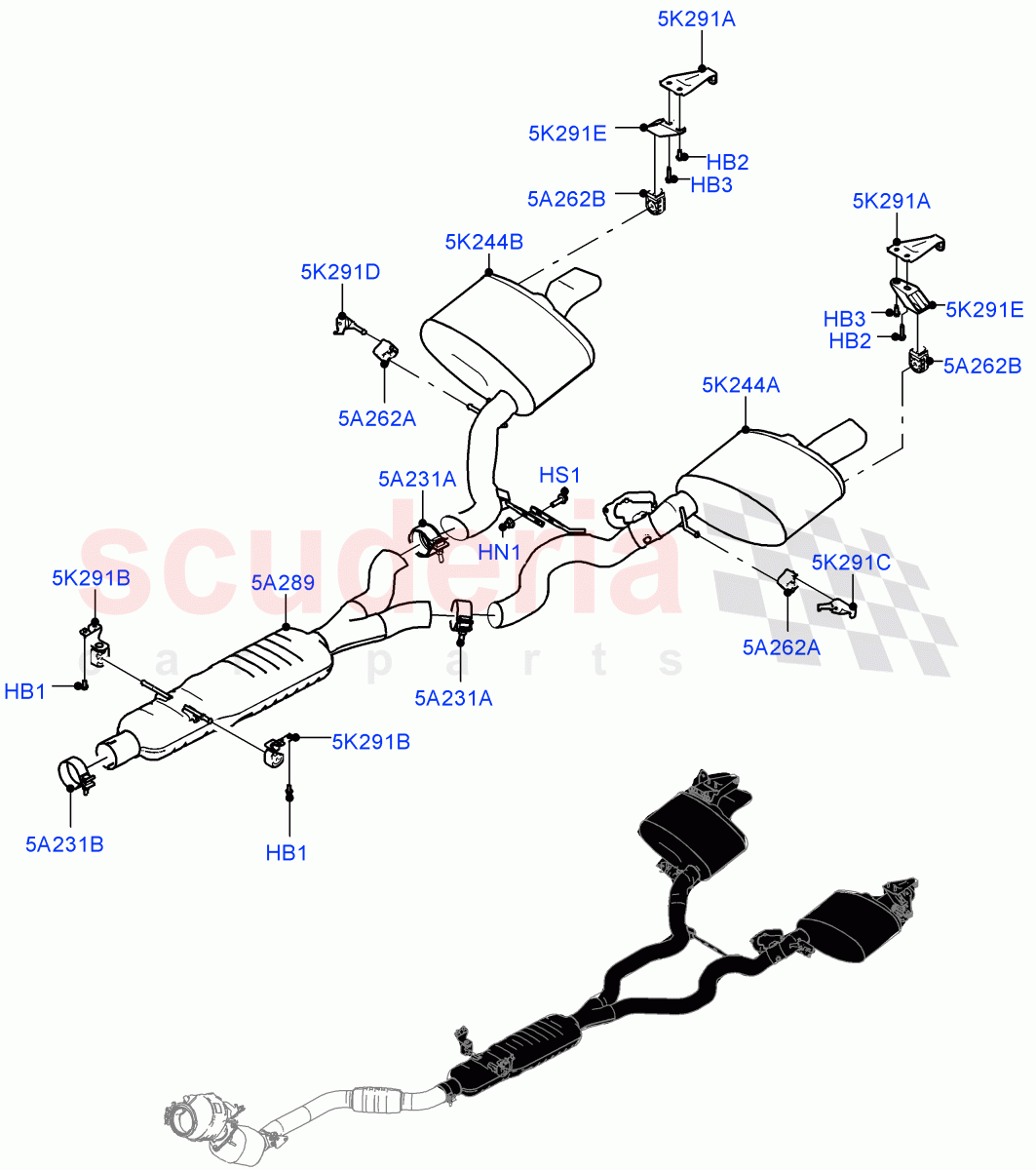

Rear Exhaust System (3.0L AJ20P6 Petrol High, Standard Wheelbase) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Bracket, Front, Hexagonal Head, M8 X 20MM / From: KA000001
IN STOCK 		$2.29 4
HB2 RYG500440
BOLT
Bracket, Hexagonal Head, M8 X 20MM, Rear / From: KA000001 		$1.02 2
HB3 LR049187
BOLT
Bracket, M8 X 35MM, Rear / From: KA000001 		$1.05 2
HN1 FX106046
NUT - FLANGED
Cross Brace, Hexagonal Head, M6 / From: KA000001
IN STOCK 		$0.60 2
HS1 FS106206
SCREW
Cross Brace, Hexagonal Head, M6 X 20MM / From: KA000001
IN STOCK 		$0.96 2
5A231A LR088315
CLAMP - EXHAUST
70MM / From: KA000001 		$66.14 2
5A231B LR125187
CLAMP
75MM, Front / From: KA000001 		$32.70 1
5A262A LR090360
INSULATOR - RUBBER
For Rear Muffler, Front, RH/LH / From: KA000001 		$24.09 2
5A262B LR133405
INSULATOR - RUBBER
For Rear Muffler, Rear, RH/LH / From: KA000001 		$69.42 2
5A289 LR125186
MUFFLER - CENTRE
From: KA000001 		$1,429.53 1
5K244A LR133402
MUFFLER - REAR
LH / From: KA000001 		$799.44 1
5K244B LR133403
MUFFLER - REAR
RH / From: KA000001 		$799.44 1
5K291A LR125300
BRACKET - EXHAUST PIPE MOUNTING
For Rear Muffler, RH/LH, Upper / From: KA000001 		$34.46 2
5K291B LR110248
BRACKET - REAR MUFFLER
RH/LH, To Resonator / From: KA000001 		$47.30 2
5K291C LR125205
BRACKET - REAR MUFFLER
LH, For Rear Muffler, Front / From: KA000001 		$30.61 1
5K291D LR125204
BRACKET - REAR MUFFLER
RH, For Rear Muffler, Front / From: KA000001 		$31.22 1
5K291E LR127513
BRACKET - EXHAUST PIPE MOUNTING
For Rear Muffler, Lower, RH/LH / From: KA000001 		$39.24 2
