Name: Front Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)
Rating: 4.5 (1 reviews)

Front Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Front Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

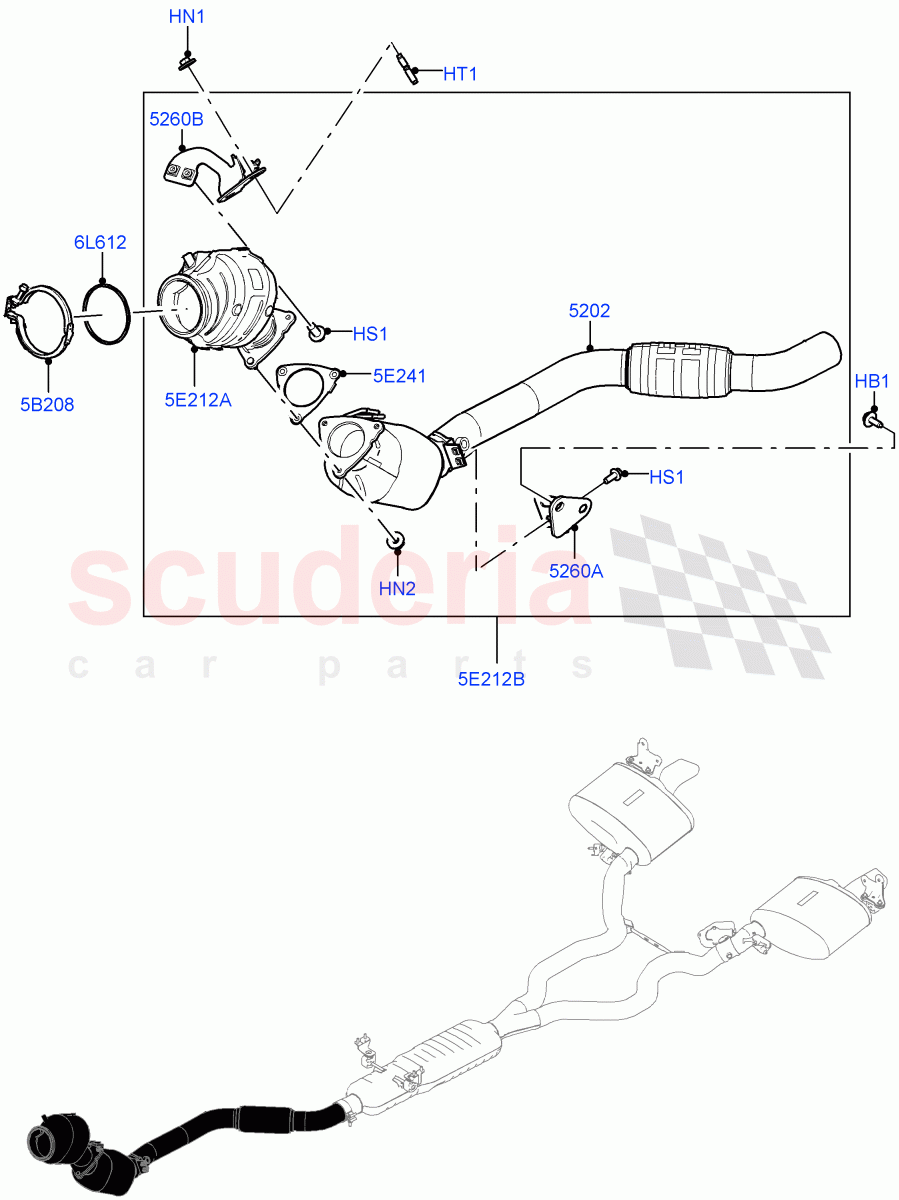

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500060	NUT	$3.89	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121310	CATALYTIC CONVERTER	$1,251.17	To Order
	LR121334	CATALYTIC CONVERTER	$1,251.17	To Order
	LR133688	CATALYTIC CONVERTER	$1,697.82	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121351	BRACKET	$21.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121350	BRACKET	$18.71	To Order
	LR144614	BRACKET	$22.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121359	CLAMP - EXHAUST	$42.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121358	GASKET	$16.46	To Order
	LR162995	GASKET	$24.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121356	GASKET	$30.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR162991	CATALYTIC CONVERTER	$3,981.01	To Order
	LR162991	CATALYTIC CONVERTER	$3,981.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133069	CATALYTIC CONVERTER	$3,717.87	To Order
	LR133082	CATALYST AND PARTICLE FILTER	$1,955.84	To Order
	LR133685	CATALYTIC CONVERTER	$4,285.42	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM / From: KA000001	$1.17	2
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer / From: KA000001	$0.67	2
HN2	WYH500060	NUT	WYH500060 NUT M8 / From: KA000001	$3.89	3
HS1	WYP000025	SCREW	WYP000025 SCREW Brackets, Hexagonal Head, M8 X 20MM / From: KA000001	$2.95	4
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM / From: KA000001	$2.06	2
5B208	LR121359	CLAMP - EXHAUST	LR121359 CLAMP - EXHAUST Turbocharger Outlet / From: KA000001	$42.70	1
5E212A	LR162991	CATALYTIC CONVERTER	LR162991 CATALYTIC CONVERTER Front / From: KA000001 / To: MA450069	$3,981.01	1
5E212A	LR162991	CATALYTIC CONVERTER	LR162991 CATALYTIC CONVERTER Front / From: MA450070	$3,981.01	1
5E212B	LR133069	CATALYTIC CONVERTER	LR133069 CATALYTIC CONVERTER EU6 Emissions / Complete Assembly / From: KA000001 / To: KA999999	$3,717.87	1
5E212B	LR133082	CATALYST AND PARTICLE FILTER	LR133082 CATALYST AND PARTICLE FILTER China N6B (Petrol) - Compliance / Complete Assembly / From: KA000001 / To: KA999999	$1,955.84	1
5E212B	LR133685	CATALYTIC CONVERTER	LR133685 CATALYTIC CONVERTER Japan Requirements / From: LA000001 / To: LA413844	$4,285.42	1
5E212B	LR133692	CATALYST AND PARTICLE FILTER	LR133692 CATALYST AND PARTICLE FILTER EU6D - Final (Petrol) Emission / Complete Assembly / From: LA000001 / To: LA413844	$3,805.11	1
5E212B	LR144615	CATALYST AND PARTICLE FILTER	LR144615 CATALYST AND PARTICLE FILTER Beijing 6 Petrol Emission / Complete Assembly / From: LA413845 / To: MA450069	$3,794.76	1
5E212B	LR144607	CATALYTIC CONVERTER	LR144607 CATALYTIC CONVERTER SULEV Requirements / Complete Assembly / From: LA413845 / To: MA450069	$4,076.85	1
5E212B	LR162988	CATALYTIC CONVERTER	LR162988 CATALYTIC CONVERTER Stage V European Emissions / Complete Assembly / From: MA450070	$6,432.64	1
5E212B	LR162993	CATALYST AND PARTICLE FILTER	LR162993 CATALYST AND PARTICLE FILTER China N6B (Petrol) - Compliance / Complete Assembly / From: MA450070	$6,432.64	1
5E241	LR121358	GASKET	LR121358 GASKET Outlet / From: KA000001 / To: MA450069	$16.46	1
5E241	LR162995	GASKET	LR162995 GASKET Outlet / From: MA450070	$24.36	1
6L612	LR121356	GASKET IN STOCK	LR121356 GASKET Turbocharger Outlet / From: KA000001 IN STOCK	$30.44	1
5202	LR121310	CATALYTIC CONVERTER	LR121310 CATALYTIC CONVERTER EU6 Emissions / From: KA000001 / To: KA999999	$1,251.17	1
5202	LR121334	CATALYTIC CONVERTER	LR121334 CATALYTIC CONVERTER EU6D - Final (Petrol) Emission / From: KA000001 / To: KA999999	$1,251.17	1
5202	LR133688	CATALYTIC CONVERTER	LR133688 CATALYTIC CONVERTER Japan Requirements / From: LA000001 / To: LA413844	$1,697.82	1
5202	LR133696	CATALYTIC CONVERTER	LR133696 CATALYTIC CONVERTER EU6D - Final (Petrol) Emission / From: LA000001 / To: LA413844	$1,474.59	1
5202	LR144613	CATALYTIC CONVERTER	LR144613 CATALYTIC CONVERTER EU6D - Final (Petrol) Emission / From: LA413845 / To: MA450069	$2,739.61	1
5202	LR144611	CATALYTIC CONVERTER	LR144611 CATALYTIC CONVERTER Stage V European Emissions / From: LA413845 / To: MA450069	$2,609.16	1
5202	LR162992	CATALYTIC CONVERTER	LR162992 CATALYTIC CONVERTER Japan Requirements / From: MA450070	$2,685.88	1
5202	LR162994	CATALYTIC CONVERTER	LR162994 CATALYTIC CONVERTER EU6D - Final (Petrol) Emission / From: MA450070	$3,265.20	1
5260A	LR121351	BRACKET	LR121351 BRACKET Lower / From: KA000001	$21.49	1
5260B	LR121350	BRACKET	LR121350 BRACKET Upper / From: KA000001 / To: LA413844	$18.71	1
5260B	LR144614	BRACKET	LR144614 BRACKET Upper / From: LA413845	$22.81	1

Front Exhaust System (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Front Exhaust System (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)
