Transfer Drive Case (Solihull Plant Build) (With 2 Spd Trans Case With Ctl Trac) ((V) Fromha000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Transfer Drive Case (Solihull Plant Build) (With 2 Spd Trans Case With Ctl Trac) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FT110356 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
LR082662 TRANSFER BOX $6,415.79 To Order
LR101747 TRANSFER BOX $10,216.24 To Order
LR125903 POWER TAKE OFF $6,556.57 To Order
Photo Part No Description Price (each) Stock
LR080767 TUBE - BREATHER $71.65 To Order
LR101046 TUBE - TRANSMISSION VENTILATION $244.60 To Order
LR116483 TUBE - TRANSMISSION VENTILATION $233.89 To Order
...and 6 more part variants. See table on right for more details.
View All

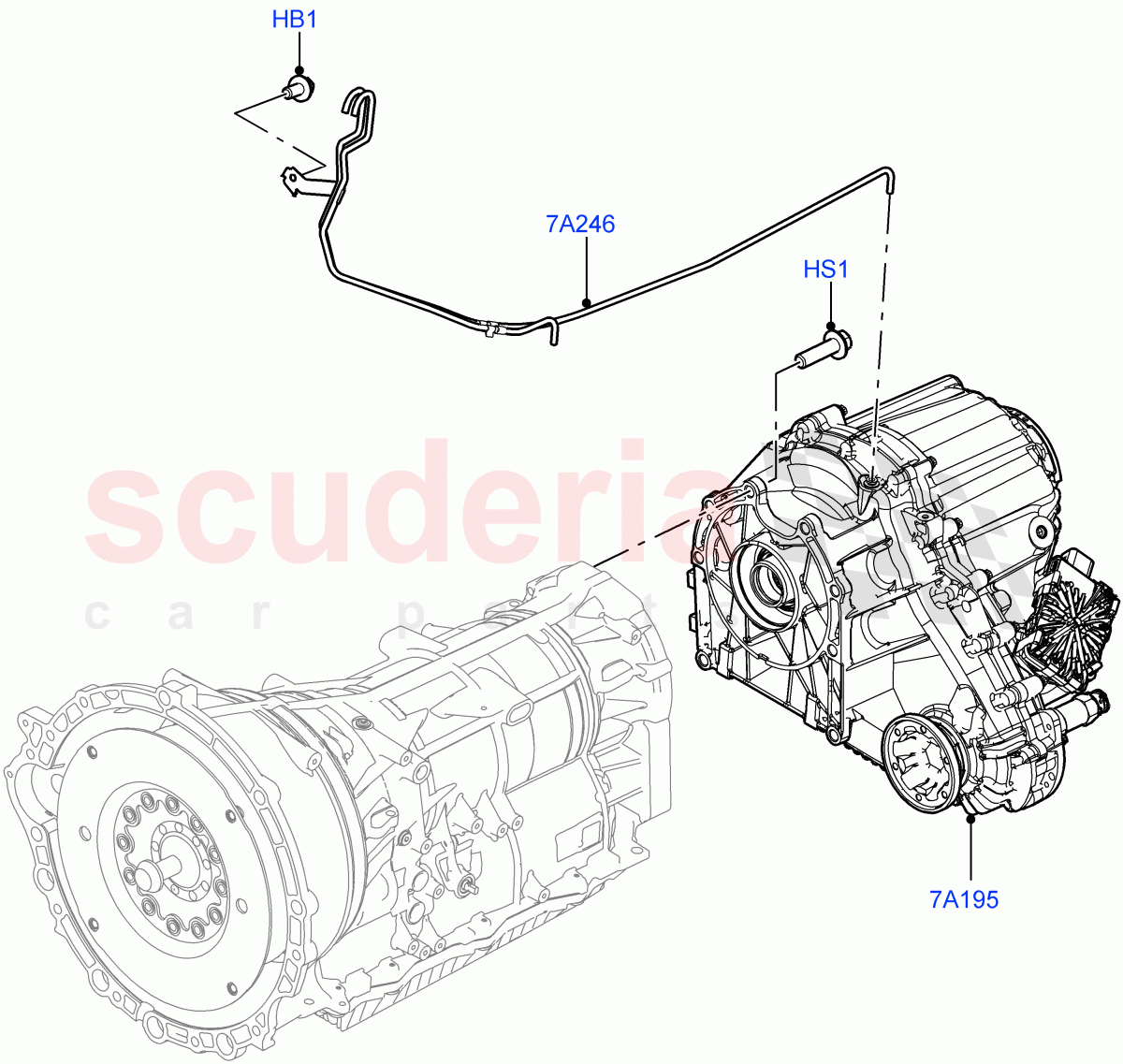

Transfer Drive Case (Solihull Plant Build) (With 2 Spd Trans Case With Ctl Trac) ((V) FROMHA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Breather Pipe, Hexagonal Head, M6 x 12MM / From: HA000001
IN STOCK 		$0.52 1
HS1 FT110356
SCREW
Hexagonal Head, M10 x 35MM / From: HA000001 		$2.41 8
7A195 LR082662
TRANSFER BOX
From: HA000001 / To: HA336344 		$6,415.79 1
7A195 LR101747
TRANSFER BOX
From: HA336345 / To: KA542340 		$10,216.24 1
7A195 LR125903
POWER TAKE OFF
From: KA542341 		$6,556.57 1
7A246 LR080767
TUBE - BREATHER
5.0L OHC SGDI SC V8 Petrol - AJ133 / Gearbox, Transfer Box / From: HA000001 		$71.65 1
7A246 LR101046
TUBE - TRANSMISSION VENTILATION
2.0L AJ200P Hi PHEV / Gearbox, Includes Bracket, Transfer Box / From: JA000001 / To: KA519724 		$244.60 1
7A246 LR116483
TUBE - TRANSMISSION VENTILATION
2.0L AJ200P Hi PHEV / Gearbox, Includes Bracket, Transfer Box / From: KA519725 		$233.89 1
7A246 LR121397
TUBE - TRANSMISSION VENTILATION
3.0L AJ20P6 Petrol High / Gearbox, Includes Bracket, Transfer Box / From: KA000001 / To: LA594792 		$238.61 1
7A246 LR137399
TUBE - TRANSMISSION VENTILATION
3.0L AJ20P6 Petrol High / Gearbox, Includes Bracket, Transfer Box / From: LA594793 / To: MA427602 		$49.17 1
7A246 LR080760
TUBE - TRANSMISSION VENTILATION
4.4L DOHC DITC V8 Diesel / Gearbox, Includes Bracket, Transfer Box / From: HA000001 		$56.70 1
7A246 LR125278
TUBE - TRANSMISSION VENTILATION
3.0L AJ20D6 Diesel High / Gearbox, Includes Bracket, Transfer Box / From: LA000001 		$116.25 1
7A246 LR144956
TUBE - TRANSMISSION VENTILATION
3.0L AJ20P6 Petrol High / Gearbox, Includes Bracket, Transfer Box / From: MA427603 		$224.75 1
7A246 LR080753
TUBE - TRANSMISSION VENTILATION
3.0 V6 Diesel / Gearbox, Includes Bracket, Transfer Box / From: FA000001 		$66.80 1
