Name: Transfer Drive Case (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac, 8 Speed Auto Trans ZF 8HP70 4WD, 8 Speed Auto Trans ZF 8HP45) ((V) FROMDA000001, (V) TOGA999999)
Rating: 4.0 (1 reviews)

Transfer Drive Case (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac, 8 Speed Auto Trans ZF 8HP70 4WD, 8 Speed Auto Trans ZF 8HP45) ((V) FROMDA000001, (V) TOGA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Transfer Drive Case (8 Speed Auto Trans ZF 8HP70 HEV 4WD, With 2 Spd Trans Case With Ctl Trac, 8...

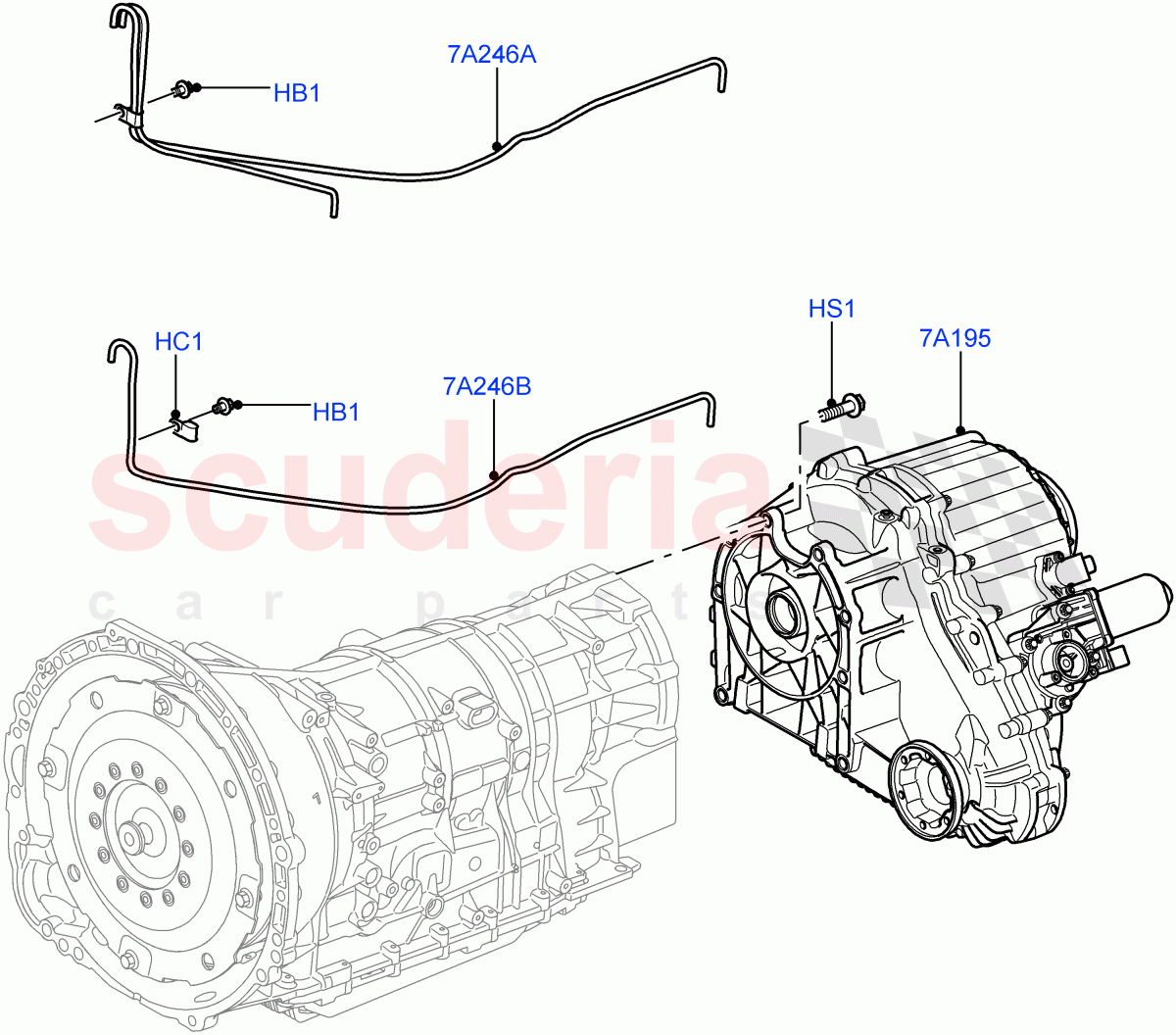

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	TYC500140	CLIP	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	FT110356	SCREW	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035617	TRANSFER BOX	$3,752.80	To Order
	LR045477	TRANSFER BOX	$5,703.36	To Order
	LR049160	TRANSFER BOX	$7,037.29	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR042187	TUBE - TRANSMISSION VENTILATION	$33.00	To Order
	LR042384	TUBE - TRANSMISSION VENTILATION	$45.66	To Order
	LR080760	TUBE - TRANSMISSION VENTILATION	$56.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010763	TUBE - TRANSMISSION VENTILATION	$38.41	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM IN STOCK	$0.52	1
HC1	TYC500140	CLIP	TYC500140 CLIP 5.0L OHC SGDI NA V8 Petrol - AJ133 / Breather Pipe	$1.43	1
HS1	FT110356	SCREW	FT110356 SCREW Hexagonal Head, M10 x 35MM	$2.42	8
7A195	LR035617	TRANSFER BOX	LR035617 TRANSFER BOX New Part-Please Check For Reman Version / To: DA106267	$3,752.80	1
7A195	LR045477	TRANSFER BOX	LR045477 TRANSFER BOX New Part-Please Check For Reman Version / From: DA106268 / To: DA124962	$5,703.36	1
7A195	LR049160	TRANSFER BOX	LR049160 TRANSFER BOX New Part-Please Check For Reman Version / From: DA124963 / To: EA133461	$7,037.29	1
7A195	LR052611	TRANSFER BOX	LR052611 TRANSFER BOX New Part-Please Check For Reman Version / From: EA133462 / To: GA306375	$7,252.62	1
7A195	LR089531	TRANSFER BOX	LR089531 TRANSFER BOX New Part-Please Check For Reman Version / From: GA306376	$6,669.91	1
7A195	LR054851	TRANSFER BOX	LR054851 TRANSFER BOX Remanufactured Part / From: DA124963 / To: EA133461	$3,931.21	1
7A195	LR052876	TRANSFER BOX	LR052876 TRANSFER BOX Remanufactured Part / From: EA133462 / To: GA306375	$3,518.40	1
7A195	LR111125	TRANSFER BOX	LR111125 TRANSFER BOX Remanufactured Part / From: GA306376	$4,081.34	1
7A195	LR111124	TRANSFER BOX	LR111124 TRANSFER BOX Remanufactured Part / To: DA106267	$3,518.40	1
7A195	LR111124	TRANSFER BOX	LR111124 TRANSFER BOX Remanufactured Part / From: DA106268 / To: DA124962	$3,518.40	1
7A246A	LR042187	TUBE - TRANSMISSION VENTILATION	LR042187 TUBE - TRANSMISSION VENTILATION 4.4L DOHC DITC V8 Diesel / Gearbox, Includes Bracket, Transfer Box / To: GA297751	$33.00	1
7A246A	LR042384	TUBE - TRANSMISSION VENTILATION	LR042384 TUBE - TRANSMISSION VENTILATION 3.0 V6 Diesel / Gearbox, Includes Bracket, Transfer Box	$45.66	1
7A246A	LR080760	TUBE - TRANSMISSION VENTILATION	LR080760 TUBE - TRANSMISSION VENTILATION 4.4L DOHC DITC V8 Diesel / Gearbox, Includes Bracket, Transfer Box / From: GA297752	$56.94	1
7A246B	LR010763	TUBE - TRANSMISSION VENTILATION	LR010763 TUBE - TRANSMISSION VENTILATION 5.0L OHC SGDI NA V8 Petrol - AJ133 / Transfer Box	$38.41	1
