Name: Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, With Ptc Heater, With Fresh Air Heater, Less Heater) ((V) FROMEA000001)
Rating: 4.8 (1 reviews)

Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, With Ptc Heater, With Fresh Air Heater, Less Heater) ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, With Ptc Heater, With Fresh Air Heater, Less...

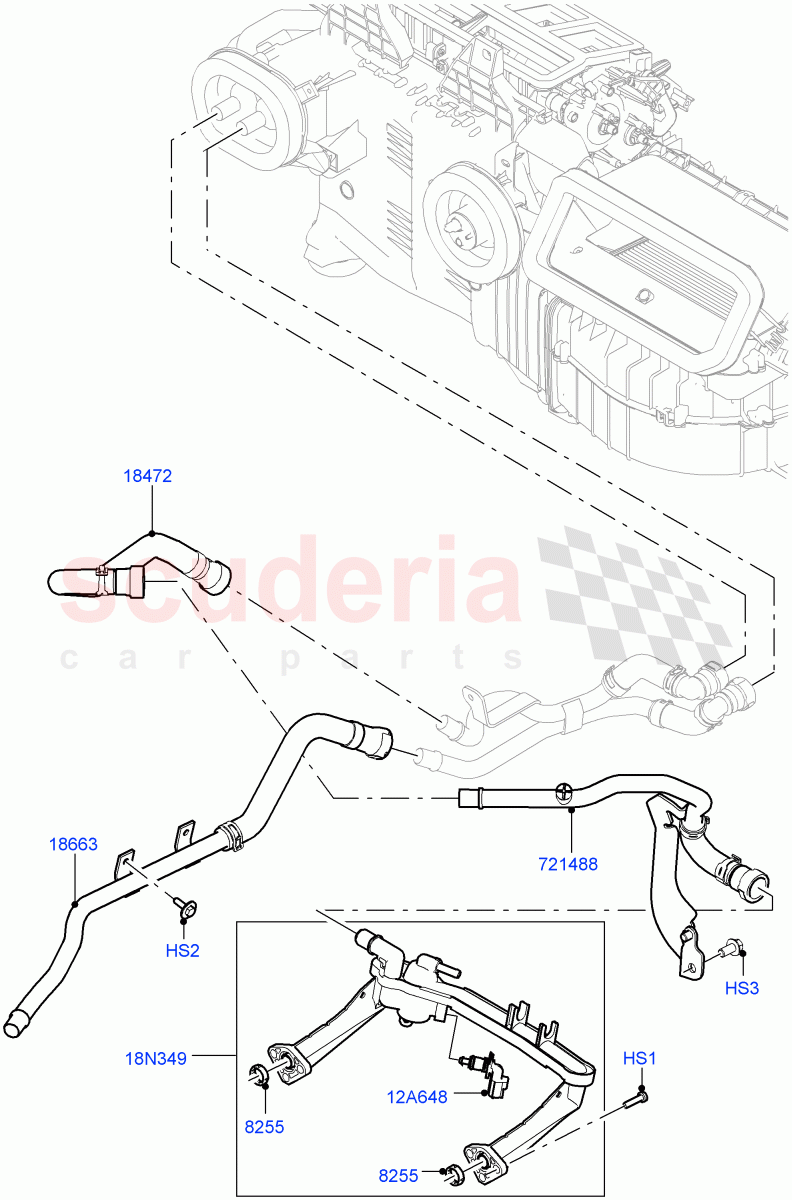

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061621	BOLT	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010793	GASKET - WATER MANIFOLD	$9.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034616	HOSE - HEATER WATER	$26.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034597	TUBE - HEATER WATER	$50.14	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$64.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122710	MANIFOLD - HEATER	$142.97	To Order
	LR075991	MANIFOLD - HEATER	$89.95	To Order
	LR087558	MANIFOLD - HEATER	$133.80	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034624	HOSE AND BRACKET - HEATING	$100.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011270	SCREW IN STOCK	LR011270 SCREW M6 x 25MM, Torx / From: EA000001 IN STOCK	$1.25	4
HS2	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM / From: EA000001 IN STOCK	$0.36	2
HS3	LR061621	BOLT	LR061621 BOLT M10 x 16MM / From: EA000001	$1.70	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: EA000001	$64.27	1
18N349	LR122710	MANIFOLD - HEATER	LR122710 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: EA000001 / To: FA999999	$142.97	1
18N349	LR075991	MANIFOLD - HEATER	LR075991 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: GA000001 / To: GA284964	$89.95	1
18N349	LR087558	MANIFOLD - HEATER	LR087558 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: GA284965 / To: HA372177	$133.80	1
18N349	LR109401	MANIFOLD - HEATER	LR109401 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: HA372178 / To: KA524962	$124.22	1
18N349	LR122710	MANIFOLD - HEATER	LR122710 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: KA524963	$142.97	1
8255	LR010793	GASKET - WATER MANIFOLD	LR010793 GASKET - WATER MANIFOLD From: EA000001	$9.67	2
18472	LR034616	HOSE - HEATER WATER	LR034616 HOSE - HEATER WATER From: EA000001	$26.12	1
18663	LR034597	TUBE - HEATER WATER	LR034597 TUBE - HEATER WATER From: EA000001	$50.14	1
721488	LR034624	HOSE AND BRACKET - HEATING	LR034624 HOSE AND BRACKET - HEATING From Engine Block To Heater Inlet Hose / From: EA000001	$100.66	1

Heater Hoses (Front) (3.0L Dohc Gdi Sc V6 Petrol, With Ptc Heater, With Fresh Air Heater, Less...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, With Ptc Heater, With Fresh Air Heater, Less...
