Hybrid Electrical Modules (Mhev Converter, Cooling Duct And Fans) (Electric Engine Battery-Mhev)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Hybrid Electrical Modules (MHEV Converter, Cooling Duct And Fans) (Electric Engine Battery-MHEV)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR115317 BOLT AND WASHER - HEX.HEAD $1.09 To Order
Photo Part No Description Price (each) Stock
LR128887 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
LR121412 COVER - CONVERTER HOUSING $247.20 To Order
Photo Part No Description Price (each) Stock
LR121413 COVER - CONVERTER HOUSING $190.92 To Order
Photo Part No Description Price (each) Stock
LR140274 CARRIER $169.09 To Order
Photo Part No Description Price (each) Stock
LR123054 FAN - AUXILIARY COOLING $183.88 To Order
Photo Part No Description Price (each) Stock
LR121219 CABLE $177.77 To Order
Photo Part No Description Price (each) Stock
LR121226 CABLE $213.34 To Order
Photo Part No Description Price (each) Stock
LR125086 WIRE - SOLENOID $67.44 To Order
Photo Part No Description Price (each) Stock
LR135617 CONVERTER - VOLTAGE $826.79 To Order
LR148937 CONVERTER - VOLTAGE $837.41 To Order
LR172324 CONVERTER - VOLTAGE $953.34 To Order
Photo Part No Description Price (each) Stock
LR121392 DUCT - AIR $82.15 To Order
Photo Part No Description Price (each) Stock
LR121208 DUCT - COOLING $73.22 To Order
Photo Part No Description Price (each) Stock
LR118777 COVER - PWR SUPPLY DISTRIBUTION BOX $15.24 To Order
Photo Part No Description Price (each) Stock
LR117838 COVER - WIRING $6.89 To Order
View All

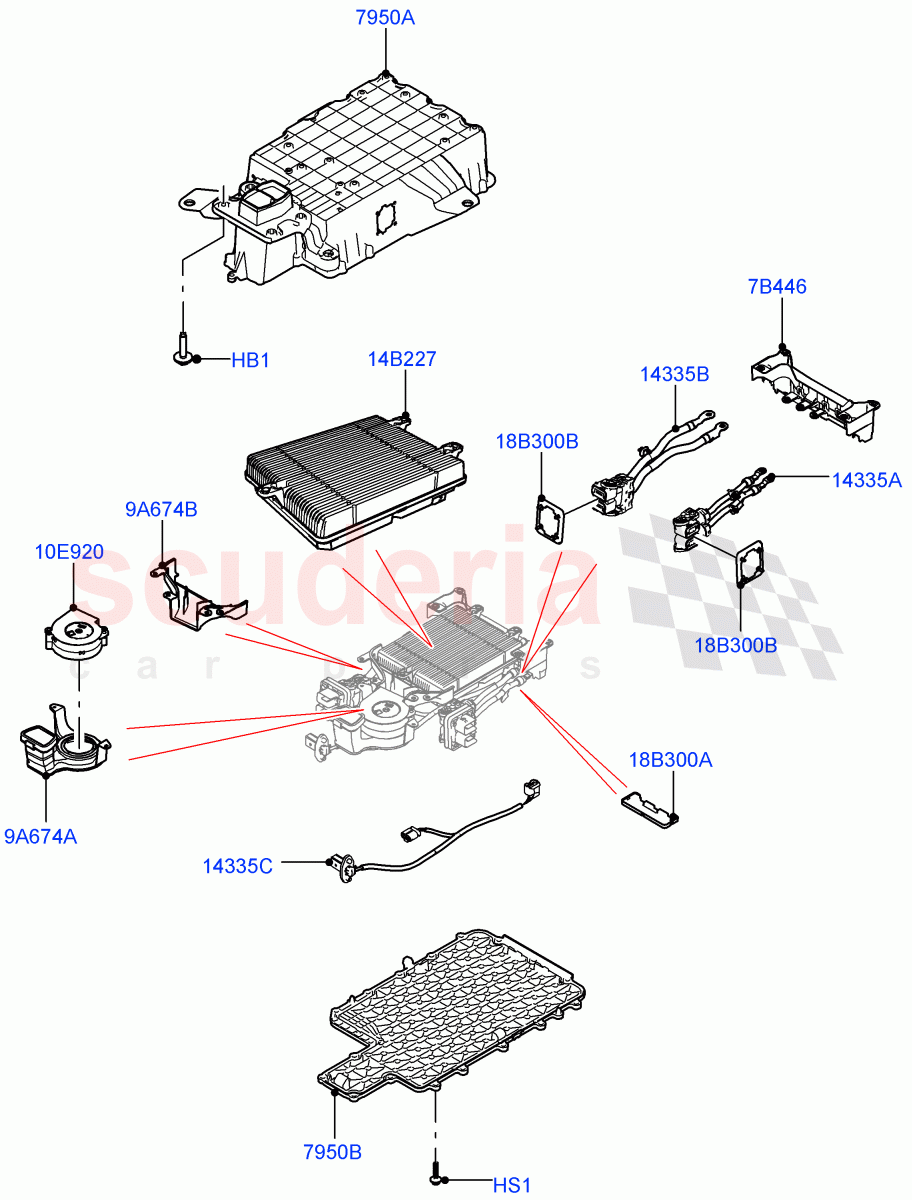

Hybrid Electrical Modules (MHEV Converter, Cooling Duct And Fans) (Electric Engine Battery-MHEV) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR115317
BOLT AND WASHER - HEX.HEAD
M6x28 		$1.09 4
HS1 LR128887
SCREW
6x25 		$0.71 18
7B446 LR140274
CARRIER 		$169.09 1
9A674A LR121392
DUCT - AIR
Inlet Duct 		$82.15 1
9A674B LR121208
DUCT - COOLING
Directional Duct 		$73.22 1
10E920 LR123054
FAN - AUXILIARY COOLING 		$183.88 1
14B227 LR135617
CONVERTER - VOLTAGE
To: MA419779 		$826.79 1
14B227 LR148937
CONVERTER - VOLTAGE
From: MA419780 / To: NA468427 		$837.41 1
14B227 LR172324
CONVERTER - VOLTAGE
From: NA468428 		$953.34 1
18B300A LR118777
COVER - PWR SUPPLY DISTRIBUTION BOX
Terminal Cover 		$15.24 1
18B300B LR117838
COVER - WIRING
Inner, Outer 		$6.89 2
7950A LR121412
COVER - CONVERTER HOUSING
Upper 		$247.20 1
7950B LR121413
COVER - CONVERTER HOUSING
Lower 		$190.92 1
14335A LR121219
CABLE
Front MHEV Vehicle Juntion Box To DC/DC 		$177.77 1
14335B LR121226
CABLE
Busbar To DC/DC 		$213.34 1
14335C LR125086
WIRE - SOLENOID
DC/DC Converter Link Lead 		$67.44 1
