Hybrid Electrical Modules (Traction Battery And Inverter Cradle) (3.0 V6 D Gen2 Twin Turbo, 8 Speed...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Hybrid Electrical Modules (Traction Battery And Inverter Cradle) (3.0 V6 D Gen2 Twin Turbo, 8 Speed...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.71 To Order
Photo Part No Description Price (each) Stock
SYG500010 BOLT AND WASHER - HEX.HEAD $11.44 To Order
Photo Part No Description Price (each) Stock
RYH500730 NUT $2.11 To Order
Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. $2.29 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.13 IN STOCK
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER $1.38 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
LR049185 HEAT SHIELD - BATTERY $181.38 To Order
Photo Part No Description Price (each) Stock
LR049961 BRACKET - CABLE SUPPORT $55.11 To Order
LR106493 BRACKET - CABLE SUPPORT $37.01 To Order
Photo Part No Description Price (each) Stock
LR049842 CRADLE - TRACTION BATTERY $1,149.38 To Order
LR094512 CRADLE - TRACTION BATTERY $1,149.38 To Order
Photo Part No Description Price (each) Stock
LR048943 COVER - TRACTION BATTERY $159.49 To Order
Photo Part No Description Price (each) Stock
LR048947 BRACKET - BATTERY MOUNTING $13.72 To Order
Photo Part No Description Price (each) Stock
LR053695 MOUNTING - RUBBER $11.35 To Order
Photo Part No Description Price (each) Stock
LR053699 MOUNTING - RUBBER $10.03 To Order
Photo Part No Description Price (each) Stock
LR048944 BRACKET - TRACTION BATTERY $24.66 To Order
Photo Part No Description Price (each) Stock
LR048945 BRACKET - TRACTION BATTERY $15.24 To Order
View All

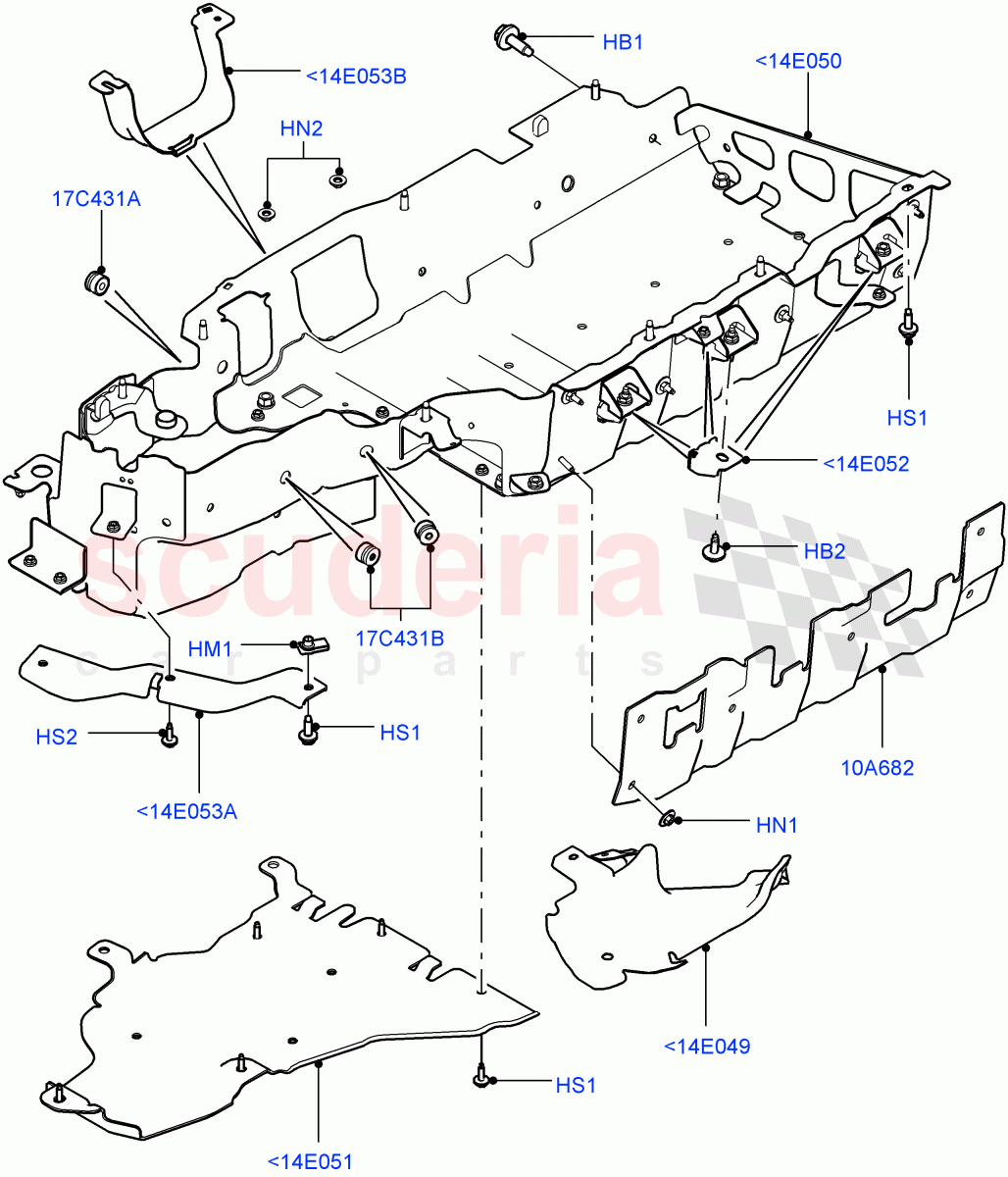

Hybrid Electrical Modules (Traction Battery And Inverter Cradle) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<14E049 LR049961
BRACKET - CABLE SUPPORT
From: EA000001 / To: HA351053 		$55.11 1
<14E049 LR106493
BRACKET - CABLE SUPPORT
From: HA351054 		$37.01 1
<14E050 LR049842
CRADLE - TRACTION BATTERY
From: EA000001 / To: GA999999 		$1,149.38 1
<14E050 LR094512
CRADLE - TRACTION BATTERY
From: HA000001 		$1,149.38 1
<14E051 LR048943
COVER - TRACTION BATTERY
From: EA000001 		$159.49 1
<14E052 LR048947
BRACKET - BATTERY MOUNTING
From: EA000001 		$13.72 3
<14E053A LR048944
BRACKET - TRACTION BATTERY
From: EA000001 		$24.66 1
<14E053B LR048945
BRACKET - TRACTION BATTERY
Cooling Pipe Protection / From: EA000001 		$15.24 1
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM / From: EA000001 		$0.71 6
HB2 SYG500010
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 20MM / From: EA000001 		$11.44 3
HM1 RYH500730
NUT
M8 0.8-4.0 / From: EA000001 		$2.11 1
HN1 RYH500290
NUT AND WASHER - HEX.
M6 / From: EA000001 		$2.29 6
HN2 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: EA000001
IN STOCK 		$3.13 4
HS1 RYG500980
SCREW AND WASHER
M8 x 24MM / From: EA000001 		$1.38 8
HS2 RYG501590
SCREW
Hexagonal Head, M6 X 20MM / From: EA000001 		$1.01 6
10A682 LR049185
HEAT SHIELD - BATTERY
From: EA000001 		$181.38 1
17C431A LR053695
MOUNTING - RUBBER
From: EA000001 		$11.35 2
17C431B LR053699
MOUNTING - RUBBER
From: EA000001 		$10.03 4
