Front Cross Member & Stabilizer Bar (Crossmember) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Front Cross Member & Stabilizer Bar (Crossmember) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR051047 BOLT $14.49 To Order
Photo Part No Description Price (each) Stock
LR045743 BOLT $5.45 To Order
Photo Part No Description Price (each) Stock
LR037935 BOLT AND WASHER - HEX.HEAD $2.38 IN STOCK
Photo Part No Description Price (each) Stock
LR038571 BOLT $3.71 To Order
Photo Part No Description Price (each) Stock
LR001188 BOLT $4.22 To Order
Photo Part No Description Price (each) Stock
LR105631 BOLT AND WASHER - HEX.HEAD $2.14 To Order
Photo Part No Description Price (each) Stock
LR097372 BOLT $9.95 IN STOCK
Photo Part No Description Price (each) Stock
LR049187 BOLT $1.05 To Order
Photo Part No Description Price (each) Stock
LR106431 BOLT $2.49 To Order
Photo Part No Description Price (each) Stock
LR038815 NUT AND RETAINER $4.99 To Order
Photo Part No Description Price (each) Stock
LR050753 SCREW AND WASHER $5.04 To Order
Photo Part No Description Price (each) Stock
LR051046 SCREW AND WASHER $8.46 To Order
Photo Part No Description Price (each) Stock
LR072612 SCREW $2.74 To Order
Photo Part No Description Price (each) Stock
LR100914 SLEEVE - INSULATING $12.50 To Order
LR169865 SLEEVE - INSULATING $12.65 To Order
Photo Part No Description Price (each) Stock
LR126068 REINFORCEMENT - CROSSMEMBER $230.84 To Order
LR126070 REINFORCEMENT - CROSSMEMBER $230.84 To Order
LR038788 REINFORCEMENT - CROSSMEMBER $233.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090577 INSULATOR - BUSH TYPE $37.43 To Order
LR061455 INSULATOR - BUSH TYPE $52.22 To Order
Photo Part No Description Price (each) Stock
LR081521 GUARD - RADIATOR $129.40 To Order
Photo Part No Description Price (each) Stock
LR124637 BOLT $14.36 To Order
Photo Part No Description Price (each) Stock
LR067391 INSERT - THREADED $26.48 To Order
Photo Part No Description Price (each) Stock
LR045788 INSERT - THREADED $8.09 To Order
Photo Part No Description Price (each) Stock
LR135730 DAMPER - VIBRATION $179.92 To Order
LR135729 DAMPER - VIBRATION $179.92 To Order
Photo Part No Description Price (each) Stock
LR096501 CROSSMEMBER - FRONT FLOOR $4,131.97 To Order
LR096500 CROSSMEMBER - FRONT FLOOR $4,131.97 To Order
LR105632 FRAME $2,922.31 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR120484 BRACKET - DAMPER $64.10 To Order
LR120485 BRACKET - DAMPER $64.10 To Order
Photo Part No Description Price (each) Stock
LR038820 RECOVERY LOOP $239.85 To Order
LR146622 RECOVERY LOOP $370.06 To Order
LR153983 RECOVERY LOOP $367.48 To Order
View All

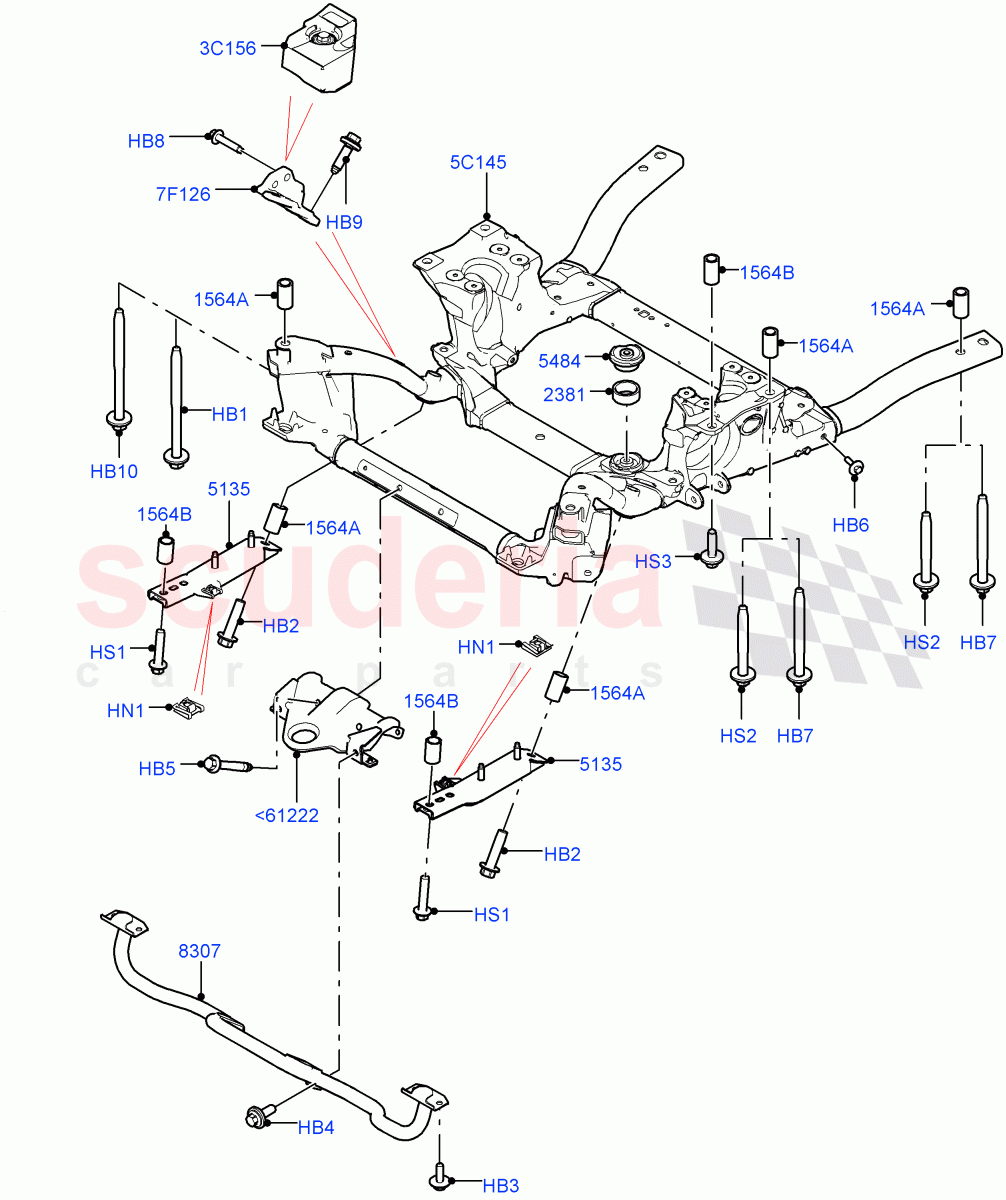

Front Cross Member & Stabilizer Bar (Crossmember) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<61222 LR038820
RECOVERY LOOP
Towing Eye / From: JA000001 / To: MA418845 		$239.85 1
<61222 LR146622
RECOVERY LOOP
3.0L AJ20D6 Diesel High / Towing Eye / From: MA418846 		$370.06 1
<61222 LR153983
RECOVERY LOOP
3.0 V6 D Gen2 Mono Turbo / Towing Eye / From: MA418846 		$367.48 1
HB1 LR051047
BOLT
Hexagonal Head, M14 X 185, Please Use When Body Shell Is Replaced - Self Cutting Thread Bolt / From: JA000001 		$14.49 2
HB2 LR045743
BOLT
HEX Flange, M14 X 55MM / From: JA000001 		$5.45 2
HB3 LR037935
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 X 25MM / From: JA000001
IN STOCK 		$2.38 4
HB4 LR038571
BOLT
Hexagonal Head, M12 X 35MM / From: JA000001 		$3.71 2
HB5 LR001188
BOLT
Hexagonal Head, M12 x 80MM / From: JA000001 		$4.22 2
HB6 LR105631
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 / From: JA000001 		$2.14 2
HB7 LR097372
BOLT
Hexagonal Head, M14 X 148MM, Please Use When Old Fixing Is Replaced - Non Self Cutting Bolt / From: JA000001
IN STOCK 		$9.95 4
HB8 LR049187
BOLT
3.0L AJ20P6 Petrol High / Damper, M8 X 35MM / From: KA000001 		$1.05 4
HB9 LR106431
BOLT
3.0L AJ20P6 Petrol High / Bracket to frame, M10X36 / From: KA000001 		$2.49 4
HB10 LR124637
BOLT
M14 X 200MM, Please Use When Old Fixing Is Replaced - Non Self Cutting Bolt / From: JA000001 		$14.36 2
HN1 LR038815
NUT AND RETAINER
M10, Nut And Retainer / From: JA000001 		$4.99 2
HS1 LR050753
SCREW AND WASHER
Hexagonal Head, M12 x 55MM / From: JA000001 		$5.04 4
HS2 LR051046
SCREW AND WASHER
Hexagonal Head, M14 X 145, Please Use When Body Shell Is Replaced - Self Cutting Thread Bolt / From: JA000001 		$8.46 4
HS3 LR072612
SCREW
Hexagonal Head, M12 X 45MM / From: JA000001 		$2.74 2
3C156 LR135730
DAMPER - VIBRATION
3.0L AJ20P6 Petrol High / RH / From: KA000001 		$179.92 1
3C156 LR135729
DAMPER - VIBRATION
3.0L AJ20P6 Petrol High / LH / From: KA000001 		$179.92 1
5C145 LR096501
CROSSMEMBER - FRONT FLOOR
5.0L P AJ133 DOHC CDA S/C Enhanced / From: JA000001 / To: JA999999 		$4,131.97 1
5C145 LR096500
CROSSMEMBER - FRONT FLOOR
3.0 V6 D Gen2 Twin Turbo / From: JA000001 / To: JA999999 		$4,131.97 1
5C145 LR105632
FRAME
2.0L I4 High DOHC AJ200 Petrol / From: JA000001 / To: KA552031 		$2,922.31 1
5C145 LR119650
FRAME
4.4L DOHC DITC V8 Diesel / From: KA000001 / To: NA470942 		$2,262.56 1
5C145 LR126479
FRAME
5.0 Petrol AJ133 DOHC CDA / From: KA000001 		$3,597.83 1
5C145 LR128141
FRAME
2.0L I4 High DOHC AJ200 Petrol / From: KA552032 / To: LA583288 		$3,080.89 1
5C145 LR129035
FRAME
2.0L AJ200P Hi PHEV / From: LA583289 / To: MA425807
IN STOCK 		$870.25 1
5C145 LR148210
FRAME
2.0L AJ200P Hi PHEV / From: MA425808 / To: MA449236 		$1,908.86 1
5C145 LR155983
FRAME
2.0L AJ200P Hi PHEV / From: MA449237 / To: MA451494 		$1,847.88 1
5C145 LR162062
FRAME
2.0L AJ200P Hi PHEV / From: MA451495 / To: NA459891 		$1,735.40 1
5C145 LR166114
FRAME
2.0L AJ200P Hi PHEV / From: NA459892 / To: NA465140 		$1,792.70 1
5C145 LR174221
Cross Member
3.0 V6 D Gen2 Mono Turbo / From: NA470943 		$5,754.08 1
5C145 LR174220
Cross Member
2.0L AJ200P Hi PHEV / From: NA465141 		$1,739.38 1
7F126 LR120484
BRACKET - DAMPER
3.0L AJ20P6 Petrol High / RH / From: KA000001 		$64.10 1
7F126 LR120485
BRACKET - DAMPER
3.0L AJ20P6 Petrol High / LH / From: KA000001 		$64.10 1
1564A LR067391
INSERT - THREADED
M20 x 1.5 + M14, Refer To Topix, Section 501-00, Threaded / From: JA000001 		$26.48 8
1564B LR045788
INSERT - THREADED
M16 X 2 + M12, Threaded / From: JA000001 		$8.09 6
2381 LR100914
SLEEVE - INSULATING
From: JA000001 / To: NA470942 		$12.50 1
2381 LR169865
SLEEVE - INSULATING
From: NA470943 		$12.65 1
5135 LR126068
REINFORCEMENT - CROSSMEMBER
RH / From: KA539921 		$230.84 1
5135 LR126070
REINFORCEMENT - CROSSMEMBER
LH / From: KA539921 		$230.84 1
5135 LR038788
REINFORCEMENT - CROSSMEMBER
RH / From: JA000001 / To: KA539920 		$233.17 1
5135 LR038789
REINFORCEMENT - CROSSMEMBER
LH / From: JA000001 / To: KA539920 		$233.17 1
5484 LR090577
INSULATOR - BUSH TYPE
3.0 V6 D Low MT ROW / Differential / From: JA000001 		$37.43 1
5484 LR061455
INSULATOR - BUSH TYPE
3.0L DOHC GDI SC V6 PETROL / Differential / From: JA000001 		$52.22 1
8307 LR081521
GUARD - RADIATOR
Radiator / From: JA000001 		$129.40 1
