Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Front Axle Case (8 Speed Auto Trans ZF 8HP70 HEV 4WD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110106 BOLT $1.68 IN STOCK
Photo Part No Description Price (each) Stock
LR038977 BOLT $4.89 To Order
Photo Part No Description Price (each) Stock
LR039049 BOLT $5.45 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
TYP500100 SCREW $1.18 To Order
Photo Part No Description Price (each) Stock
LR033208 SCREW $6.78 To Order
LR085630 SCREW $4.32 To Order
Photo Part No Description Price (each) Stock
LR050513 SCREW $1.42 To Order
Photo Part No Description Price (each) Stock
LR050515 SCREW $1.22 To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $23.05 To Order
LR158113 SEAL - OIL $23.05 To Order
Photo Part No Description Price (each) Stock
LR058001 DIFFERENTIAL - FRONT $5,057.01 To Order
LR060033 DIFFERENTIAL - FRONT $3,146.30 To Order
LR089558 DIFFERENTIAL - FRONT $4,584.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500110 PLUG - OIL DRAIN $4.59 To Order
Photo Part No Description Price (each) Stock
LR039394 HOSE - VENT $15.39 To Order
Photo Part No Description Price (each) Stock
LR062297 DAMPER - DAMPING MASS $137.40 To Order
Photo Part No Description Price (each) Stock
LR052323 KIT - FDU TUBE $237.66 To Order
Photo Part No Description Price (each) Stock
LR049081 HOSE - VENT $49.24 To Order
Photo Part No Description Price (each) Stock
LR067897 KIT - PINION REPAIR $174.58 To Order
LR158114 KIT - PINION REPAIR $197.08 To Order
Photo Part No Description Price (each) Stock
LR060048 INSULATOR - BUSH TYPE $39.93 To Order
Photo Part No Description Price (each) Stock
LR056079 INSULATOR - BUSH TYPE $73.61 To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.49 To Order
Photo Part No Description Price (each) Stock
LR056076 WASHER - DIFFERENTIAL MOUNTING $180.03 To Order
LR087163 WASHER - DIFFERENTIAL MOUNTING $32.60 To Order
Photo Part No Description Price (each) Stock
LR056077 WASHER - DIFFERENTIAL MOUNTING $54.80 To Order
Photo Part No Description Price (each) Stock
LR056078 WASHER - DIFFERENTIAL MOUNTING $41.34 To Order
Photo Part No Description Price (each) Stock
LR019019 SEAL - SPECIAL $19.28 To Order
View All

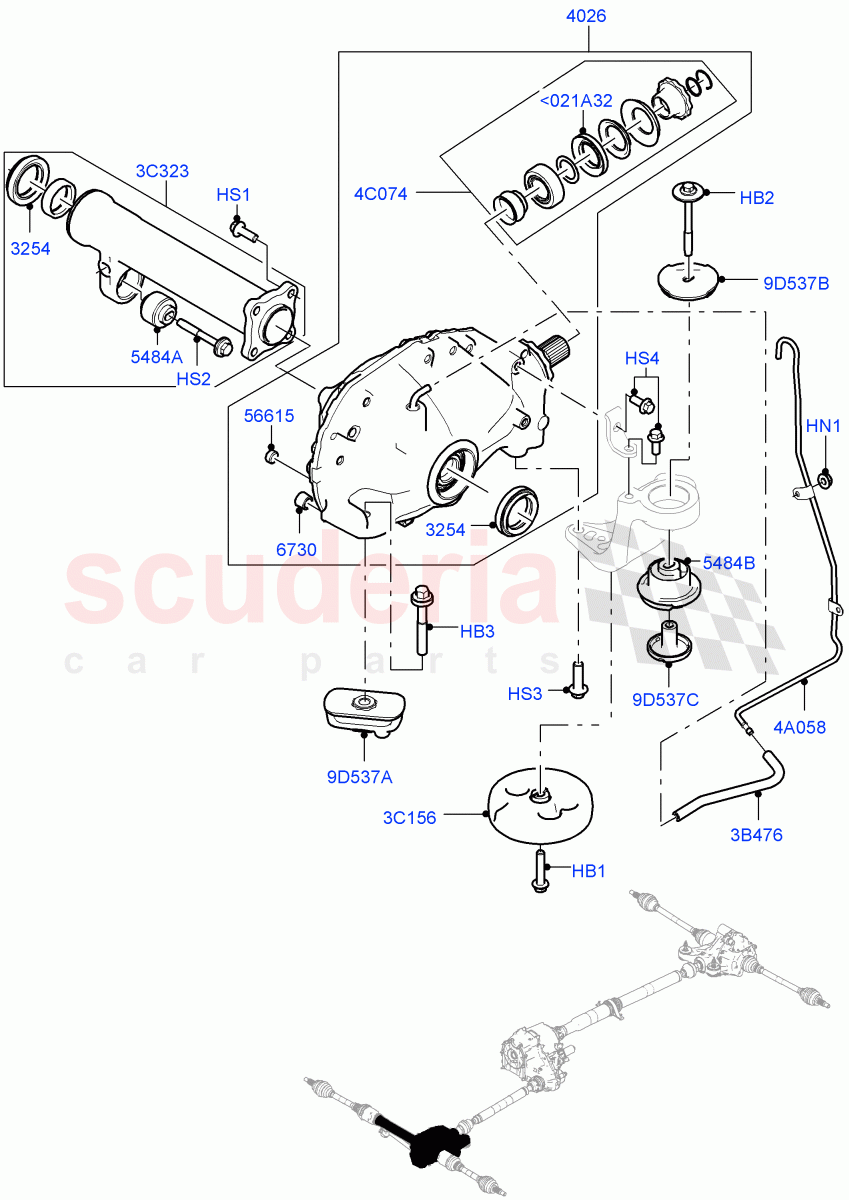

Front Axle Case (8 Speed Auto Trans ZF 8HP70 HEV 4WD) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR019019
SEAL - SPECIAL
Oil 		$19.28 1
HB1 FB110106
BOLT
Hexagonal Head, M10 X 50MM
IN STOCK 		$1.68 1
HB2 LR038977
BOLT
Hexagonal Head, M10 X 100 		$4.89 1
HB3 LR039049
BOLT
Hexagonal Head, M12 x 85MM 		$5.45 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.48 2
HS1 TYP500100
SCREW
Hexagonal Head, M10 X 30MM 		$1.18 4
HS2 LR033208
SCREW
M10 X 80MM, Screw And Washer / To: GA999999 		$6.78 1
HS2 LR085630
SCREW
M10 x 75MM, Screw And Washer / From: HA000001 		$4.32 1
HS3 LR050513
SCREW
Hexagonal Head, M12 x 40MM 		$1.42 3
HS4 LR050515
SCREW
Hexagonal Head, M10 x 26MM 		$1.22 2
3B476 LR039394
HOSE - VENT 		$15.39 1
3C156 LR062297
DAMPER - DAMPING MASS 		$137.40 1
3C323 LR052323
KIT - FDU TUBE
Includes Tube, Bearing, Seal, Bush And Screw 		$237.66 1
4A058 LR049081
HOSE - VENT
Breather Pipe 		$49.24 1
4C074 LR067897
KIT - PINION REPAIR
Includes Seal / To: LA999999 		$174.58 1
4C074 LR158114
KIT - PINION REPAIR
Includes Seal / From: MA000001 		$197.08 1
9D537A LR056076
WASHER - DIFFERENTIAL MOUNTING
Front / To: HA343659 		$180.03 1
9D537A LR087163
WASHER - DIFFERENTIAL MOUNTING
Front / From: HA343660 		$32.60 1
9D537B LR056077
WASHER - DIFFERENTIAL MOUNTING
Rear, Upper 		$54.80 1
9D537C LR056078
WASHER - DIFFERENTIAL MOUNTING
Lower, Rear 		$41.34 1
3254 LR158113
SEAL - OIL
Driveshaft / To: LA999999 		$23.05 2
3254 LR158113
SEAL - OIL
Driveshaft / From: MA000001 		$23.05 2
4026 LR058001
DIFFERENTIAL - FRONT
New Part-Please Check For Reman Version / To: FA999999 		$5,057.01 1
4026 LR060033
DIFFERENTIAL - FRONT
Remanufactured Part / To: FA999999 		$3,146.30 1
4026 LR089558
DIFFERENTIAL - FRONT
From: HA000001 		$4,584.72 1
4026 LR070129
DIFFERENTIAL - FRONT
From: GA000001 / To: GA999999 		$5,116.78 1
5484A LR060048
INSULATOR - BUSH TYPE 		$39.93 1
5484B LR056079
INSULATOR - BUSH TYPE
Differential 		$73.61 1
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain 		$4.59 1
56615 TYB500060
PLUG - FILLER
Filler Plug 		$3.49 1
