Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Tank & Related Parts (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

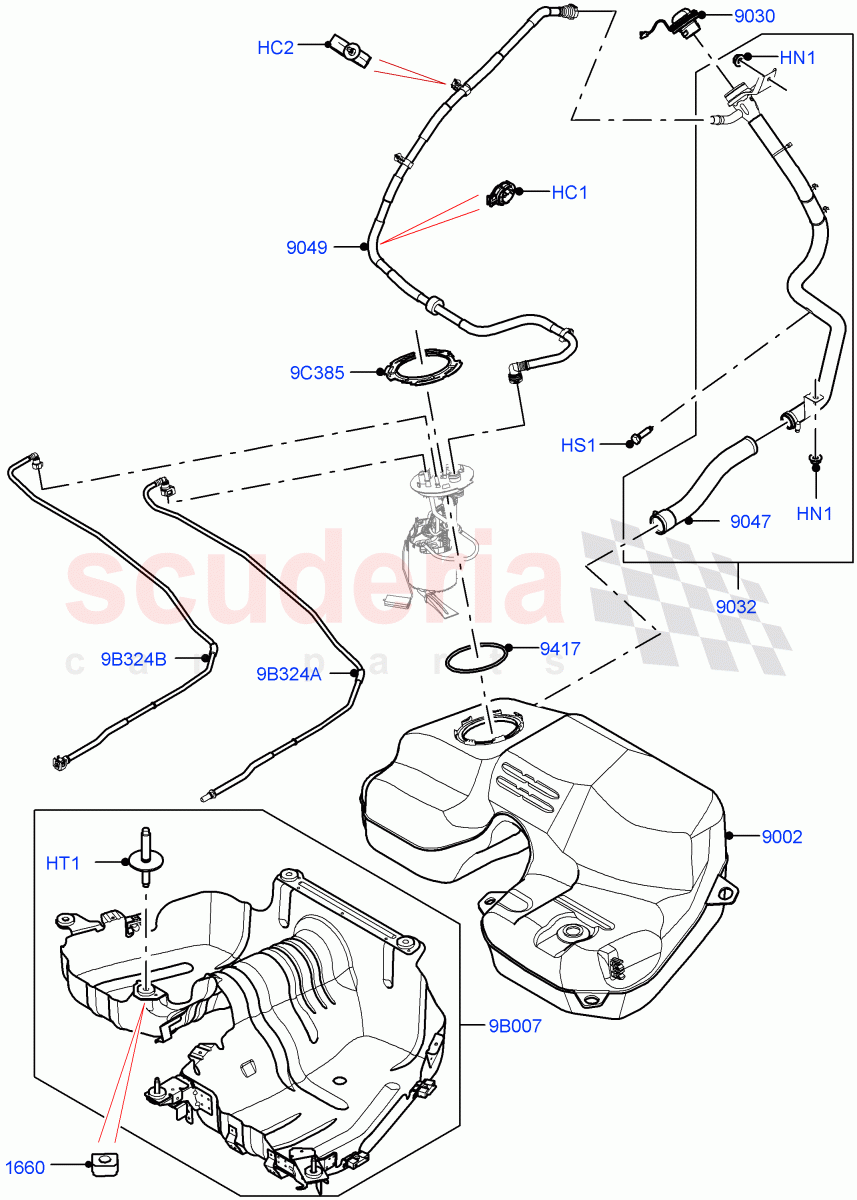

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR044902 CLIP - HOSE $2.49 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR094016 STUD $1.69 To Order
Photo Part No Description Price (each) Stock
LR053783 SPACER - FUEL TANK MOUNTING $8.85 To Order
Photo Part No Description Price (each) Stock
LR116066 TANK - FUEL $1,365.56 To Order
Photo Part No Description Price (each) Stock
LR112190 CAP - FUEL TANK FILLER $35.17 To Order
LR138719 CAP - FUEL TANK FILLER $39.29 To Order
LR053666 CAP - FUEL TANK FILLER $28.00 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051673 PIPE - FUEL FILLER $228.24 To Order
LR116345 PIPE - FUEL FILLER $362.63 To Order
LR051672 PIPE - FUEL FILLER $225.03 To Order
Photo Part No Description Price (each) Stock
LR051676 HOSE - FILLER PIPE $225.03 To Order
Photo Part No Description Price (each) Stock
LR053462 TUBE - FUEL VAPOUR $70.85 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.56 IN STOCK
Photo Part No Description Price (each) Stock
LR140295 SHIELD $497.83 To Order
Photo Part No Description Price (each) Stock
LR087019 RING - RETAINING $31.53 To Order
Photo Part No Description Price (each) Stock
LR086521 TUBE - FUEL $127.84 To Order
Photo Part No Description Price (each) Stock
LR086520 TUBE - FUEL $111.56 To Order
View All
Fuel Tank & Related Parts (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR044902
CLIP - HOSE
10-25 X 1.5-3, Plastic / From: LA000001 		$2.49 1
HC2 LR094032
CLIP - HOSE
Plastic, Upper / From: LA000001 		$4.41 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: LA000001
IN STOCK 		$1.47 2
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: LA000001
IN STOCK 		$0.96 1
HT1 LR094016
STUD
Hexagonal Head, M10 X 41 + M8 X 22 / From: LA000001 		$1.69 2
9B007 LR140295
SHIELD
From: LA000001 		$497.83 1
9B324A LR086521
TUBE - FUEL
Feed / From: LA000001 		$127.84 1
9B324B LR086520
TUBE - FUEL
Return / From: LA000001 		$111.56 1
9C385 LR087019
RING - RETAINING
From: LA000001 		$31.53 1
1660 LR053783
SPACER - FUEL TANK MOUNTING
Long Wheelbase / From: LA000001 		$8.85 2
9002 LR116066
TANK - FUEL
From: LA000001 		$1,365.56 1
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: LA000001 / To: LA414127 		$35.17 1
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: LA414128 		$39.29 1
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - All Nozzles / From: LA000001 / To: MA420874 		$28.00 1
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Diesel / From: MA420875 		$39.29 1
9032 LR051673
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Japan / Complete Assembly / From: LA000001 		$228.24 1
9032 LR116345
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / Complete Assembly / From: LA000001 		$362.63 1
9032 LR051672
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / Complete Assembly / From: LA000001 		$225.03 1
9047 LR051676
HOSE - FILLER PIPE
Connects To Fuel Tank / From: LA000001 		$225.03 1
9049 LR053462
TUBE - FUEL VAPOUR
From: LA000001 		$70.85 1
9417 LR117476
GASKET
O-Ring / From: LA000001
IN STOCK 		$10.56 1
