Fuel Lines (Front) (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Lines (Front) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.22 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR125292 FILTER - FUEL - PRIMARY $95.48 To Order
Photo Part No Description Price (each) Stock
LR125289 BRACKET - FUEL FILTER $44.32 To Order
Photo Part No Description Price (each) Stock
LR125290 TUBE - FUEL $54.44 To Order
Photo Part No Description Price (each) Stock
LR125526 TUBE - FUEL FILTER TO FUEL PUMP $80.84 To Order
LR144912 TUBE - FUEL FILTER TO FUEL PUMP $80.29 To Order
Photo Part No Description Price (each) Stock
LR125509 PIPE - FUEL $43.42 To Order
Photo Part No Description Price (each) Stock
LR125294 TUBE - FUEL FEED $42.98 To Order
Photo Part No Description Price (each) Stock
LR082765 TUBE - FUEL $38.58 To Order
Photo Part No Description Price (each) Stock
LR125303 PIPE - FUEL $243.86 To Order
Photo Part No Description Price (each) Stock
LR125301 FILTER - FUEL - PRIMARY $231.26 To Order
Photo Part No Description Price (each) Stock
LR081530 GROMMET - FUEL FILTER $11.07 To Order
Photo Part No Description Price (each) Stock
LR125505 BRACKET - FUEL TUBE SUPPORT $57.49 To Order
Photo Part No Description Price (each) Stock
LR125507 BRACKET - FUEL TUBE SUPPORT $39.30 To Order
View All

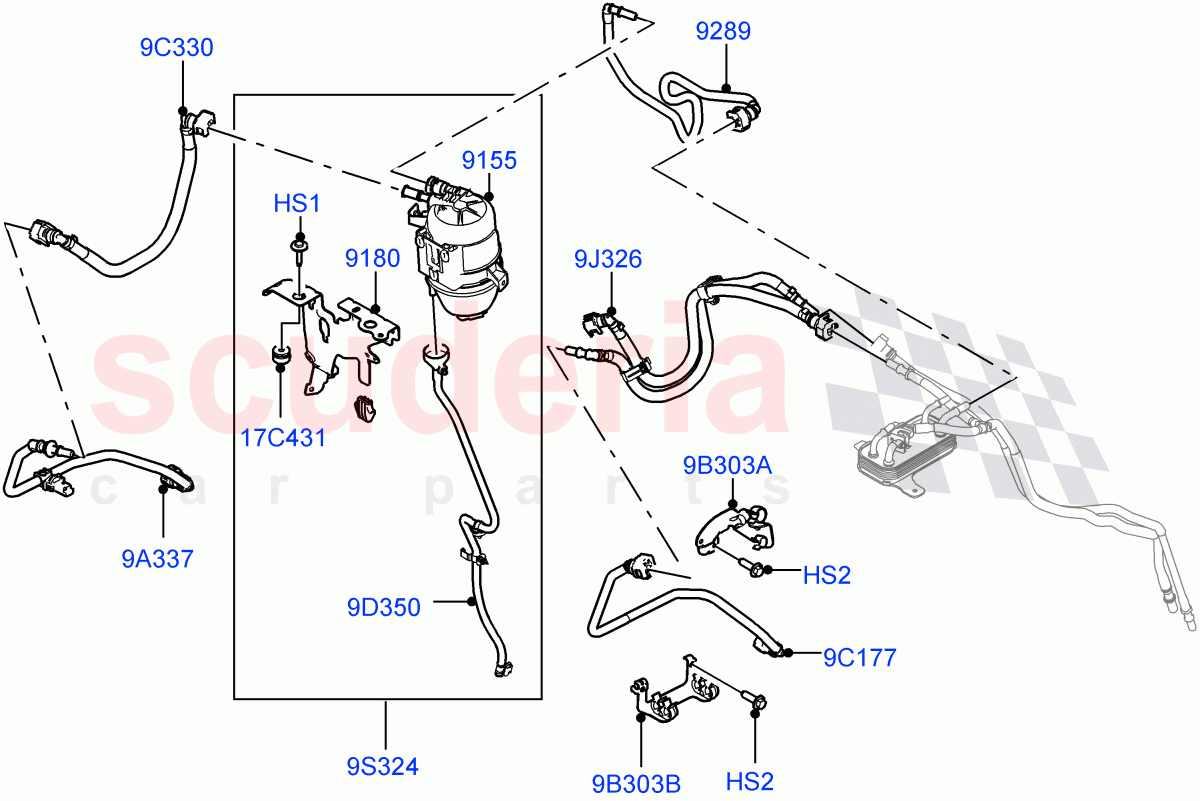

Fuel Lines (Front) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: LA000001 		$4.22 2
HS2 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001 		$2.31 4
9A337 LR125526
TUBE - FUEL FILTER TO FUEL PUMP
From: LA000001 / To: MA424548 		$80.84 1
9A337 LR144912
TUBE - FUEL FILTER TO FUEL PUMP
From: MA424549 		$80.29 1
9B303A LR125505
BRACKET - FUEL TUBE SUPPORT
Upper / From: LA000001 		$57.49 1
9B303B LR125507
BRACKET - FUEL TUBE SUPPORT
Lower / From: LA000001 		$39.30 1
9C177 LR125509
PIPE - FUEL
From: LA000001 		$43.42 1
9C330 LR125294
TUBE - FUEL FEED
Fuel Filter To High Pressure Pump / From: LA000001 		$42.98 1
9D350 LR082765
TUBE - FUEL
Drain / From: LA000001 		$38.58 1
9J326 LR125303
PIPE - FUEL
Set Of 2 Pieces / From: LA000001 		$243.86 1
9S324 LR125301
FILTER - FUEL - PRIMARY
Complete Assembly / From: LA000001 		$231.26 1
17C431 LR081530
GROMMET - FUEL FILTER
From: LA000001 		$11.07 2
9155 LR125292
FILTER - FUEL - PRIMARY
From: LA000001 		$95.48 1
9180 LR125289
BRACKET - FUEL FILTER
From: LA000001 		$44.32 1
9289 LR125290
TUBE - FUEL
Fuel Cooler To Filter Tube / From: LA000001 		$54.44 1
