Name: Rear Exhaust System (3.0L AJ20D6 Diesel High, Standard Wheelbase) ((V) FROMLA000001)
Rating: 5.0 (1 reviews)

View All

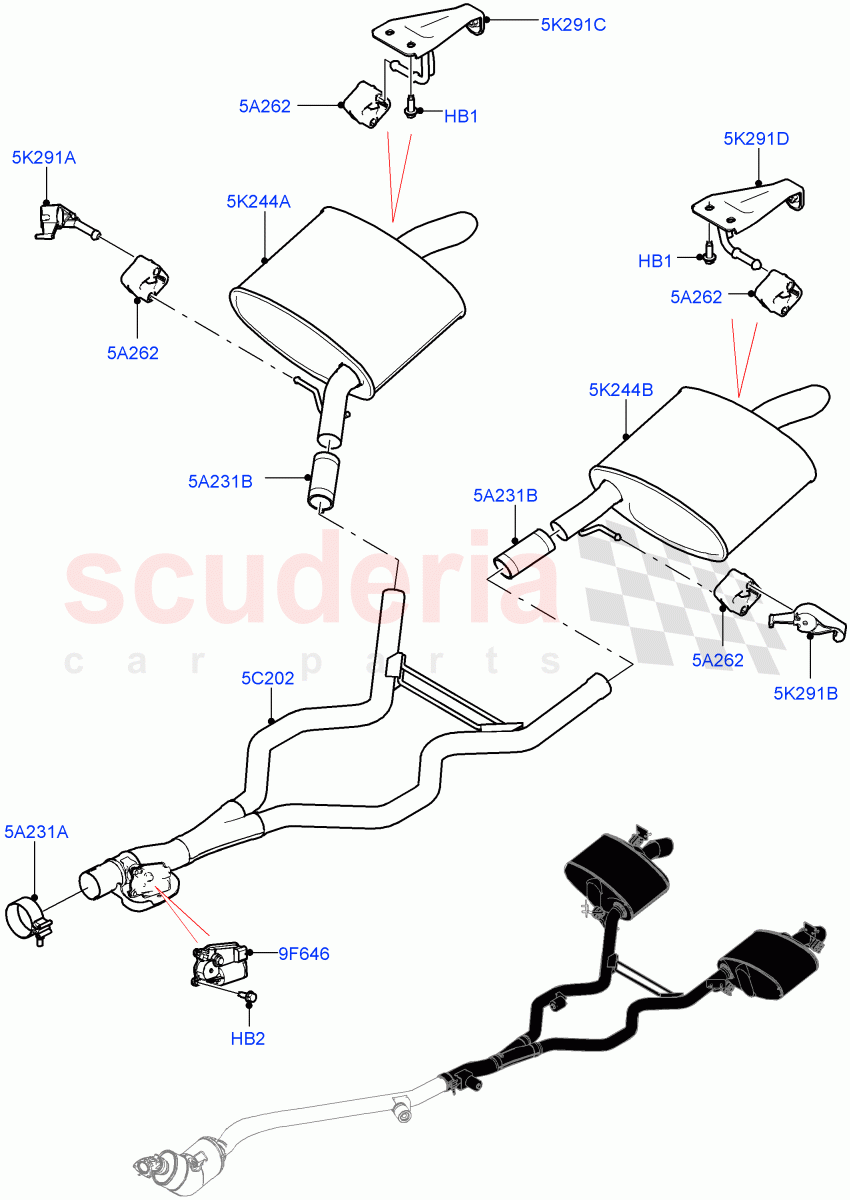

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141903	BOLT	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156781	PIPE - INTERMEDIATE	$560.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141782	ACTUATOR - ELECTRONIC EXHAUST VALVE	$157.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$31.00	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$83.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105222	MUFFLER - REAR	$840.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105226	MUFFLER - REAR	$840.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125204	BRACKET - REAR MUFFLER	$31.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125205	BRACKET - REAR MUFFLER	$30.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136419	BRACKET - REAR MUFFLER	$46.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136420	BRACKET - REAR MUFFLER	$46.03	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: LA000001	$1.03	4
HB2	LR141903	BOLT	LR141903 BOLT Actuator, M6 X 20MM / From: LA000001	$2.33	3
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: LA000001	$31.00	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, For Rear Muffler / From: LA000001	$83.94	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: LA000001	$24.15	4
5C202	LR156781	PIPE - INTERMEDIATE	LR156781 PIPE - INTERMEDIATE From: LA000001	$560.90	1
5K244A	LR105222	MUFFLER - REAR	LR105222 MUFFLER - REAR RH / From: LA000001	$840.68	1
5K244B	LR105226	MUFFLER - REAR	LR105226 MUFFLER - REAR LH / From: LA000001	$840.68	1
5K291A	LR125204	BRACKET - REAR MUFFLER	LR125204 BRACKET - REAR MUFFLER For Rear Muffler, RH Front / From: LA000001	$31.29	1
5K291B	LR125205	BRACKET - REAR MUFFLER	LR125205 BRACKET - REAR MUFFLER For Rear Muffler, LH Front / From: LA000001	$30.68	1
5K291C	LR136419	BRACKET - REAR MUFFLER	LR136419 BRACKET - REAR MUFFLER For Rear Muffler, RH Rear / From: LA000001	$46.03	1
5K291D	LR136420	BRACKET - REAR MUFFLER	LR136420 BRACKET - REAR MUFFLER For Rear Muffler, LH Rear / From: LA000001	$46.03	1
9F646	LR141782	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR141782 ACTUATOR - ELECTRONIC EXHAUST VALVE From: LA000001	$157.26	1

Rear Exhaust System (3.0L Aj20D6 Diesel High, Standard Wheelbase) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]
