Name: Front Exhaust System (3.0L AJ20D6 Diesel High, J-WLTP Emission, EU6D - Final (Diesel) Emission, L7 Emission - Brazil) ((V) FROMLA000001)
Rating: 4.8 (1 reviews)

Front Exhaust System (3.0L AJ20D6 Diesel High, J-WLTP Emission, EU6D - Final (Diesel) Emission, L7 Emission - Brazil) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Front Exhaust System (3.0L AJ20D6 Diesel High, J-WLTP Emission, EU6D - Final (Diesel) Emission, L7...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR074133	BOLT	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138364	BOLT	$4.68	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138362	BRACKET	$21.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135801	BRACKET - EXHAUST PIPE MOUNTING	$40.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125287	CLAMP - EXHAUST	$38.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	$30.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125285	FILTER - DIESEL PARTICLE	$2,868.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125284	FILTER - DIESEL PARTICLE	$3,061.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135804	GASKET - TURBOCHARGER	$13.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135802	INSULATOR - RUBBER	$24.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135803	INSULATOR - RUBBER	$31.28	To Order

View All

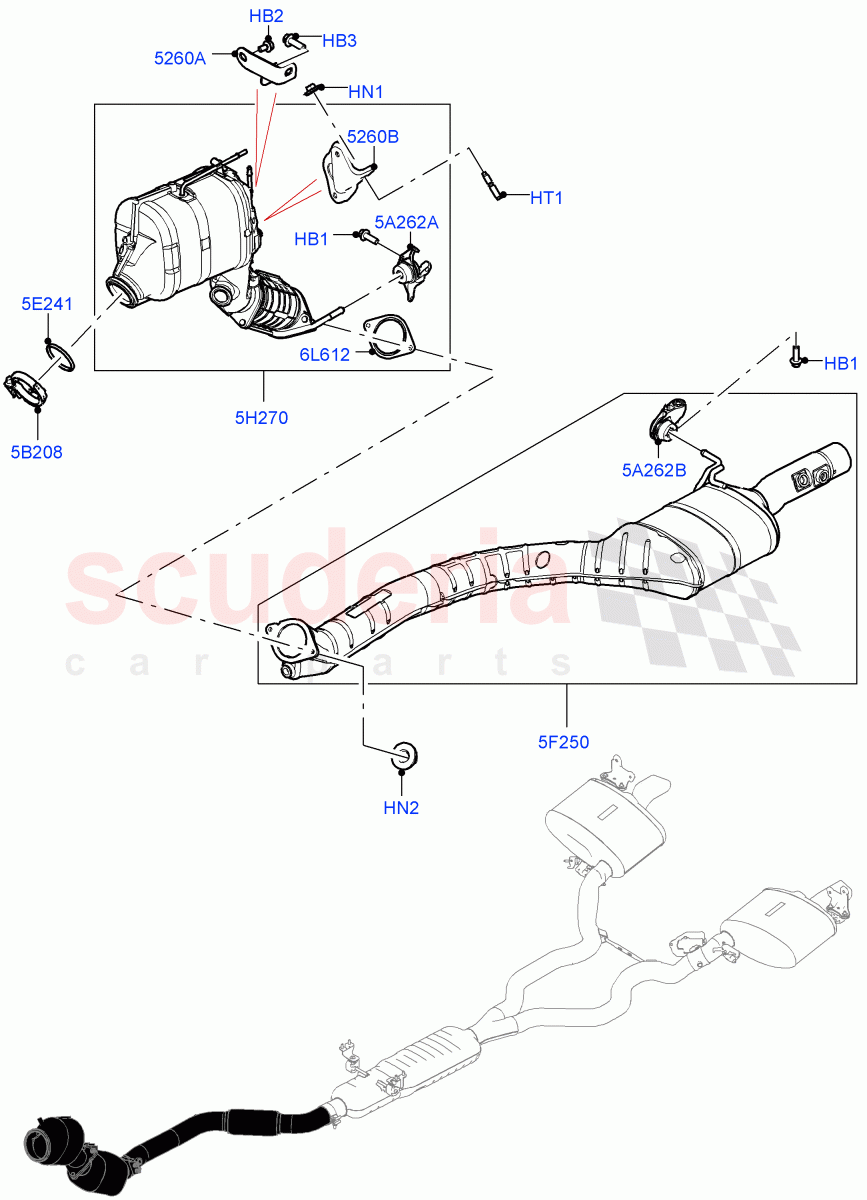

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108256	BOLT IN STOCK	FS108256 BOLT Hexagonal Head, M8 X 25MM / From: LA000001 IN STOCK	$3.57	2
HB2	LR074133	BOLT	LR074133 BOLT M10 X 30MM / From: LA000001	$2.27	1
HB3	LR138364	BOLT	LR138364 BOLT Bracket, M8 X 16, Upper / From: LA000001	$4.68	1
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer / From: LA000001	$0.67	2
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8 / From: LA000001	$0.52	2
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM / From: LA000001	$2.07	2
5A262A	LR135802	INSULATOR - RUBBER	LR135802 INSULATOR - RUBBER Front / From: LA000001	$24.27	1
5A262B	LR135803	INSULATOR - RUBBER	LR135803 INSULATOR - RUBBER Rear / From: LA000001	$31.28	1
5B208	LR125287	CLAMP - EXHAUST	LR125287 CLAMP - EXHAUST Turbocharger Outlet / From: LA000001	$38.56	1
5E241	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet / From: LA000001	$30.12	1
5F250	LR125285	FILTER - DIESEL PARTICLE	LR125285 FILTER - DIESEL PARTICLE From: LA000001	$2,868.23	1
5H270	LR125284	FILTER - DIESEL PARTICLE	LR125284 FILTER - DIESEL PARTICLE From: LA000001	$3,061.39	1
6L612	LR135804	GASKET - TURBOCHARGER	LR135804 GASKET - TURBOCHARGER Outlet / From: LA000001	$13.35	1
5260A	LR138362	BRACKET	LR138362 BRACKET Upper / From: LA000001	$21.63	1
5260B	LR135801	BRACKET - EXHAUST PIPE MOUNTING	LR135801 BRACKET - EXHAUST PIPE MOUNTING Lower / From: LA000001	$40.42	1

Front Exhaust System (3.0L Aj20D6 Diesel High, J-Wltp Emission, Eu6D - Final (Diesel) Emission, L7...
