Name: Engine Mounting (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)
Rating: 4.9 (1 reviews)

View All

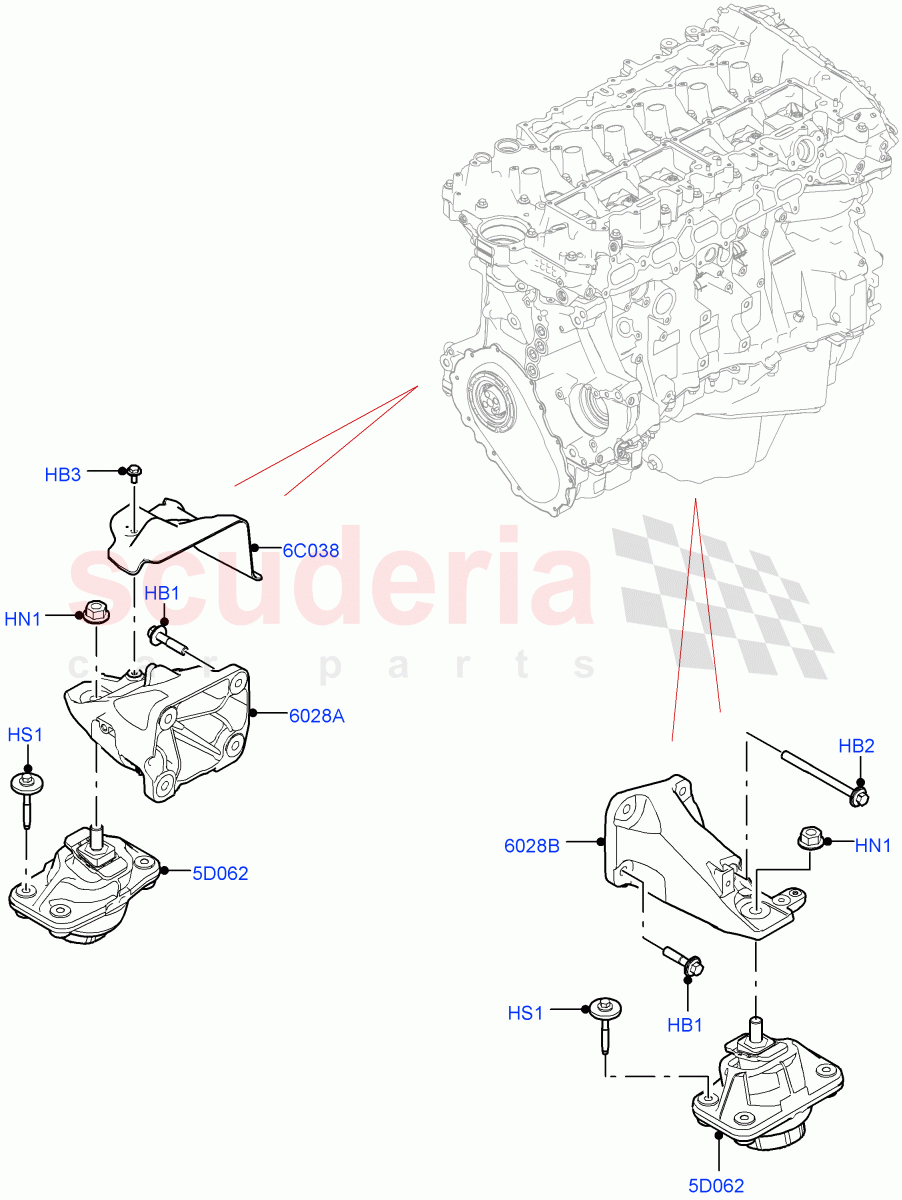

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011068	BOLT	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057599	BOLT AND WASHER - HEX.HEAD	$40.06	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095134	NUT	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033201	SCREW	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR179381	BRACKET - ENGINE MOUNTING	$199.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR119715	BRACKET - ENGINE FRONT SUPPORT	$316.51	To Order
	LR149521	BRACKET - ENGINE FRONT SUPPORT	$332.33	To Order
	LR147913	BRACKET - ENGINE FRONT SUPPORT	$92.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123098	BRACKET - ENGINE FRONT SUPPORT	$408.46	To Order
	LR149524	BRACKET - ENGINE FRONT SUPPORT	$428.89	To Order
	LR147912	BRACKET - ENGINE FRONT SUPPORT	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121137	HEAT SHIELD - UNDERFLOOR	$24.67	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR011068	BOLT	LR011068 BOLT Bolt And Washer, M10 X 45 / From: KA000001	$2.82	7
HB2	LR057599	BOLT AND WASHER - HEX.HEAD	LR057599 BOLT AND WASHER - HEX.HEAD M10 X 122 / From: KA000001	$40.06	1
HB3	RYG500800	BOLT	RYG500800 BOLT Heatshield, Hexagonal Head, M6 X 16MM / From: KA000001	$0.52	2
HN1	LR095134	NUT	LR095134 NUT M14 / From: KA000001	$0.95	2
HS1	LR033201	SCREW	LR033201 SCREW Hexagonal Head, M8 x 60MM / From: KA000001	$3.81	8
5D062	LR179381	BRACKET - ENGINE MOUNTING	LR179381 BRACKET - ENGINE MOUNTING RH/LH / From: KA000001	$199.36	2
6C038	LR121137	HEAT SHIELD - UNDERFLOOR	LR121137 HEAT SHIELD - UNDERFLOOR From: KA000001	$24.67	1
6028A	LR119715	BRACKET - ENGINE FRONT SUPPORT	LR119715 BRACKET - ENGINE FRONT SUPPORT RH / From: KA000001 / To: MA420852	$316.51	1
6028A	LR149521	BRACKET - ENGINE FRONT SUPPORT	LR149521 BRACKET - ENGINE FRONT SUPPORT RH / From: MA420853 / To: MA452446	$332.33	1
6028A	LR147913	BRACKET - ENGINE FRONT SUPPORT	LR147913 BRACKET - ENGINE FRONT SUPPORT RH / From: MA452447	$92.43	1
6028B	LR123098	BRACKET - ENGINE FRONT SUPPORT	LR123098 BRACKET - ENGINE FRONT SUPPORT LH / From: KA000001 / To: LA414990	$408.46	1
6028B	LR149524	BRACKET - ENGINE FRONT SUPPORT	LR149524 BRACKET - ENGINE FRONT SUPPORT LH / From: LA414991 / To: MA452446	$428.89	1
6028B	LR147912	BRACKET - ENGINE FRONT SUPPORT	LR147912 BRACKET - ENGINE FRONT SUPPORT LH / From: MA452447	$86.63	1

Engine Mounting (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]
