Radiator Grille And Front Bumper ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

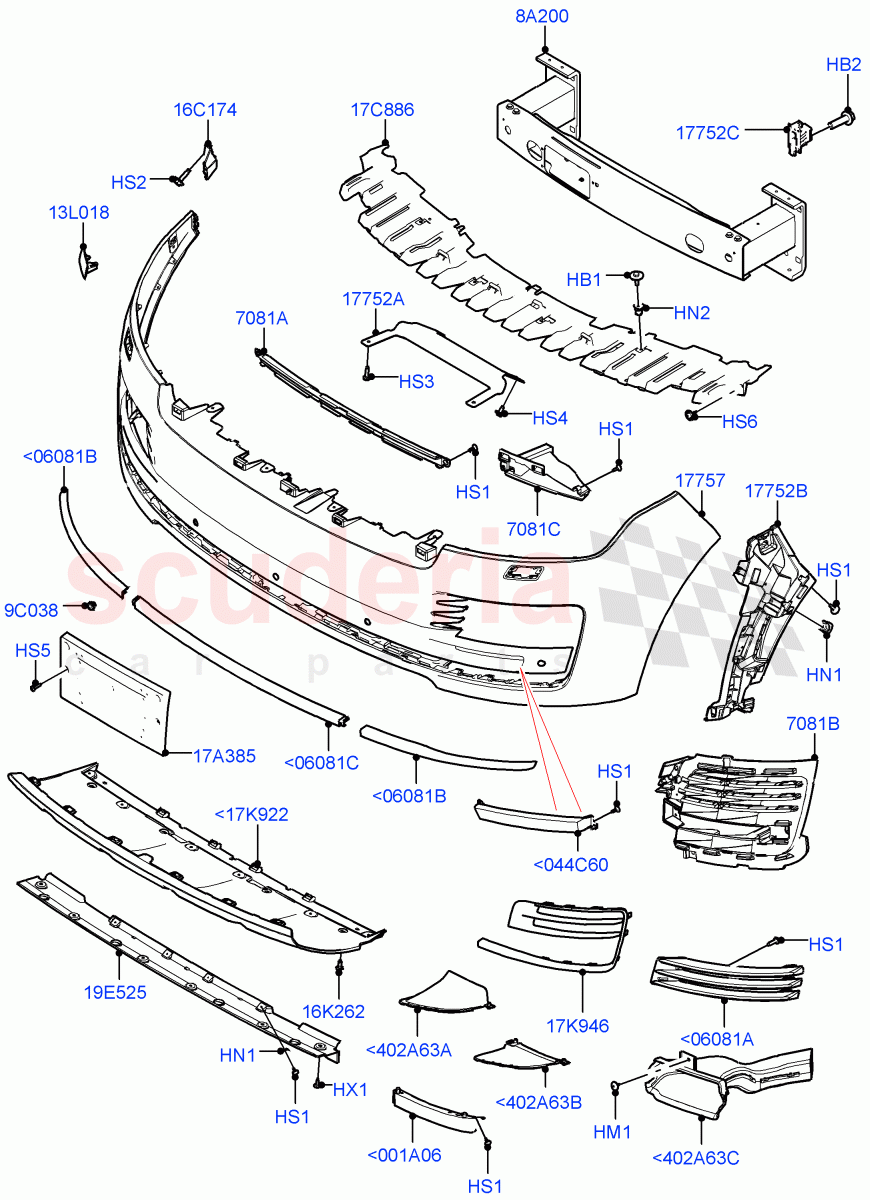

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Radiator Grille And Front Bumper ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DYP500080 BOLT $2.45 To Order
Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.88 IN STOCK
Photo Part No Description Price (each) Stock
HYQ100060PUY FASTENER $4.37 IN STOCK
Photo Part No Description Price (each) Stock
LR165498 NUT - EXPANSION $0.63 IN STOCK
LR165498 NUT - EXPANSION $0.63 IN STOCK
Photo Part No Description Price (each) Stock
DYH500110 NUT $1.65 To Order
Photo Part No Description Price (each) Stock
LR038663 SCREW - FLAT ROUND HEAD $2.17 IN STOCK
LR038663 SCREW - FLAT ROUND HEAD $2.17 IN STOCK
LR038663 SCREW - FLAT ROUND HEAD $2.17 IN STOCK
Photo Part No Description Price (each) Stock
KYP500320 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
DYP000040 SCREW $1.19 IN STOCK
DYP000040 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR033401 SCREW AND WASHER $2.15 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.53 IN STOCK
Photo Part No Description Price (each) Stock
LR098377 BUMPER - FRONT $1,135.83 To Order
LR098663 BUMPER - FRONT $1,135.83 To Order
LR098664 BUMPER - FRONT $1,135.83 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098727 PLATE - BLANKING $182.42 To Order
Photo Part No Description Price (each) Stock
LR098726 PLATE - BLANKING $160.80 To Order
LR098722 PLATE - BLANKING $189.06 To Order
LR098721 PLATE - BLANKING $160.80 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098723 PLATE - BLANKING $158.41 To Order
LR098724 PLATE - BLANKING $158.41 To Order
Photo Part No Description Price (each) Stock
LR101449 REINFORCEMENT - FRONT BUMPER $406.73 To Order
LR116188 REINFORCEMENT - FRONT BUMPER $439.24 To Order
LR128131 REINFORCEMENT - FRONT BUMPER $750.23 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ZKC2228 NUT - SPECIAL $2.95 To Order
ZKC2228 NUT - SPECIAL $2.95 To Order
Photo Part No Description Price (each) Stock
LR098378 CAP - POWERWASH JET $28.14 To Order
LR098383 CAP - POWERWASH JET $21.52 To Order
Photo Part No Description Price (each) Stock
LR038724 BRACKET - BUMPER MOUNTING $20.86 To Order
LR038725 BRACKET - BUMPER MOUNTING $25.06 To Order
LR116771 BRACKET - BUMPER MOUNTING $19.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012844 CLIP - RETAINING $3.51 IN STOCK
Photo Part No Description Price (each) Stock
LR083118 BRACKET - BUMPER MOUNTING $31.39 To Order
Photo Part No Description Price (each) Stock
LR098693 MOUNTING BRACKET - FRONT BUMPER $16.71 To Order
LR098694 MOUNTING BRACKET - FRONT BUMPER $16.71 To Order
Photo Part No Description Price (each) Stock
LR137523 BRACKET - BUMPER MOUNTING $69.71 To Order
LR137524 BRACKET - BUMPER MOUNTING $69.71 To Order
Photo Part No Description Price (each) Stock
LR098567 BRACKET - LICENSE PLATE $39.58 To Order
LR098568 BRACKET - LICENSE PLATE $39.58 To Order
LR098569 BRACKET - LICENSE PLATE $39.58 To Order
Photo Part No Description Price (each) Stock
LR104939 BRACKET - BUMPER MOUNTING $91.26 To Order
Photo Part No Description Price (each) Stock
LR144536 GRILLE - BUMPER $124.49 To Order
LR144543 GRILLE - BUMPER $145.57 To Order
LR144544 GRILLE - BUMPER $145.57 To Order
Photo Part No Description Price (each) Stock
LR098719 DEFLECTOR - AIR $46.97 To Order
LR117862 DEFLECTOR - AIR $49.23 To Order
Photo Part No Description Price (each) Stock
LR098437 DEFLECTOR - AIR $37.80 To Order
LR098434 DEFLECTOR - AIR $37.80 To Order
LR098436 DEFLECTOR - AIR $37.80 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098415 BEZEL - FOG LAMP $149.82 To Order
LR098421 BEZEL - FOG LAMP $149.82 To Order
Photo Part No Description Price (each) Stock
LR098516 INSERT - BUMPER $73.50 To Order
LR098518 INSERT - BUMPER $73.50 To Order
LR098513 INSERT - BUMPER $61.38 IN STOCK
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098544 INSERT - BUMPER $160.80 To Order
LR098545 INSERT - BUMPER $160.93 To Order
LR098546 INSERT - BUMPER $160.93 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098543 INSERT - BUMPER $180.52 To Order
LR098541 INSERT - BUMPER $180.65 To Order
LR098542 INSERT - BUMPER $180.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117512 COVER - TOW HOOK $273.00 To Order
Photo Part No Description Price (each) Stock
LR099124 DUCT - BUMPER BRAKE COOLING $44.42 To Order
LR099125 DUCT - BUMPER BRAKE COOLING $44.42 To Order
Photo Part No Description Price (each) Stock
LR099126 BLANK - BUMPER BRAKE COOLING $45.83 To Order
LR099127 BLANK - BUMPER BRAKE COOLING $45.83 To Order
Photo Part No Description Price (each) Stock
LR098392 DUCT - BRAKE DISC COOLING $62.43 To Order
LR098408 DUCT - BRAKE DISC COOLING $62.43 To Order
View All
Radiator Grille And Front Bumper ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922 LR117512
COVER - TOW HOOK
Primed / From: JA000001 		$273.00 1
<001A06 LR098437
DEFLECTOR - AIR
2.0L AJ200P Hi PHEV / RH / From: JA000001 		$37.80 1
<001A06 LR098434
DEFLECTOR - AIR
3.0 V6 D Low MT ROW / RH / From: JA000001 		$37.80 1
<001A06 LR098436
DEFLECTOR - AIR
3.0L DOHC GDI SC V6 PETROL, Engine Power Source - 380PS/450NM / LH / From: JA000001 		$37.80 1
<001A06 LR098435
DEFLECTOR - AIR
3.0L AJ20P6 Petrol High / LH / From: LA000001 		$37.80 1
<001A06 LR098434
DEFLECTOR - AIR
3.0L AJ20P6 Petrol High / RH / From: LA000001 		$37.80 1
<001A06 LR098437
DEFLECTOR - AIR
3.0L AJ20D6 Diesel High / RH / From: LA000001 / To: LA595130 		$37.80 1
<001A06 LR098434
DEFLECTOR - AIR
3.0L AJ20D6 Diesel High, Engine Power Source - 300PS/650NM / RH / From: LA595131 		$37.80 1
<001A06 LR098437
DEFLECTOR - AIR
3.0L AJ20D6 Diesel High, Engine Power Source - 249PS/570NM / RH / From: LA595131 		$37.80 1
<001A06 LR098435
DEFLECTOR - AIR
3.0L DOHC GDI SC V6 PETROL, Engine Power Source - 340PS/450NM / LH / From: JA000001 		$37.80 1
<001A06 LR098435
DEFLECTOR - AIR
3.0L AJ20D6 Diesel High, Engine Power Source - 300PS/650NM / LH / From: LA595131 		$37.80 1
<001A06 LR098436
DEFLECTOR - AIR
3.0L AJ20D6 Diesel High, Engine Power Source - 350PS/700NM / LH / From: LA595131 		$37.80 1
<001A06 LR098436
DEFLECTOR - AIR
3.0L AJ20D6 Diesel High / LH / From: LA000001 / To: LA595130 		$37.80 1
<044C60 LR098415
BEZEL - FOG LAMP
Less Front Fog Lamps / RH / From: JA000001 		$149.82 1
<044C60 LR098421
BEZEL - FOG LAMP
Less Front Fog Lamps / LH / From: JA000001 		$149.82 1
<402A63A LR099124
DUCT - BUMPER BRAKE COOLING
3.0L AJ20D6 Diesel High / RH / From: JA000001 		$44.42 1
<402A63A LR099125
DUCT - BUMPER BRAKE COOLING
3.0L AJ20D6 Diesel High / LH / From: JA000001 		$44.42 1
<402A63B LR099126
BLANK - BUMPER BRAKE COOLING
3.0L AJ20D6 Diesel High / RH, Plate - Blanking / From: JA000001 		$45.83 1
<402A63B LR099127
BLANK - BUMPER BRAKE COOLING
3.0L AJ20D6 Diesel High / LH, Plate - Blanking / From: JA000001 		$45.83 1
<402A63C LR098392
DUCT - BRAKE DISC COOLING
RH / From: JA000001 		$62.43 1
<402A63C LR098408
DUCT - BRAKE DISC COOLING
LH / From: JA000001 		$62.43 1
<06081A LR098516
INSERT - BUMPER
Bumper-Shadow Atlas/Shadow Atlas / RH / From: JA000001 / To: JA507514 		$73.50 1
<06081A LR098518
INSERT - BUMPER
Front Bumper Black / RH / From: JA000001 / To: JA507514 		$73.50 1
<06081A LR098513
INSERT - BUMPER
Bumper-Atlas/Satin/Body Colour / RH, Primed / From: JA000001
IN STOCK 		$61.38 1
<06081A LR098521
INSERT - BUMPER
Bumper-Atlas/Satin/Body Colour / LH, Primed / From: JA000001 		$82.08 1
<06081A LR098524
INSERT - BUMPER
Bumper-Shadow Atlas/Shadow Atlas / LH / From: JA000001 / To: JA507514 		$73.50 1
<06081A LR098515
INSERT - BUMPER
Front Bumper Body Clr/Atlas/Atlas / RH / From: JA000001 / To: JA507514 		$73.50 1
<06081A LR118369
INSERT - BUMPER
Front Bumper Body Clr/Atlas/Atlas / RH / From: JA507515 		$77.17 1
<06081A LR118370
INSERT - BUMPER
Bumper-Shadow Atlas/Shadow Atlas / RH / From: JA507515 		$95.39 1
<06081A LR118372
INSERT - BUMPER
Bumper - SVA Body Color/Atlas/Atlas / LH / From: JA507515 		$77.17 1
<06081A LR118373
INSERT - BUMPER
Bumper-Shadow Atlas/Shadow Atlas / LH / From: JA507515 		$95.39 1
<06081A LR098525
INSERT - BUMPER
Front Bumper Black / LH / From: JA000001 / To: JA507514 		$73.50 1
<06081A LR118374
INSERT - BUMPER
Front Bumper Black / LH / From: JA507515 		$73.67 1
<06081A LR098523
INSERT - BUMPER
Front Bumper Body Clr/Atlas/Atlas / LH / From: JA000001 / To: JA507514 		$73.50 1
<06081A LR118371
INSERT - BUMPER
Front Bumper Black / RH / From: JA507515 		$73.67 1
<06081A LR144535
INSERT - BUMPER
Bumpers-Satin Pltnm Atlas/Body Clrd / LH / From: MA000001 		$124.49 1
<06081A LR144534
INSERT - BUMPER
Bumpers-Satin Pltnm Atlas/Body Clrd / RH / From: MA000001 		$124.49 1
<06081B LR098544
INSERT - BUMPER
Bumper-Atlas/Satin/Body Colour / LH / From: JA000001 		$160.80 1
<06081B LR098545
INSERT - BUMPER
Bumper-Shadow Atlas/Shadow Atlas / LH / From: JA000001 		$160.93 1
<06081B LR098546
INSERT - BUMPER
Frt Bumper-Black/Satin/Body Colour / LH / From: JA000001 		$160.93 1
<06081B LR098547
INSERT - BUMPER
Bumper-Atlas/Satin/Body Colour / RH / From: JA000001 		$160.80 1
<06081B LR098548
INSERT - BUMPER
Bumper-Shadow Atlas/Shadow Atlas / RH / From: JA000001 		$160.81 1
<06081B LR098549
INSERT - BUMPER
Frt Bumper-Black/Satin/Body Colour / RH / From: JA000001 		$160.81 1
<06081B LR144539
INSERT - BUMPER
Bumpers-Satin Pltnm Atlas/Body Clrd / LH / From: MA000001 		$172.19 1
<06081B LR144538
INSERT - BUMPER
Bumpers-Satin Pltnm Atlas/Body Clrd / RH / From: MA000001 		$172.19 1
<06081C LR098543
INSERT - BUMPER
Frt Bumper-Black/Satin/Body Colour / Centre / From: JA000001 		$180.52 1
<06081C LR098541
INSERT - BUMPER
Bumper-Atlas/Satin/Body Colour / Centre / From: JA000001 		$180.65 1
<06081C LR098542
INSERT - BUMPER
Bumper-Shdw Atlas/Satin/Shdw Atlas / Centre / From: JA000001 		$180.46 1
<06081C LR144540
INSERT - BUMPER
Bumpers-Satin Pltnm Atlas/Body Clrd / Centre / From: MA000001 		$193.36 1
HB1 DYP500080
BOLT
Bracket, M5 x 20MM, Upper / From: JA000001 		$2.45 4
HB2 LR034249
BOLT AND WASHER - HEX.HEAD
Bracket, Bumper, Hexagonal Head, M10 x 37MM / From: JA000001
IN STOCK 		$2.88 8
HM1 HYQ100060PUY
FASTENER
Rivet / From: JA000001
IN STOCK 		$4.37 4
HN1 LR165498
NUT - EXPANSION
Bracket, Plastic, Side / From: JA000001
IN STOCK 		$0.63 1
HN1 LR165498
NUT - EXPANSION
Plastic, Towing / From: JA000001
IN STOCK 		$0.63 4
HN2 DYH500110
NUT
7mm Diameter Holes, Bracket, Plastic, Upper / From: JA000001 		$1.65 4
HS1 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Bracket, Pan Head - Torx, Side / From: JA000001
IN STOCK 		$2.17 10
HS1 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Fog Lamp, Pan Head - Torx / From: JA000001
IN STOCK 		$2.17 6
HS1 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Pan Head - Torx, Towing / From: JA000001
IN STOCK 		$2.17 4
HS2 KYP500320
SCREW
Bolt And Washer, M6 x 30MM / From: JA000001 		$0.62 4
HS3 RYG501590
SCREW
Bracket, Lower, M6 x 22MM, Torx / From: JA000001 		$1.01 2
HS4 KYG500380
SCREW AND WASHER - HEX HEAD
Bracket, Hexagonal Head, Lower, M6 X 13.5MM / From: JA000001
IN STOCK 		$0.36 2
HS5 DYP000040
SCREW
Front Number Plate Plinth ROW / M5 / From: JA000001
IN STOCK 		$1.19 5
HS5 DYP000040
SCREW
Front Number Plate Plinth NAS / M5 / From: JA000001
IN STOCK 		$1.19 4
HS6 LR033401
SCREW AND WASHER
Bracket, M6 x 19MM, Upper / From: JA000001
IN STOCK 		$2.15 6
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin / From: JA000001
IN STOCK 		$1.53 6
8A200 LR101449
REINFORCEMENT - FRONT BUMPER
Superseded To New 18MY Two Bolt Hole Design / From: JA000001 / To: JA388194 		$406.73 1
8A200 LR116188
REINFORCEMENT - FRONT BUMPER
New 18MY Two Bolt Hole Design, Applicable To All MY's / From: JA388195 / To: KA999999 		$439.24 1
8A200 LR128131
REINFORCEMENT - FRONT BUMPER
From: LA597210 / To: LA599999 		$750.23 1
8A200 LR116188
REINFORCEMENT - FRONT BUMPER
From: LA567000 / To: LA597209 		$439.24 1
8A200 LR128131
REINFORCEMENT - FRONT BUMPER
From: LA400000 / To: LA566999 		$750.23 1
8A200 LR128131
REINFORCEMENT - FRONT BUMPER
From: MA000001 		$750.23 1
9C038 ZKC2228
NUT - SPECIAL
Front Number Plate Plinth - Japan / For License Plate / From: JA000001 		$2.95 2
9C038 ZKC2228
NUT - SPECIAL
Front Number Plate Plinth-China / For License Plate / From: JA000001 		$2.95 4
13L018 LR098378
CAP - POWERWASH JET
LH, Primed / From: JA000001 		$28.14 1
13L018 LR098383
CAP - POWERWASH JET
RH, Primed / From: JA000001 		$21.52 1
16C174 LR038724
BRACKET - BUMPER MOUNTING
RH / From: JA000001 / To: JA397934 		$20.86 1
16C174 LR038725
BRACKET - BUMPER MOUNTING
LH / From: JA000001 / To: JA397934 		$25.06 1
16C174 LR116771
BRACKET - BUMPER MOUNTING
RH / From: JA397935 		$19.17 1
16C174 LR116778
BRACKET - BUMPER MOUNTING
LH / From: JA397935 		$22.97 1
16K262 LR012844
CLIP - RETAINING
1/4 Turn Click Type / From: JA000001
IN STOCK 		$3.51 4
17A385 LR098567
BRACKET - LICENSE PLATE
Front Number Plate Plinth ROW / From: JA000001 		$39.58 1
17A385 LR098568
BRACKET - LICENSE PLATE
Front Number Plate Plinth NAS / From: JA000001 		$39.58 1
17A385 LR098569
BRACKET - LICENSE PLATE
Front Number Plate Plinth-China / From: JA000001 		$39.58 1
17C886 LR104939
BRACKET - BUMPER MOUNTING
Upper / From: JA000001 		$91.26 1
17K946 LR144536
GRILLE - BUMPER
3.0 V6 D Low MT ROW, Bumpers-Satin Pltnm Atlas/Body Clrd / RH / From: MA000001 		$124.49 1
17K946 LR144543
GRILLE - BUMPER
5.0L P AJ133 DOHC CDA S/C Enhanced, Bumpers-Satin Pltnm Atlas/Body Clrd / LH / From: MA000001 		$145.57 1
17K946 LR144544
GRILLE - BUMPER
3.0 V6 D Low MT ROW, Bumpers-Satin Pltnm Atlas/Body Clrd / LH / From: MA000001 		$145.57 1
19E525 LR098719
DEFLECTOR - AIR
Tow Eye Cover - Base / From: JA000001 / To: JA500147 		$46.97 1
19E525 LR117862
DEFLECTOR - AIR
Tow Eye Cover - Corris Dynamic / From: JA500148 		$49.23 1
7081A LR098727
PLATE - BLANKING
3.0 V6 D Gen2 Mono Turbo / Centre / From: JA000001 		$182.42 1
7081B LR098726
PLATE - BLANKING
2.0L AJ200P Hi PHEV / LH / From: JA000001 		$160.80 1
7081B LR098722
PLATE - BLANKING
3.0 V6 D Gen2 Twin Turbo, Front Bumper - Graphite Atlas, Less Engine Cooling System / RH / From: JA000001 		$189.06 1
7081B LR098721
PLATE - BLANKING
3.0 V6 D Gen2 Twin Turbo, Frt Bumper - Atlas/Satin/Atlas, Less Engine Cooling System / LH / From: JA000001 		$160.80 1
7081B LR098725
PLATE - BLANKING
3.0L AJ20P6 Petrol High / RH / From: JA000001 		$70.83 1
7081C LR098723
PLATE - BLANKING
3.0 V6 D Gen2 Twin Turbo, Bumper-Shdw Atlas/Satin/Body Colour, Less Engine Cooling System / RH / From: JA000001 		$158.41 1
7081C LR098724
PLATE - BLANKING
3.0 V6 D Gen2 Twin Turbo, Bumper-Shdw Atlas/Satin/Body Colour, Less Engine Cooling System / LH / From: JA000001 		$158.41 1
17752A LR083118
BRACKET - BUMPER MOUNTING
Centre, Lower / From: JA000001 		$31.39 1
17752B LR098693
MOUNTING BRACKET - FRONT BUMPER
RH / From: JA000001 		$16.71 1
17752B LR098694
MOUNTING BRACKET - FRONT BUMPER
LH / From: JA000001 		$16.71 1
17752C LR137523
BRACKET - BUMPER MOUNTING
RH / From: JA000001 		$69.71 1
17752C LR137524
BRACKET - BUMPER MOUNTING
LH / From: JA000001 		$69.71 1
17757 LR098377
BUMPER - FRONT
Less Camera System, Less Park Side Guard / Primed / From: JA000001 / To: JA999999 		$1,135.83 1
17757 LR098663
BUMPER - FRONT
Less Park Side Guard, Surround Camera System / Primed / From: JA000001 / To: JA999999 		$1,135.83 1
17757 LR098664
BUMPER - FRONT
Less Camera System, With Park Side Flank Guard / Primed / From: JA000001 / To: JA999999 		$1,135.83 1
17757 LR098665
BUMPER - FRONT
Surround Camera System, With Park Side Flank Guard / Primed / From: JA000001 / To: JA999999 		$1,135.83 1
17757 LR098377
BUMPER - FRONT
Front And Rear Parking Aid+Autobrk, Less Camera System / Primed / From: KA000001 		$1,135.83 1
17757 LR098663
BUMPER - FRONT
Front And Rear Parking Aid+Autobrk, Surround Camera Sys+Water Wade Aid / Primed / From: KA000001 		$1,135.83 1
17757 LR098664
BUMPER - FRONT
360 Parking Aid, Less Camera System / Primed / From: KA000001 		$1,135.83 1
17757 LR098665
BUMPER - FRONT
360 Parking Aid and Autobrake, Surround Camera System / Primed / From: KA000001 		$1,135.83 1

Haven't found what you're looking for?

More: Land Rover Radiators Tuning Parts Need help? Call us

View Cart / Checkout
