Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Front Axle Case (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, 4.4L DOHC DITC V8 Diesel, 3.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110186 BOLT - HEX.HEAD $1.25 To Order
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. $1.81 To Order
Photo Part No Description Price (each) Stock
FB110106 BOLT $1.68 IN STOCK
Photo Part No Description Price (each) Stock
LR038977 BOLT $4.88 To Order
Photo Part No Description Price (each) Stock
LR039049 BOLT $5.45 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
TYP500100 SCREW $1.18 IN STOCK
Photo Part No Description Price (each) Stock
LR033208 SCREW $6.77 To Order
LR085630 SCREW $4.32 To Order
Photo Part No Description Price (each) Stock
LR050513 SCREW $1.42 To Order
Photo Part No Description Price (each) Stock
LR050515 SCREW $1.22 To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $23.03 To Order
LR158113 SEAL - OIL $23.03 To Order
Photo Part No Description Price (each) Stock
LR039594 DIFFERENTIAL - FRONT $4,876.04 To Order
LR039597 DIFFERENTIAL - FRONT $2,861.23 To Order
LR059045 DIFFERENTIAL - FRONT $3,315.47 To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500110 PLUG - OIL DRAIN $4.59 To Order
TYB500080 PLUG - OIL $21.76 To Order
TYB500110 PLUG - OIL DRAIN $4.59 To Order
Photo Part No Description Price (each) Stock
LR039394 HOSE - VENT $15.37 To Order
LR039394 HOSE - VENT $15.37 To Order
LR125891 TUBE - BREATHER $28.60 To Order
Photo Part No Description Price (each) Stock
LR062296 DAMPER - DAMPING MASS $192.81 To Order
LR062295 DAMPER - DAMPING MASS $87.57 To Order
LR091706 DAMPER - DAMPING MASS $165.18 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR039128 KIT - FDU TUBE $233.68 To Order
LR052323 KIT - FDU TUBE $237.48 To Order
Photo Part No Description Price (each) Stock
LR038842 BRACKET - FDU TUBE SUPPORT $54.16 To Order
Photo Part No Description Price (each) Stock
LR038826 HOSE - VENT $35.79 To Order
LR125277 HOSE - VENT $40.35 To Order
Photo Part No Description Price (each) Stock
LR067897 KIT - PINION REPAIR $174.44 To Order
LR158114 KIT - PINION REPAIR $196.93 To Order
Photo Part No Description Price (each) Stock
LR033264 INSULATOR - BUSH TYPE $5.12 To Order
LR062719 INSULATOR - BUSH TYPE $44.70 To Order
LR060048 INSULATOR - BUSH TYPE $39.90 To Order
Photo Part No Description Price (each) Stock
LR033265 INSULATOR - BUSH TYPE $11.00 To Order
LR056079 INSULATOR - BUSH TYPE $73.55 To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.49 To Order
Photo Part No Description Price (each) Stock
LR087163 WASHER - DIFFERENTIAL MOUNTING $32.57 To Order
Photo Part No Description Price (each) Stock
LR056077 WASHER - DIFFERENTIAL MOUNTING $54.76 To Order
Photo Part No Description Price (each) Stock
LR033207 WASHER - DIFFERENTIAL MOUNTING $18.10 To Order
Photo Part No Description Price (each) Stock
LR019019 SEAL - SPECIAL $19.26 To Order
View All

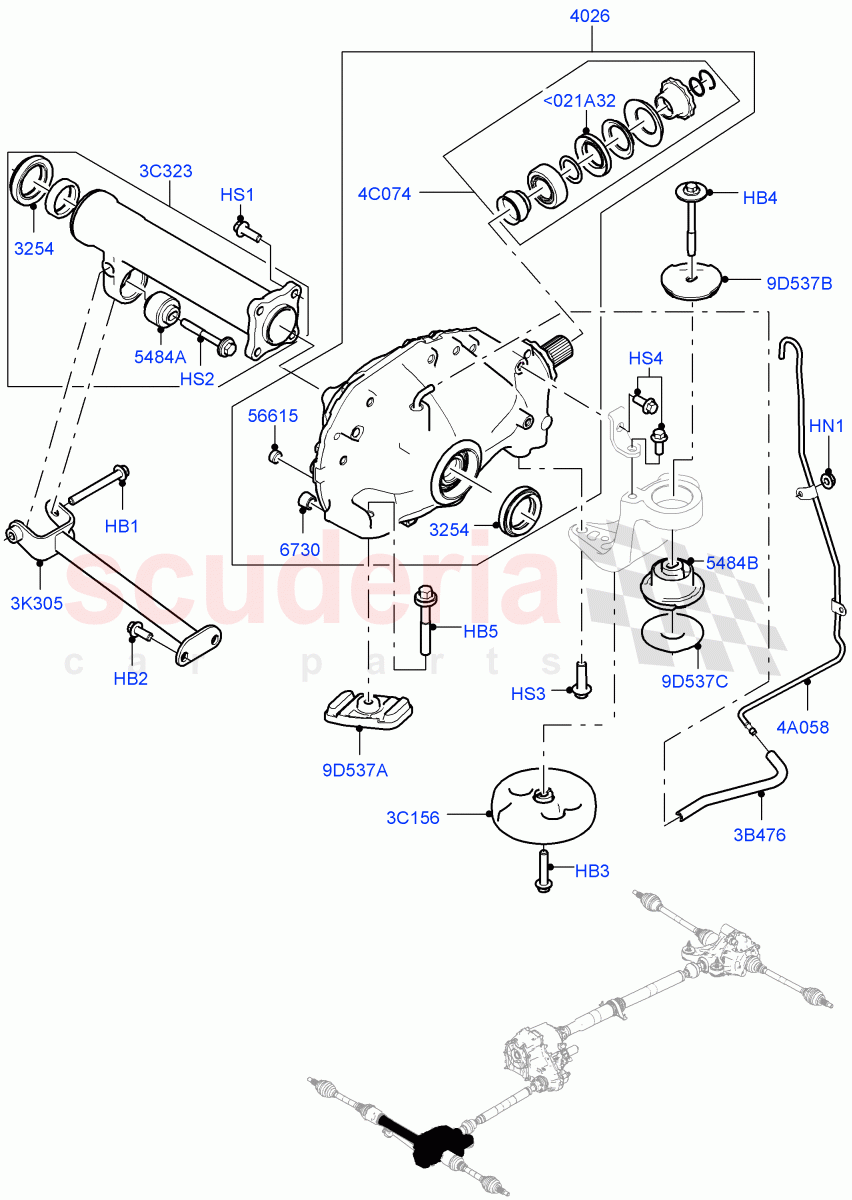

Front Axle Case (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, 4.4L DOHC DITC V8 Diesel, 3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR019019
SEAL - SPECIAL
Oil 		$19.26 1
HB1 FB110186
BOLT - HEX.HEAD
4.4L DOHC DITC V8 Diesel / HEX Flange, M10 X 90MM 		$1.25 1
HB2 FS110256
BOLT - FLANGED HEX.
4.4L DOHC DITC V8 Diesel / HEX Flange, M10 X 25MM 		$1.81 2
HB3 FB110106
BOLT
Hexagonal Head, M10 X 50MM
IN STOCK 		$1.68 1
HB4 LR038977
BOLT
Hexagonal Head, M10 X 100 		$4.88 1
HB5 LR039049
BOLT
Hexagonal Head, M12 x 85MM 		$5.45 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.48 2
HS1 TYP500100
SCREW
Hexagonal Head, M10 X 30MM
IN STOCK 		$1.18 4
HS2 LR033208
SCREW
M10 X 80MM, Screw And Washer / To: GA999999 		$6.77 1
HS2 LR085630
SCREW
M10 x 75MM, Screw And Washer / From: HA000001 		$4.32 1
HS3 LR050513
SCREW
Hexagonal Head, M12 x 40MM 		$1.42 3
HS4 LR050515
SCREW
Hexagonal Head, M10 x 26MM 		$1.22 2
3B476 LR039394
HOSE - VENT
To: KA999999 		$15.37 1
3B476 LR039394
HOSE - VENT
4.4L DOHC DITC V8 Diesel / From: LA000001 		$15.37 1
3B476 LR125891
TUBE - BREATHER
3.0L AJ20D6 Diesel High / From: LA000001 		$28.60 1
3C156 LR062296
DAMPER - DAMPING MASS
4.4L DOHC DITC V8 Diesel 		$192.81 1
3C156 LR062295
DAMPER - DAMPING MASS
3.0 V6 Diesel / To: HA999999 		$87.57 1
3C156 LR091706
DAMPER - DAMPING MASS
3.0 V6 Diesel / From: JA000001 		$165.18 1
3C156 LR062295
DAMPER - DAMPING MASS
3.0L AJ20D6 Diesel High / From: LA000001 		$87.57 1
3C323 LR039128
KIT - FDU TUBE
Front Drive Unit Tube, Includes Tube, Bearing, Seal, Bush And Screw / To: DA122675 		$233.68 1
3C323 LR052323
KIT - FDU TUBE
Front Drive Unit Tube, Includes Tube, Bearing, Seal, Bush And Screw / From: DA122676 		$237.48 1
3K305 LR038842
BRACKET - FDU TUBE SUPPORT
4.4L DOHC DITC V8 Diesel 		$54.16 1
4A058 LR038826
HOSE - VENT
4.4L DOHC DITC V8 Diesel / Breather Pipe 		$35.79 1
4A058 LR125277
HOSE - VENT
3.0L AJ20D6 Diesel High / Breather Pipe / From: LA000001 		$40.35 1
4C074 LR067897
KIT - PINION REPAIR
Includes Seal / To: LA999999 		$174.44 1
4C074 LR158114
KIT - PINION REPAIR
Includes Seal / From: MA000001 		$196.93 1
9D537A LR087163
WASHER - DIFFERENTIAL MOUNTING
Front 		$32.57 1
9D537B LR056077
WASHER - DIFFERENTIAL MOUNTING
Rear, Upper 		$54.76 1
9D537C LR033207
WASHER - DIFFERENTIAL MOUNTING
Lower, Rear 		$18.10 1
3254 LR158113
SEAL - OIL
Driveshaft / To: LA999999 		$23.03 2
3254 LR158113
SEAL - OIL
Driveshaft / From: MA000001 		$23.03 2
4026 LR039594
DIFFERENTIAL - FRONT
4.4L DOHC DITC V8 Diesel / To: EA167395 		$4,876.04 1
4026 LR039597
DIFFERENTIAL - FRONT
3.0 V6 Diesel / To: EA167395 		$2,861.23 1
4026 LR059045
DIFFERENTIAL - FRONT
4.4L DOHC DITC V8 Diesel / From: EA167396 / To: FA210880 		$3,315.47 1
4026 LR059046
DIFFERENTIAL - FRONT
3.0 V6 Diesel / From: EA167396 / To: EA999999 		$2,875.53 1
4026 LR066511
DIFFERENTIAL - FRONT
3.0 V6 Diesel / From: FA000001 / To: FA999999 		$5,538.92 1
4026 LR066513
DIFFERENTIAL - FRONT
4.4L DOHC DITC V8 Diesel / New Part-Please Check For Reman Version / From: FA210881 / To: GA298486 		$4,395.82 1
4026 LR070139
AXLE - FRONT
4.4L DOHC DITC V8 Diesel / From: GA298487 / To: GA999999 		$5,587.44 1
4026 LR089551
AXLE - FRONT
4.4L DOHC DITC V8 Diesel / From: HA000001 / To: HA999999 		$3,467.38 1
4026 LR089552
DIFFERENTIAL - FRONT
3.0 V6 Diesel / New Part-Please Check For Reman Version / From: HA000001 / To: HA999999 		$3,888.53 1
4026 LR069898
DIFFERENTIAL - FRONT
3.0 V6 Diesel / New Part-Please Check For Reman Version / From: GA000001 / To: GA999999 		$4,397.63 1
4026 LR089624
DIFFERENTIAL - FRONT
3.0 V6 Diesel / New Part-Please Check For Reman Version / From: JA000001 / To: LA999999 		$4,124.62 1
4026 LR100472
DIFFERENTIAL - FRONT
4.4L DOHC DITC V8 Diesel / New Part-Please Check For Reman Version / From: JA000001 / To: LA999999 		$3,965.06 1
4026 LR141943
DIFFERENTIAL - FRONT
3.0L AJ20D6 Diesel High / From: MA000001 		$2,907.77 1
4026 LR089623
DIFFERENTIAL - FRONT
3.0L AJ20D6 Diesel High / New Part-Please Check For Reman Version / From: LA000001 / To: LA999999 		$3,747.37 1
4026 LR149976
DIFFERENTIAL - FRONT
4.4L DOHC DITC V8 Diesel / From: MA000001 		$4,440.29 1
4026 LR149977
DIFFERENTIAL - FRONT
3.0 V6 Diesel / From: MA000001 		$3,832.59 1
4026 LR070137
DIFFERENTIAL - FRONT
3.0 V6 Diesel / Remanufactured Part / From: GA000001 / To: GA999999 		$2,517.79 1
4026 LR124946
DIFFERENTIAL - FRONT
4.4L DOHC DITC V8 Diesel / Remanufactured Part / From: FA210881 / To: GA298486 		$2,493.87 1
4026 LR124989
DIFFERENTIAL - FRONT
3.0 V6 Diesel / Remanufactured Part / From: HA000001 / To: HA999999 		$2,493.87 1
4026 LR124997
DIFFERENTIAL - FRONT
3.0 V6 Diesel / Remanufactured Part / From: JA000001 / To: LA999999 		$2,493.87 1
4026 LR125034
DIFFERENTIAL - FRONT
4.4L DOHC DITC V8 Diesel / Remanufactured Part / From: JA000001 / To: LA999999 		$2,493.87 1
4026 LR125002
DIFFERENTIAL - FRONT
3.0L AJ20D6 Diesel High / Remanufactured Part / From: LA000001 / To: LA999999 		$2,256.92 1
5484A LR033264
INSULATOR - BUSH TYPE
Front Drive Unit Tube / To: EA143866 		$5.12 1
5484A LR062719
INSULATOR - BUSH TYPE
Front Drive Unit Tube / From: FA210881 		$44.70 1
5484A LR060048
INSULATOR - BUSH TYPE
Front Drive Unit Tube / From: EA143867 / To: FA210880 		$39.90 1
5484B LR033265
INSULATOR - BUSH TYPE
5.0L OHC SGDI NA V8 Petrol - AJ133 / Differential / To: LA999999 		$11.00 1
5484B LR056079
INSULATOR - BUSH TYPE
3.0 V6 Diesel / Differential / From: JA000001 		$73.55 1
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain / From: MA000001 		$4.59 1
6730 TYB500080
PLUG - OIL
3.0L AJ20D6 Diesel High / Plug - Oil Drain / From: LA000001 / To: LA999999 		$21.76 1
6730 TYB500110
PLUG - OIL DRAIN
3.0 V6 Diesel / Drain Plug, Plug - Oil Drain / To: LA999999 		$4.59 1
56615 TYB500060
PLUG - FILLER
Filler Plug 		$3.49 1
