Air Suspension Compressor And Lines (Compressor Assy) ((V) Toha999999)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Air Suspension Compressor And Lines (Compressor Assy) ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.49 IN STOCK
Photo Part No Description Price (each) Stock
LR038634 CLIP - DOUBLE $0.66 To Order
Photo Part No Description Price (each) Stock
LR048340 CLIP - SPECIAL $12.86 To Order
Photo Part No Description Price (each) Stock
RYH500840 NUT $1.08 To Order
Photo Part No Description Price (each) Stock
LR035842 SCREW $1.81 To Order
Photo Part No Description Price (each) Stock
LR034035 SCREW - PAN - TORX $1.38 To Order
Photo Part No Description Price (each) Stock
LR052964 CONNECTOR - PIPE $11.65 To Order
Photo Part No Description Price (each) Stock
LR062625 WIRE - AIR COMPRESSOR $107.19 To Order
LR078807 WIRE - AIR COMPRESSOR $166.00 To Order
Photo Part No Description Price (each) Stock
LR037070 COMPRESSOR - SUSPENSION LEVELLING $1,282.97 To Order
LR047172 COMPRESSOR - SUSPENSION LEVELLING $1,683.95 To Order
LR056304 COMPRESSOR - SUSPENSION LEVELLING $1,433.20 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR088859 COMPRESSOR - SUSPENSION LEVELLING $698.30 To Order
Photo Part No Description Price (each) Stock
LR075759 VALVE - SOLENOID $32.42 To Order
Photo Part No Description Price (each) Stock
LR052962 SLEEVE - PROTECTIVE $5.71 To Order
Photo Part No Description Price (each) Stock
LR045919 SILENCER - SUSPENSION COMPRESSOR $114.01 To Order
LR045919 SILENCER - SUSPENSION COMPRESSOR $114.01 To Order
Photo Part No Description Price (each) Stock
LR088858 SILENCER - SUSPENSION COMPRESSOR $13.02 To Order
View All

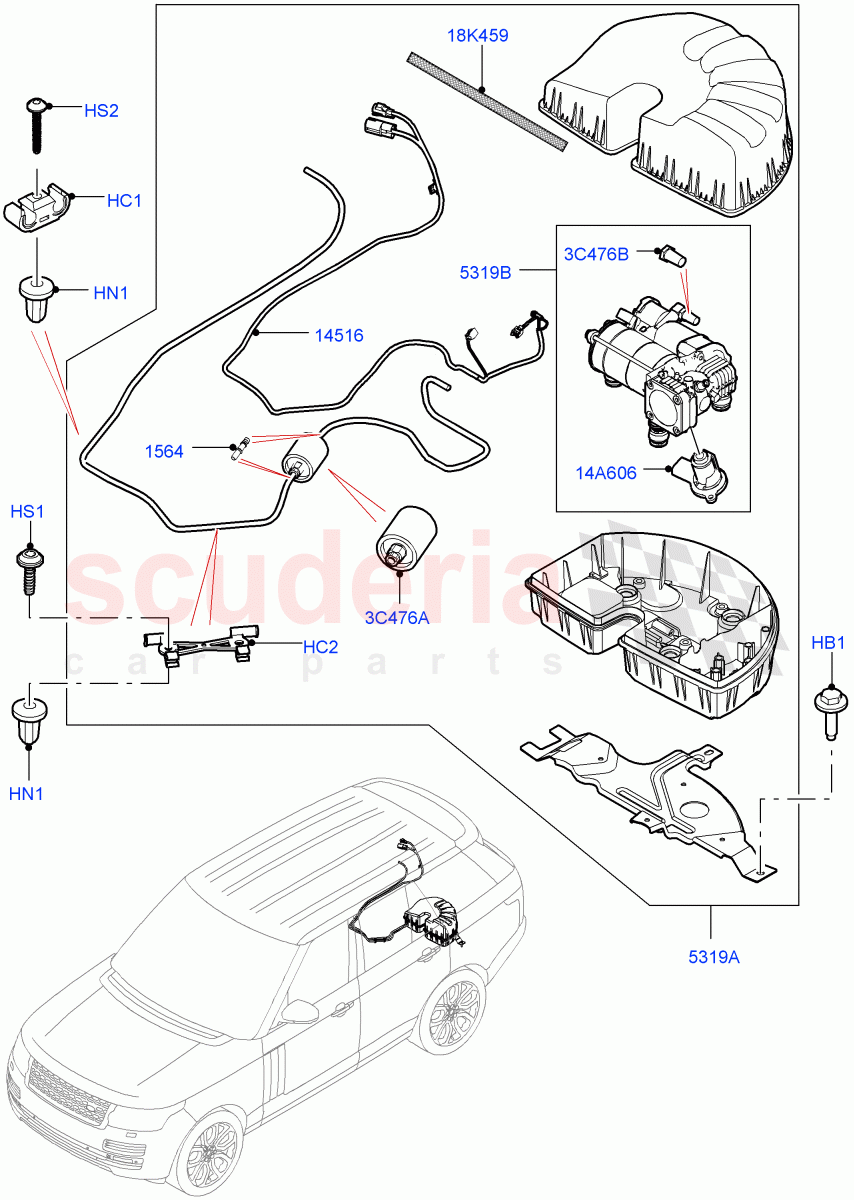

Air Suspension Compressor And Lines (Compressor Assy) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, HEX Flange, Hexagonal Head, M6 X 24MM
IN STOCK 		$1.49 2
HC1 LR038634
CLIP - DOUBLE
Double 		$0.66 1
HC2 LR048340
CLIP - SPECIAL
Double 		$12.86 1
HN1 RYH500840
NUT
M4, Plastic Nut 		$1.08 3
HS1 LR035842
SCREW
4 X 16MM, Torx 		$1.81 2
HS2 LR034035
SCREW - PAN - TORX
M4 x 30MM, Torx 		$1.38 1
3C476A LR045919
SILENCER - SUSPENSION COMPRESSOR
Air Suspension Lines, Service Part Only / To: DA118530 		$114.01 1
3C476A LR045919
SILENCER - SUSPENSION COMPRESSOR
Air Suspension Lines, Production Installed / From: DA118531 		$114.01 1
3C476B LR088858
SILENCER - SUSPENSION COMPRESSOR
Compressor Assy 		$13.02 1
14A606 LR075759
VALVE - SOLENOID
Solenoid - Air Suspension / From: FA000001 		$32.42 1
18K459 LR052962
SLEEVE - PROTECTIVE
Air Suspension 		$5.71 1
1564 LR052964
CONNECTOR - PIPE
Air Suspension Lines 		$11.65 2
5319A LR037070
COMPRESSOR - SUSPENSION LEVELLING
Includes Compressor, Bracket, Covers And Wire, Less Silencer / To: DA107500 		$1,282.97 1
5319A LR047172
COMPRESSOR - SUSPENSION LEVELLING
Includes Compressor, Bracket, Covers And Wire, With Silencer / From: DA107501 / To: EA138527 		$1,683.95 1
5319A LR056304
COMPRESSOR - SUSPENSION LEVELLING
Includes Compressor, Bracket, Covers And Wire, With Silencer / From: EA138528 / To: EA999999 		$1,433.20 1
5319A LR069691
COMPRESSOR - SUSPENSION LEVELLING
Includes Compressor, Bracket, Covers And Wire, With Silencer / From: FA000001 / To: HA365702 		$1,272.59 1
5319A LR108984
COMPRESSOR - SUSPENSION LEVELLING
Includes Compressor, Bracket, Covers And Wire, With Silencer / From: HA365703 		$1,357.42 1
5319B LR088859
COMPRESSOR - SUSPENSION LEVELLING 		$698.30 1
14516 LR062625
WIRE - AIR COMPRESSOR
To: GA251046 		$107.19 1
14516 LR078807
WIRE - AIR COMPRESSOR
From: GA251047 		$166.00 1
