Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Turbocharger (RH Side - Secondary) (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng,...

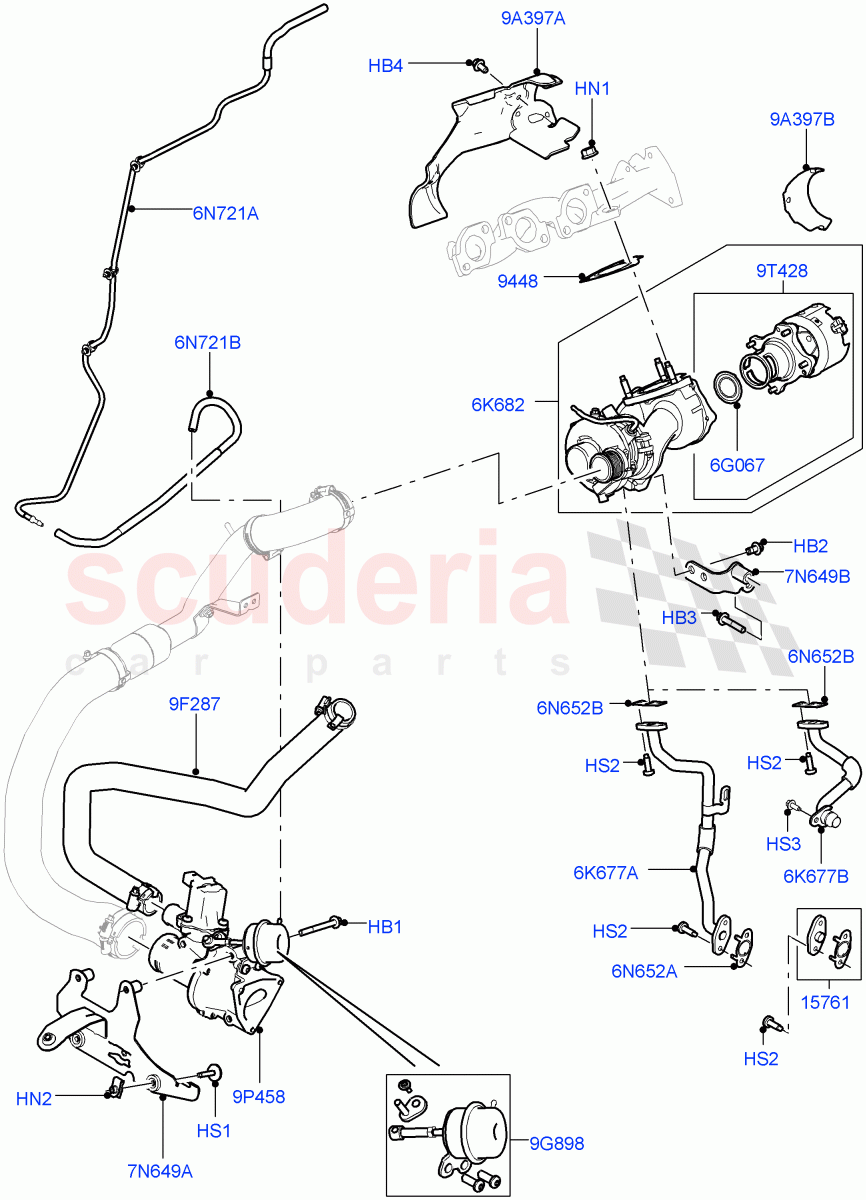

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106116 BOLT - HEX.HEAD $0.99 To Order
Photo Part No Description Price (each) Stock
1419376 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR000628 BOLT $4.61 To Order
Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD $1.09 To Order
LR113014 BOLT - HEX.HEAD $0.99 To Order
LR105437 BOLT - HEX.HEAD $0.87 To Order
Photo Part No Description Price (each) Stock
LR038607 NUT $4.84 IN STOCK
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR006028 SCREW $2.71 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR084664 GASKET - EXHAUST MANIFOLD $62.14 To Order
LR013236 GASKET - EXHAUST MANIFOLD $44.17 To Order
Photo Part No Description Price (each) Stock
LR044555 PLUG - BLANKING $90.33 To Order
Photo Part No Description Price (each) Stock
LR020589 SEAL - TURBINE SHUT OFF VALVE $59.79 To Order
Photo Part No Description Price (each) Stock
LR038620 TURBOCHARGER $2,800.26 To Order
LR056370 TURBOCHARGER $2,834.57 To Order
LR063777 TURBOCHARGER $2,283.84 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036479 HOSE - AIR $94.16 To Order
LR062026 HOSE - AIR $311.36 To Order
Photo Part No Description Price (each) Stock
LR033284 KIT - ACTUATOR SHUT OFF VALVE $120.27 To Order
Photo Part No Description Price (each) Stock
LR035450 VALVE - SHUT-OFF $805.02 To Order
Photo Part No Description Price (each) Stock
LR066431 KIT - TURBINE SHUT OFF VALVE $1,003.45 To Order
LR066430 KIT - TURBINE SHUT OFF VALVE $813.91 To Order
LR116634 KIT - TURBINE SHUT OFF VALVE $865.79 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013611 HOSE - OIL RETURN $94.47 To Order
Photo Part No Description Price (each) Stock
LR044556 HOSE - OIL RETURN $61.97 To Order
LR044556 HOSE - OIL RETURN $61.97 To Order
LR087351 HOSE - OIL RETURN $57.97 IN STOCK
Photo Part No Description Price (each) Stock
LR013234 GASKET - OIL TUBE $9.81 To Order
Photo Part No Description Price (each) Stock
LR087348 GASKET - OIL RETURN HOSE $5.19 To Order
LR087348 GASKET - OIL RETURN HOSE $5.19 To Order
LR013235 GASKET - OIL RETURN HOSE $5.19 To Order
Photo Part No Description Price (each) Stock
LR035477 PIPE - VAC CONTROL TO TURBO VALVE $162.98 To Order
Photo Part No Description Price (each) Stock
LR035486 PIPE - VAC CONTROL TO TURBO VALVE $162.98 To Order
Photo Part No Description Price (each) Stock
LR038277 BRACKET - SUPPORT - SHUT OFF VALVE $81.48 To Order
LR058373 BRACKET - SUPPORT - SHUT OFF VALVE $46.27 To Order
Photo Part No Description Price (each) Stock
LR047785 Bracket - Support Enquire To Order
LR050528 BRACKET - TURBOCHARGER $48.30 To Order
LR063745 BRACKET - TURBOCHARGER $16.30 To Order
Photo Part No Description Price (each) Stock
LR013613 HEAT SHIELD - EXHAUST MANIFOLD $52.42 To Order
Photo Part No Description Price (each) Stock
LR013602 HEAT SHIELD - TURBOCHARGER $29.68 To Order
View All
Turbocharger (RH Side - Secondary) (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Gen2 Twin Turbo) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106116
BOLT - HEX.HEAD
M6 x 55MM, Shut Off Valve 		$0.99 3
HB2 1419376
BOLT
Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly 		$2.57 3
HB3 LR000628
BOLT
Bracket, Hexagonal Head, M8 x 40MM, Turbocharger Assembly 		$4.61 1
HB4 LR014200
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 10MM / To: HA367028 		$1.09 3
HB4 LR113014
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA386129 		$0.99 3
HB4 LR105437
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 8MM / From: HA367029 / To: JA386128 		$0.87 3
HN1 LR038607
NUT
M8, Turbocharger Inlet
IN STOCK 		$4.84 3
HN2 LR000053
NUT - FLANGED
M6
IN STOCK 		$1.63 2
HS1 RYG500900
SCREW
Bolt And Washer, Bracket, Hexagonal Head, M6X30, Shut Off Valve 		$4.21 3
HS2 LR006028
SCREW
M6 X 16MM, Torx, Turbocharger 		$2.71 2
HS3 RYG500160
SCREW
Cylinder Block, Hexagonal Head, M6 X 14MM 		$0.63 1
6G067 LR020589
SEAL - TURBINE SHUT OFF VALVE
Repair Kit, Turbine Shut Off Valve 		$59.79 1
6K677A LR013611
HOSE - OIL RETURN
3.0L 24V DOHC V6 TC Diesel / Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial 		$94.47 1
6K677B LR044556
HOSE - OIL RETURN
3.0L 24V DOHC V6 TC Diesel / Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, For Engine Serial Number Later Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial / To: GA283159 		$61.97 1
6K677B LR044556
HOSE - OIL RETURN
3.0 V6 D Gen2 Twin Turbo / From: EA000001 / To: GA283159 		$61.97 1
6K677B LR087351
HOSE - OIL RETURN
From: GA283160
IN STOCK 		$57.97 1
6K682 LR038620
TURBOCHARGER
RH, New Part-Please Check For Reman Version, Secondary / To: EA144458 		$2,800.26 1
6K682 LR056370
TURBOCHARGER
RH, New Part-Please Check For Reman Version, Secondary / From: EA144459 / To: EA173578 		$2,834.57 1
6K682 LR063777
TURBOCHARGER
3.0L 24V V6 Turbo Diesel Std Flow / RH, New Part-Please Check For Reman Version, Secondary / From: EA173579 / To: KA544331 		$2,283.84 1
6K682 LR062000
TURBOCHARGER
3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: FA000001 / To: GA256262 		$3,042.71 1
6K682 LR092675
TURBOCHARGER
3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: GA256263 / To: JA399340 		$2,803.94 1
6K682 LR116631
TURBOCHARGER
3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: JA399341 		$3,626.16 1
6K682 LR128704
TURBOCHARGER
3.0 V6 Diesel Electric Hybrid Eng / RH, New Part-Please Check For Reman Version, Secondary / From: KA544332 		$2,899.10 1
6K682 LR082293
TURBOCHARGER
3.0L 24V V6 Turbo Diesel Std Flow / RH, Remanufactured Part, Secondary 		$1,834.33 1
6N652A LR013234
GASKET - OIL TUBE
For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, Lower, Tube - Oil Return 		$9.81 1
6N652B LR087348
GASKET - OIL RETURN HOSE
Gasket - Turbocharger Oil Return Hose, Upper / From: FA212514 / To: GA999999 		$5.19 1
6N652B LR087348
GASKET - OIL RETURN HOSE
Gasket - Turbocharger Oil Return Hose, Upper / From: HA000001 		$5.19 1
6N652B LR013235
GASKET - OIL RETURN HOSE
Gasket - Turbocharger Oil Return Hose, Upper / To: FA212513 		$5.19 1
6N721A LR035477
PIPE - VAC CONTROL TO TURBO VALVE
Compressed Air Recirculation And Shut Off Valve, Upper, Vacuum Control 		$162.98 1
6N721B LR035486
PIPE - VAC CONTROL TO TURBO VALVE
Compressed Air Recirculation And Shut Off Valve, Lower, Vacuum Control 		$162.98 1
7N649A LR038277
BRACKET - SUPPORT - SHUT OFF VALVE
Shut Off Valve / To: EA158568 		$81.48 1
7N649A LR058373
BRACKET - SUPPORT - SHUT OFF VALVE
Shut Off Valve / From: EA158569 		$46.27 1
7N649B LR047785
Bracket - Support
Turbocharger / To: EA128397 		- 1 Enquire
7N649B LR050528
BRACKET - TURBOCHARGER
Turbocharger / From: EA128398 / To: EA172483 		$48.30 1
7N649B LR063745
BRACKET - TURBOCHARGER
Turbocharger / From: EA172484 		$16.30 1
9A397A LR013613
HEAT SHIELD - EXHAUST MANIFOLD
RH, Manifold To Turbocharger 		$52.42 1
9A397B LR013602
HEAT SHIELD - TURBOCHARGER
RH, Turbocharger 		$29.68 1
9F287 LR036479
HOSE - AIR
3.0L 24V DOHC V6 TC Diesel / Compressed Air Recirculation, From Valve To Air Inlet Hose 		$94.16 1
9F287 LR062026
HOSE - AIR
3.0 V6 D Gen2 Twin Turbo / Compressed Air Recirculation, From Valve To Air Inlet Hose / From: FA000001 		$311.36 1
9G898 LR033284
KIT - ACTUATOR SHUT OFF VALVE
Compressed Air Recirculation And Shut Off Valve 		$120.27 1
9P458 LR035450
VALVE - SHUT-OFF
Compressed Air Recirculation, Shut Off Valve 		$805.02 1
9T428 LR066431
KIT - TURBINE SHUT OFF VALVE
3.0L 24V DOHC V6 TC Diesel / Actuator, Seals And Fixing, Repair Kit / To: KA544331 		$1,003.45 1
9T428 LR066430
KIT - TURBINE SHUT OFF VALVE
3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / From: FA000001 / To: JA399340 		$813.91 1
9T428 LR116634
KIT - TURBINE SHUT OFF VALVE
3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / From: JA399341 		$865.79 1
9T428 LR128703
KIT - TURBINE SHUT OFF VALVE
3.0L 24V V6 Turbo Diesel Std Flow / Actuator, Seals And Fixing, Repair Kit / From: KA544332 		$936.25 1
9448 LR084664
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger / From: FA000001 		$62.14 1
9448 LR013236
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger / To: EA999999 		$44.17 1
15761 LR044555
PLUG - BLANKING
3.0 V6 Diesel / Please Refer To Technical Service Bulletin LTB00487, With Gasket / From: DA124719 		$90.33 1
