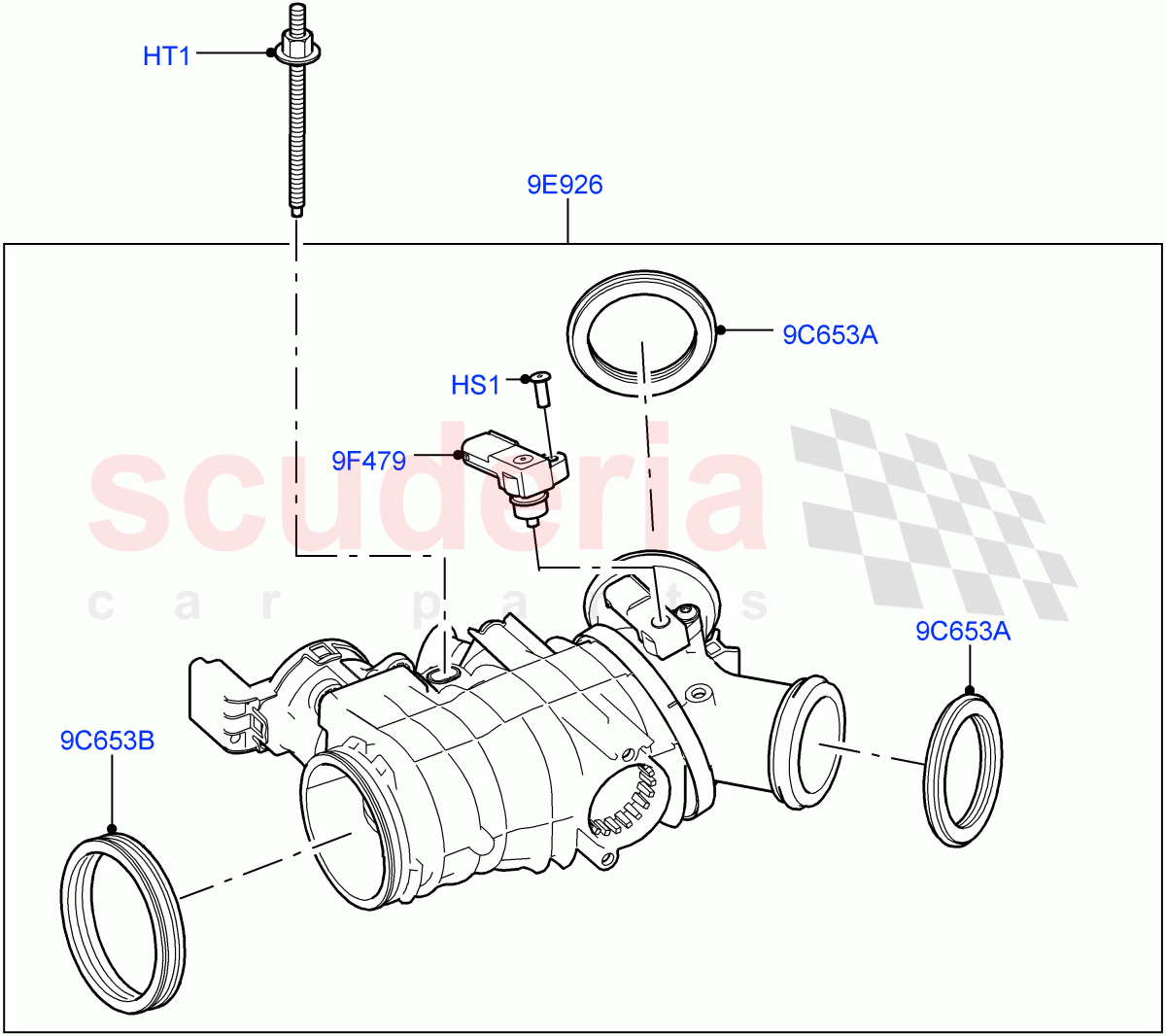

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008753	SCREW	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	1316035	STUD	$6.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077148	SENSOR	$169.99	To Order

Photo	Part No	Description	Price (each)	Stock
	1316152	SEAL - THROTTLE	$12.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR008353	SEAL - THROTTLE	$8.30	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR008753	SCREW	LR008753 SCREW 5 X 16MM, MAP Sensor / From: FA000001	$1.03	1
HT1	1316035	STUD	1316035 STUD M6 X 65 + M6 X 12 / From: FA000001	$6.94	2
9C653A	1316152	SEAL - THROTTLE IN STOCK	1316152 SEAL - THROTTLE Rear / From: FA000001 IN STOCK	$12.70	2
9C653B	LR008353	SEAL - THROTTLE IN STOCK	LR008353 SEAL - THROTTLE Front / From: FA000001 IN STOCK	$8.30	1
9E926	LR061957	THROTTLE BODY AND MOTOR	LR061957 THROTTLE BODY AND MOTOR From: FA000001 / To: FA999999	$458.31	1
9E926	LR078546	THROTTLE BODY AND MOTOR	LR078546 THROTTLE BODY AND MOTOR From: GA000001	$569.07	1
9F479	LR077148	SENSOR	LR077148 SENSOR Sensor - Manifold Absolute Pressure (MAP) / From: FA000001	$169.99	1
