Rear Brake Discs And Calipers (Front Disc And Caliper Size 18, Disc And Caliper Size-Frt 18/Rr 18)...

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Rear Brake Discs And Calipers (Front Disc And Caliper Size 18, Disc And Caliper Size-Frt 18/RR 18)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.20 IN STOCK
Photo Part No Description Price (each) Stock
SYG000013 BOLT $3.53 IN STOCK
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.76 IN STOCK
Photo Part No Description Price (each) Stock
LR084069 SHIELD - BRAKE DISC SPLASH $94.52 To Order
LR084070 SHIELD - BRAKE DISC SPLASH $94.52 To Order
Photo Part No Description Price (each) Stock
LR102242 CALIPER - BRAKE $285.02 To Order
LR102245 CALIPER - BRAKE $285.02 To Order
Photo Part No Description Price (each) Stock
LR015525 COVER - DUST $24.79 To Order
Photo Part No Description Price (each) Stock
LR031319 BOLT $3.47 IN STOCK
Photo Part No Description Price (each) Stock
LR102241 BRACKET - BRAKE CALIPER $325.81 To Order
LR102239 BRACKET - BRAKE CALIPER $317.60 To Order
Photo Part No Description Price (each) Stock
LR084067 DISC - BRAKE $263.41 To Order
LR161897 DISC - BRAKE $179.77 IN STOCK
Photo Part No Description Price (each) Stock
STC1913 CAP - BLEED SCREW $6.17 IN STOCK
Photo Part No Description Price (each) Stock
LR162046 KIT - BRAKE LINING $156.63 IN STOCK
LR162046 KIT - BRAKE LINING $156.63 IN STOCK
Photo Part No Description Price (each) Stock
LR084071 WIRE - BRAKE PAD WEAR WARNING $39.29 IN STOCK
View All

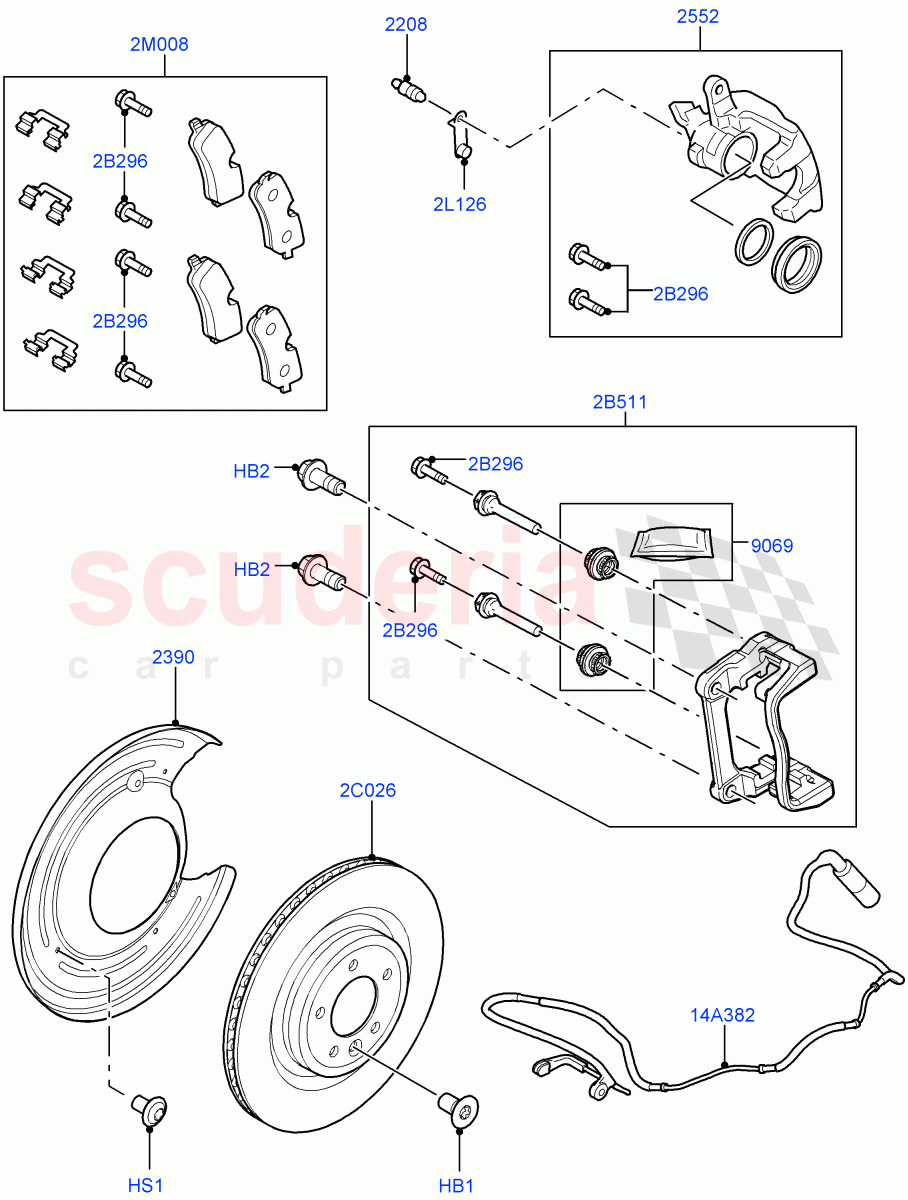

Rear Brake Discs And Calipers (Front Disc And Caliper Size 18, Disc And Caliper Size-Frt 18/RR 18) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: JA000001
IN STOCK 		$3.20 2
HB2 SYG000013
BOLT
External Torx Head, M12 X 35MM / From: JA000001
IN STOCK 		$3.53 4
HS1 LR018509
SCREW
M6 X 10MM, Torx / From: JA000001
IN STOCK 		$1.24 6
2B296 LR031319
BOLT
Pin - Guide / From: JA000001
IN STOCK 		$3.47 4
2B511 LR102241
BRACKET - BRAKE CALIPER
With Non Painted Brake Calipers / LH / From: JA000001 		$325.81 1
2B511 LR102239
BRACKET - BRAKE CALIPER
With Non Painted Brake Calipers / RH / From: JA000001 		$317.60 1
2C026 LR084067
DISC - BRAKE
From: JA000001 / To: NA453371 		$263.41 2
2C026 LR161897
DISC - BRAKE
From: NA453372
IN STOCK 		$179.77 2
2L126 STC1913
CAP - BLEED SCREW
From: JA000001
IN STOCK 		$6.17 2
2M008 LR162046
KIT - BRAKE LINING
Axle Set, With Clips / From: JA000001 / To: MA452333
IN STOCK 		$156.63 1
2M008 LR162046
KIT - BRAKE LINING
Axle Set, With Clips / From: MA452334
IN STOCK 		$156.63 1
14A382 LR084071
WIRE - BRAKE PAD WEAR WARNING
From: JA000001
IN STOCK 		$39.29 1
2208 LR015523
SCREW - BLEED
From: JA000001
IN STOCK 		$6.76 2
2390 LR084069
SHIELD - BRAKE DISC SPLASH
RH / From: JA000001 		$94.52 1
2390 LR084070
SHIELD - BRAKE DISC SPLASH
LH / From: JA000001 		$94.52 1
2552 LR102242
CALIPER - BRAKE
With Non Painted Brake Calipers / RH / From: JA000001 		$285.02 1
2552 LR102245
CALIPER - BRAKE
With Non Painted Brake Calipers / LH / From: JA000001 		$285.02 1
9069 LR015525
COVER - DUST
Boot / From: JA000001 		$24.79 2
