Front Brake Discs And Calipers ((V) Toda999999)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Front Brake Discs And Calipers ((V) TODA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.24 IN STOCK
Photo Part No Description Price (each) Stock
LR033274 BOLT $7.83 IN STOCK
Photo Part No Description Price (each) Stock
LR043873 SCREW - PAN - TORX $1.09 IN STOCK
Photo Part No Description Price (each) Stock
RYP500920 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR016176 DISC - BRAKE $191.53 To Order
Photo Part No Description Price (each) Stock
LR160069 KIT - CALIPER BRAKE PAD $455.61 IN STOCK
LR064181 Kit - Caliper Brake Pad $348.77 To Order
LR083935 KIT - CALIPER BRAKE PAD $302.19 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR039525 SCREW - BLEED $16.51 IN STOCK
Photo Part No Description Price (each) Stock
LR020972 GREASE - CHASSIS LUBRICATION $56.43 To Order
Photo Part No Description Price (each) Stock
LR039523 CALIPER - BRAKE $1,240.78 To Order
LR039524 CALIPER - BRAKE $1,240.78 To Order
Photo Part No Description Price (each) Stock
LR016683 KIT - BRAKE CALIPER ATTACHMENT $99.54 To Order
Photo Part No Description Price (each) Stock
LR033276 SHIELD - SPLASH $30.85 To Order
LR033277 SHIELD - SPLASH $30.85 To Order
LR082550 SHIELD - SPLASH $96.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR016685 KIT - BOOT $73.63 To Order
Photo Part No Description Price (each) Stock
LR039165 DUCT - BRAKE CALIPER COOLING $11.33 IN STOCK
Photo Part No Description Price (each) Stock
LR033275 WIRE - BRAKE PAD WEAR WARNING $38.64 IN STOCK
View All

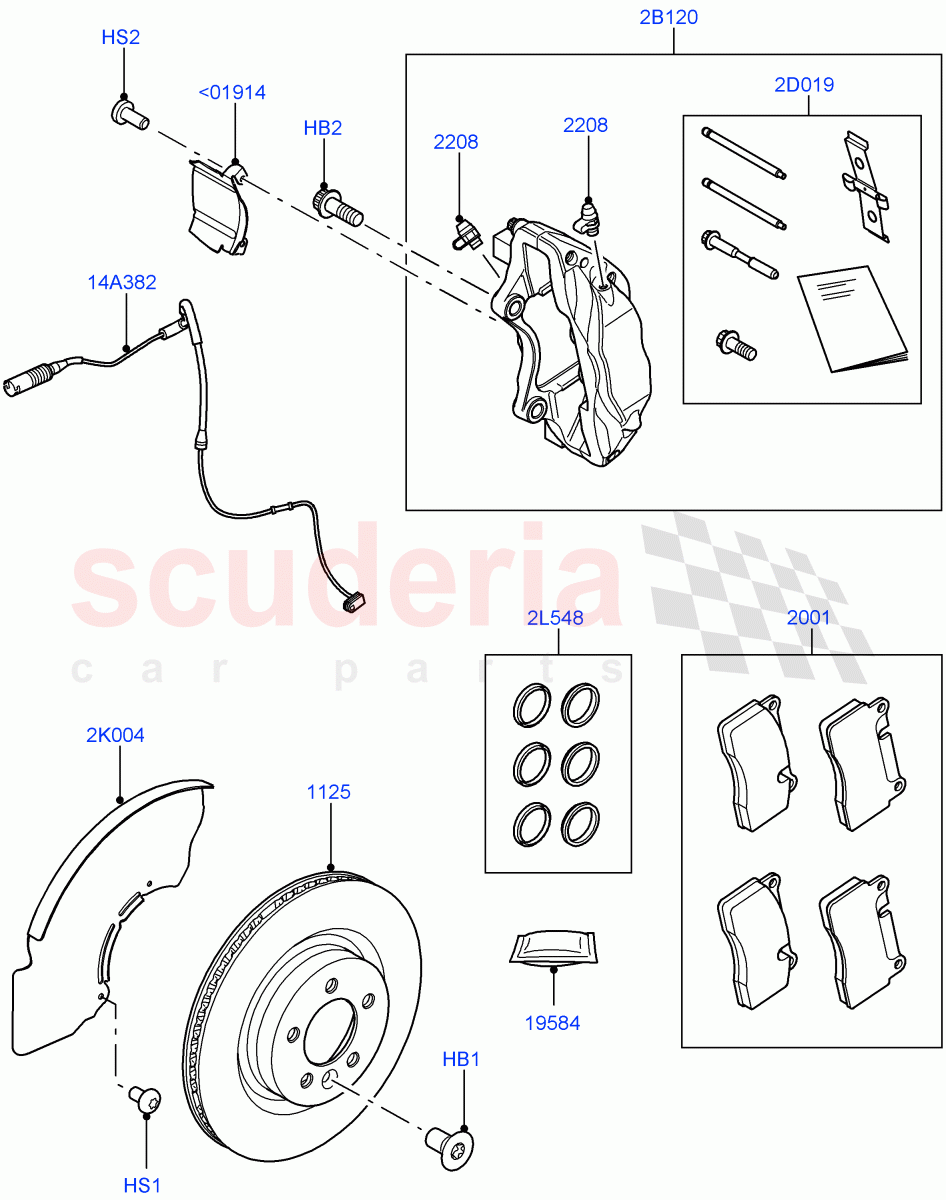

Front Brake Discs And Calipers ((V) TODA999999) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01914 LR039165
DUCT - BRAKE CALIPER COOLING
Brake Caliper Cooling, RH/LH
IN STOCK 		$11.33 2
HB1 LR002080
BOLT
M10 X 20MM, Torx
IN STOCK 		$3.24 2
HB2 LR033274
BOLT
Hexagonal Head, M16 X 40
IN STOCK 		$7.83 4
HS1 LR043873
SCREW - PAN - TORX
M6 X 16MM, Torx
IN STOCK 		$1.09 4
HS2 RYP500920
SCREW
M6 X 14MM, Torx
IN STOCK 		$0.77 4
2B120 LR039523
CALIPER - BRAKE
RH, Brembo 20" Caliper 		$1,240.78 1
2B120 LR039524
CALIPER - BRAKE
LH, Brembo 20" Caliper 		$1,240.78 1
2D019 LR016683
KIT - BRAKE CALIPER ATTACHMENT
Pad Clip And Retaining Pins 		$99.54 2
2K004 LR033276
SHIELD - SPLASH
RH / To: GA259910 		$30.85 1
2K004 LR033277
SHIELD - SPLASH
LH / To: GA259910 		$30.85 1
2K004 LR082550
SHIELD - SPLASH
LH / From: GA259911 		$96.32 1
2K004 LR082551
SHIELD - SPLASH
RH / From: GA259911 		$100.73 1
2L548 LR016685
KIT - BOOT
Brake Caliper 		$73.63 2
14A382 LR033275
WIRE - BRAKE PAD WEAR WARNING
IN STOCK 		$38.64 1
1125 LR016176
DISC - BRAKE 		$191.53 2
2001 LR160069
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips / To: DA996785
IN STOCK 		$455.61 1
2001 LR064181
Kit - Caliper Brake Pad
(+)"USA" / Axle Set, Less Clips / From: DA996786 / To: DA999945 		$348.77 1
2001 LR083935
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips / From: DA999946 / To: DA999964 		$302.19 1
2001 LR083935
KIT - CALIPER BRAKE PAD
(-)"USA" / Axle Set, Less Clips / From: DA996786 / To: DA999945 		$302.19 1
2001 LR093886
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips / From: DA999965 		$302.19 1
2208 LR039525
SCREW - BLEED
IN STOCK 		$16.51 4
19584 LR020972
GREASE - CHASSIS LUBRICATION
Molykote CU7439 Plus / To: DA999999 		$56.43 1
