Rear Exhaust System (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Rear Exhaust System (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR112283 DAMPER - DAMPING MASS $86.13 To Order
Photo Part No Description Price (each) Stock
LR105218 RESONATOR - EXHAUST SYSTEM $767.46 To Order
LR106996 RESONATOR - EXHAUST SYSTEM $1,018.68 To Order
LR120475 RESONATOR - EXHAUST SYSTEM $820.61 To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST $79.87 To Order
Photo Part No Description Price (each) Stock
LR036441 CLAMP - EXHAUST $30.93 To Order
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $24.09 To Order
Photo Part No Description Price (each) Stock
LR093418 INSULATOR - RUBBER $36.47 To Order
Photo Part No Description Price (each) Stock
LR105221 MUFFLER - REAR $838.69 To Order
Photo Part No Description Price (each) Stock
LR105225 MUFFLER - REAR $838.69 To Order
Photo Part No Description Price (each) Stock
LR110248 BRACKET - REAR MUFFLER $47.30 To Order
Photo Part No Description Price (each) Stock
LR110251 BRACKET - REAR MUFFLER $31.22 To Order
Photo Part No Description Price (each) Stock
LR110252 BRACKET - REAR MUFFLER $31.22 To Order
Photo Part No Description Price (each) Stock
LR044964 BRACKET - REAR MUFFLER $46.87 To Order
LR136419 BRACKET - REAR MUFFLER $45.93 To Order
Photo Part No Description Price (each) Stock
LR044965 BRACKET - REAR MUFFLER $46.87 To Order
LR136420 BRACKET - REAR MUFFLER $45.93 To Order
View All

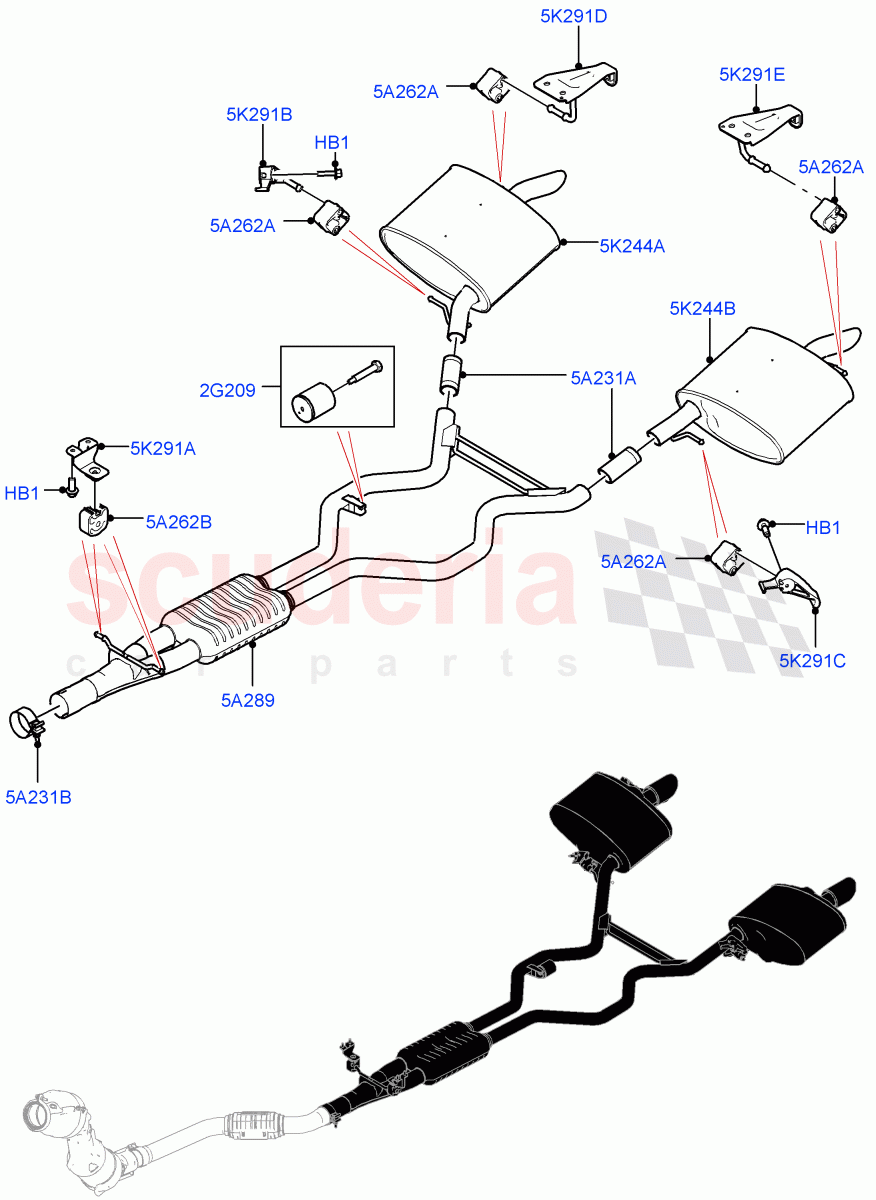

Rear Exhaust System (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: JA000001
IN STOCK 		$2.29 6
2G209 LR112283
DAMPER - DAMPING MASS
From: JA000001 		$86.13 1
5A231A WCL500020
CLAMP - EXHAUST
50MM, For Rear Muffler / From: JA000001 		$79.87 2
5A231B LR036441
CLAMP - EXHAUST
70MM, Front / From: JA000001 		$30.93 1
5A262A LR090360
INSULATOR - RUBBER
For Rear Muffler / From: JA000001 		$24.09 4
5A262B LR093418
INSULATOR - RUBBER
Front, RH And LH / From: JA000001 		$36.47 2
5A289 LR105218
RESONATOR - EXHAUST SYSTEM
Standard Wheelbase / From: JA000001 / To: KA520386 		$767.46 1
5A289 LR106996
RESONATOR - EXHAUST SYSTEM
Long Wheelbase / From: JA000001 		$1,018.68 1
5A289 LR120475
RESONATOR - EXHAUST SYSTEM
Standard Wheelbase / From: KA520387 		$820.61 1
5K244A LR105221
MUFFLER - REAR
RH / From: JA000001 		$838.69 1
5K244B LR105225
MUFFLER - REAR
LH / From: JA000001 		$838.69 1
5K291A LR110248
BRACKET - REAR MUFFLER
Front, RH And LH / From: JA000001 		$47.30 2
5K291B LR110251
BRACKET - REAR MUFFLER
For Rear Muffler, RH Front / From: JA000001 		$31.22 1
5K291C LR110252
BRACKET - REAR MUFFLER
For Rear Muffler, LH Front / From: JA000001 		$31.22 1
5K291D LR044964
BRACKET - REAR MUFFLER
For Rear Muffler, RH Rear / From: JA000001 / To: KA567510 		$46.87 1
5K291D LR136419
BRACKET - REAR MUFFLER
For Rear Muffler, RH Rear / From: KA567511 		$45.93 1
5K291E LR044965
BRACKET - REAR MUFFLER
For Rear Muffler, LH Rear / From: JA000001 / To: KA567510 		$46.87 1
5K291E LR136420
BRACKET - REAR MUFFLER
For Rear Muffler, LH Rear / From: KA567511 		$45.93 1
