Name: Front Exhaust System (Solihull Plant Build) (2.0L AJ200P Hi PHEV, EU6 Emissions, 2.0L I4 High DOHC AJ200 Petrol, Proconve L6 Emissions, EU2, Stage V European Emissions) ((V) FROMJA000001)
Rating: 4.5 (1 reviews)

Front Exhaust System (Solihull Plant Build) (2.0L AJ200P Hi PHEV, EU6 Emissions, 2.0L I4 High DOHC AJ200 Petrol, Proconve L6 Emissions, EU2, Stage V European Emissions) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Front Exhaust System (Solihull Plant Build) (2.0L AJ200P Hi PHEV, EU6 Emissions, 2.0L I4 High DOHC...

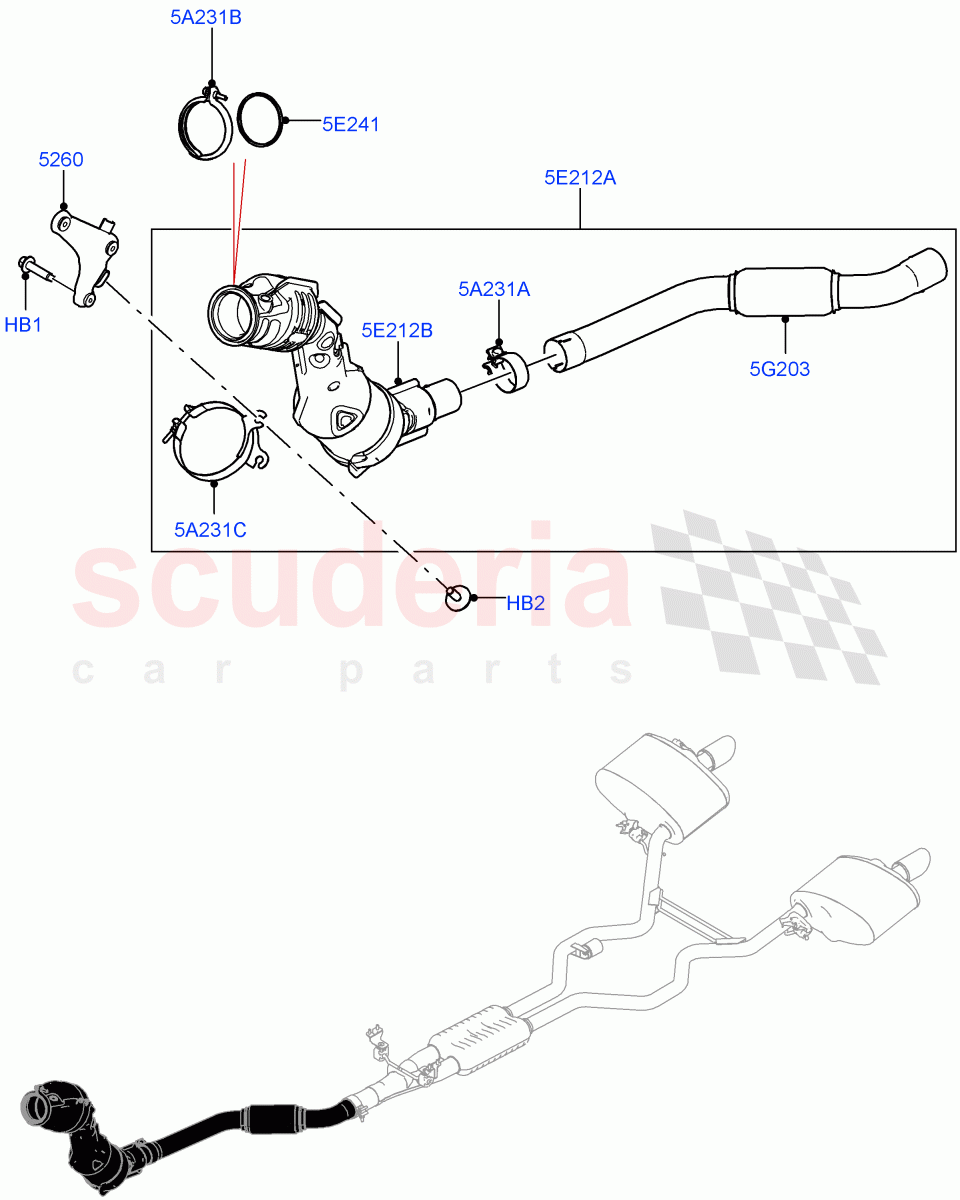

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500290	BOLT - HEX.HEAD	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR107009	BOLT AND WASHER - HEX.HEAD	$1.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106825	BRACKET - EXHAUST PIPE MOUNTING	$103.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$20.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167010	PIPE - EXHAUST - FRONT	$370.08	To Order
	LR167010	PIPE - EXHAUST - FRONT	$370.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077700	CLAMP - EXHAUST	$45.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105414	CLAMP - EXHAUST	$49.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092891	BELLY BAND BRACKET - EXHAUST	$57.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100564	CATALYTIC CONVERTER	$1,510.34	To Order
	LR146851	CATALYTIC CONVERTER	$2,679.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170910	CATALYTIC CONVERTER	$2,349.08	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500290	BOLT - HEX.HEAD IN STOCK	RYG500290 BOLT - HEX.HEAD Hexagonal Head, M8 x 30MM, To Transmission / From: JA000001 IN STOCK	$0.52	3
HB2	LR107009	BOLT AND WASHER - HEX.HEAD	LR107009 BOLT AND WASHER - HEX.HEAD M8 X 22MM, Support Bracket / From: JA000001	$1.80	2
5A231A	LR077700	CLAMP - EXHAUST	LR077700 CLAMP - EXHAUST 65MM, Exhaust pipe / From: JA000001	$45.29	1
5A231B	LR105414	CLAMP - EXHAUST	LR105414 CLAMP - EXHAUST 120MM, Turbocharger Outlet / From: JA000001	$49.62	1
5A231C	LR092891	BELLY BAND BRACKET - EXHAUST	LR092891 BELLY BAND BRACKET - EXHAUST Belly Band / From: JA000001	$57.49	1
5E212A	LR100564	CATALYTIC CONVERTER	LR100564 CATALYTIC CONVERTER Assembly / From: JA000001 / To: MA417555	$1,510.34	1
5E212A	LR146851	CATALYTIC CONVERTER	LR146851 CATALYTIC CONVERTER Assembly / From: MA417556	$2,679.79	1
5E212B	LR170910	CATALYTIC CONVERTER	LR170910 CATALYTIC CONVERTER From: JA000001	$2,349.08	1
5E241	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER Turbocharger Outlet / From: JA000001	$20.75	1
5G203	LR167010	PIPE - EXHAUST - FRONT	LR167010 PIPE - EXHAUST - FRONT From: JA000001 / To: MA456907	$370.08	1
5G203	LR167010	PIPE - EXHAUST - FRONT	LR167010 PIPE - EXHAUST - FRONT From: MA456908	$370.08	1
5260	LR106825	BRACKET - EXHAUST PIPE MOUNTING	LR106825 BRACKET - EXHAUST PIPE MOUNTING To Transmission / From: JA000001	$103.16	1
