Name: Oil Pump (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)
Rating: 4.5 (1 reviews)

View All

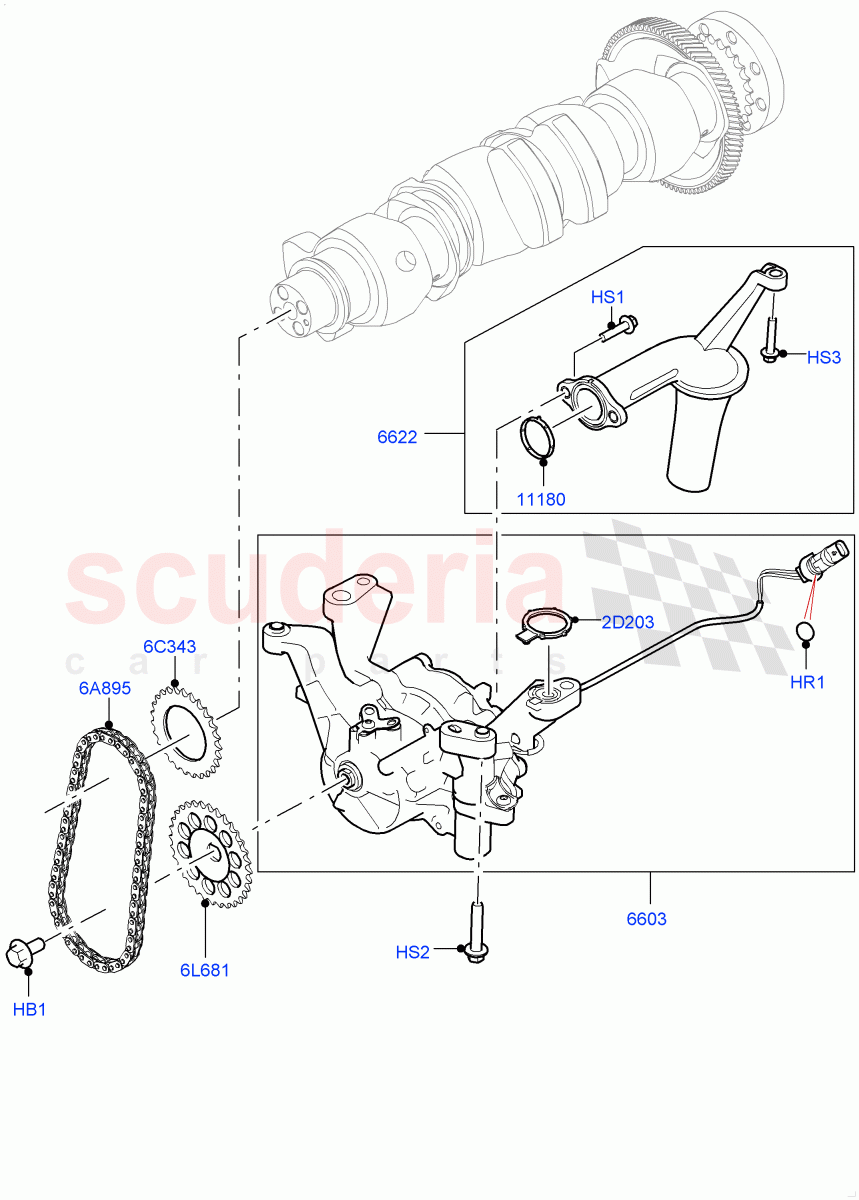

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073766	BOLT - FLANGED HEX.	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133731	RING - SEALING	$4.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR110501	PUMP - OIL & VACUUM	$607.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085934	TUBE - OIL PUMP INLET	$58.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133946	GASKET - OIL PUMP INLET TUBE	$6.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133733	RING - SEALING	$30.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073751	CHAIN - OIL PUMP DRIVE	$139.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073750	SPROCKET - CRANKSHAFT	$73.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073763	SPROCKET - OIL PUMP DRIVE	$57.68	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR073766	BOLT - FLANGED HEX.	LR073766 BOLT - FLANGED HEX. M9 X 20MM / From: JA000001	$2.85	1
HR1	LR133731	RING - SEALING	LR133731 RING - SEALING 3/8" / From: JA000001	$4.78	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: JA000001	$1.35	2
HS2	LR073649	SCREW	LR073649 SCREW M8 x 40MM, Oil Pump / From: JA000001	$2.52	4
HS3	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: JA000001 IN STOCK	$2.67	1
2D203	LR133733	RING - SEALING	LR133733 RING - SEALING From: JA000001	$30.99	1
6A895	LR073751	CHAIN - OIL PUMP DRIVE	LR073751 CHAIN - OIL PUMP DRIVE From: JA000001	$139.92	1
6C343	LR073750	SPROCKET - CRANKSHAFT	LR073750 SPROCKET - CRANKSHAFT Crankshaft / From: JA000001	$73.10	1
6L681	LR073763	SPROCKET - OIL PUMP DRIVE	LR073763 SPROCKET - OIL PUMP DRIVE Oil Pump / From: JA000001	$57.68	1
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM From: JA000001	$607.40	1
6622	LR085934	TUBE - OIL PUMP INLET	LR085934 TUBE - OIL PUMP INLET From: JA000001	$58.62	1
11180	LR133946	GASKET - OIL PUMP INLET TUBE	LR133946 GASKET - OIL PUMP INLET TUBE Pickup Pipe / From: JA000001	$6.94	1

Oil Pump (Solihull Plant Build) (2.0L Aj200P Hi Phev, 2.0L I4 High Dohc Aj200 Petrol) ((V)...

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]
