Name: Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)
Rating: 4.4 (1 reviews)

Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200...

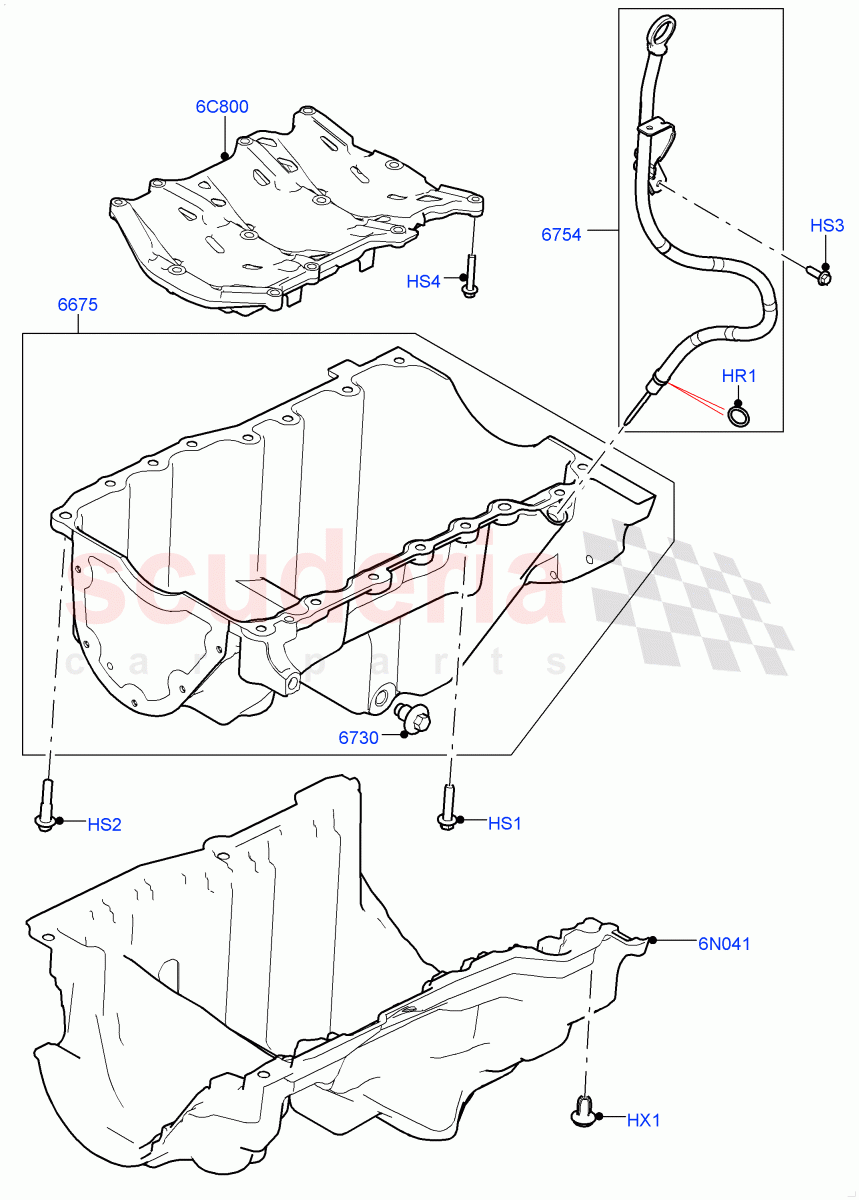

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$5.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085937	PAN - ENGINE OIL	$786.25	To Order
	LR154108	PAN - ENGINE OIL	$786.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154091	PLUG - OIL DRAIN	$14.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100573	TUBE - OIL LEVEL INDICATOR	$56.17	To Order
	LR118346	TUBE - OIL LEVEL INDICATOR	$56.54	To Order
	LR164060	TUBE - OIL LEVEL INDICATOR	$56.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085474	TRAY - WINDAGE	$446.34	To Order
	LR130052	TRAY - WINDAGE	$375.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082530	INSULATOR - ENGINE COMPARTMENT	$59.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator / From: JA000001	$5.17	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: JA000001	$2.34	14
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm / From: JA000001	$3.44	2
HS3	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: JA000001	$2.30	1
HS4	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: JA000001	$2.29	12
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: JA000001	$3.04	4
6C800	LR085474	TRAY - WINDAGE	LR085474 TRAY - WINDAGE From: JA000001 / To: LA580737	$446.34	1
6C800	LR130052	TRAY - WINDAGE	LR130052 TRAY - WINDAGE From: LA580738	$375.73	1
6N041	LR082530	INSULATOR - ENGINE COMPARTMENT	LR082530 INSULATOR - ENGINE COMPARTMENT Oil Pan / From: JA000001	$59.73	1
6675	LR085937	PAN - ENGINE OIL	LR085937 PAN - ENGINE OIL From: JA000001 / To: MA427806	$786.25	1
6675	LR154108	PAN - ENGINE OIL	LR154108 PAN - ENGINE OIL From: MA427807	$786.25	1
6730	LR154091	PLUG - OIL DRAIN	LR154091 PLUG - OIL DRAIN From: JA000001	$14.71	1
6754	LR100573	TUBE - OIL LEVEL INDICATOR	LR100573 TUBE - OIL LEVEL INDICATOR From: JA000001 / To: JA999999	$56.17	1
6754	LR118346	TUBE - OIL LEVEL INDICATOR	LR118346 TUBE - OIL LEVEL INDICATOR From: KA000001 / To: MA456532	$56.54	1
6754	LR164060	TUBE - OIL LEVEL INDICATOR	LR164060 TUBE - OIL LEVEL INDICATOR From: MA456533	$56.54	1
