Heater Hoses (3.0L Dohc Gdi Sc V6 Petrol, Fuel Heater W/Pk Heat With Remote, 5.0L P Aj133 Dohc Cda...

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Heater Hoses (3.0L DOHC GDI SC V6 PETROL, Fuel Heater W/Pk Heat With Remote, 5.0L P AJ133 DOHC CDA...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106166 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR011270 SCREW $1.23 To Order
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.50 IN STOCK
Photo Part No Description Price (each) Stock
LR010793 GASKET - WATER MANIFOLD $9.57 To Order
Photo Part No Description Price (each) Stock
LR091464 HOSE - HEATER WATER $60.86 To Order
LR110239 HOSE - HEATER WATER $76.09 To Order
LR116947 HOSE - HEATER WATER $121.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041442 SENSOR - ENGINE COOLANT TEMPERATURE $48.81 To Order
Photo Part No Description Price (each) Stock
LR091457 HOSE - HEATER WATER $101.83 To Order
LR114319 HOSE - HEATER WATER $101.83 To Order
LR117017 HOSE $186.51 To Order
Photo Part No Description Price (each) Stock
LR091446 TUBE - FUEL FEED $330.21 To Order
LR110237 TUBE - FUEL FEED $281.20 To Order
Photo Part No Description Price (each) Stock
LR141291 BRACKET $4.33 To Order
Photo Part No Description Price (each) Stock
LR087558 MANIFOLD - HEATER $132.85 To Order
LR109401 MANIFOLD - HEATER $123.33 To Order
LR122710 MANIFOLD - HEATER $139.13 To Order
...and 1 more part variants. See table on right for more details.
View All

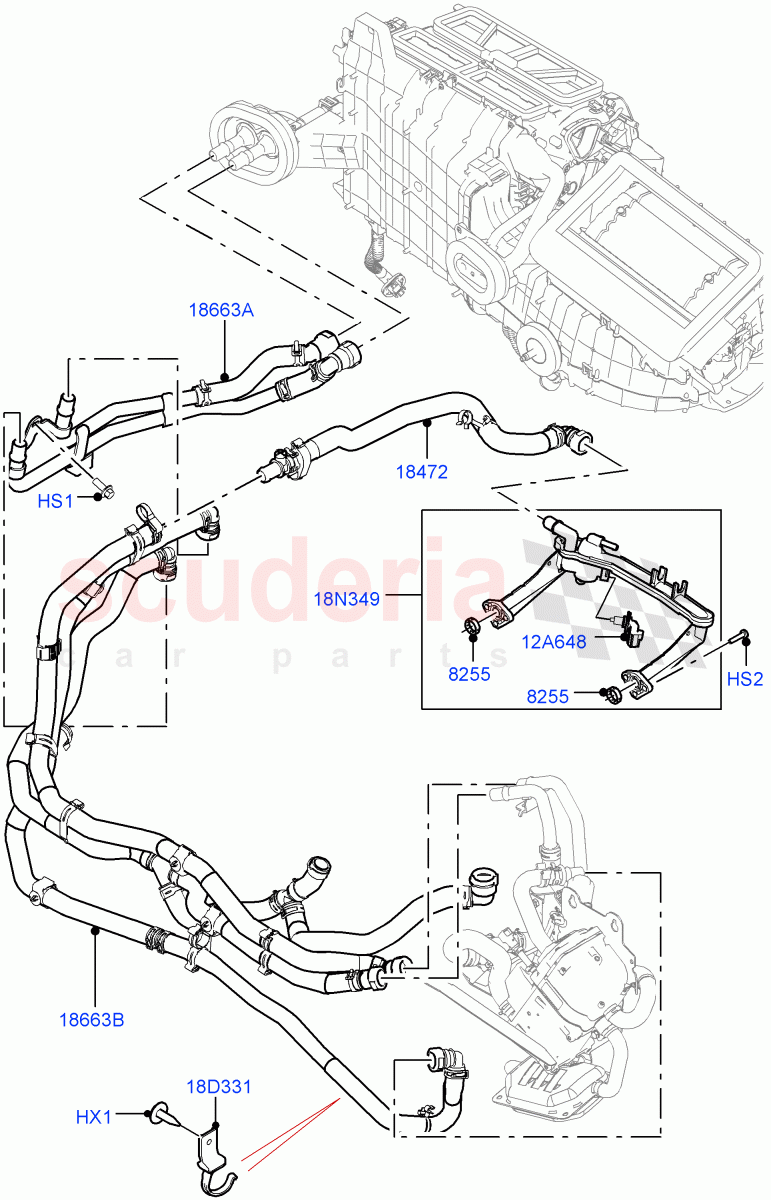

Heater Hoses (3.0L DOHC GDI SC V6 PETROL, Fuel Heater W/Pk Heat With Remote, 5.0L P AJ133 DOHC CDA S/C Enhanced) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.23 2
HS2 LR011270
SCREW
M6 x 25MM, Torx 		$1.23 6
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
3.0L DOHC GDI SC V6 PETROL, Less Immersion Heater / 6.3 X 22MM, Bracket, Push Pin
IN STOCK 		$1.50 1
12A648 LR041442
SENSOR - ENGINE COOLANT TEMPERATURE 		$48.81 1
18D331 LR141291
BRACKET
3.0L DOHC GDI SC V6 PETROL, Less Immersion Heater 		$4.33 1
18N349 LR087558
MANIFOLD - HEATER
To: JA726229 		$132.85 1
18N349 LR109401
MANIFOLD - HEATER
From: JA726230 / To: KA792019 		$123.33 1
18N349 LR122710
MANIFOLD - HEATER
3.0L DOHC GDI SC V6 PETROL / From: KA792020 		$139.13 1
18N349 LR122711
MANIFOLD - HEATER
5.0L P AJ133 DOHC CDA S/C Enhanced / From: KA792020 		$136.18 1
8255 LR010793
GASKET - WATER MANIFOLD 		$9.57 2
18472 LR091464
HOSE - HEATER WATER
To: KA785101 		$60.86 1
18472 LR110239
HOSE - HEATER WATER
3.0L DOHC GDI SC V6 PETROL / From: KA785102 		$76.09 1
18472 LR116947
HOSE - HEATER WATER
5.0L P AJ133 DOHC CDA S/C Enhanced / From: KA785102 / To: LA251888 		$121.45 1
18472 LR135631
HOSE - HEATER WATER
5.0L P AJ133 DOHC CDA S/C Enhanced / From: LA251889 		$121.45 1
18663A LR091457
HOSE - HEATER WATER
To: JA778426 		$101.83 1
18663A LR114319
HOSE - HEATER WATER
3.0L DOHC GDI SC V6 PETROL / From: JA778427 		$101.83 1
18663A LR117017
HOSE
5.0L P AJ133 DOHC CDA S/C Enhanced / From: KA000001 		$186.51 1
18663B LR091446
TUBE - FUEL FEED
To: KA235184 		$330.21 1
18663B LR110237
TUBE - FUEL FEED
From: KA235185 		$281.20 1
