Heater/Air Cond.internal Components (Heater Main Unit) (With Front Comfort Air Con (Ihka)) ((V)...

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Heater/Air Cond.Internal Components (Heater Main Unit) (With Front Comfort Air Con (IHKA)) ((V)...

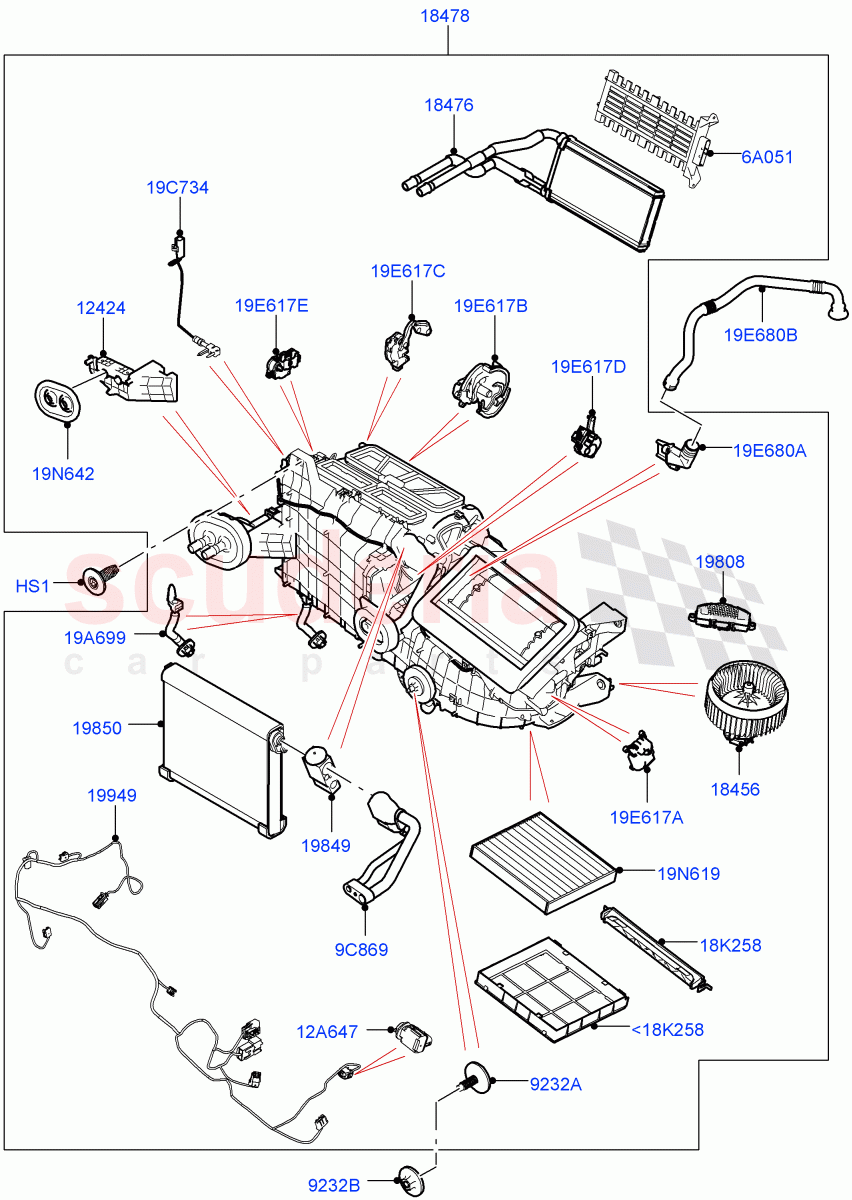

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR036394 SCREW AND WASHER $2.24 To Order
Photo Part No Description Price (each) Stock
LR093073 BRACKET - SUPPORT $18.46 To Order
LR093074 BRACKET - SUPPORT $18.73 To Order
Photo Part No Description Price (each) Stock
LR082160 STEPPER MOTOR - HEATER $310.93 To Order
LR082161 MOTOR - HEATER BLOWER $310.93 To Order
Photo Part No Description Price (each) Stock
LR093042 CORE - HEATER $154.16 To Order
LR093070 CORE - HEATER $161.85 To Order
Photo Part No Description Price (each) Stock
LR093010 HEATER & EVAPORATOR UNIT $2,007.18 To Order
LR093011 HEATER & EVAPORATOR UNIT $1,668.97 To Order
LR093012 HEATER & EVAPORATOR UNIT $1,606.09 To Order
...and 29 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082162 RESISTOR - HEATER BLOWER MOTOR $166.23 To Order
Photo Part No Description Price (each) Stock
LR093044 VALVE - EVAPORATOR EXPANSION $200.43 To Order
Photo Part No Description Price (each) Stock
LR093043 EVAPORATOR $534.55 To Order
Photo Part No Description Price (each) Stock
LR093038 WIRE - AIR CONDITIONER $64.91 To Order
LR093069 WIRE - AIR CONDITIONER $74.68 To Order
Photo Part No Description Price (each) Stock
LR093035 PTC HEATER $187.22 To Order
Photo Part No Description Price (each) Stock
LR093062 NUT - SPECIAL $3.81 To Order
Photo Part No Description Price (each) Stock
LR093063 NUT - SPECIAL $2.65 To Order
Photo Part No Description Price (each) Stock
LR093046 TUBE- A/C EVAPORATOR INLET & OUTLET $126.75 To Order
Photo Part No Description Price (each) Stock
LR085678 SENSOR - AIR COND. AMBIENT AIR $112.56 IN STOCK
Photo Part No Description Price (each) Stock
LR093041 CARRIER - FILTER $23.71 To Order
Photo Part No Description Price (each) Stock
LR093032 TUBE - WATER DRAIN $52.10 To Order
LR110381 TUBE - WATER DRAIN $54.49 To Order
Photo Part No Description Price (each) Stock
LR036374 SENSOR - HEATER TEMPERATURE CONTROL $65.05 To Order
Photo Part No Description Price (each) Stock
LR161566 FILTER - ODOUR AND PARTICLES $86.48 IN STOCK
VPLGS0478 FILTER - ODOUR AND PARTICLES $109.59 To Order
Photo Part No Description Price (each) Stock
LR035867 GROMMET - HEATER $10.62 To Order
Photo Part No Description Price (each) Stock
LR036370 CARRIER - FILTER $39.88 To Order
Photo Part No Description Price (each) Stock
LR093031 STEPPER MOTOR - HEATER $157.00 To Order
LR093013 STEPPER MOTOR - HEATER $131.12 To Order
LR143149 STEPPER MOTOR - HEATER $144.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR146124 STEPPER MOTOR - HEATER $132.88 To Order
Photo Part No Description Price (each) Stock
LR093015 STEPPER MOTOR - HEATER $141.37 To Order
Photo Part No Description Price (each) Stock
LR093016 STEPPER MOTOR - HEATER $171.43 To Order
Photo Part No Description Price (each) Stock
LR093014 STEPPER MOTOR - HEATER $161.47 To Order
Photo Part No Description Price (each) Stock
LR093050 TUBE - COOL BOX $11.56 To Order
LR093071 TUBE - COOL BOX $11.56 To Order
Photo Part No Description Price (each) Stock
LR095017 TUBE - VENTILATION $121.40 To Order
LR095019 TUBE - VENTILATION $132.69 To Order
View All
Heater/Air Cond.Internal Components (Heater Main Unit) (With Front Comfort Air Con (IHKA)) ((V) TOLA999999) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<18K258 LR036370
CARRIER - FILTER 		$39.88 1
HS1 LR036394
SCREW AND WASHER
M6 X 23MM, Torx 		$2.24 6
6A051 LR093035
PTC HEATER
With Ptc Heater 		$187.22 1
9C869 LR093046
TUBE- A/C EVAPORATOR INLET & OUTLET
Evaporator Inlet/Outlet, Includes O-Rings 		$126.75 1
12A647 LR085678
SENSOR - AIR COND. AMBIENT AIR
IN STOCK 		$112.56 1
18K258 LR093041
CARRIER - FILTER 		$23.71 1
19A699 LR093032
TUBE - WATER DRAIN
To: JA739321 		$52.10 2
19A699 LR110381
TUBE - WATER DRAIN
From: JA739322 		$54.49 1
19C734 LR036374
SENSOR - HEATER TEMPERATURE CONTROL 		$65.05 1
19E617A LR093031
STEPPER MOTOR - HEATER
RHD / Fresh/Recirculated Air Door Control, With Fixing Parts / To: LA280516 		$157.00 1
19E617A LR093013
STEPPER MOTOR - HEATER
LHD / Fresh/Recirculated Air Door Control, With Fixing Parts / To: LA280516 		$131.12 1
19E617A LR143149
STEPPER MOTOR - HEATER
LHD / Fresh/Recirculated Air Door Control, With Fixing Parts / From: LA280517 		$144.50 1
19E617A LR143150
STEPPER MOTOR - HEATER
RHD / Fresh/Recirculated Air Door Control, With Fixing Parts / From: LA280517 		$156.78 1
19E617B LR146124
STEPPER MOTOR - HEATER
RH, Air Mix Air Door Control, With Fixing Parts 		$132.88 1
19E617C LR093015
STEPPER MOTOR - HEATER
RH, Air Mix Air Door Control, With Fixing Parts 		$141.37 1
19E617D LR093016
STEPPER MOTOR - HEATER
LH, Air Mix Air Door Control, With Fixing Parts 		$171.43 1
19E617E LR093014
STEPPER MOTOR - HEATER
Defrost Air Door Control, With Fixing Parts 		$161.47 1
19E680A LR093050
TUBE - COOL BOX
LHD, With Cooled Glove Box 		$11.56 1
19E680A LR093071
TUBE - COOL BOX
RHD, With Cooled Glove Box 		$11.56 1
19E680B LR095017
TUBE - VENTILATION
LHD, With Cooled Glove Box / To Glove Box 		$121.40 1
19E680B LR095019
TUBE - VENTILATION
RHD, With Cooled Glove Box / To Glove Box 		$132.69 1
19N619 LR161566
FILTER - ODOUR AND PARTICLES
195mm x 216mm x 30mm, Odour Filter, Standard
IN STOCK 		$86.48 1
19N619 VPLGS0478
FILTER - ODOUR AND PARTICLES
195mm x 216mm x 30mm, Odour Filter, PM 2.5 Upgrade 		$109.59 1
19N642 LR035867
GROMMET - HEATER 		$10.62 1
9232A LR093062
NUT - SPECIAL
Inner And Outer, Threaded 		$3.81 1
9232B LR093063
NUT - SPECIAL
Inner, Threaded 		$2.65 1
12424 LR093073
BRACKET - SUPPORT
RHD 		$18.46 1
12424 LR093074
BRACKET - SUPPORT
LHD 		$18.73 1
18456 LR082160
STEPPER MOTOR - HEATER
LHD 		$310.93 1
18456 LR082161
MOTOR - HEATER BLOWER
RHD 		$310.93 1
18476 LR093042
CORE - HEATER
LHD 		$154.16 1
18476 LR093070
CORE - HEATER
RHD 		$161.85 1
18478 LR093010
HEATER & EVAPORATOR UNIT
RHD, With Cooled Glove Box, With Ptc Heater / To: JA739321 		$2,007.18 1
18478 LR093011
HEATER & EVAPORATOR UNIT
Less Heater, RHD, With Standard Glove Box / To: JA739321 		$1,668.97 1
18478 LR093012
HEATER & EVAPORATOR UNIT
RHD, With Ptc Heater, With Standard Glove Box / To: JA739321 		$1,606.09 1
18478 LR093004
HEATER & EVAPORATOR UNIT
LHD, With Cooled Glove Box, With Ptc Heater / To: JA739321 		$1,718.90 1
18478 LR093006
HEATER & EVAPORATOR UNIT
LHD, With Ptc Heater, With Standard Glove Box / To: JA739321 		$1,825.71 1
18478 LR093003
HEATER & EVAPORATOR UNIT
LHD, Less Heater, With Cooled Glove Box / To: JA739321 		$1,831.09 1
18478 LR093005
HEATER & EVAPORATOR UNIT
LHD, Less Heater, With Standard Glove Box / To: JA739321 		$1,668.97 1
18478 LR093009
HEATER & EVAPORATOR UNIT
Less Heater, RHD, With Cooled Glove Box / To: JA739321 		$1,831.09 1
18478 LR110360
HEATER & EVAPORATOR UNIT
LHD, Less Heater, With Cooled Glove Box / From: JA739322 / To: KA201183 		$1,831.09 1
18478 LR110362
HEATER & EVAPORATOR UNIT
LHD, With Cooled Glove Box, With Ptc Heater / From: JA739322 / To: KA201183 		$2,007.18 1
18478 LR110364
HEATER & EVAPORATOR UNIT
LHD, Less Heater, With Standard Glove Box / From: JA739322 / To: KA201183 		$1,620.35 1
18478 LR110367
HEATER & EVAPORATOR UNIT
LHD, With Ptc Heater, With Standard Glove Box / From: JA739322 / To: KA201183 		$1,790.25 1
18478 LR110371
HEATER & EVAPORATOR UNIT
Less Heater, RHD, With Cooled Glove Box / From: JA739322 / To: KA201183 		$1,831.09 1
18478 LR110372
HEATER & EVAPORATOR UNIT
RHD, With Cooled Glove Box, With Ptc Heater / From: JA739322 / To: KA201183 		$2,007.18 1
18478 LR110375
HEATER & EVAPORATOR UNIT
Less Heater, RHD, With Standard Glove Box / From: JA739322 / To: KA201183 		$1,538.21 1
18478 LR110377
HEATER & EVAPORATOR UNIT
RHD, With Ptc Heater, With Standard Glove Box / From: JA739322 / To: KA201183 		$1,790.25 1
18478 LR118358
HEATER & EVAPORATOR UNIT
Less Heater, RHD, With Cooled Glove Box / From: KA201184 / To: KA228129 		$1,831.09 1
18478 LR118359
HEATER & EVAPORATOR UNIT
RHD, With Cooled Glove Box, With Ptc Heater / From: KA201184 / To: KA228129 		$2,007.18 1
18478 LR118360
HEATER & EVAPORATOR UNIT
Less Heater, RHD, With Standard Glove Box / From: KA201184 / To: KA228129 		$1,652.43 1
18478 LR118361
HEATER & EVAPORATOR UNIT
RHD, With Ptc Heater, With Standard Glove Box / From: KA201184 / To: KA228129 		$1,615.14 1
18478 LR118354
HEATER & EVAPORATOR UNIT
LHD, Less Heater, With Cooled Glove Box / From: KA201184 / To: KA228129 		$1,831.09 1
18478 LR118355
HEATER & EVAPORATOR UNIT
LHD, With Cooled Glove Box, With Ptc Heater / From: KA201184 / To: KA228129 		$1,479.33 1
18478 LR118356
HEATER & EVAPORATOR UNIT
LHD, Less Heater, With Standard Glove Box / From: KA201184 / To: KA228129 		$1,500.76 1
18478 LR118357
HEATER & EVAPORATOR UNIT
LHD, With Ptc Heater, With Standard Glove Box / From: KA201184 / To: KA228129 		$1,345.56 1
18478 LR134770
HEATER & EVAPORATOR UNIT
Less Heater, RHD, With Cooled Glove Box / From: KA228130 		$1,831.09 1
18478 LR134772
HEATER & EVAPORATOR UNIT
RHD, With Cooled Glove Box, With Ptc Heater / From: KA228130 		$2,007.18 1
18478 LR134775
HEATER & EVAPORATOR UNIT
Less Heater, RHD, With Standard Glove Box / From: KA228130 		$1,897.25 1
18478 LR134776
HEATER & EVAPORATOR UNIT
RHD, With Ptc Heater, With Standard Glove Box / From: KA228130 		$1,626.55 1
18478 LR134757
HEATER & EVAPORATOR UNIT
LHD, Less Heater, With Cooled Glove Box / From: KA228130 		$1,831.09 1
18478 LR134758
HEATER & EVAPORATOR UNIT
LHD, With Cooled Glove Box, With Ptc Heater / From: KA228130 		$2,007.18 1
18478 LR134760
HEATER & EVAPORATOR UNIT
LHD, Less Heater, With Standard Glove Box / From: KA228130 		$1,414.83 1

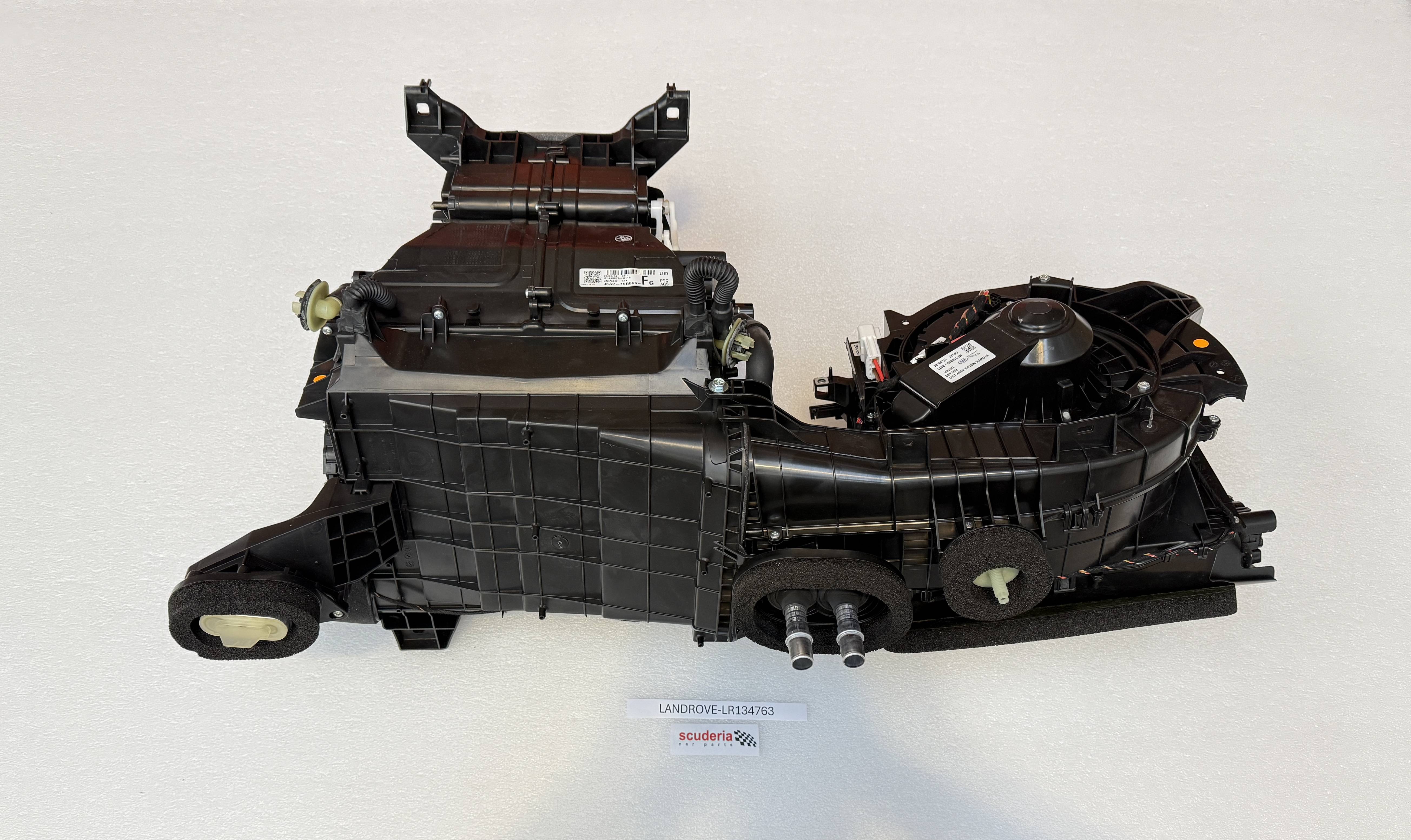

18478 LR134763
HEATER & EVAPORATOR UNIT
LHD, With Ptc Heater, With Standard Glove Box / From: KA228130
IN STOCK 		$1,141.41 1
19808 LR082162
RESISTOR - HEATER BLOWER MOTOR 		$166.23 1
19849 LR093044
VALVE - EVAPORATOR EXPANSION 		$200.43 1
19850 LR093043
EVAPORATOR 		$534.55 1
19949 LR093038
WIRE - AIR CONDITIONER
LHD 		$64.91 1
19949 LR093069
WIRE - AIR CONDITIONER
RHD 		$74.68 1
